Product Description

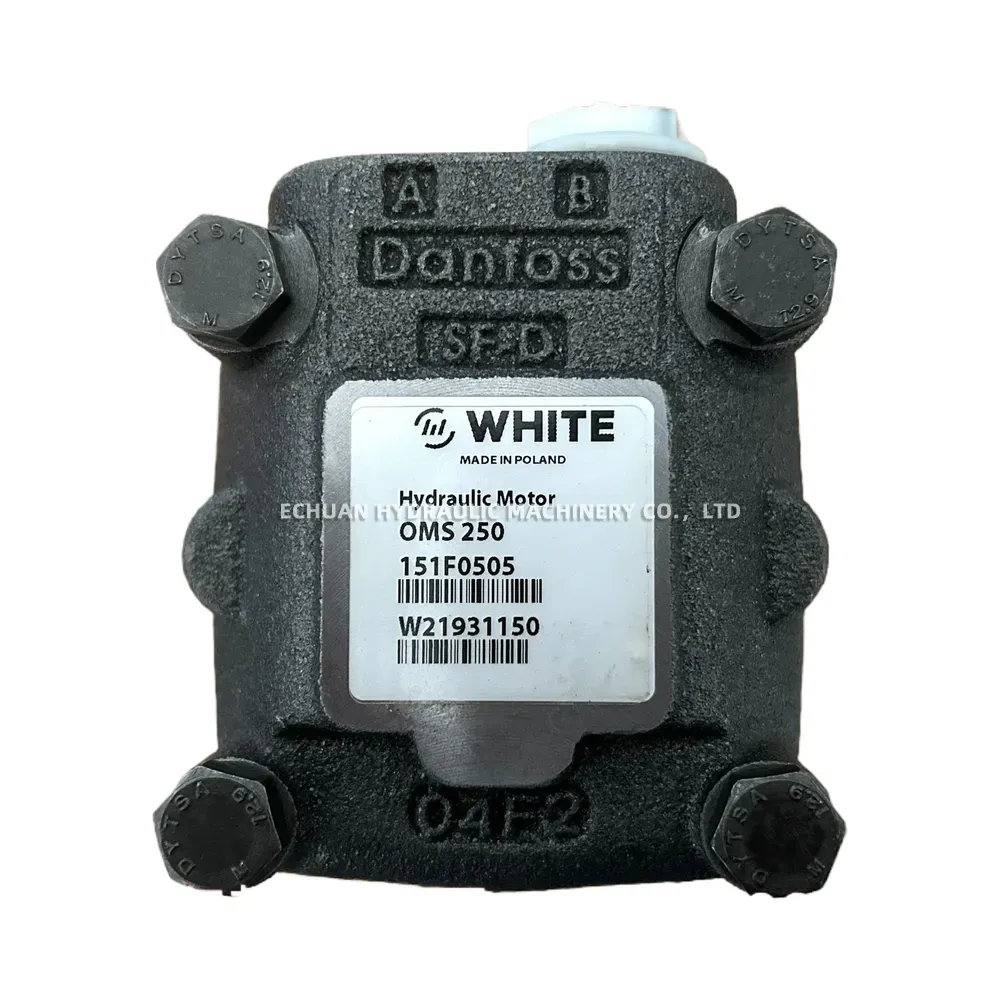

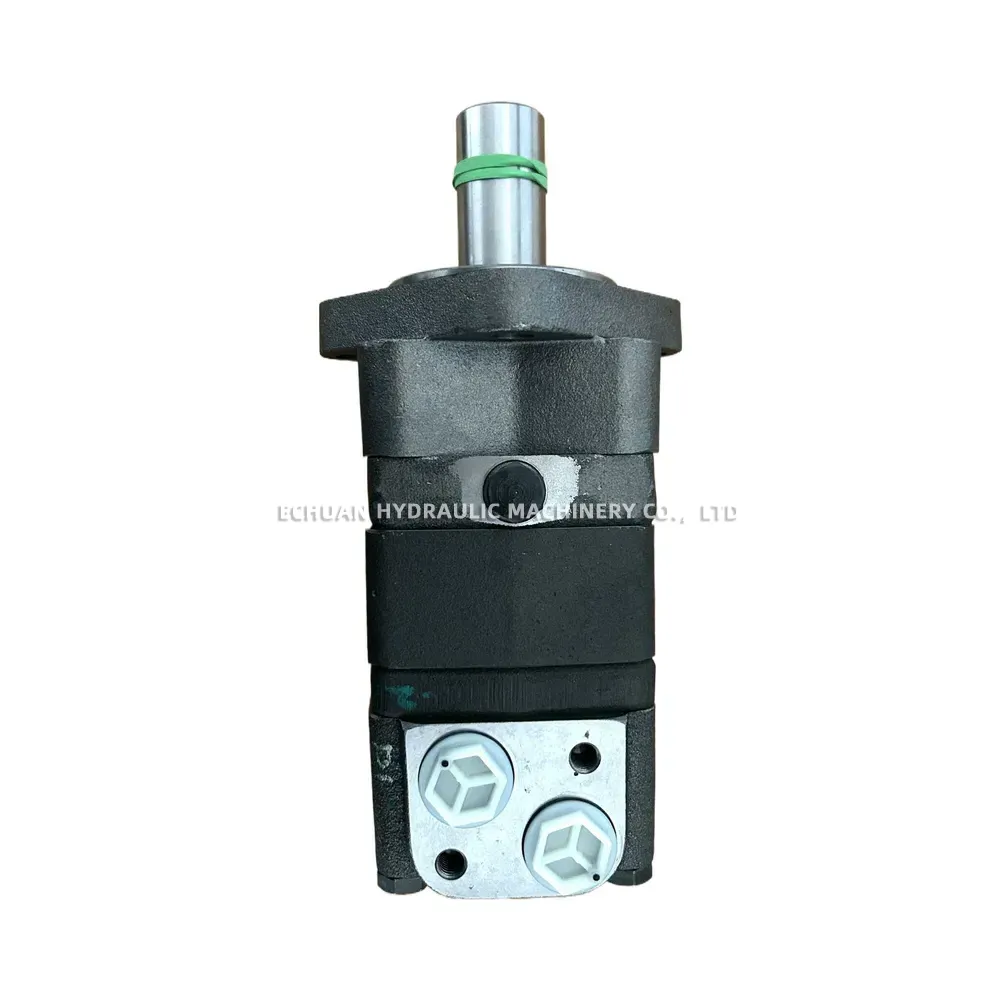

WHITE OMS250 151F0505 Hydraulic Motor
The WHITE OMS250 (Danfoss 151F0505) is a medium-duty orbital hydraulic motor known for its compact size and high performance. Part of the OMS series, it features a robust design with a gerotor gear set, providing smooth operation, high starting torque, and efficiency across a wide range of speeds. This motor is suitable for various industrial and mobile applications requiring reliable power transmission, including agricultural machinery, construction equipment, conveyors, and machine tools. Its design incorporates high-pressure shaft seals and integrated check valves for durability and versatility.
Technical Specifications:
- Manufacturer: Danfoss (formerly WHITE Drive Products)
- Series: OMS
- Model Number: 151F0505
- Displacement: 249.6 cm³/rev [15.23 in³/rev]

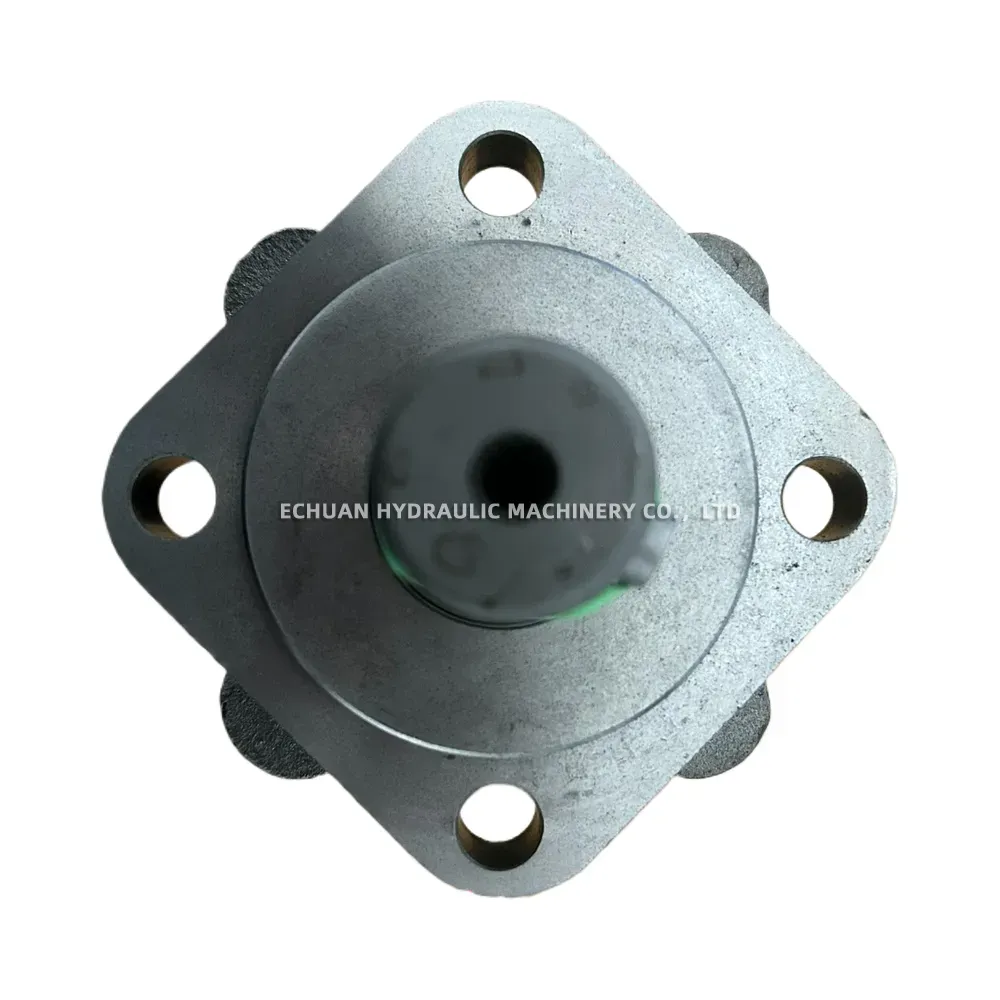

- Mounting Flange: 2-Bolt SAE A (Ø82.55 mm pilot)
- Shaft: Ø32 mm Cylindrical with Woodruff Key (10 x 8 x 45 mm – DIN 6885)
- Ports: G 1/2 Main Ports, G 1/4 Drain Port (BSP parallel thread)
- Max Continuous Speed: 300 rpm
- Max Intermittent Speed: 375 rpm
- Max Continuous Torque: 590 Nm [5220 lb-in]
- Max Intermittent Torque: 710 Nm [6280 lb-in]
- Max Continuous Pressure Drop: 175 bar [2550 psi]
- Max Intermittent Pressure Drop: 200 bar [2900 psi]
- Max Peak Pressure Drop: 225 bar [3250 psi]
- Max Continuous Oil Flow: 75 L/min [20 US gal/min]
- Max Intermittent Oil Flow: 90 L/min [24 US gal/min]
WHITE OMS250 151F0505
Model:WHITE OMS250 151F0505
