Product Description

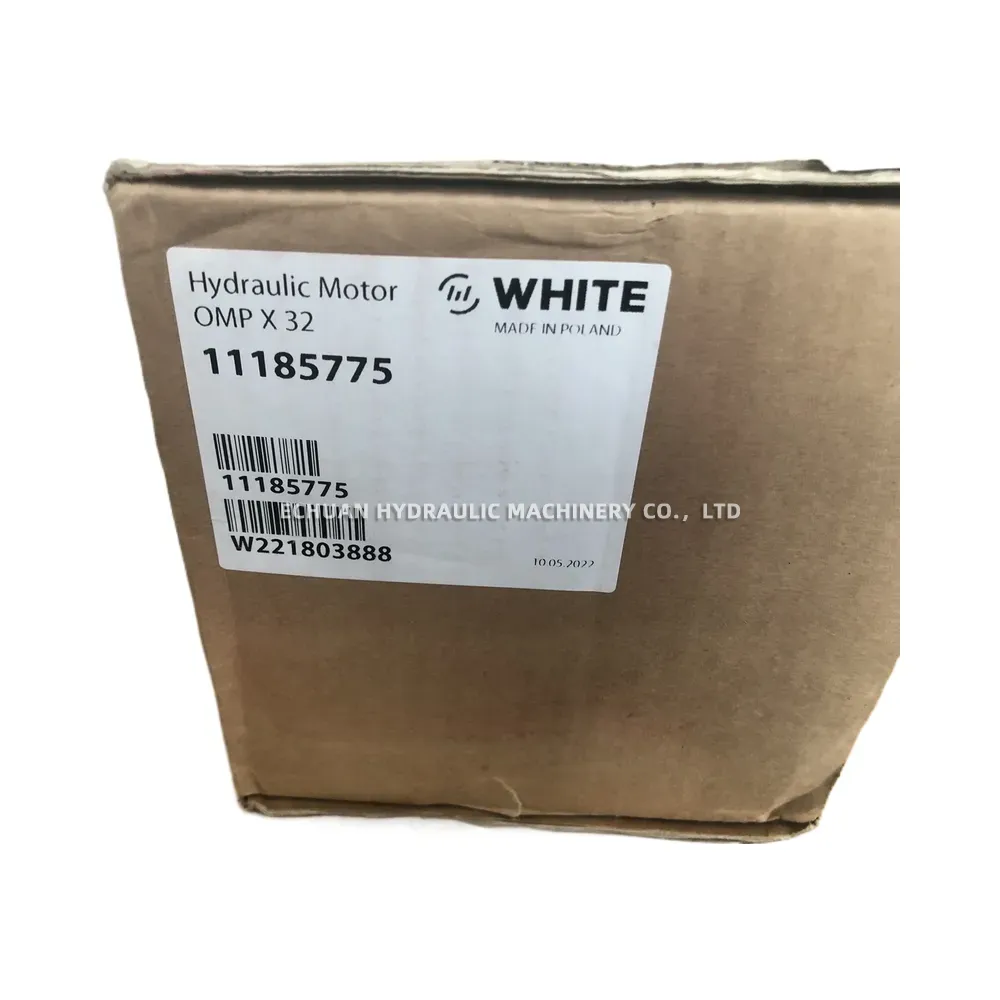

WHITE OMPX32 11185775

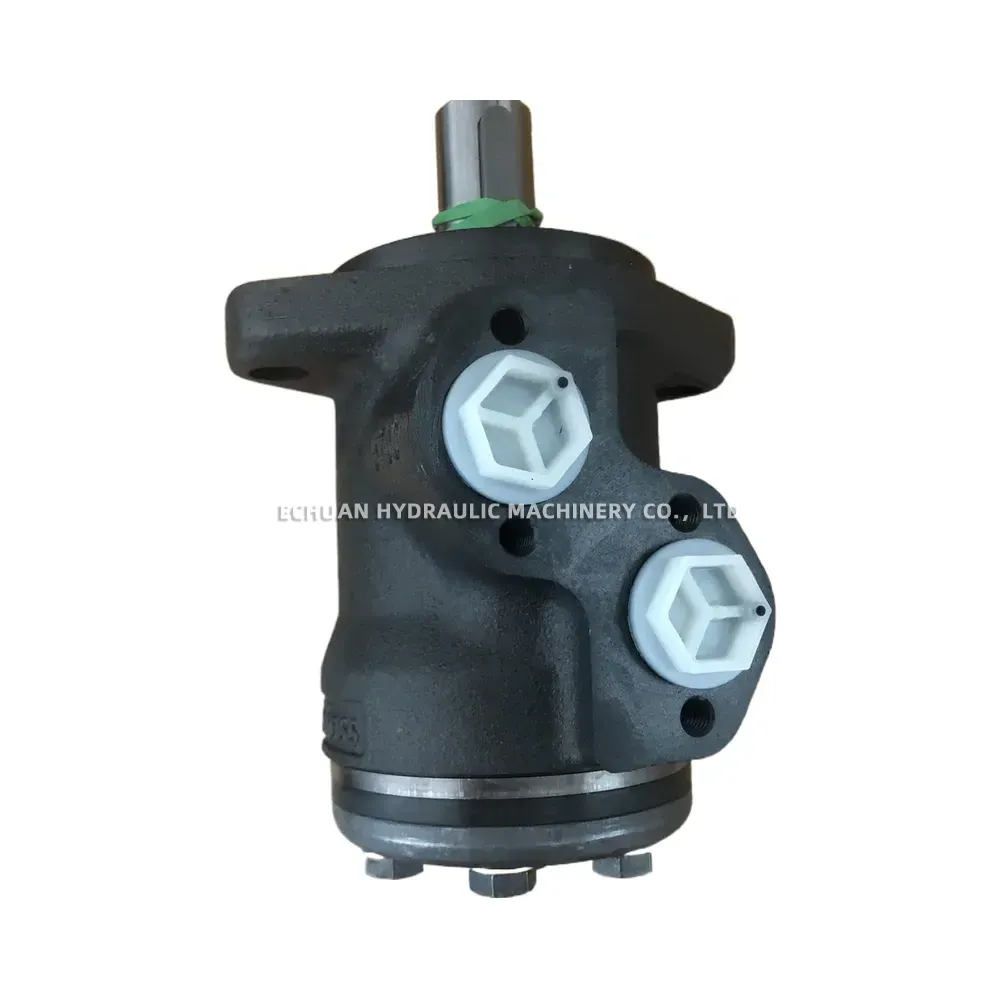

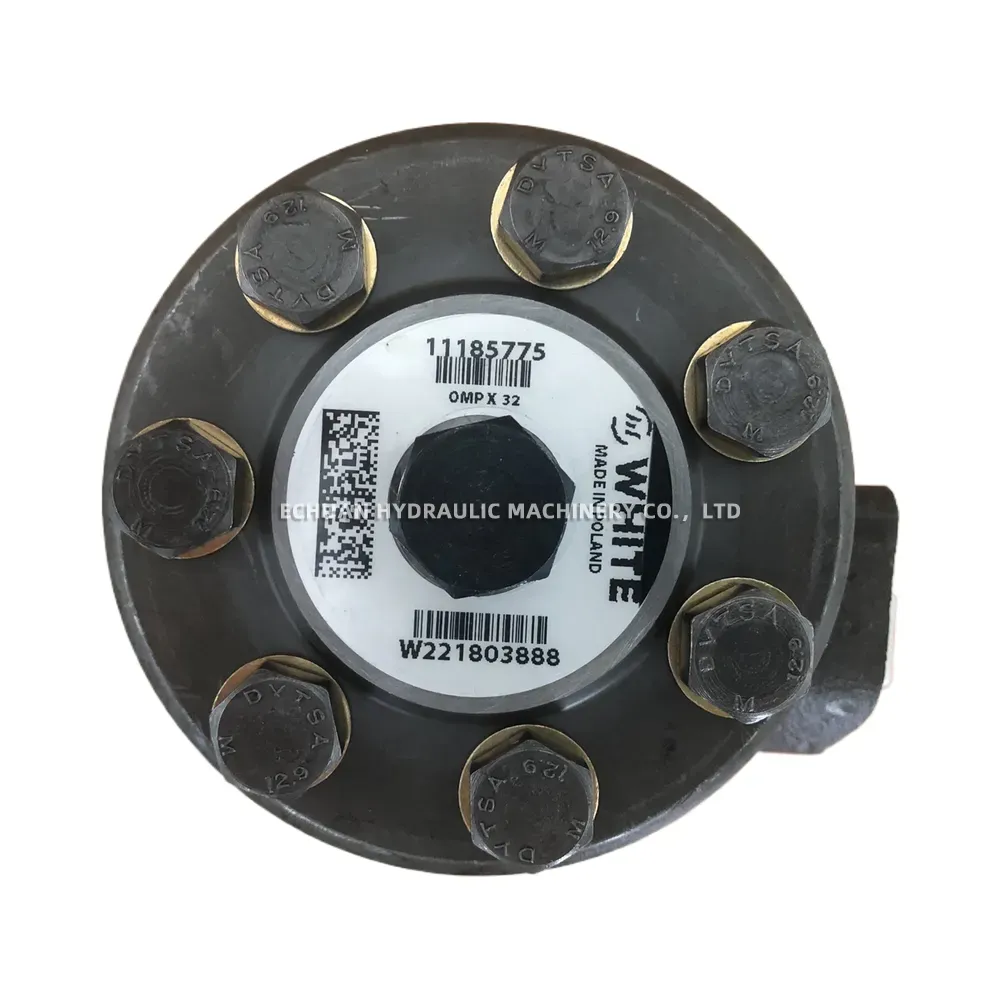

The WHITE OMPX32 11185775 is a compact and robust low-speed, high-torque (LSHT) orbital hydraulic motor, likely manufactured by Danfoss or under the White Drive Products brand (now part of Danfoss). This specific model features a 32 cm³/rev displacement and is finished in white paint. It is designed for continuous operation under demanding conditions, offering high efficiency and durability. Common applications include agricultural machinery, construction equipment, conveyors, machine tools, and other mobile or industrial systems requiring reliable hydraulic power in a small package.
Technical Specifications:
- Manufacturer Part Number: 11185775
- Series: OMP X (or equivalent White Drive Products series)
- Type: Orbital Gerotor Motor
- Displacement: 32 cm³/rev [1.95 in³/rev]

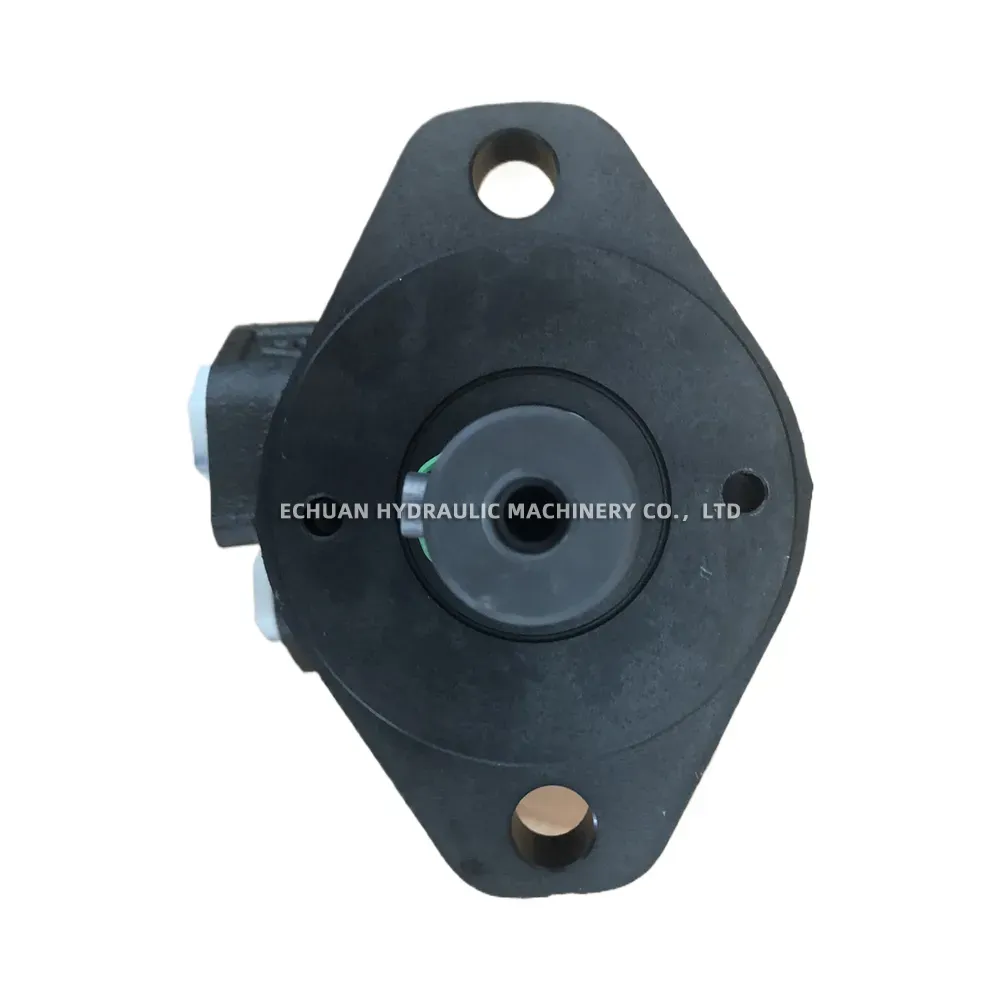

- Mounting Flange: SAE A 2-Bolt (82.55 mm pilot diameter)

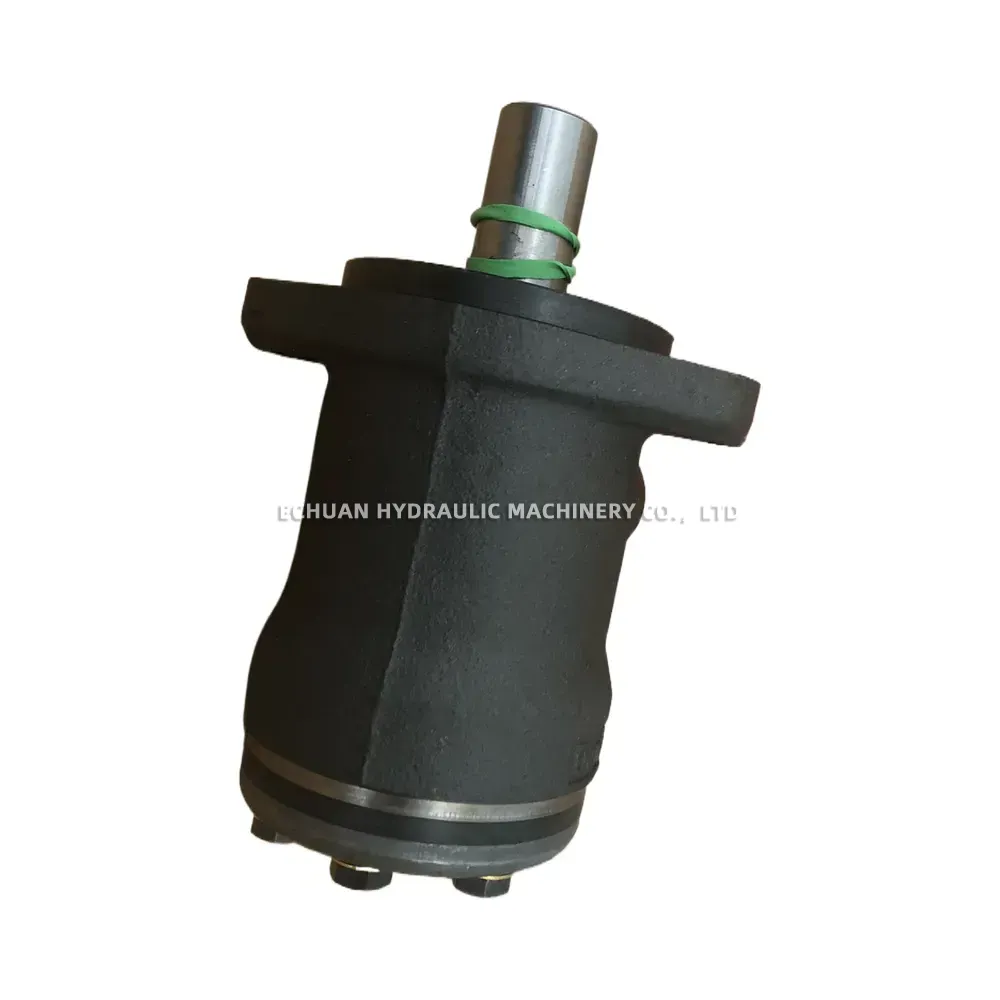

- Shaft: Ø25 mm parallel key (A8x7x32 DIN 6885)
- Ports (Main): G 1/2 (BSPP – ISO 228/1)
- Port (Drain): G 1/4 (BSPP – ISO 228/1)
- Max Continuous Speed: 1250 rpm
- Max Continuous Torque: 54 Nm [478 lb-in]
- Max Continuous Pressure Drop: 125 bar [1810 psi]
- Paint/Finish: White
WHITE OMPX32 11185775
Model:WHITE OMPX32 11185775
