Product Description

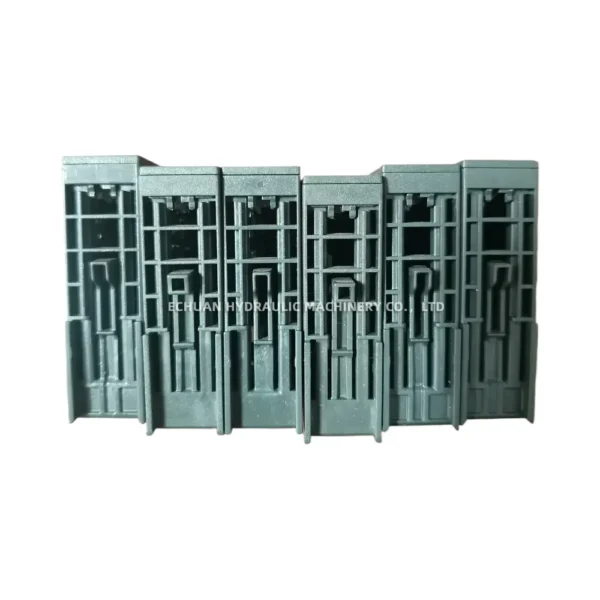

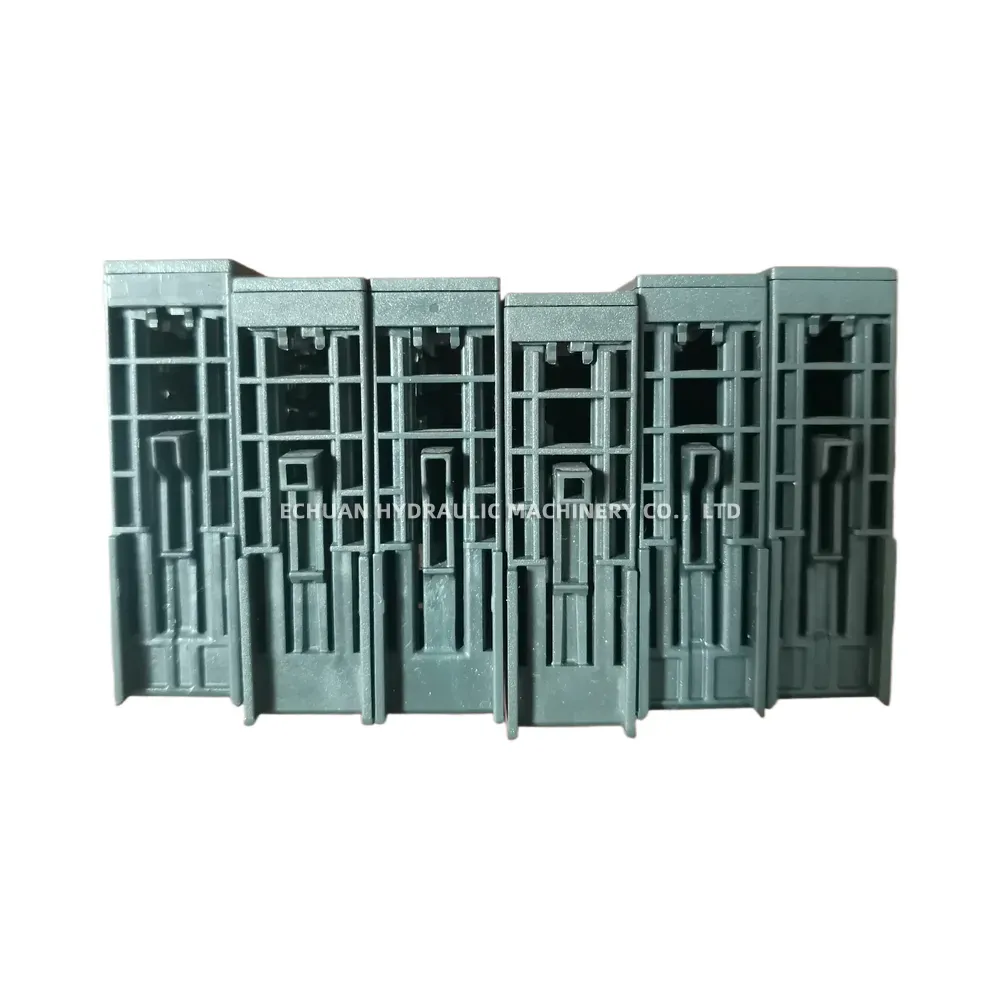

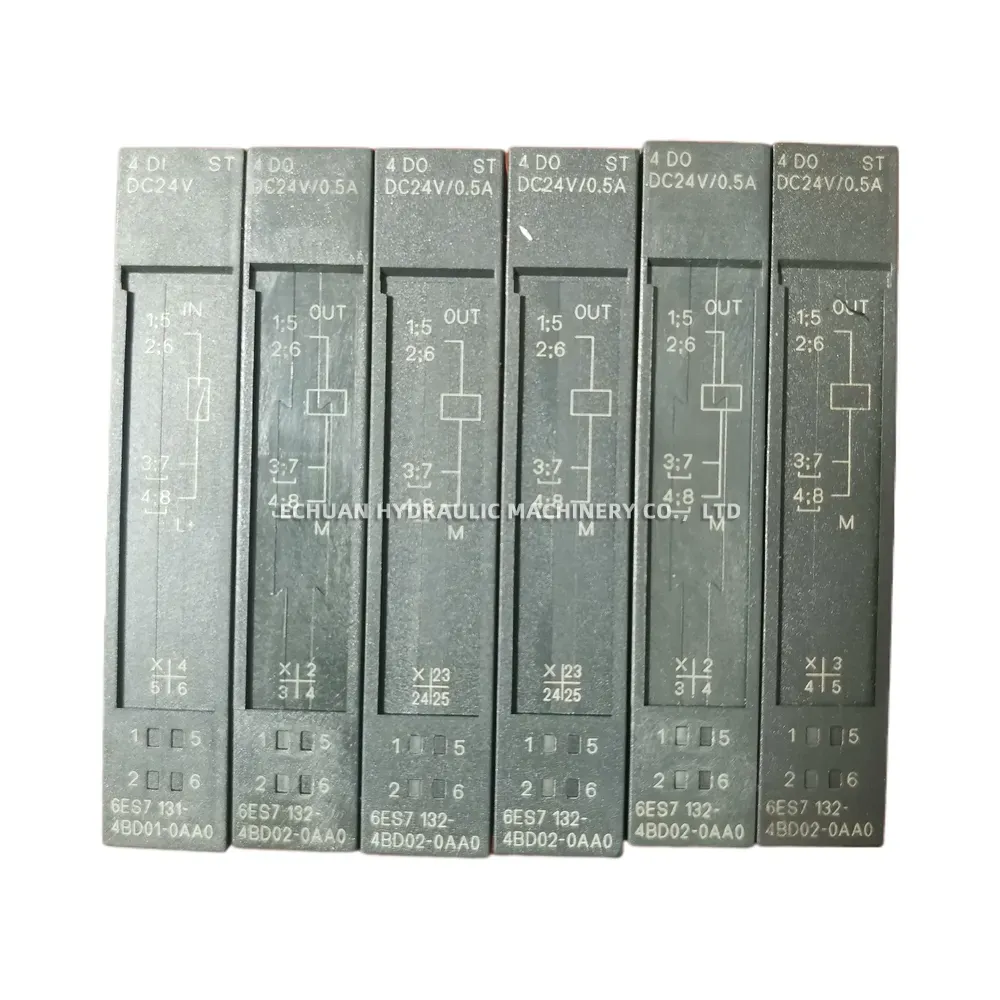

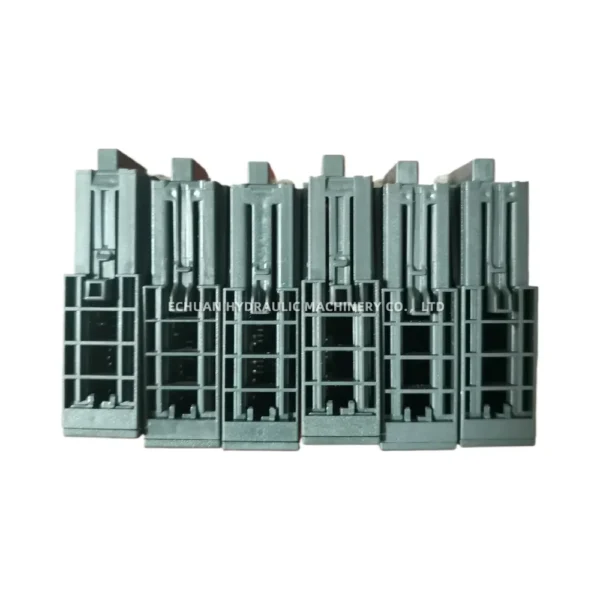

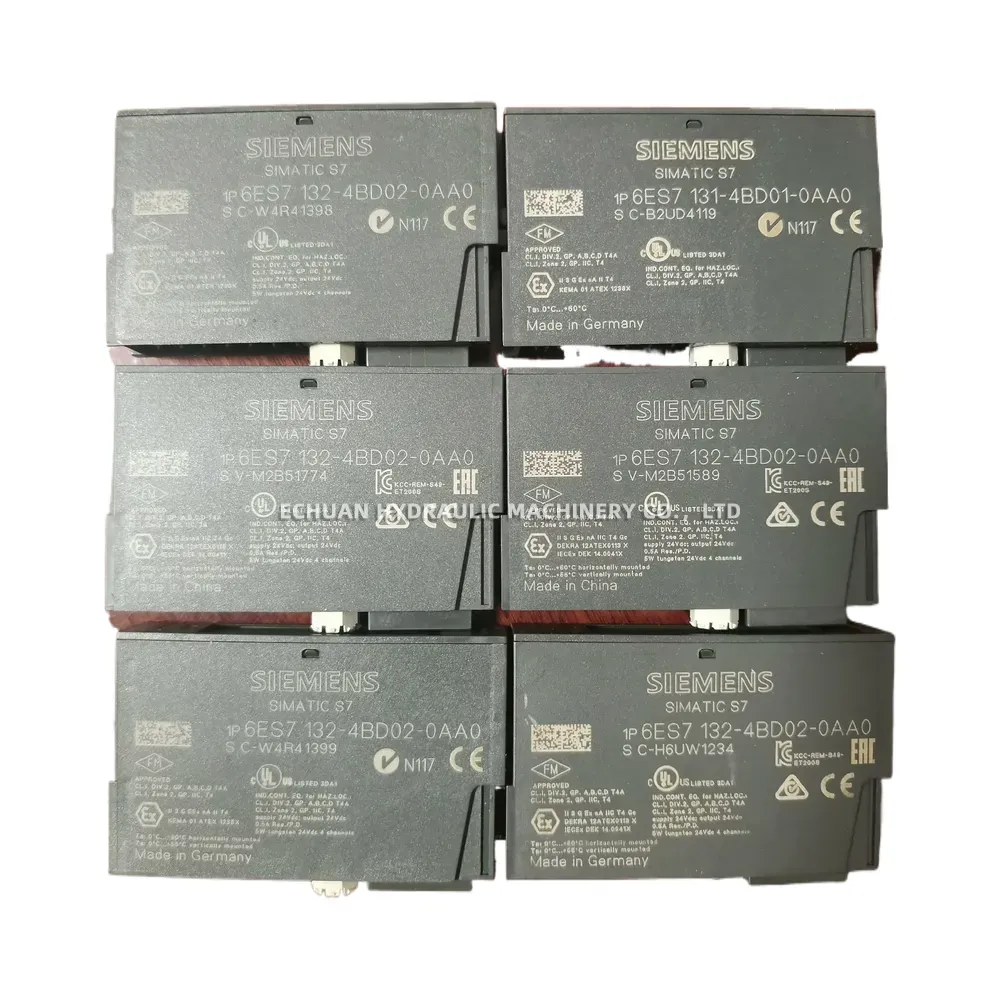

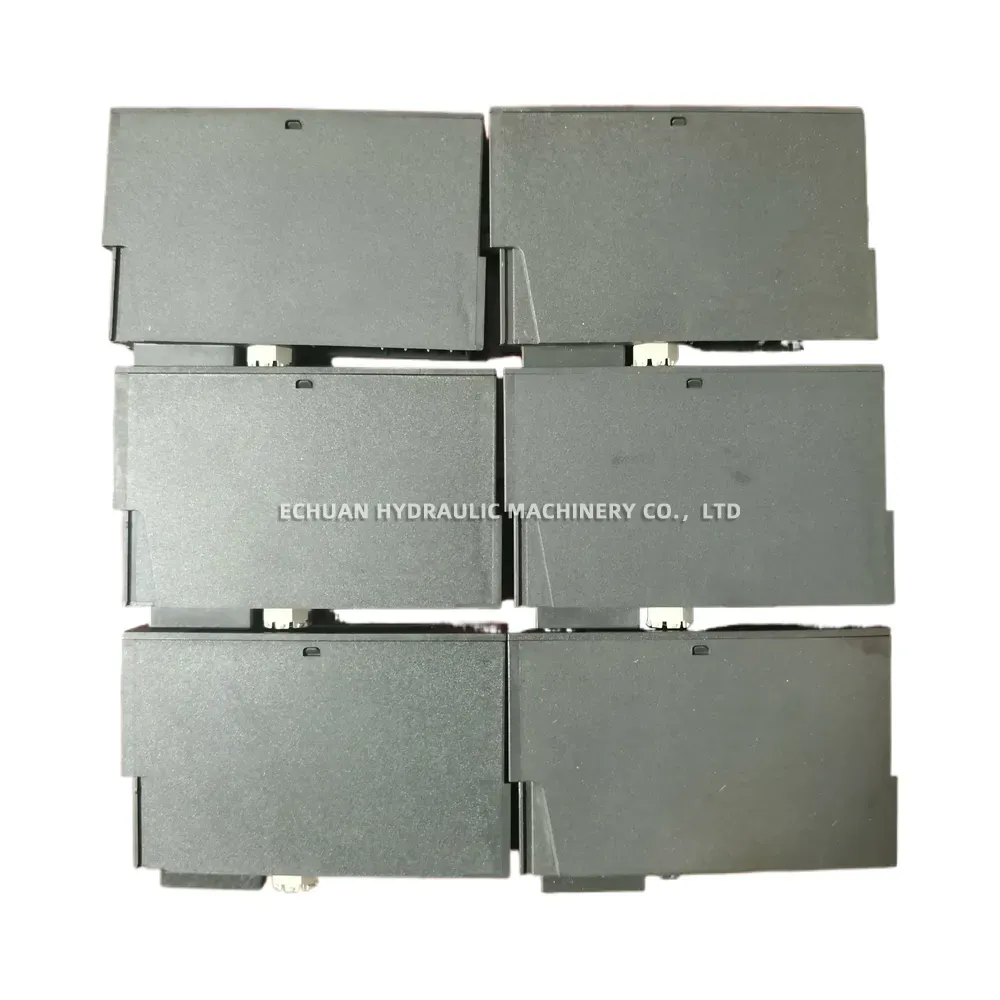

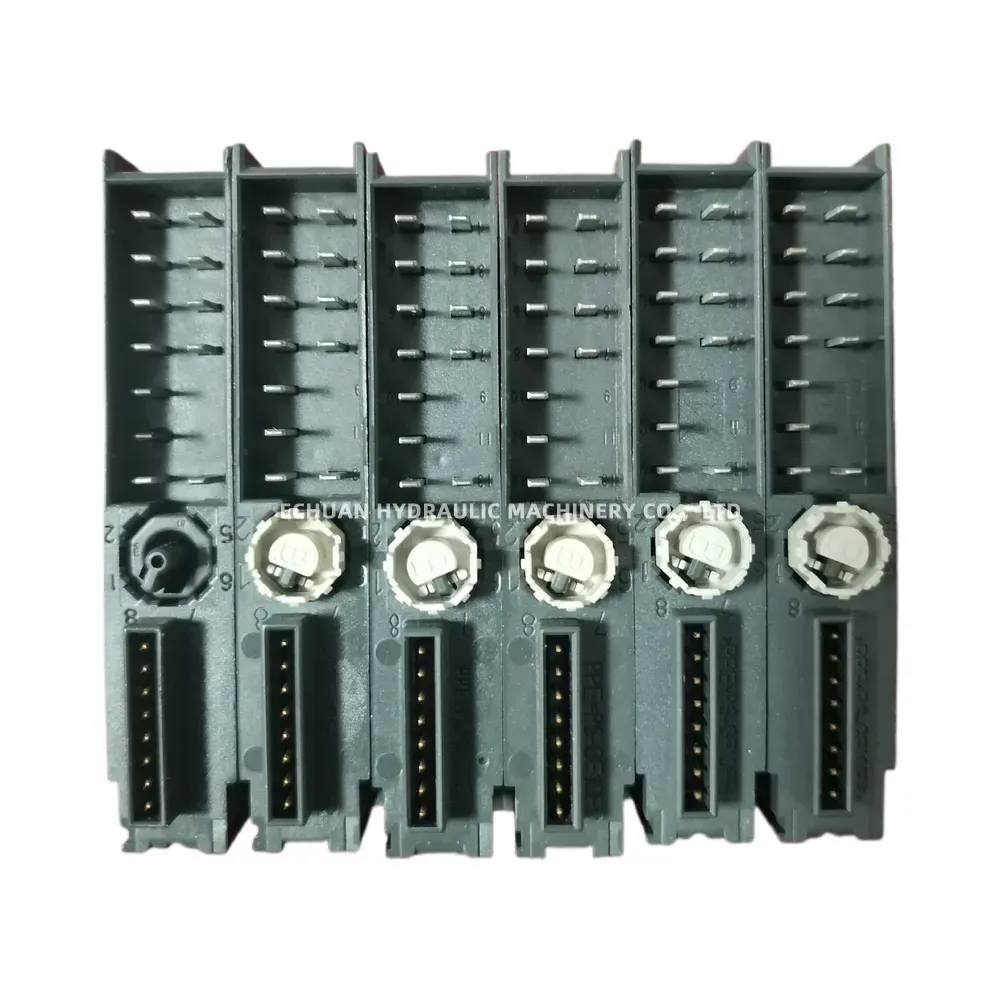

SIEMENS 6ES7 132-4BD02-0AA0

The SIEMENS 6ES7 132-4BD02-0AA0 is a digital output module belonging to the SIMATIC ET 200S distributed I/O system. This standard module provides 4 digital outputs, each capable of switching 24V DC loads up to 0.5A. It is designed for connecting actuators like contactors, solenoid valves, or indicator lights in industrial automation applications. The module features integrated short-circuit protection for enhanced reliability.

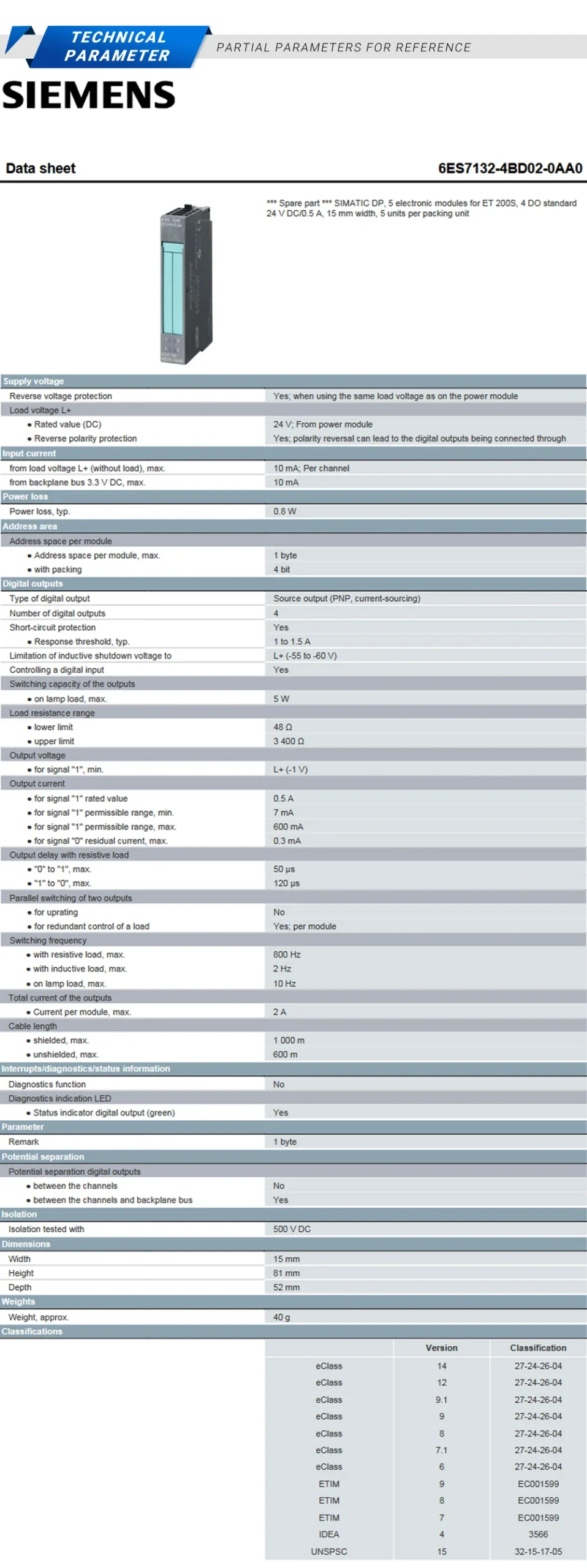

Technical Specifications:

Product Type Designation: DO 4x24VDC/0.5A ST
Supply voltage (Load voltage L+): 24 V DC
Number of digital outputs: 4
Type of digital outputs: Transistor (Source output / P-switching)
Output voltage: Rated value (DC) 24 V
Output current (per channel): 0.5 A
Permissible voltage range, lower limit (DC): 20.4 V
Permissible voltage range, upper limit (DC): 28.8 V
Short-circuit protection: Yes, electronic
Reverse voltage protection: Yes (protects against reverse connection of supply voltage)
Isolation (tested): 500 V DC
Module Width: 15 mm
Typical power loss: 0.6 W
Weight: Approx. 40 g
