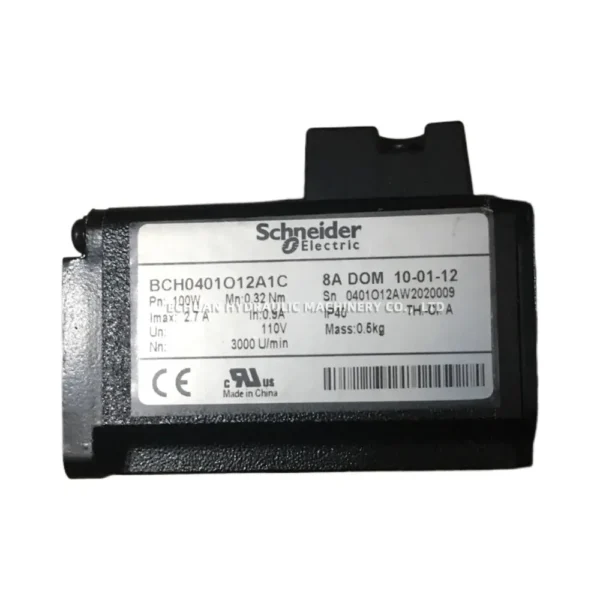

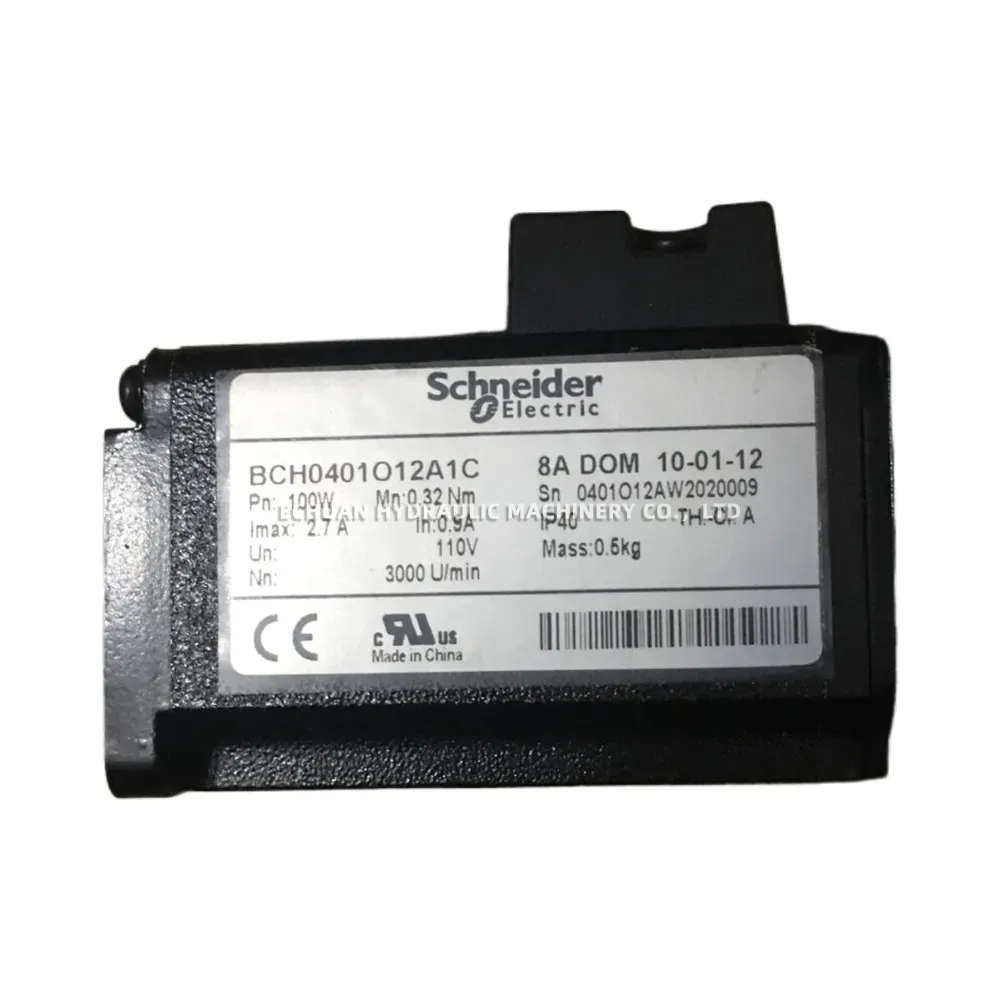

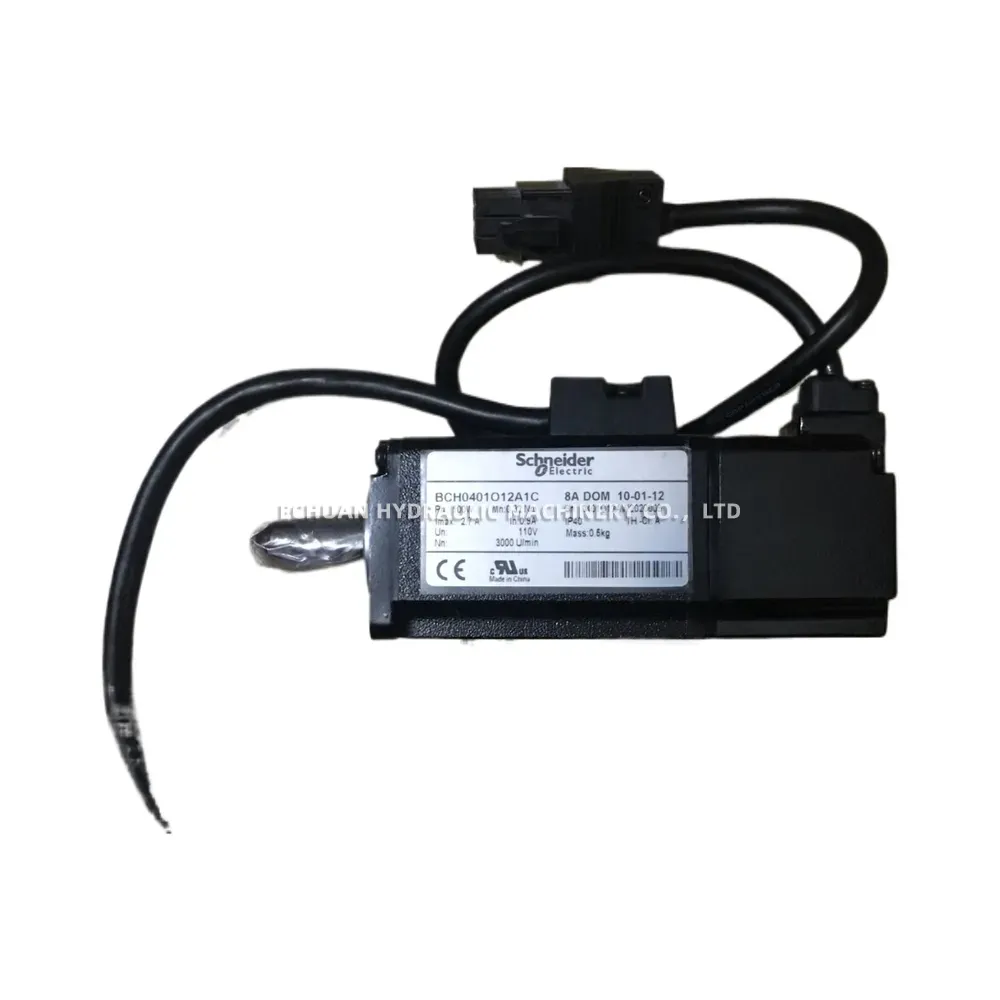

SCHNEIDER BCH0401O12A1C
The SCHNEIDER BCH0401O12A1C is an AC servo motor belonging to the Lexium BCH series. Designed for motion control applications, it offers high performance in a compact size. This motor is typically paired with Lexium servo drives (like the Lexium 23) to provide precise speed and position control for automation tasks such as packaging, material handling, and assembly lines. It features a keyed shaft and robust construction suitable for various industrial environments.

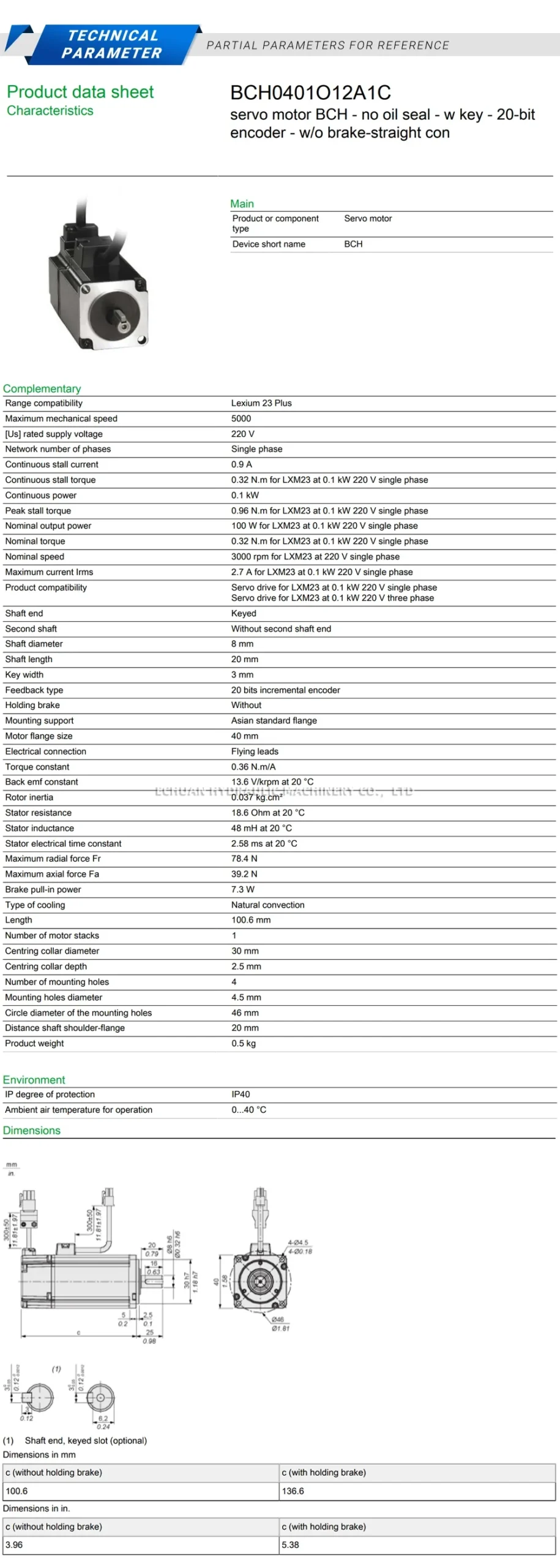

Technical Specifications:
- Product Type: AC Servo Motor
- Range: Lexium BCH
- Supply Voltage: 230 V AC
- Nominal Speed: 3000 rpm
- Nominal Torque: 0.32 Nm
- Continuous Stall Torque: 0.4 Nm
- Shaft Type: Keyed
- Shaft Diameter: 8 mm
- Flange Size: 40 mm
- IP Rating (Shaft end): IP50
- IP Rating (Housing): IP65
- Encoder Type: Incremental (10000 points/revolution)
- Connector Type: Military Connector
SCHNEIDER BCH0401O12A1C
Type:SCHNEIDER BCH0401O12A1C
