Product Description

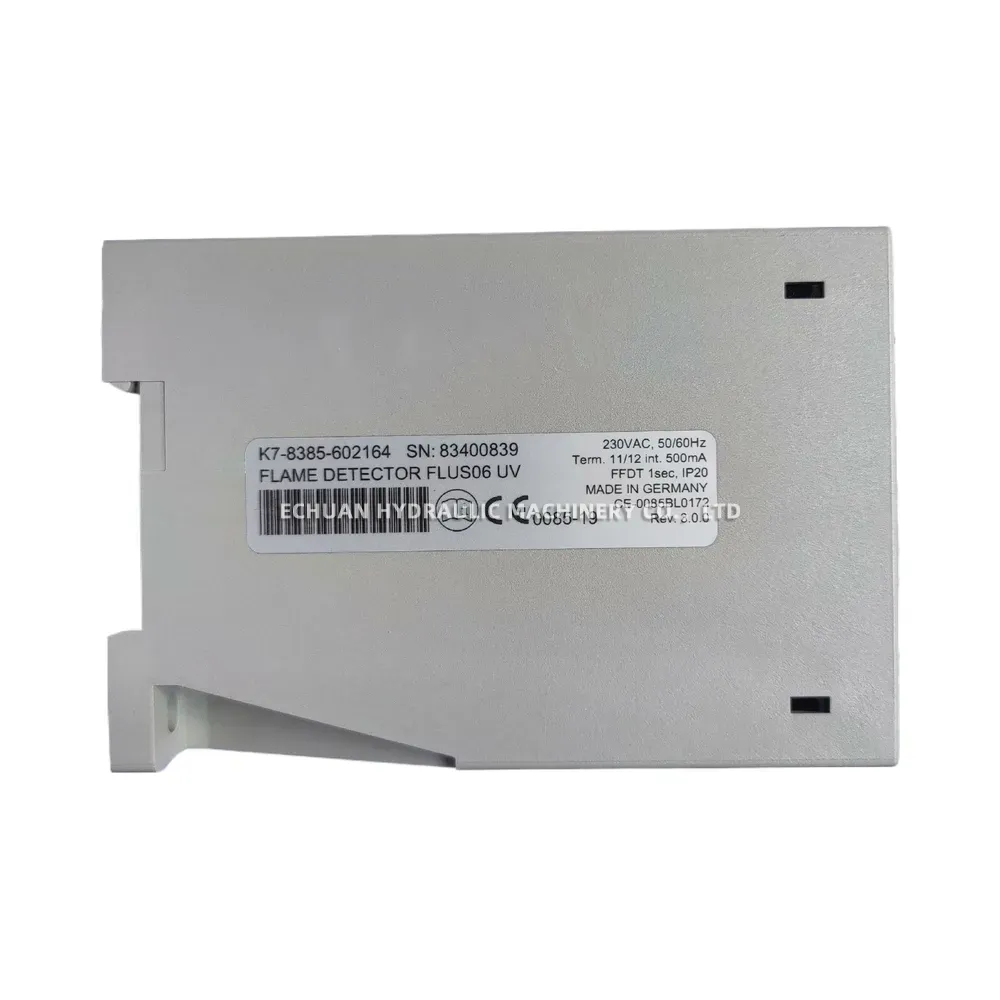

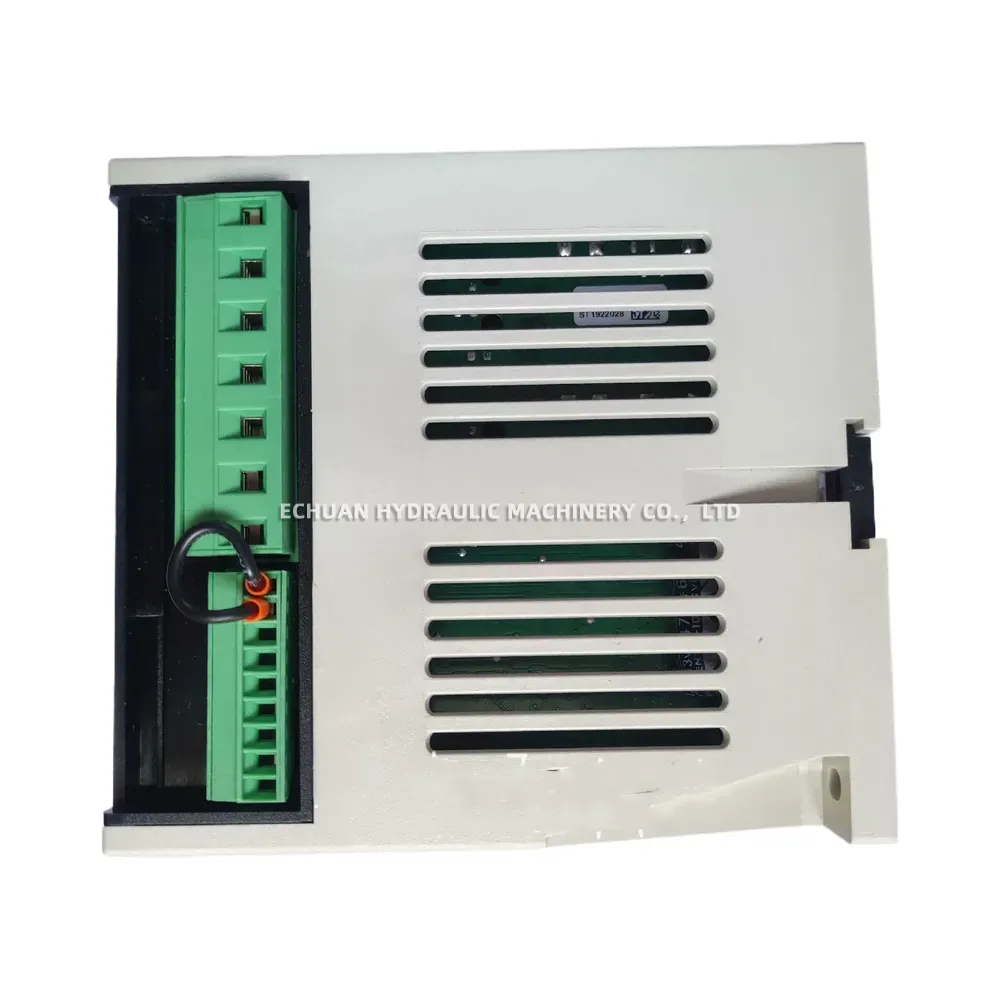

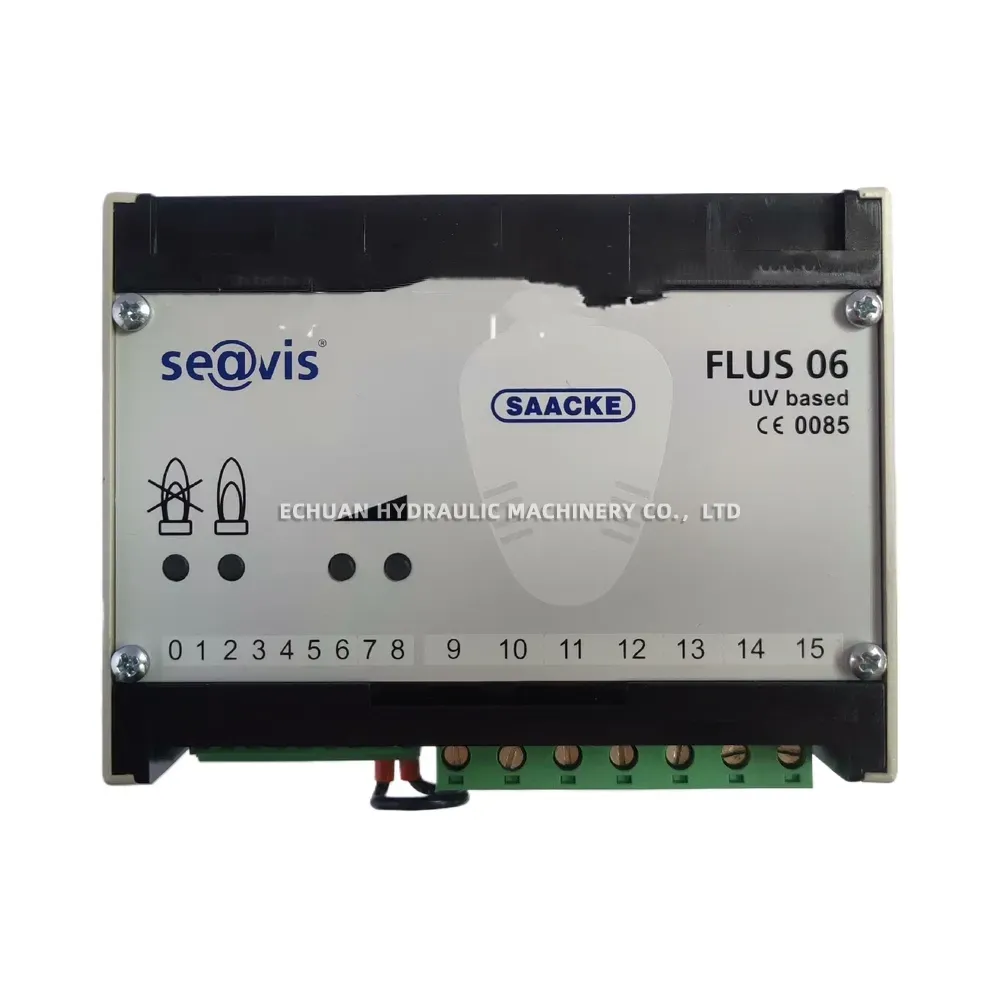

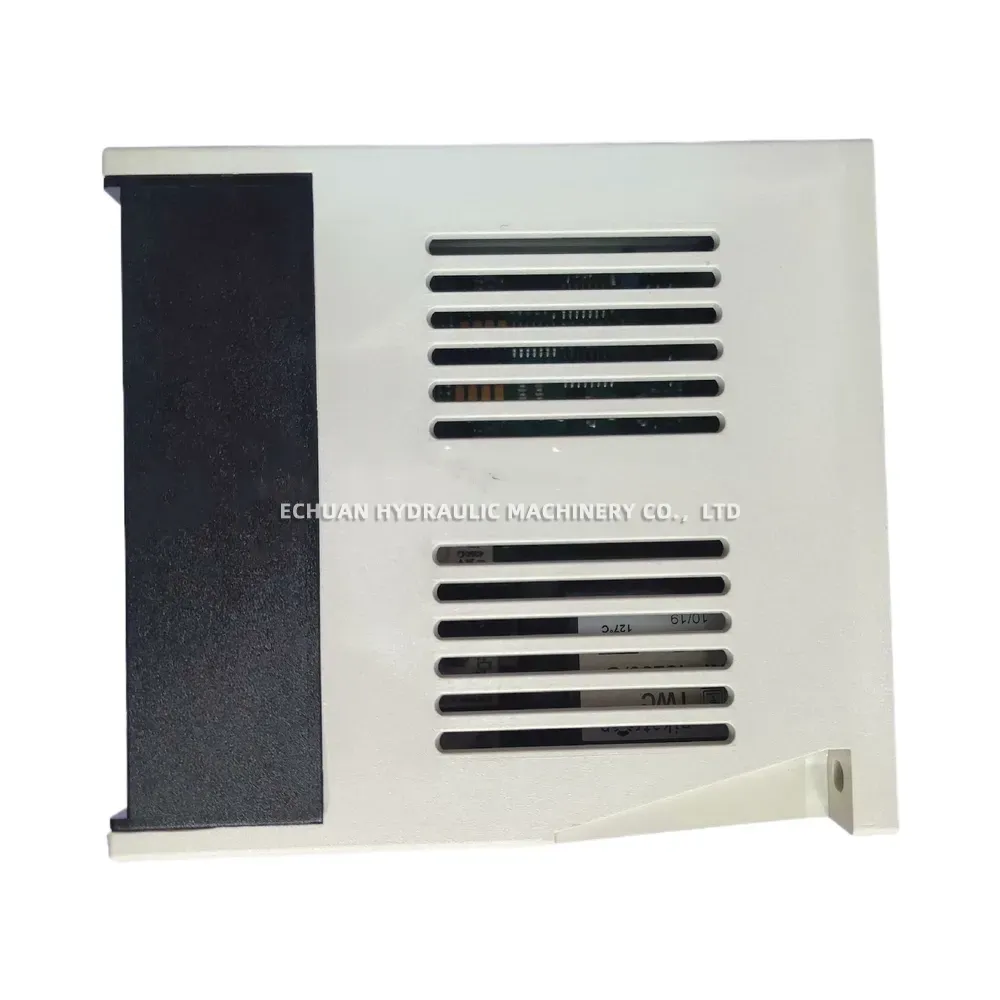

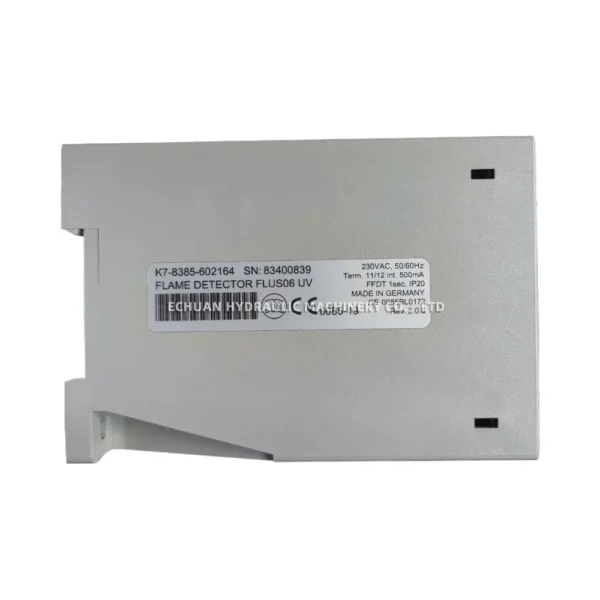

SAACKE FLUS 06

The SAACKE FLUS 06 is a compact flame scanner designed for reliable flame monitoring in single burner installations. It is suitable for continuous operation as well as intermittent operation across various industrial combustion processes. Depending on the specific variant, it utilizes either UV (Ultraviolet) or IR (Infrared) sensor technology to detect the flame signal, ensuring safe and efficient burner management. Its robust construction and compact size facilitate easy installation and integration into diverse burner systems.

Technical Specifications:

Sensor Type: UV or IR (model dependent)
Spectral Range (UV type): e.g., 190 – 270 nm (typical)
Spectral Range (IR type): e.g., 700 – 1700 nm (typical)
Supply Voltage: 24 V DC
Signal Output: Relay contact (flame ON/OFF) or 4-20 mA (flame intensity, model dependent)
Ambient Temperature Range: -20 °C to +60 °C (may vary by specific model)
Protection Class: IP65

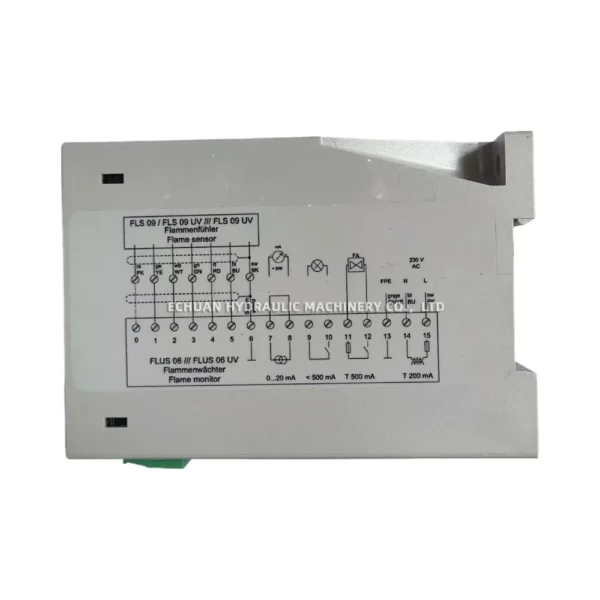

Connection: Plug connector or fixed cable
Approvals: May include SIL 2/3, ATEX depending on specific variant and application requirements
Housing Material: Typically die-cast aluminum
