Product Description

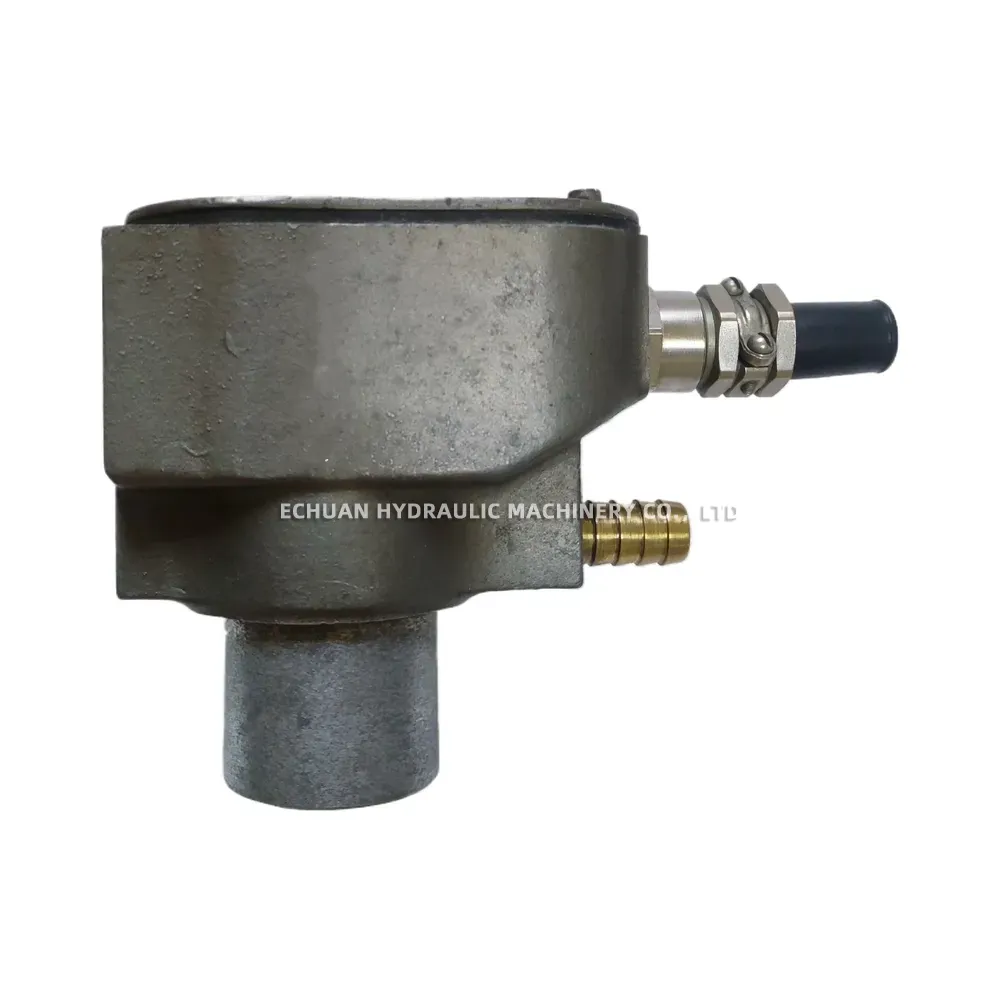

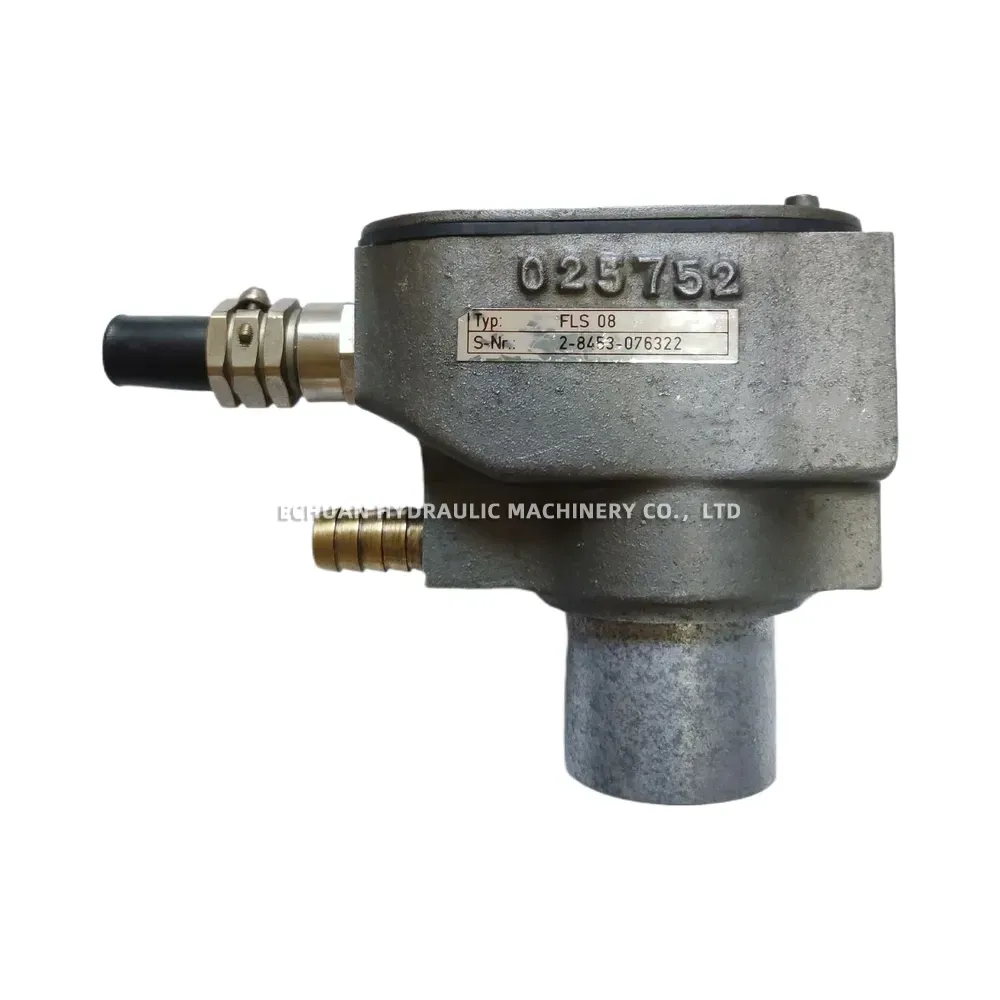

SAACKE FLS 08 Compact Flame Scanner

The SAACKE FLS 08 is a compact flame scanner designed for reliable flame monitoring in industrial combustion processes. It utilizes combined UV and IR sensor technology to detect flames from various fuels like oil, gas, coal, or biomass, even under challenging conditions. Suitable for single or multi-burner systems, the FLS 08 offers high operational safety through continuous self-monitoring and provides dependable flame discrimination. Its compact design allows for easy installation and integration into diverse combustion plant setups.

Technical Specifications:

Sensor Type: Combined UV / IR
Spectral Range UV: 190 … 270 nm
Spectral Range IR: 700 … 1700 nm
Supply Voltage: 24 V DC
Power Consumption: Approx. 5 W
Output Signals: Relay contact (Flame ON/OFF), 4-20 mA (Flame Intensity)
Ambient Temperature Range: -20 °C to +60 °C (potentially wider with cooling air)
Protection Rating: IP65 / IP67 (depending on connection type)
Safety Integrity Level: SIL 2 / SIL 3 capable (acc. to IEC 61508)
Viewing Angle: Approx. 6° or 10° (model dependent)
Housing Material: Aluminium or Stainless Steel (optional)
Connection: Plug connector or fixed cable
