Product Description

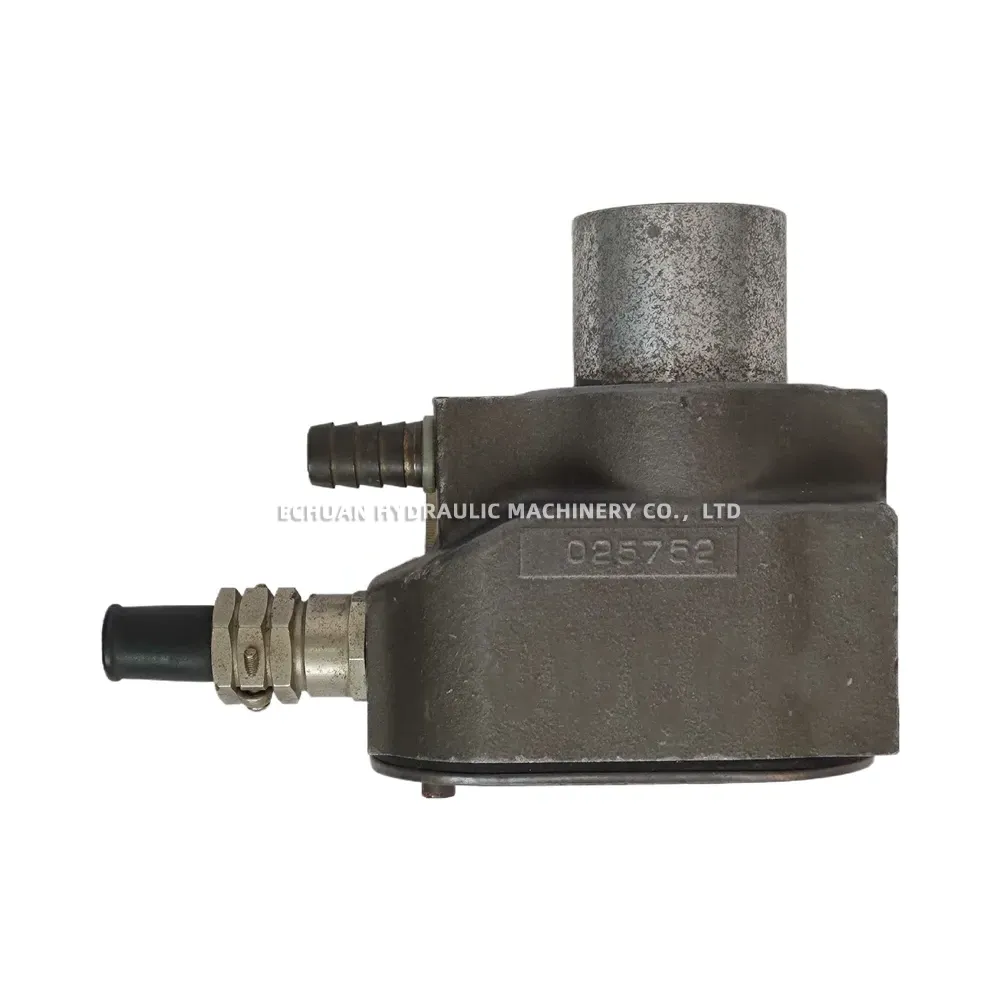

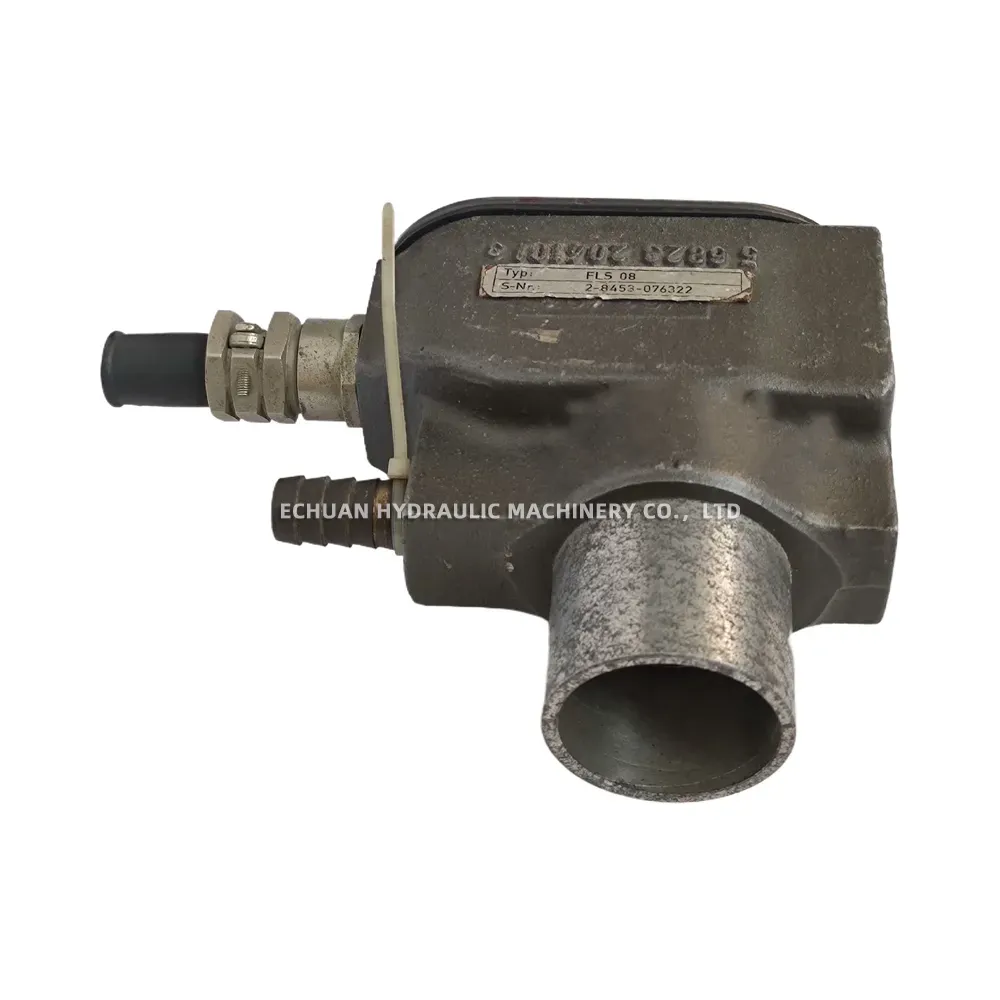

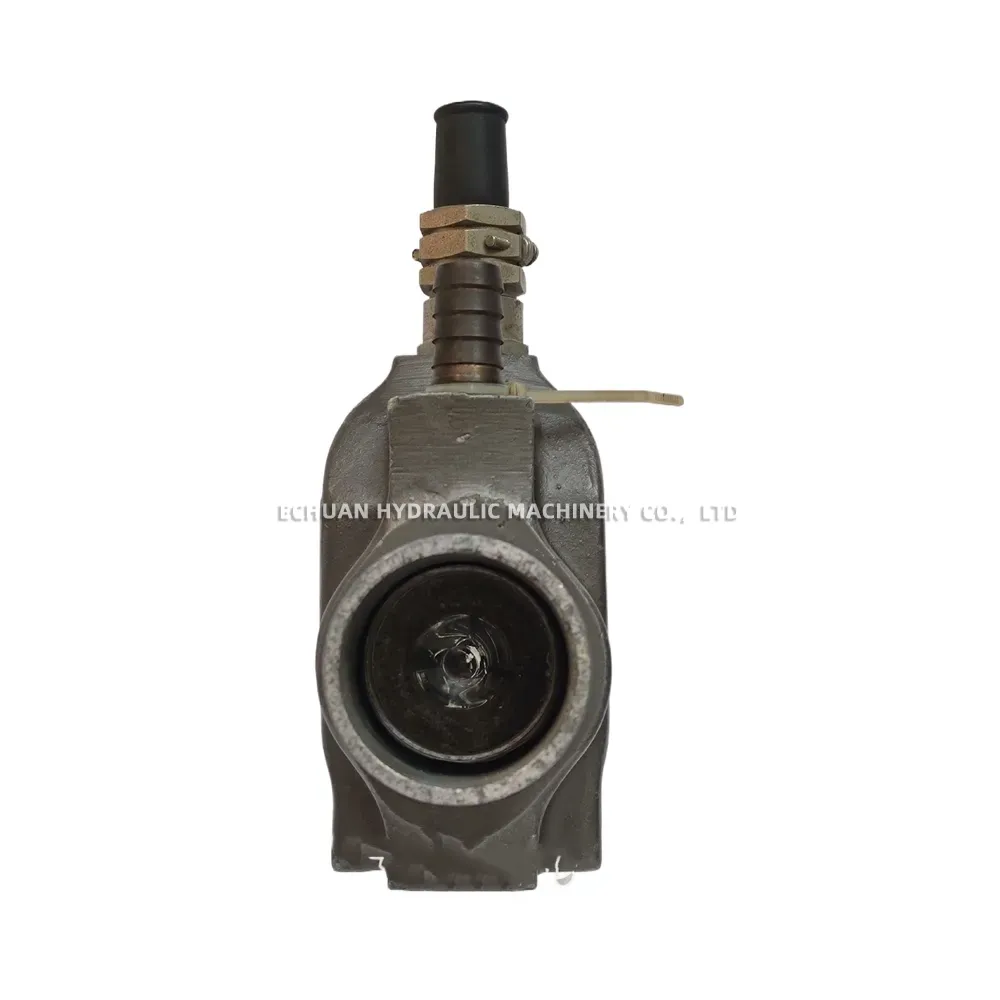

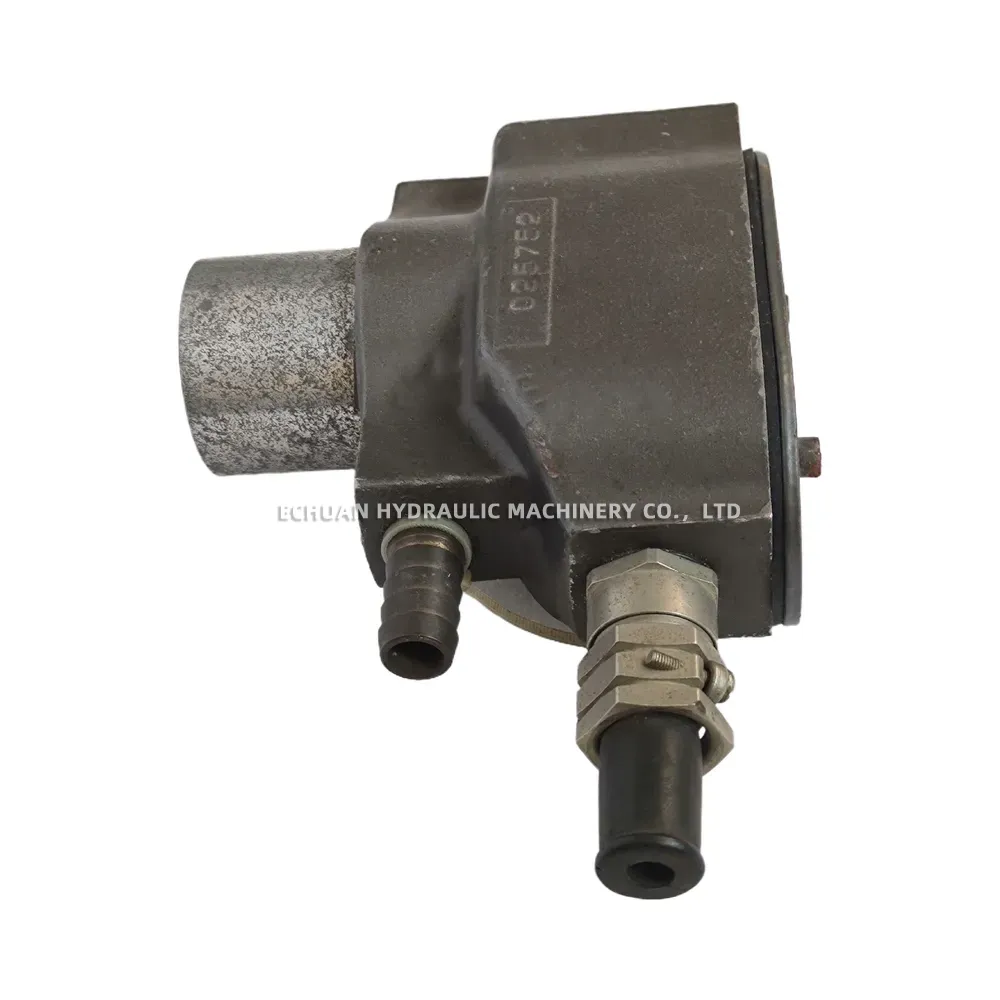

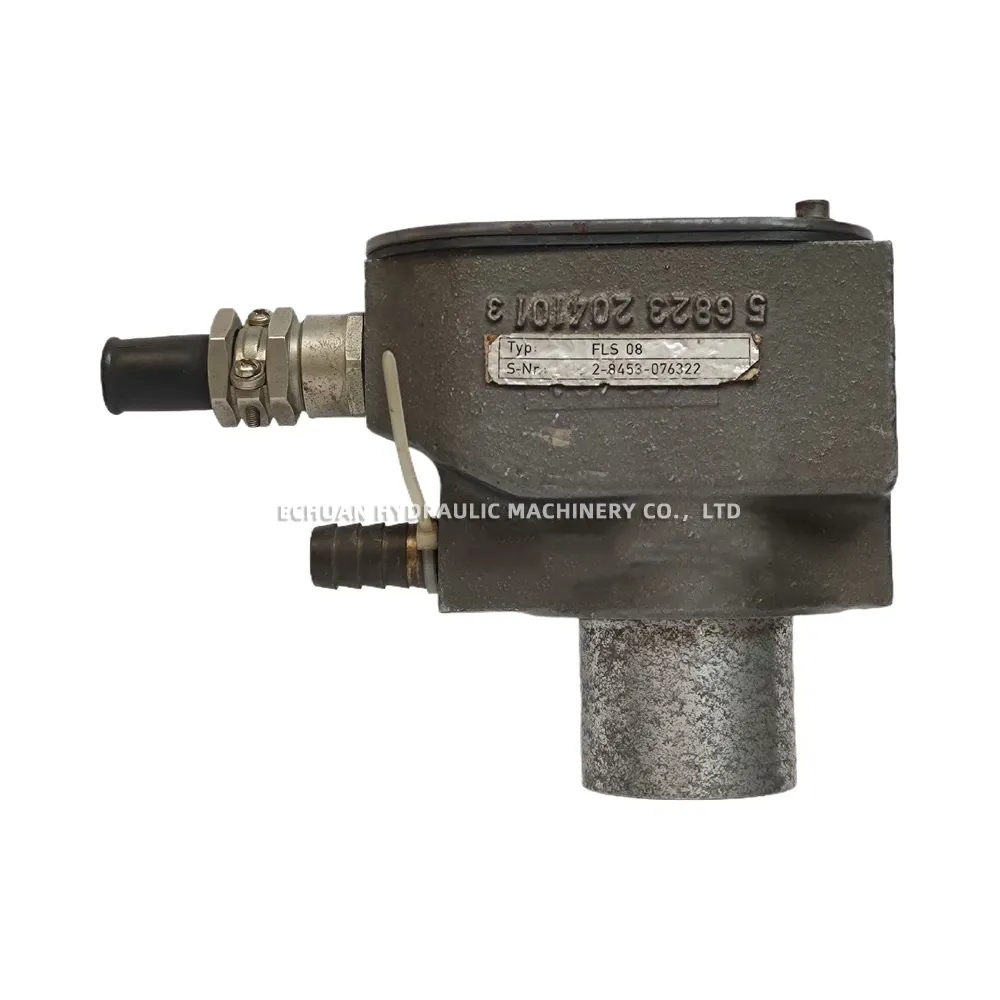

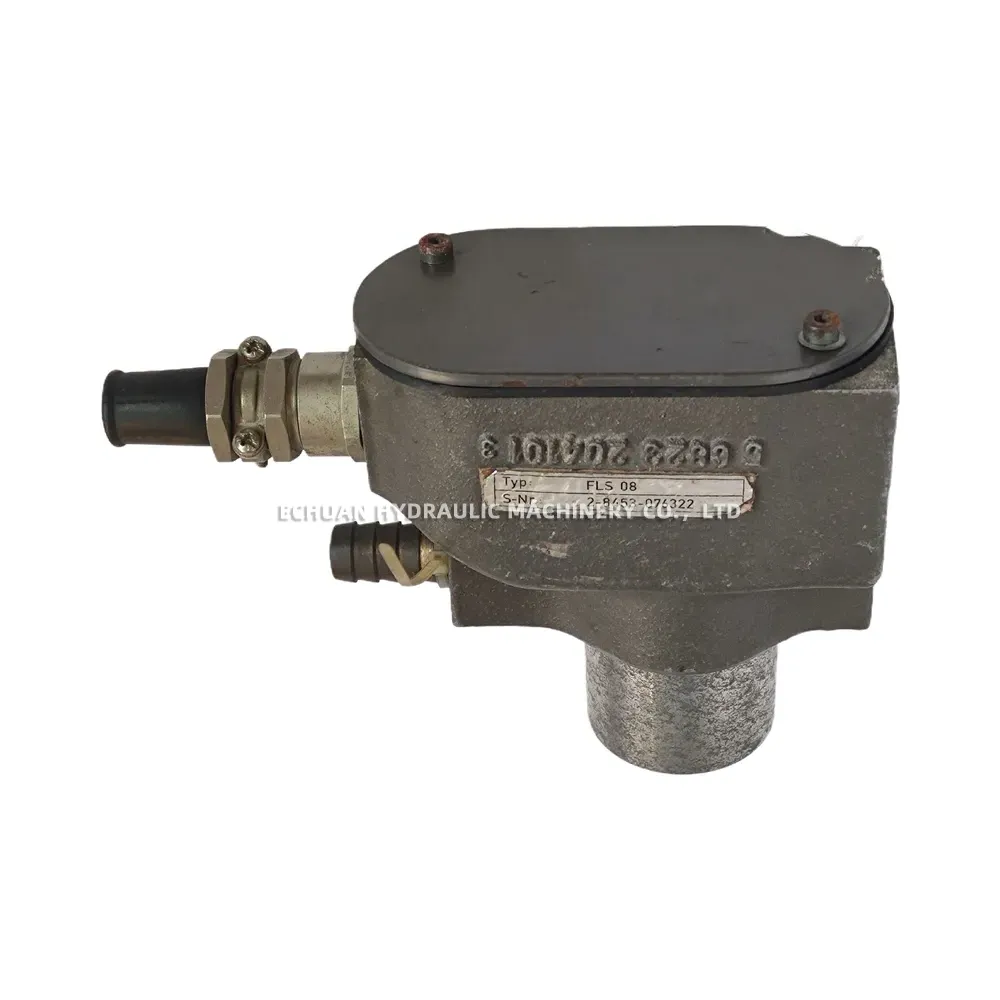

SAACKE FLS 08 Flame Scanner

The SAACKE FLS 08 is a compact, self-monitoring flame scanner designed for reliable flame detection in industrial combustion processes. It ensures safe operation by continuously monitoring the burner flame across various fuel types and combustion conditions. Its robust design makes it suitable for demanding industrial environments, contributing to both safety and efficiency of boiler and furnace operations.

Technical Specifications:

Type: Compact Flame Scanner
Spectral Range: Available in UV or IR versions
Self-monitoring: Yes, continuous self-check
Supply Voltage: 24 V DC
Output Signals: Relay contacts (Flame ON/OFF), optional 4-20 mA (flame intensity)
Ambient Temperature Range: -20 °C to +60 °C (may vary slightly based on specific model/options)
Housing Protection: IP65
Safety Integrity Level: SIL 2 / SIL 3 capable (depending on configuration)
Connection: Plug connector or terminal box
Approvals: CE, other specific approvals may apply (e.g., ATEX for hazardous areas)
