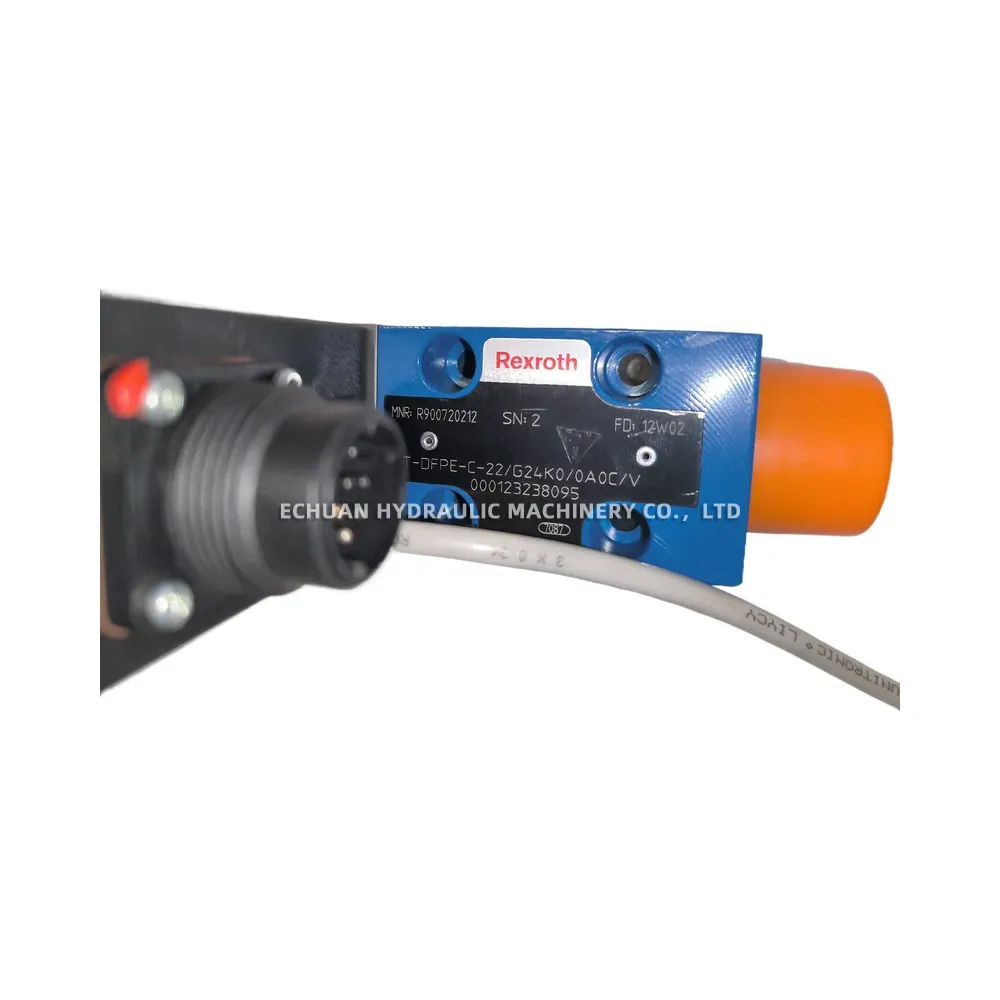

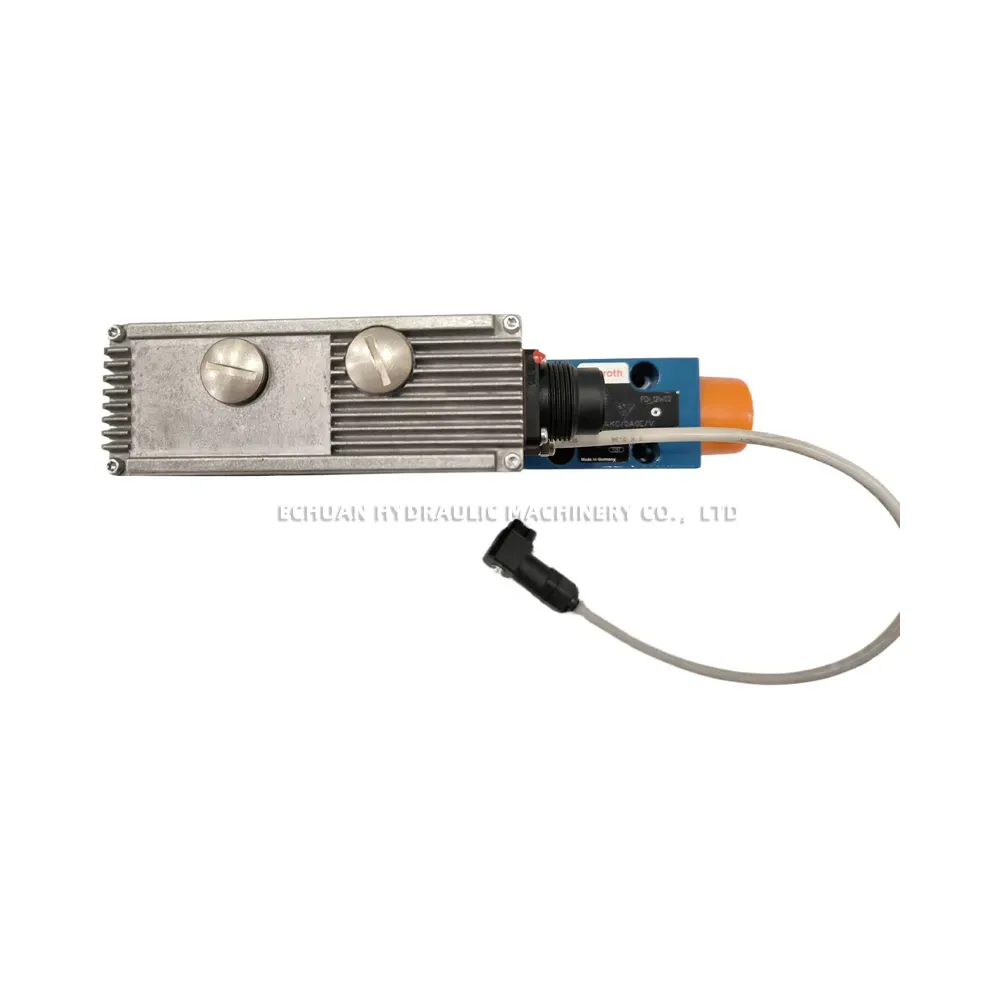

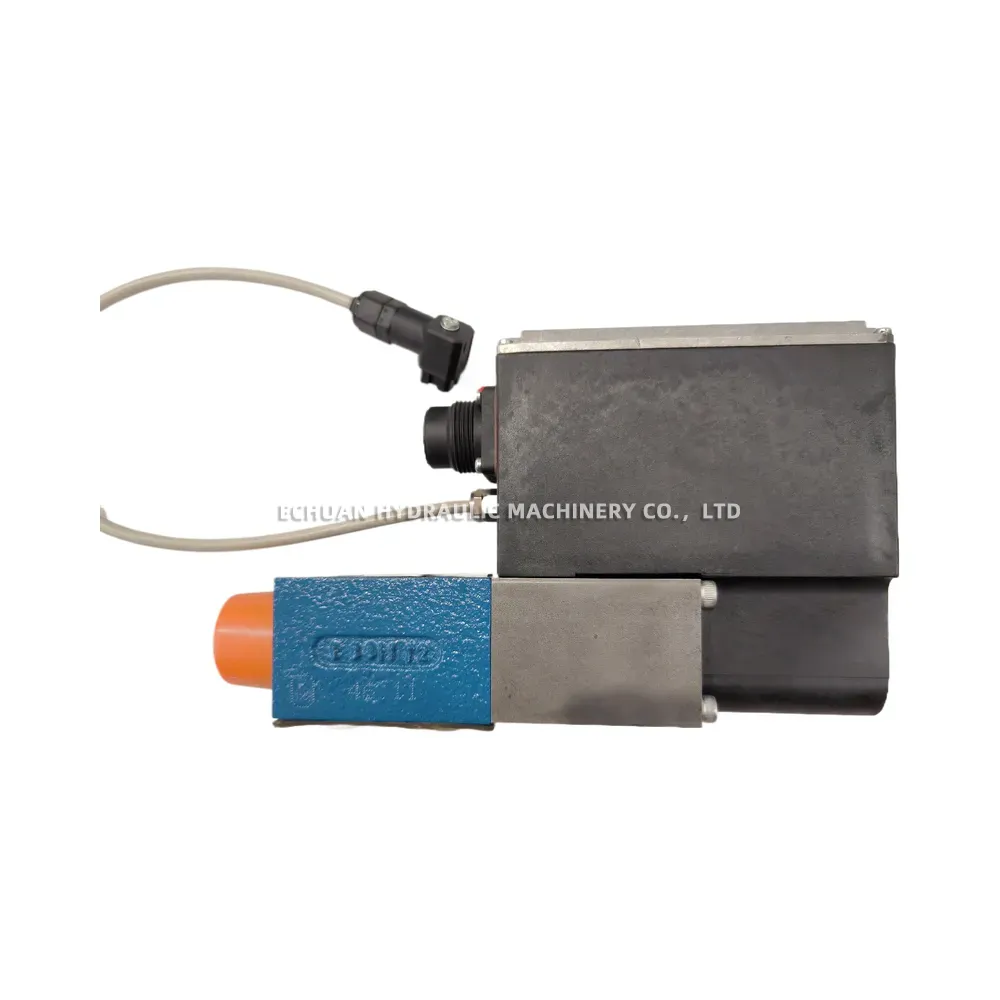

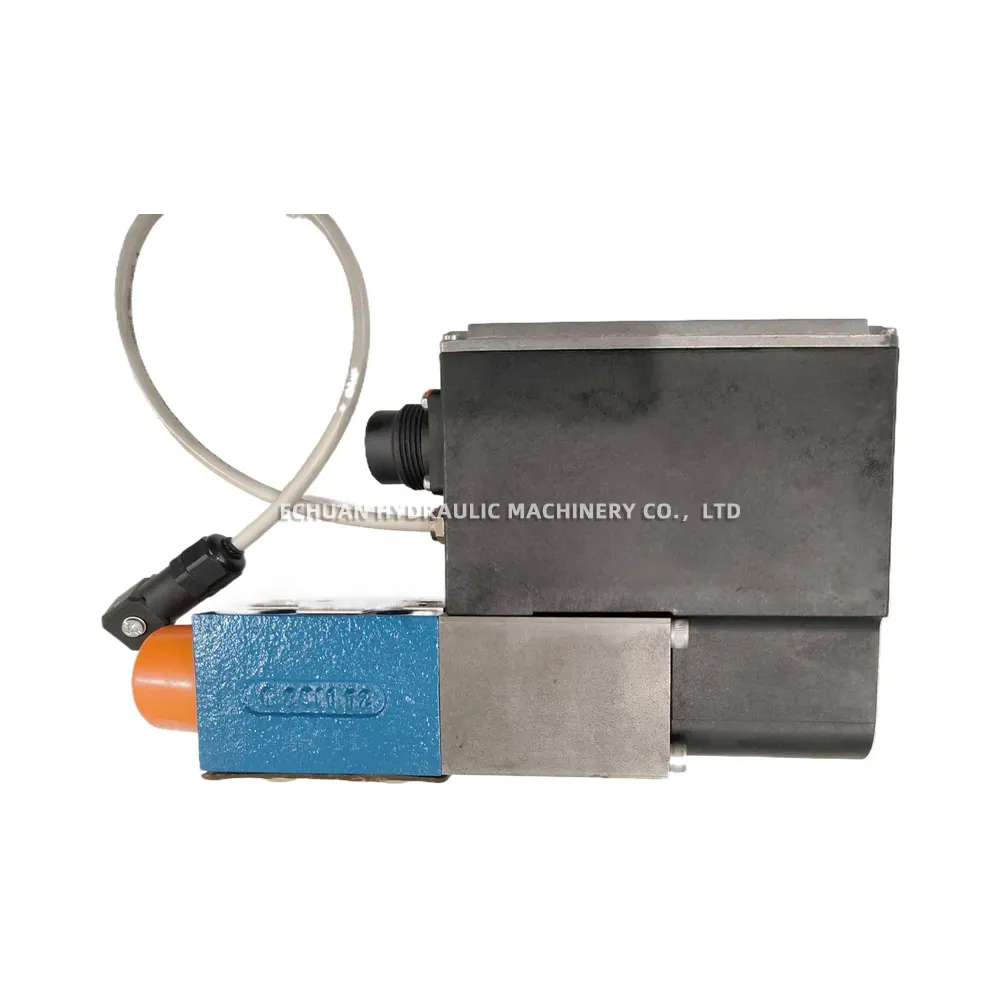

Rexroth VT-DFPE-C-22/G24K0/0A0C/V R900720212 Proportional Pressure Reducing Valve
The Rexroth VT-DFPE-C-22 is a pilot-operated proportional pressure reducing valve in a 3-way design, featuring integrated digital electronics (OBE) and a CANopen interface. This valve is designed for subplate mounting according to the ISO 4401 standard for size NG10. It provides precise, stepless control of the reduced pressure in port A, proportional to the command value signal received via the CANopen network. The integrated electronics handle the control loop, simplifying system integration and enabling advanced diagnostic capabilities.
Technical Specifications:
- Component Series: 2X
- Type: Pilot-operated proportional pressure reducing valve, 3-way version
- Size: NG10 (Nominal Size 10)
- Mounting: Subplate mounting
- Porting Pattern: ISO 4401-05-04-0-05
- Actuation: Proportional solenoid with integrated digital electronics (OBE)
- Interface: CANopen (‘C’)
- Supply Voltage: 24 V DC (‘G24’)
- Electrical Connection Detail: ‘K0’ (Specific connector/pinout configuration)
- Parameterization/Address: ‘0A0C’ (Specific CANopen settings)
- Maximum Operating Pressure (Port P): 315 bar (4568 PSI)
- Maximum Flow: 80 L/min (21.1 GPM)
- Seal Material: FKM (‘V’)
- Hydraulic Fluid Compatibility: Mineral oil (HL, HLP) according to DIN 51524; other fluids on request
Rexroth VT-DFPE-C-22/G24K0/0A0C/V R900720212
Model:Rexroth VT-DFPE-C-22/G24K0/0A0C/V R900720212
