Product Description

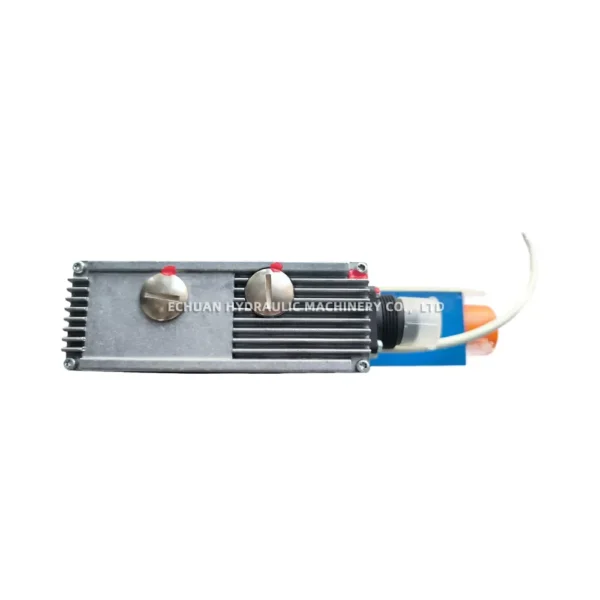

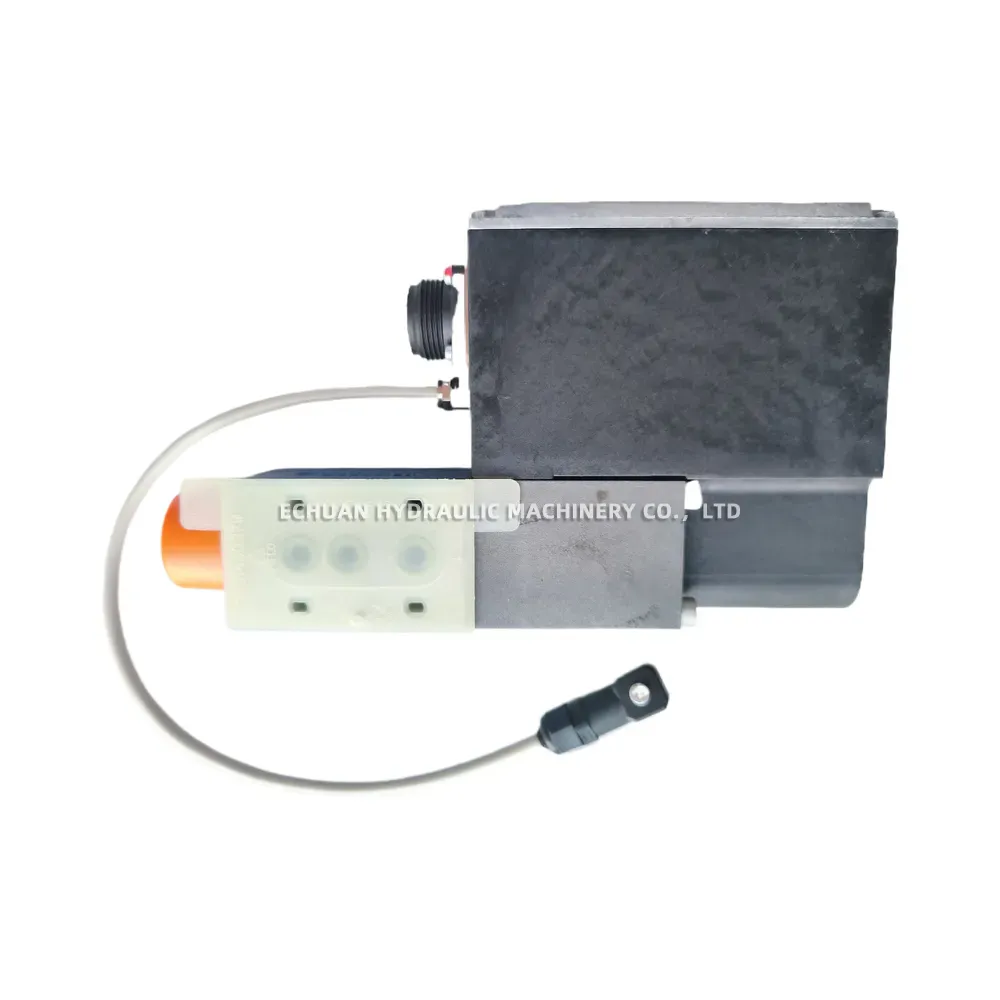

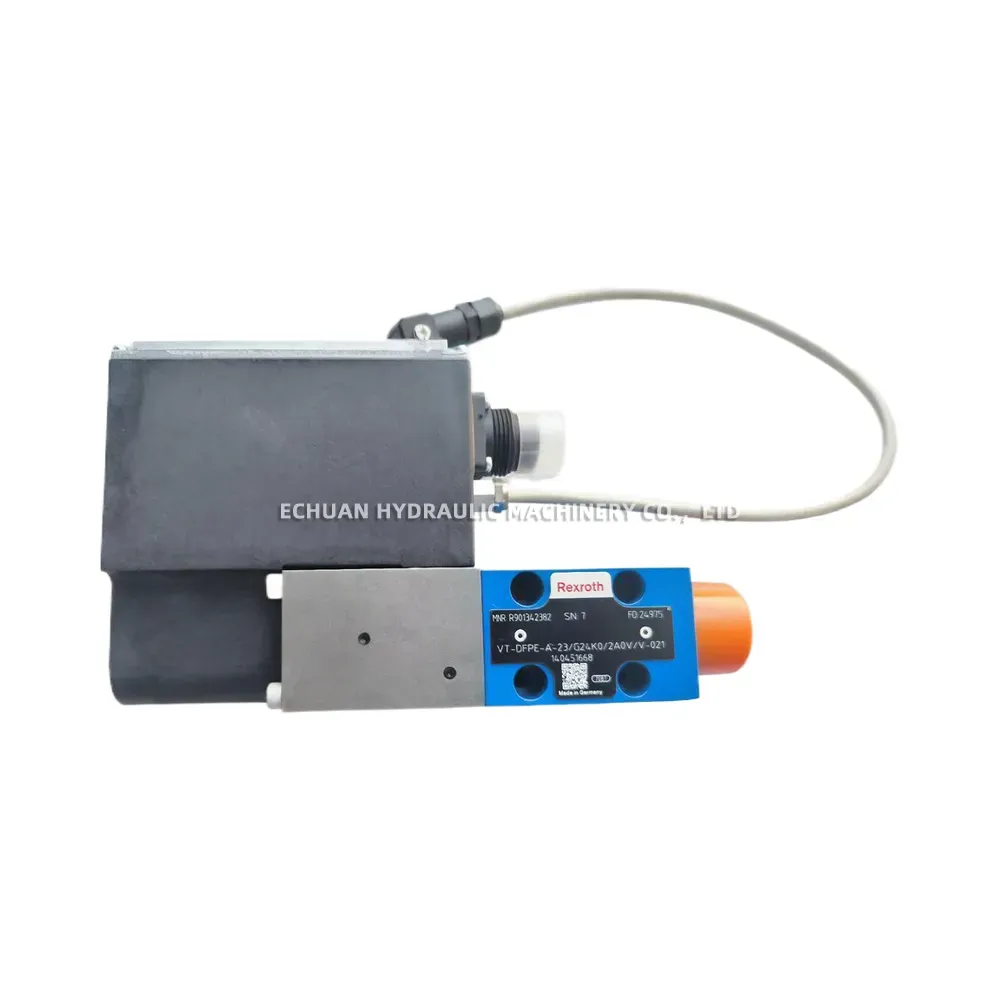

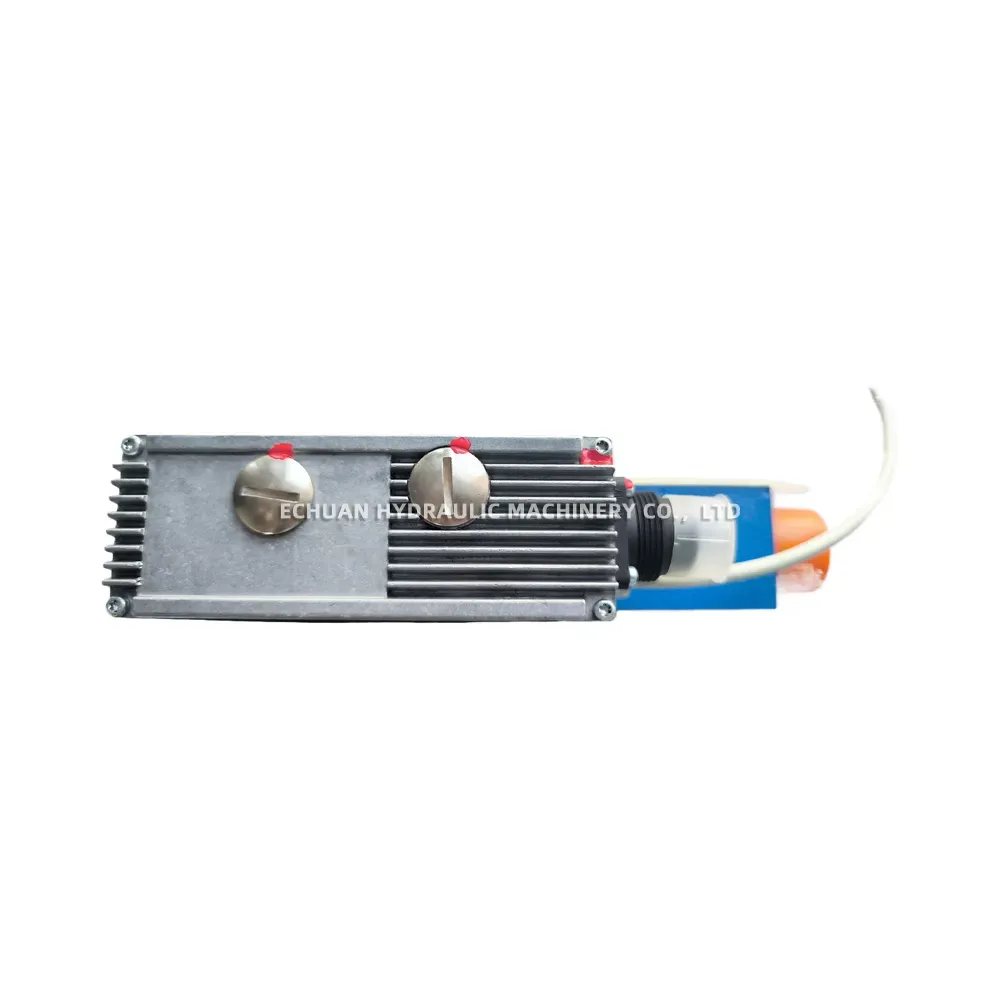

Rexroth VT-DFPE-A-23/G24K0/2A0V/V-021 Proportional Pressure Reducing Valve R901342382
The Rexroth VT-DFPE-A-23 is a pilot-operated 3-way proportional pressure reducing valve equipped with integrated digital electronics (OBE). It is designed to control the pressure in port A based on an electrical command value signal. This valve reduces system pressure to the desired level in port A and allows flow from A to T when the pressure in A exceeds the set value, making it suitable for precise pressure control applications in hydraulic systems. The integrated electronics simplify setup and control, receiving a command signal and managing the proportional solenoid accordingly. This specific variant operates on a 24V DC supply and utilizes a 0-10V command signal input and provides a 0-10V actual value output, with FKM seals for compatibility with various hydraulic fluids.
Technical Specifications:
- Type: VT-DFPE – Pilot-operated proportional pressure reducing valve
- Version: 3-way
- Actuation: Proportional solenoid with Integrated Electronics (OBE)
- Size: NG6 (Nominal Size 6)
- Mounting Interface: ISO 4401-03-02-0-05
- Supply Voltage: 24V DC (G24)
- Electrical Connection: Per K0 specification (Connector usually ordered separately)
- Command Value Signal: 0 to +10 V (2A0V)
- Actual Value Signal: 0 to +10 V (2A0V)
- Maximum Operating Pressure (Ports P, A, T): 315 bar (4568 psi)
- Seal Material: FKM (Viton) (V)
- Identifier: 021 (Specific build configuration)
Rexroth VT-DFPE-A-23/G24K0/2A0V/V-021 R901342382
Model:Rexroth VT-DFPE-A-23/G24K0/2A0V/V-021 R901342382
