Product Description

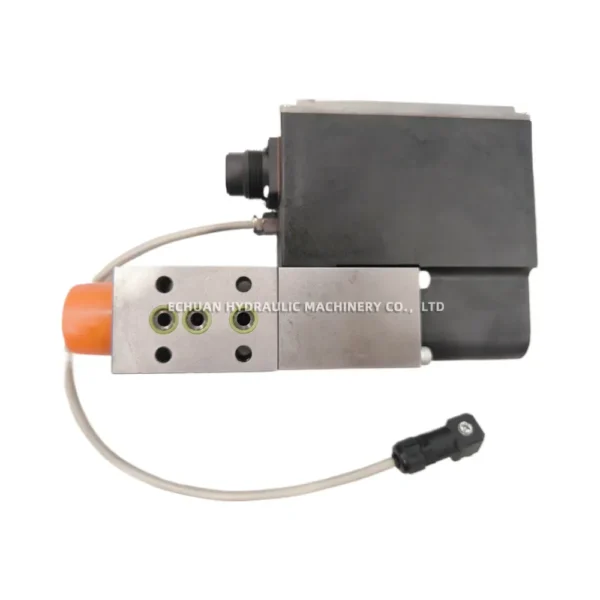

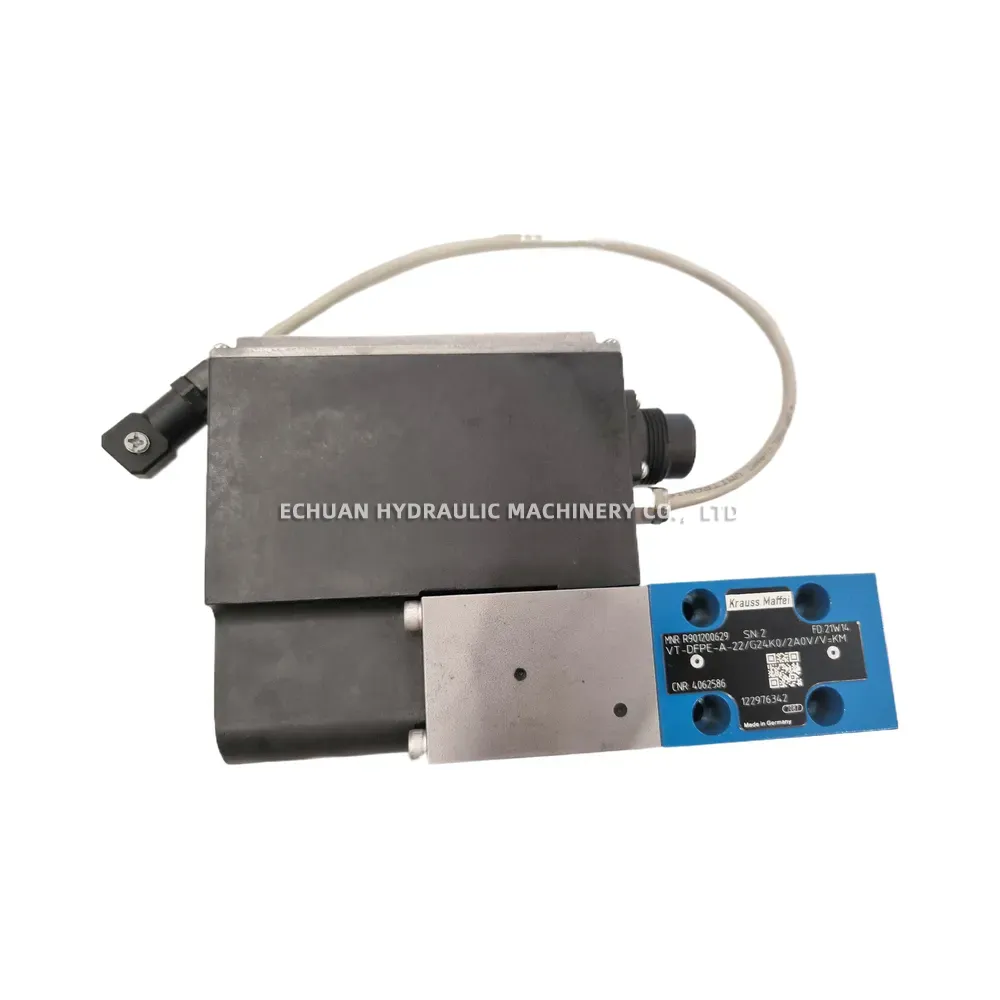

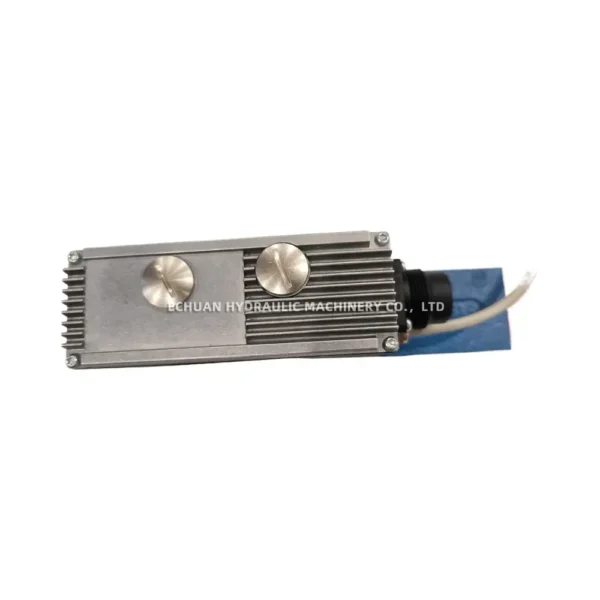

Rexroth VT-DFPE-A-22/G24K0/2A0V/V=KM Proportional Pressure Reducing Valve R901200629
The Rexroth VT-DFPE-A-22/G24K0/2A0V/V=KM is a pilot-operated proportional pressure reducing valve in a 3-way design, featuring integrated digital electronics (OBE – On-Board Electronics) and a CANopen interface. Designed for subplate mounting according to ISO 4401-03-02-0-05 standards (NG6/Cetop 3), this valve precisely controls the pressure in port A. It operates with a 24V DC supply and accepts a 0 to +10V analog command signal, or commands via the CANopen bus. The integrated electronics enable parameterization, diagnostics, and closed-loop pressure control, making it suitable for demanding hydraulic applications requiring accurate pressure regulation.
Technical Specifications:
- Valve Type: Proportional pressure reducing valve, pilot operated, 3-way version
- Model Code: VT-DFPE-A-22/G24K0/2A0V/V=KM
- Part Number: R901200629
- Control Electronics: Integrated digital On-Board Electronics (OBE)
- Interface: CANopen (=KM)
- Size / Mounting Pattern: NG6 / Cetop 3 / ISO 4401-03-02-0-05
- Component Series: 2X
- Supply Voltage: 24 V DC
- Command Value Input: 0 to +10 V (Pin D), CANopen
- Electrical Connection: M12 connector, 5-pin, A-coded (2A0V)
- Seal Material: FKM (Viton)
- Maximum Operating Pressure (Port P): 350 bar (5075 psi)
- Maximum Operating Pressure (Port A, T): 315 bar (4568 psi)
- Maximum Flow: 30 l/min (7.9 US gpm)
- Hydraulic Fluid: Mineral oil (HL, HLP) according to DIN 51524
- Fluid Temperature Range: -20°C to +80°C (-4°F to +176°F)
Rexroth VT-DFPE-A-22/G24K0/2A0V/V=KM R901200629
Model:Rexroth VT-DFPE-A-22/G24K0/2A0V/V=KM R901200629
