Product Description

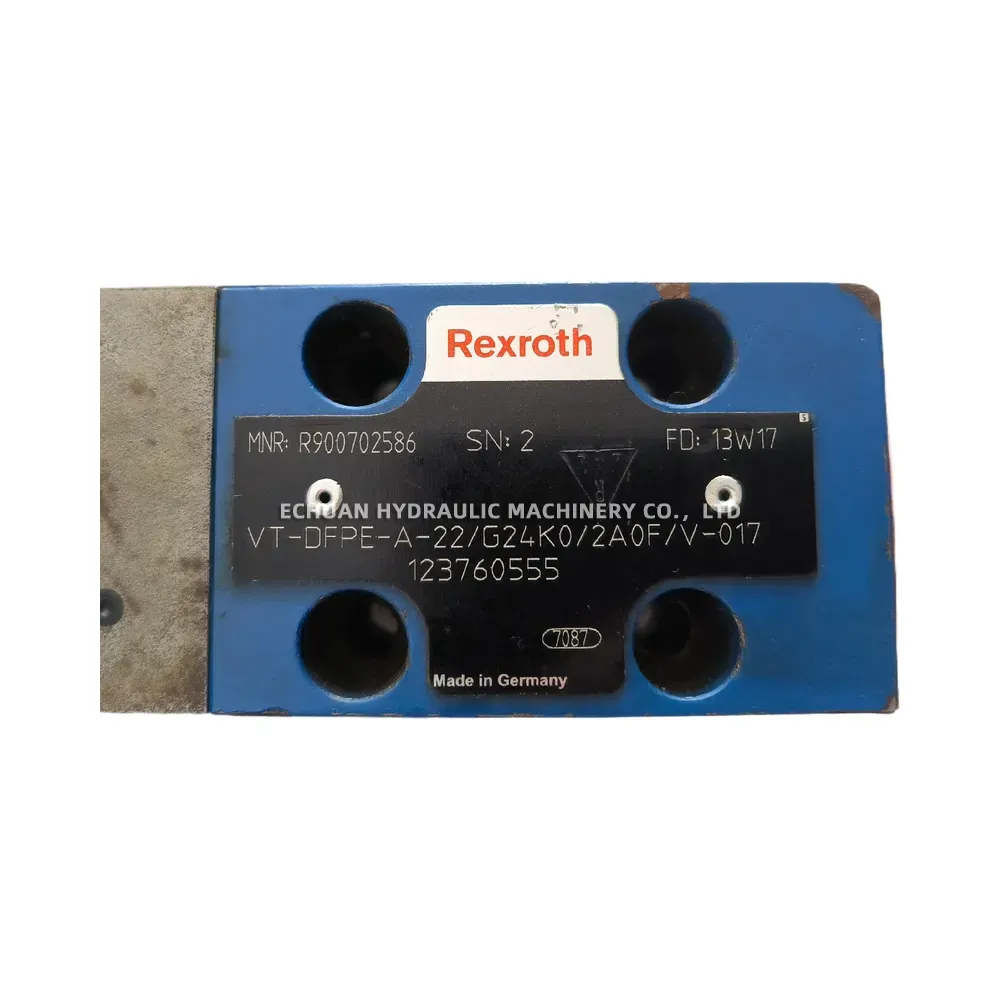

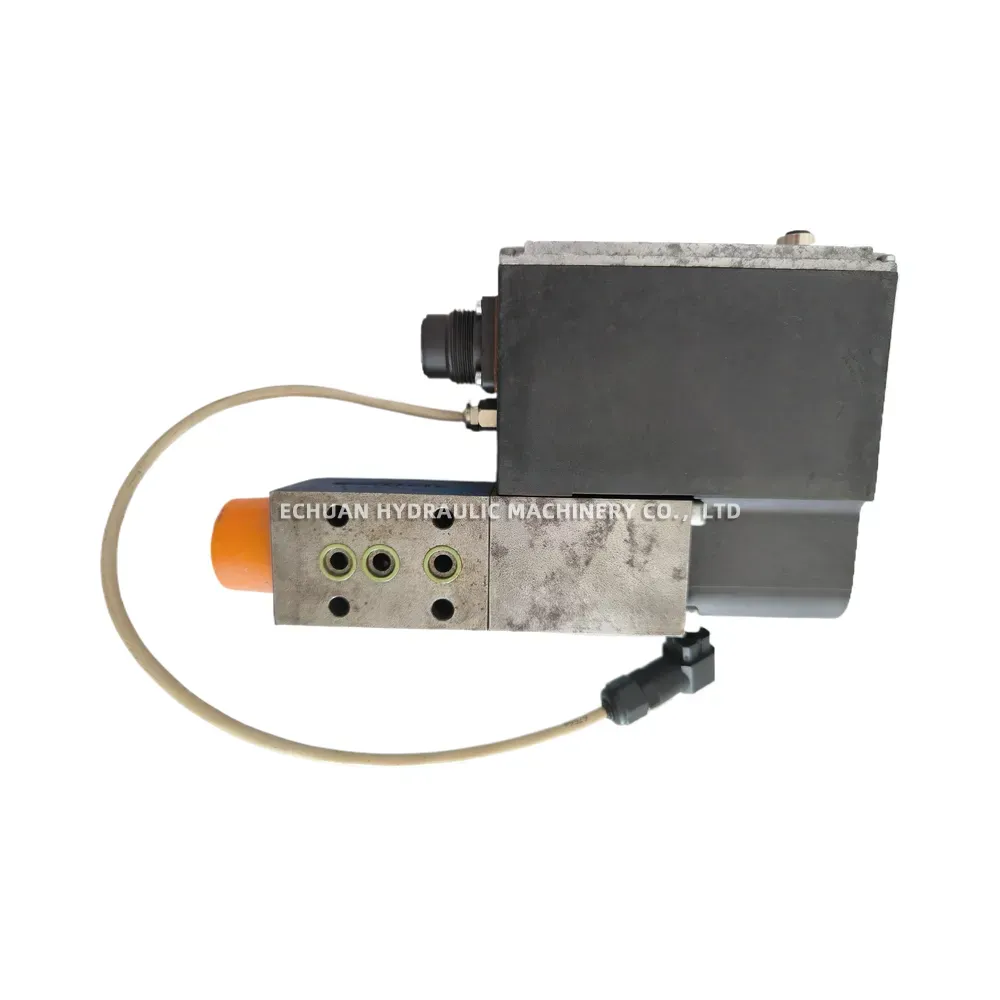

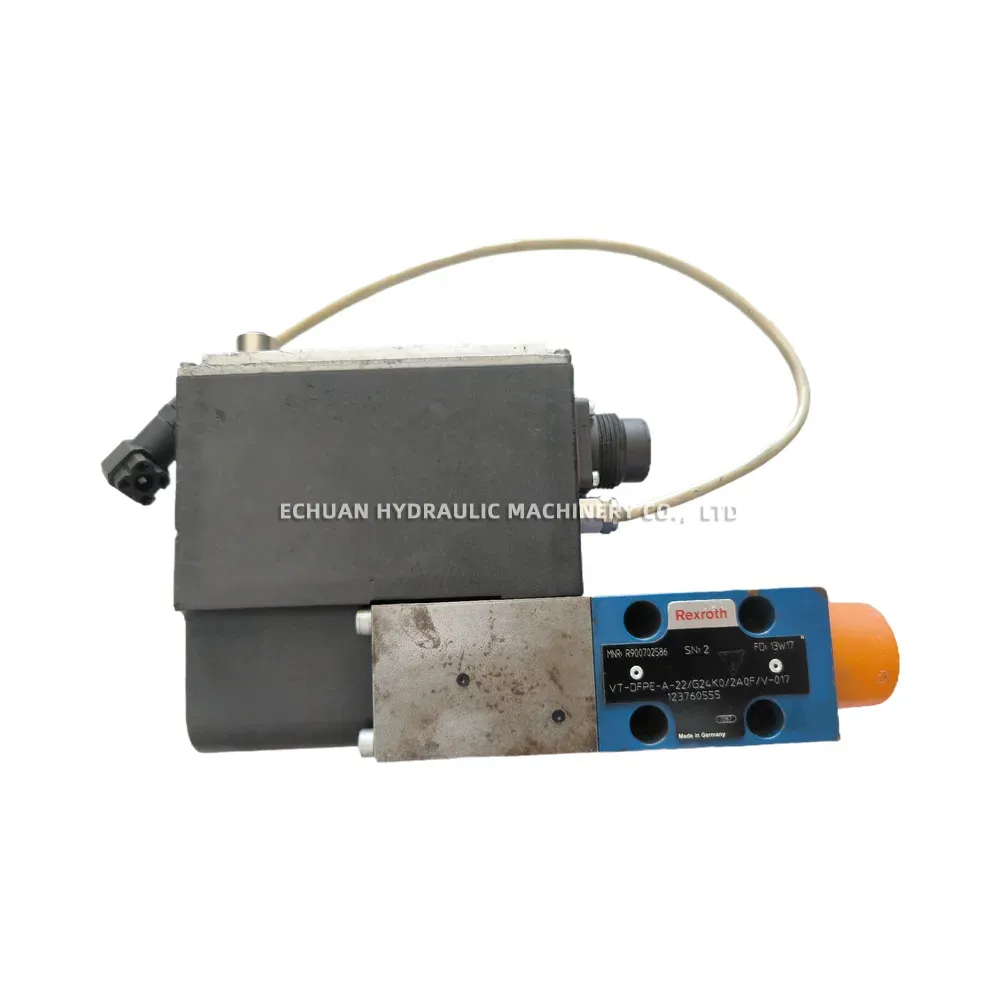

Rexroth VT-DFPE-A-22/G24K0/2A0F/V-017 R900702586
The Rexroth VT-DFPE-A is a pilot-operated proportional pressure reducing valve featuring integrated digital electronics (OBE) and electrical feedback. Designed for subplate mounting, this 3-way version valve precisely controls the pressure in port P1 based on the command signal provided. The integrated electronics simplify system design and installation by handling signal processing and valve control directly on the valve. It is suitable for applications requiring accurate and dynamic pressure regulation.
Technical Specifications:
- Type: VT-DFPE (Proportional Pressure Reducing Valve, Pilot Operated, 3-Way)
- Series: 2X (Denoted as 22 in the model code)

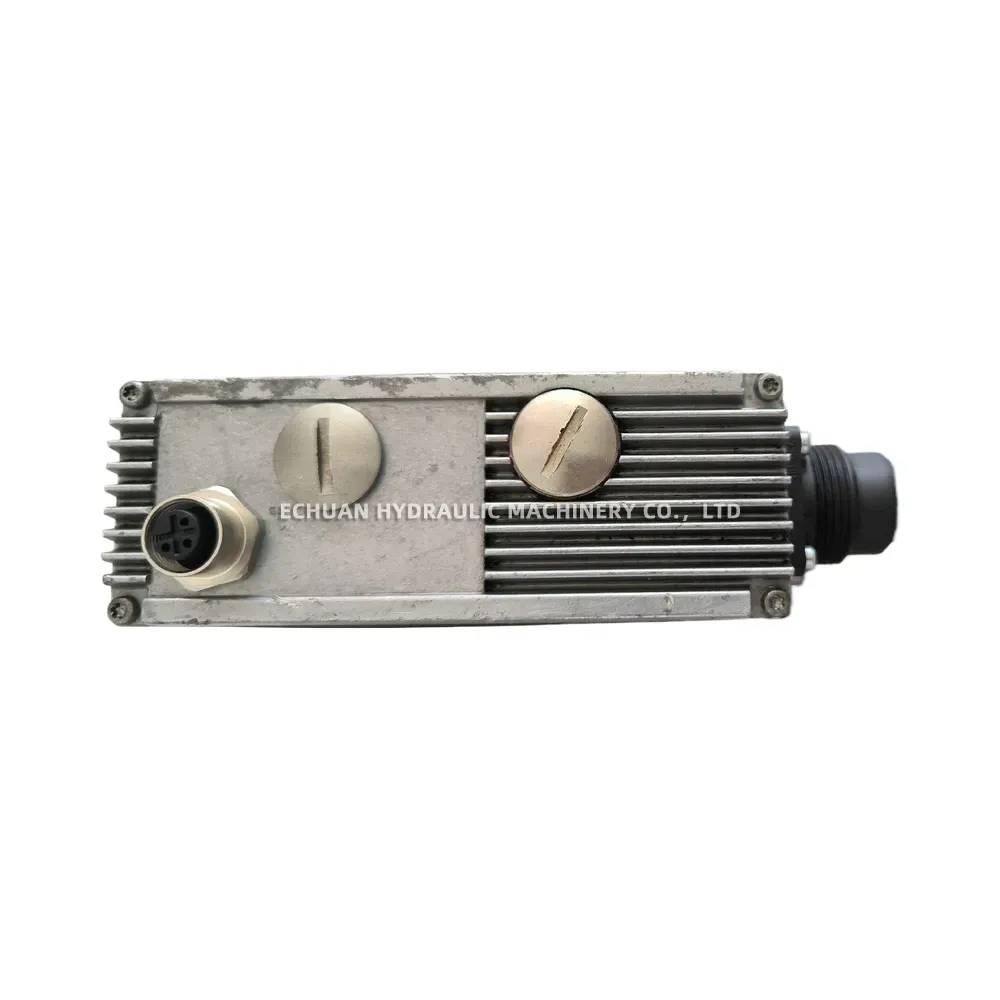

- Control: Integrated Digital Electronics (OBE) with Electrical Position Feedback
- Supply Voltage (G24): 24V DC
- Command Signal Input (K0): 4…20 mA
- Actual Value Output (2A): 0…10 V (Pressure Actual Value)
- Electrical Connection (0F): Plug-in connector DIN EN 175201-804, 4-pole
- Seal Material (V): FKM (Fluorocaoutchouc)
- Maximum Pressure Setting (017): 170 bar
- Hydraulic Fluid: Mineral oil (HL, HLP) according to DIN 51524, other fluids on request
- Part Number: R900702586
