Product Description

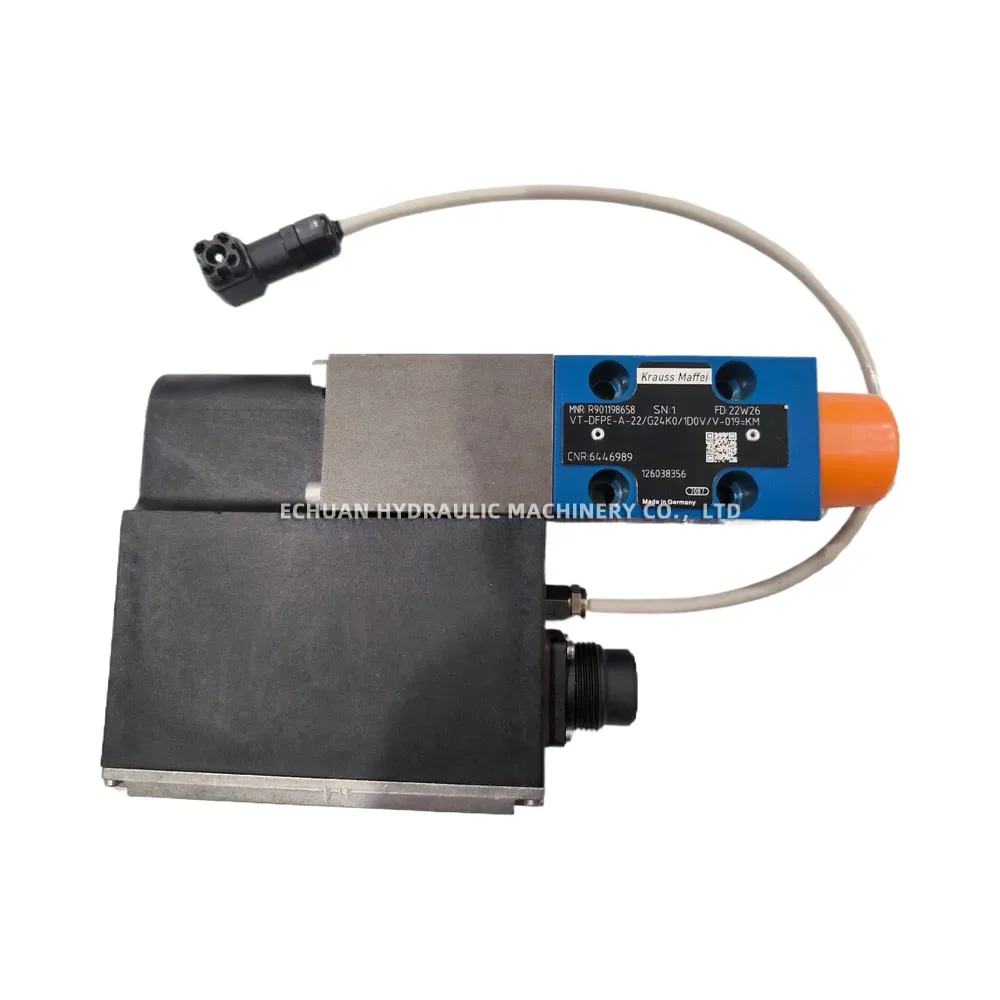

Rexroth VT-DFPE-A-22/G24K0/1D0V/V-019=KMR901198658 Proportional Directional Valve
The Rexroth VT-DFPE is a pilot-operated 2-stage proportional directional valve designed for precise control of flow direction and magnitude in hydraulic systems. This specific model features integrated digital electronics (OBE – On-Board Electronics) and electrical position feedback for the main control spool, ensuring high accuracy and repeatability. It operates with external pilot oil supply and drain (Type A). The integrated electronics handle signal processing and valve control based on the command signal input, simplifying system design and setup. This valve is typically used in applications requiring high dynamic performance and accurate flow control.
Technical Specifications:
- Valve Type: Pilot-operated 2-stage proportional directional valve
- Series: VT-DFPE-A-2X
- Size: NG10 (Nominal Size 10)
- Mounting Interface: ISO 4401-05-04-0-05
- Control: Proportional solenoid with LVDT position feedback on main spool
- Electronics: Integrated Digital Electronics (OBE)
- Supply Voltage: 24 VDC (G24)
- Command Signal Input: 0 to +10 V (D0V)
- Maximum Operating Pressure (Ports P, A, B): 315 bar
- Maximum Operating Pressure (Port T – external drain): 210 bar
- Maximum Flow: Dependent on spool type (specific to ‘-1’ spool and ‘-019’ code)
- Hydraulic Fluid: Mineral oil (HL, HLP) according to DIN 51524, others on request
- Fluid Temperature Range: -20°C to +70°C
- Electrical Connection: 6 + PE connector according to EN 175201-804 (indicated by ‘V’)
- Pilot Oil Supply/Drain: External (Type A)
- Additional Code: -019=KMR901198658 (May indicate specific configuration, spool, or customer requirement)
Rexroth VT-DFPE-A-22/G24K0/1D0V/V-019=KMR901198658
Model:Rexroth VT-DFPE-A-22/G24K0/1D0V/V-019=KMR901198658
