Product Description

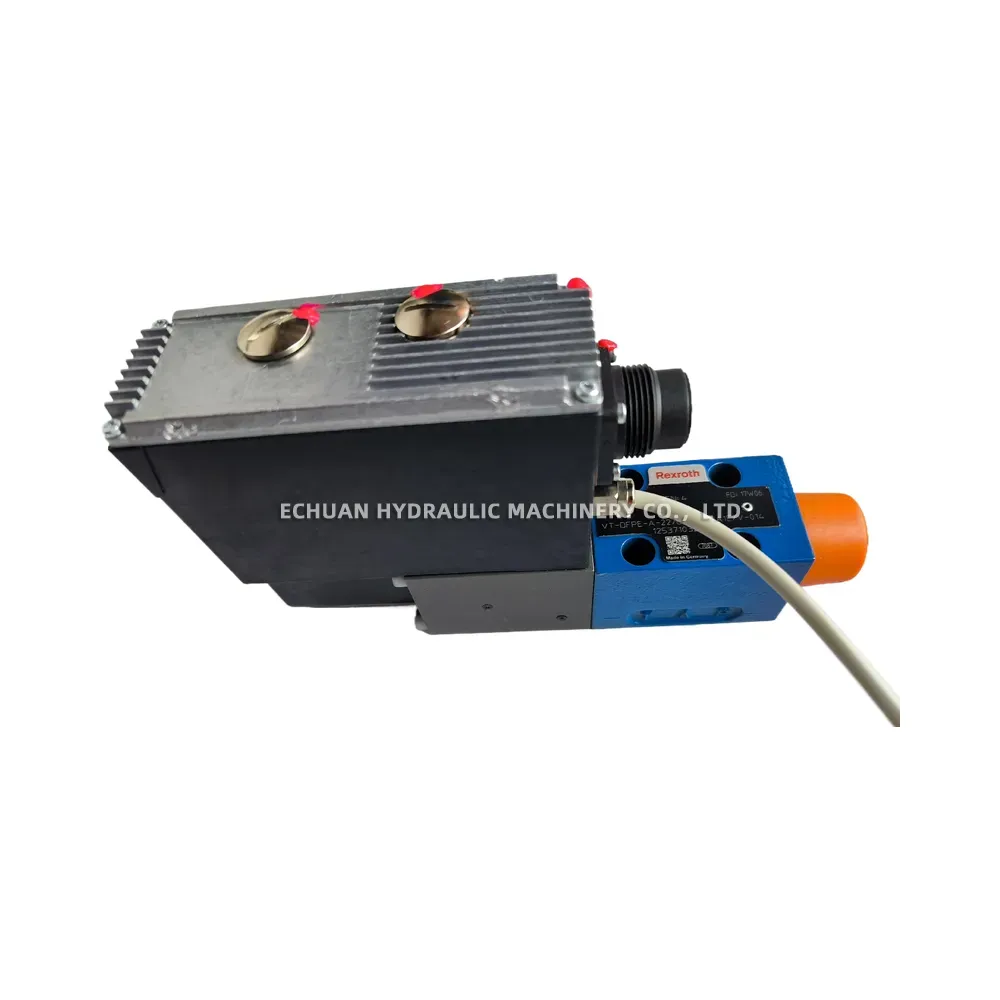

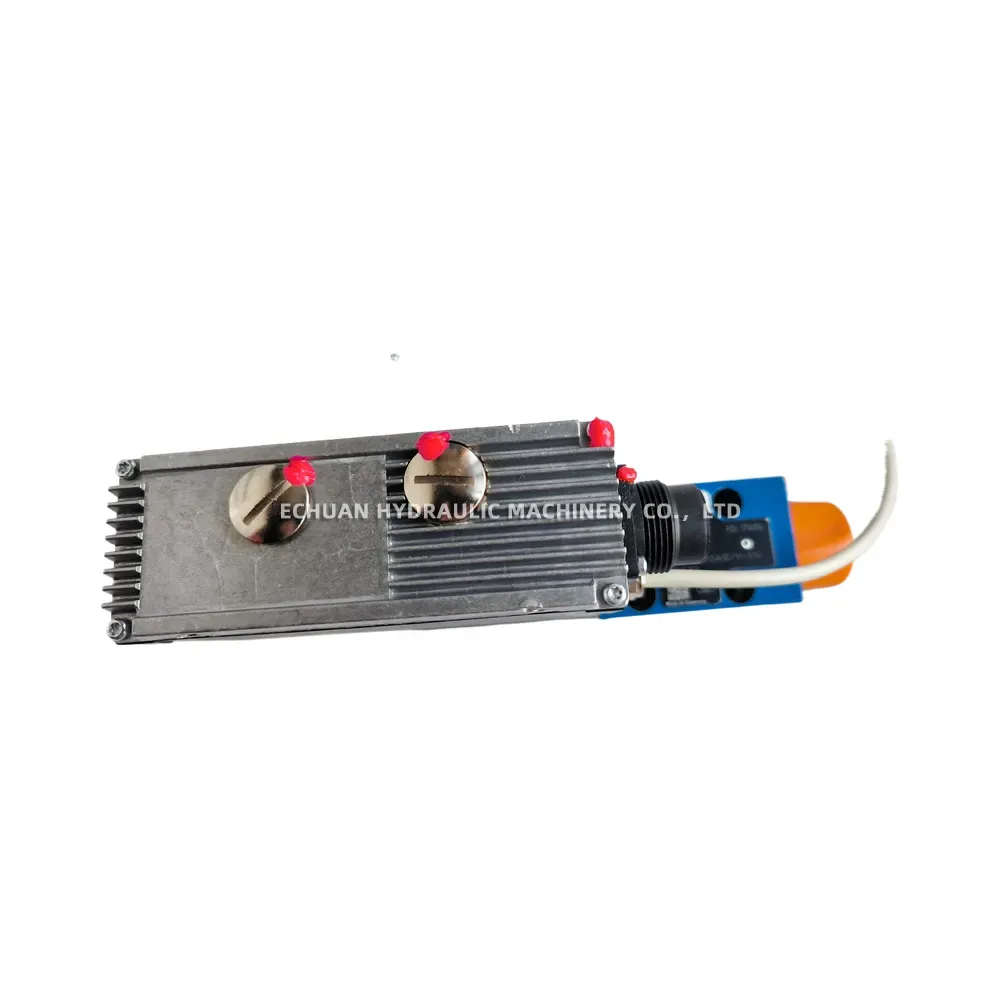

Rexroth VT-DFPE-A-22/G24K0/0A1E/V-014 R901029624
The Rexroth VT-DFPE-A-22 is a pilot-operated proportional directional control valve with integrated digital electronics (OBE) and electrical position feedback (LVDT) for the main spool. Designed for subplate mounting according to ISO 4401 standards, this NG10 valve provides precise control over the direction and magnitude of hydraulic fluid flow. The integrated electronics simplify installation and allow for control via a standard analog voltage signal, making it suitable for demanding electro-hydraulic control applications requiring high dynamics and accuracy.
Technical Specifications:
- Valve Type: Pilot-operated proportional directional valve
- Series: VT-DFPE-A
- Size: NG10
- Mounting Interface: ISO 4401-05-05-0-05
- Control Electronics: Integrated On-Board Electronics (OBE)
- Spool Position Feedback: Electrical LVDT
- Supply Voltage: 24 VDC
- Command Signal Input: ±10 V
- Actual Value Output (Position): ±10 V
- Maximum Operating Pressure (Ports P, A, B): 315 bar (4568 psi)
- Maximum Operating Pressure (Port T): 210 bar (3045 psi) – *Confirm with specific spool data if critical*
- Maximum Flow Rate: Up to 180 l/min (47.5 GPM) – *Dependent on spool type and pressure drop*
- Electrical Connection: 6 + PE pole connector according to EN 175201-804
- Spool Type/Version: V-014 (Specific configuration)

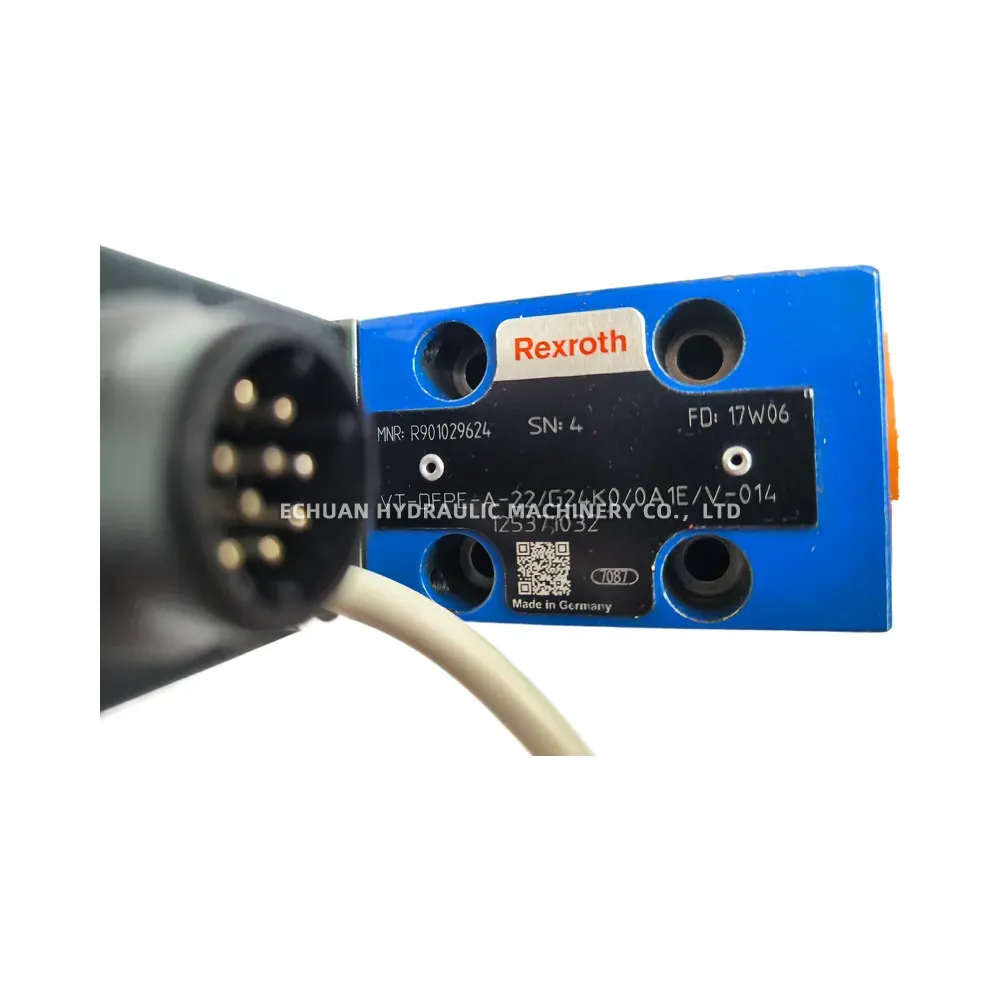

- Part Number: R901029624
