Product Description

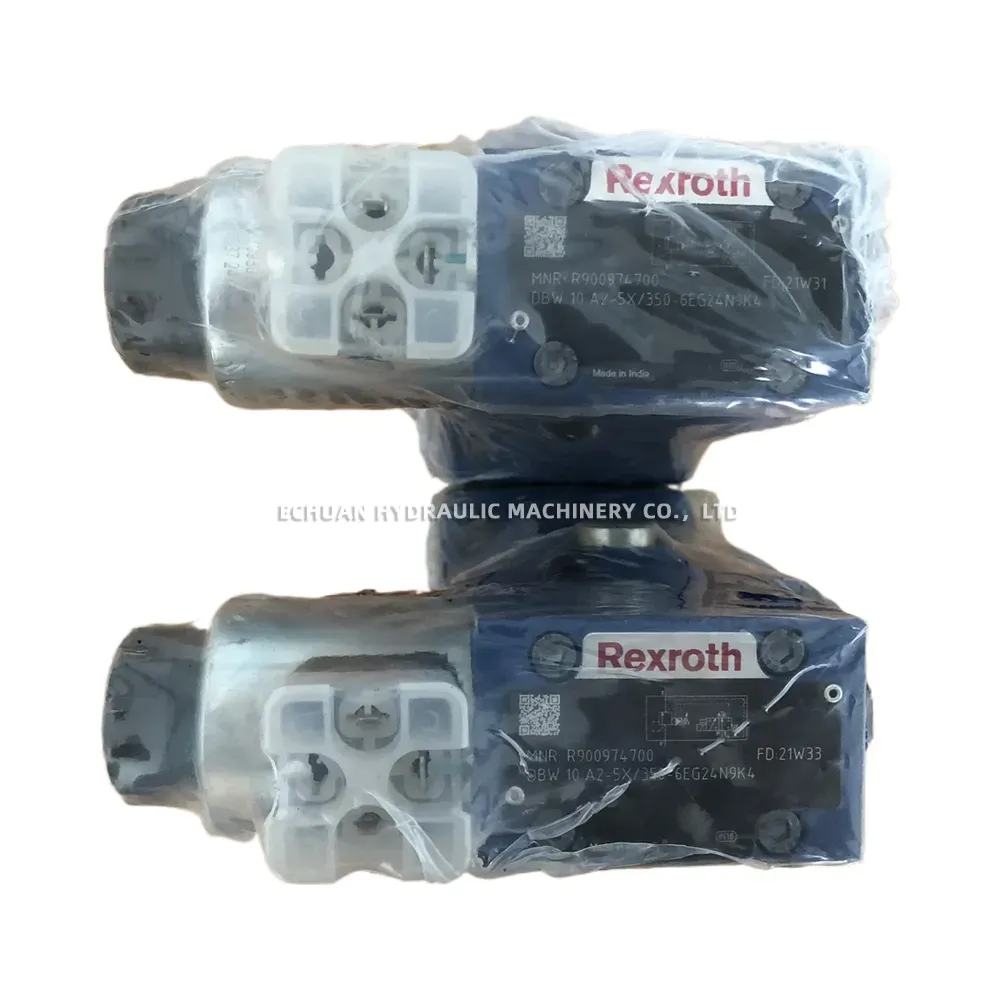

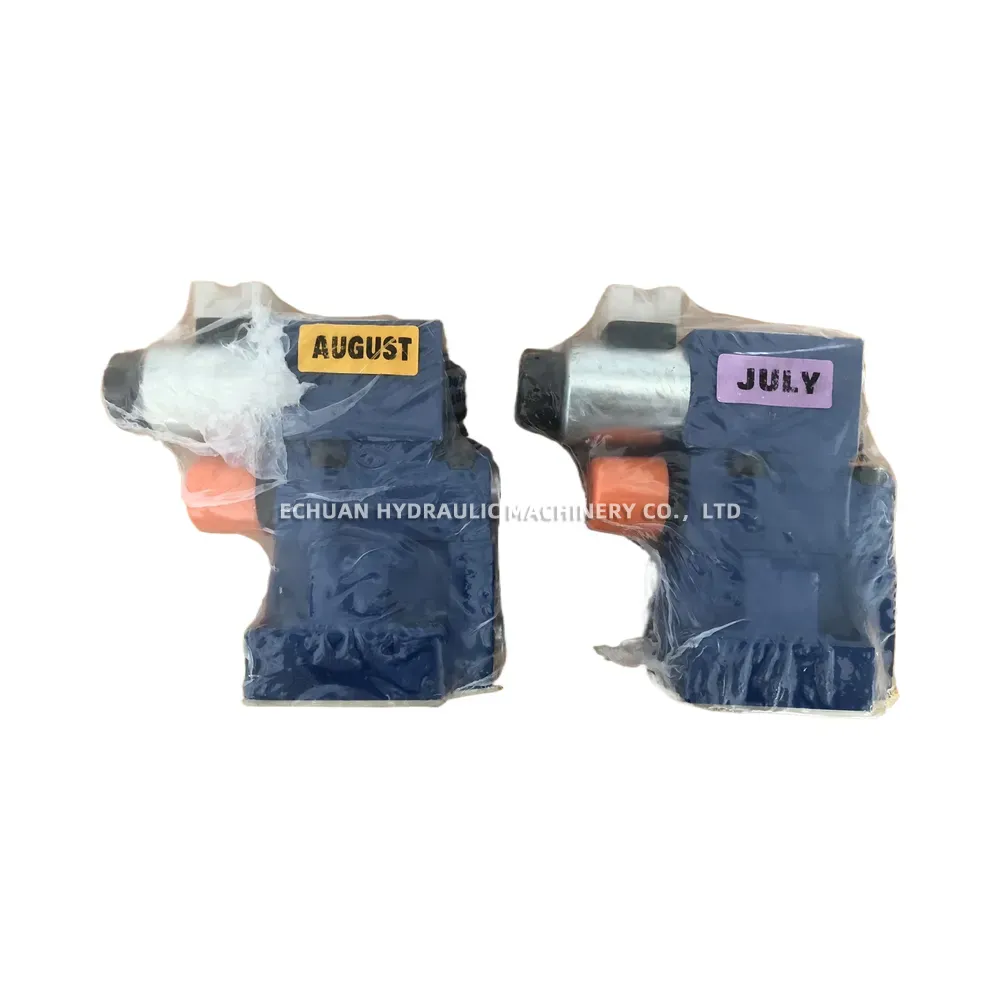

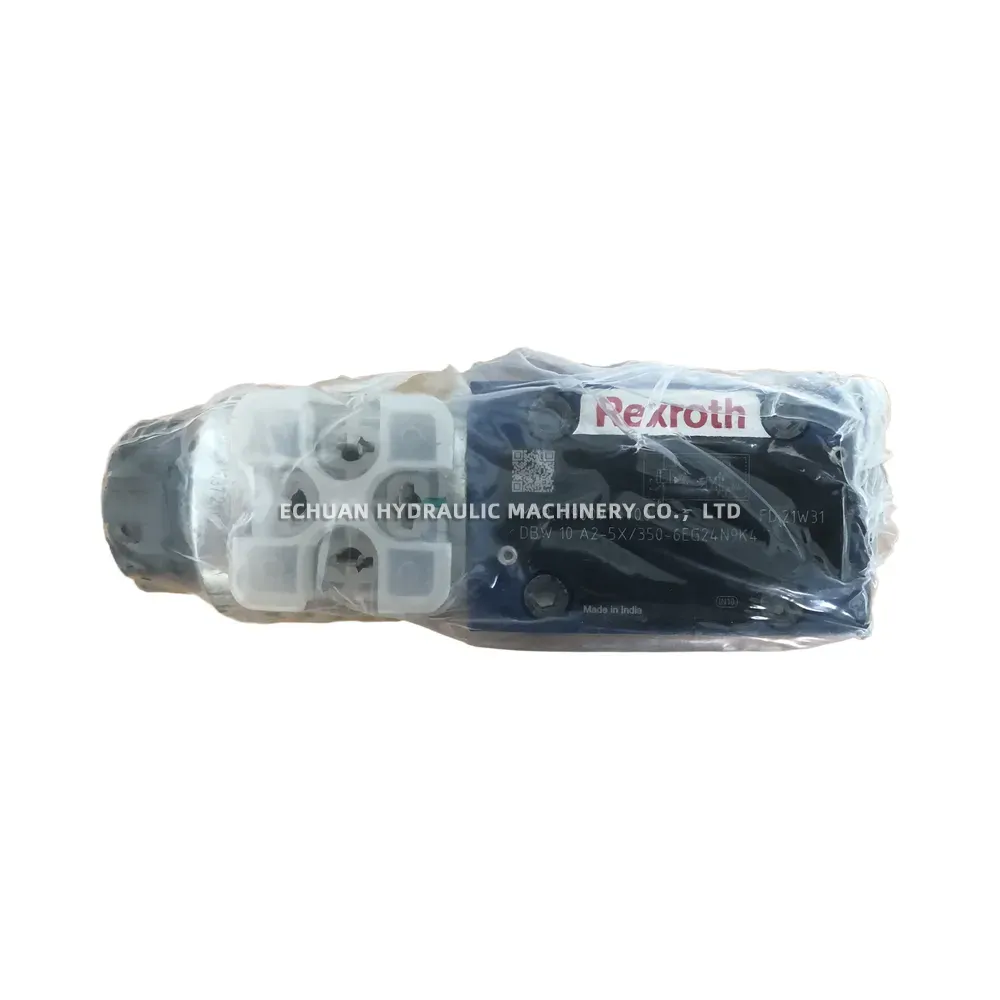

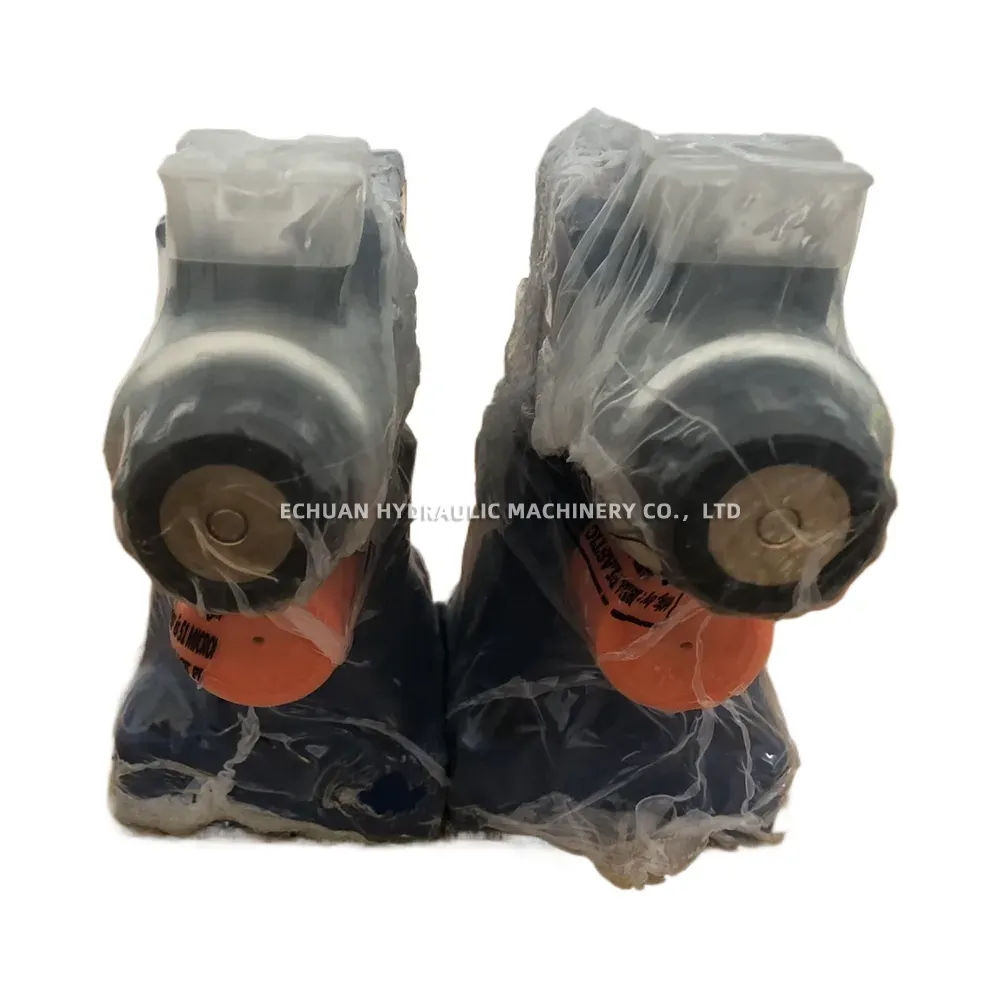

Rexroth R900974700 DBW10A2-5X/350-6EG24N9K4
The Rexroth R900974700 DBW10A2-5X/350-6EG24N9K4 is a pilot-operated pressure relief valve of the directional seated type, designed for limiting system pressure in hydraulic applications. This model features a sandwich plate design (size NG10 / CETOP 5) for convenient mounting within hydraulic circuits. It incorporates a solenoid-actuated unloading function, allowing the system pressure to be switched between the set maximum pressure and near-zero pressure (unloaded circulation) via a 24V DC electrical signal. The valve is adjustable up to a maximum pressure of 350 bar and includes a wet-pin DC solenoid with a standard DIN electrical connector for reliable performance.

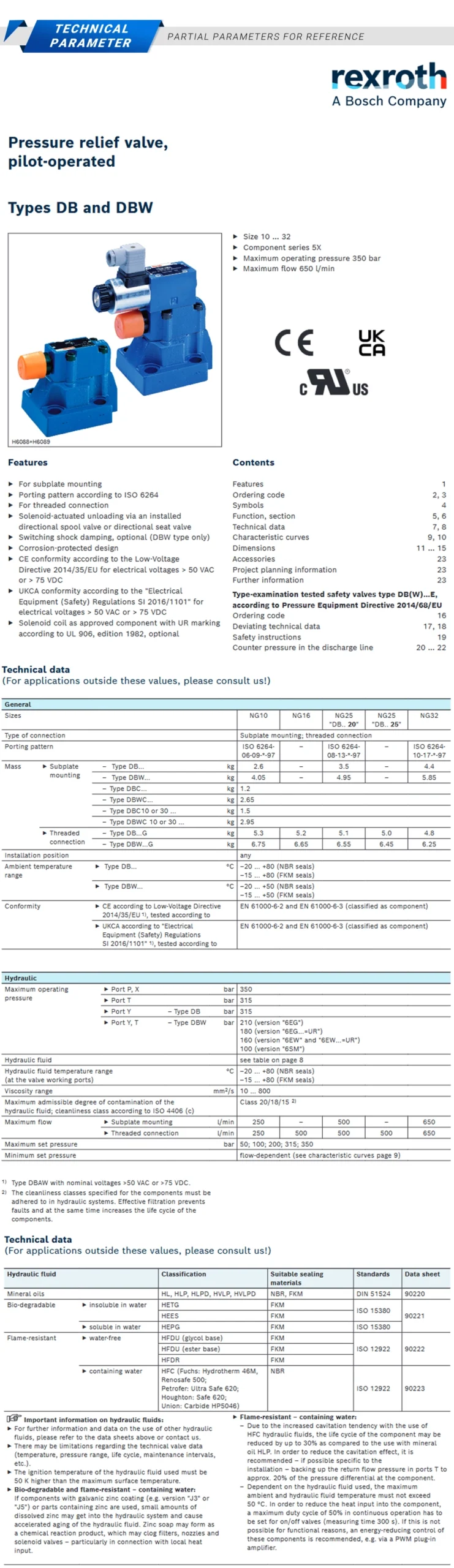

Technical Specifications:
- Type: Pilot Operated Pressure Relief Valve
- Model Code: DBW10A2-5X/350-6EG24N9K4
- Size: NG10 (CETOP 5)
- Mounting Interface: ISO 4401-05-04-0-05 (sandwich plate)
- Maximum Pressure Setting: 350 bar (5076 PSI)
- Maximum Flow: Approx. 100 l/min (check datasheet for specific pressure/flow curves)
- Component Series: 5X
- Actuation: Solenoid operated unloading
- Solenoid Voltage: 24V DC
- Solenoid Type: Wet-pin DC solenoid with detachable coil (Symbol 6E)
- Electrical Connection: Connector DIN EN 175301-803 (Symbol K4)
- Manual Override: Concealed manual override (Symbol N9)
- Hydraulic Connection: Porting pattern according to ISO 4401-05-04-0-05
- Seals: NBR (suitable for mineral oils HL, HLP)
- Weight: Approx. 2.6 kg
Rexroth R900974700 DBW10A2-5X/350-6EG24N9K4
Model:Rexroth R900974700 DBW10A2-5X/350-6EG24N9K4
