Product Description

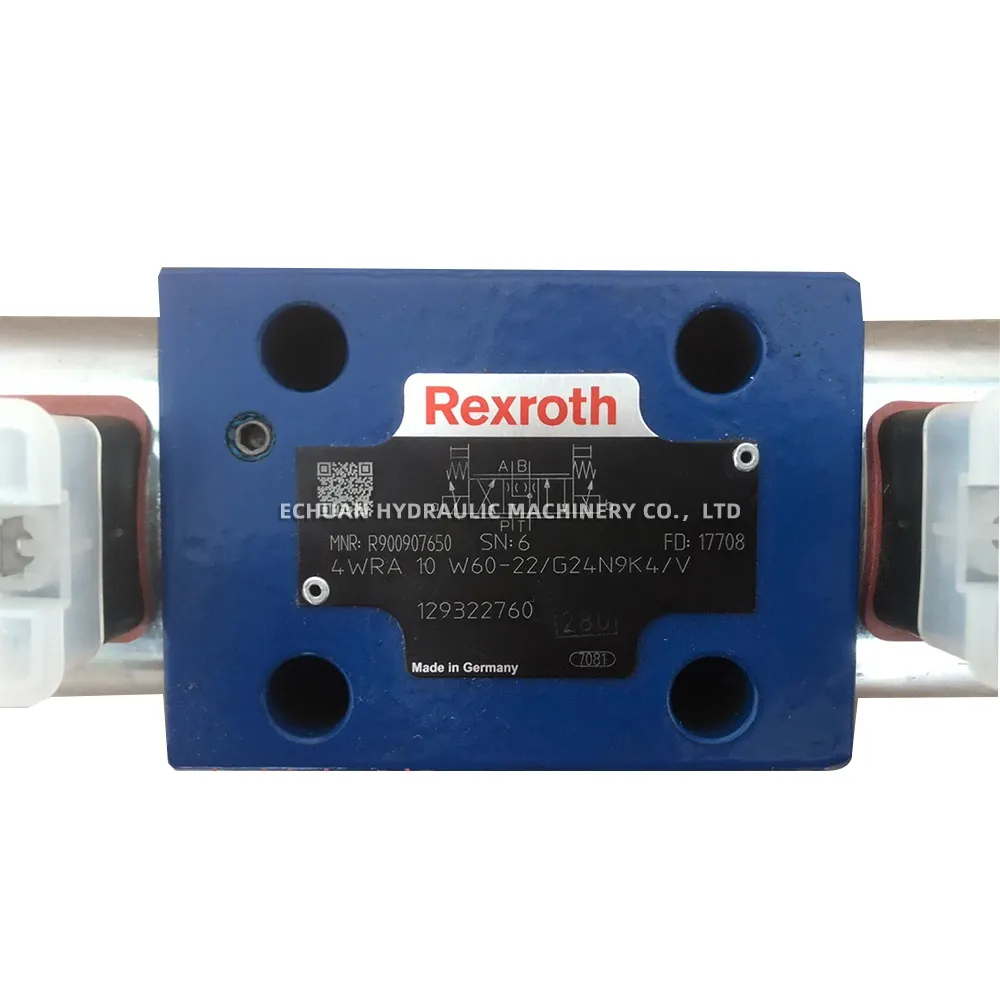

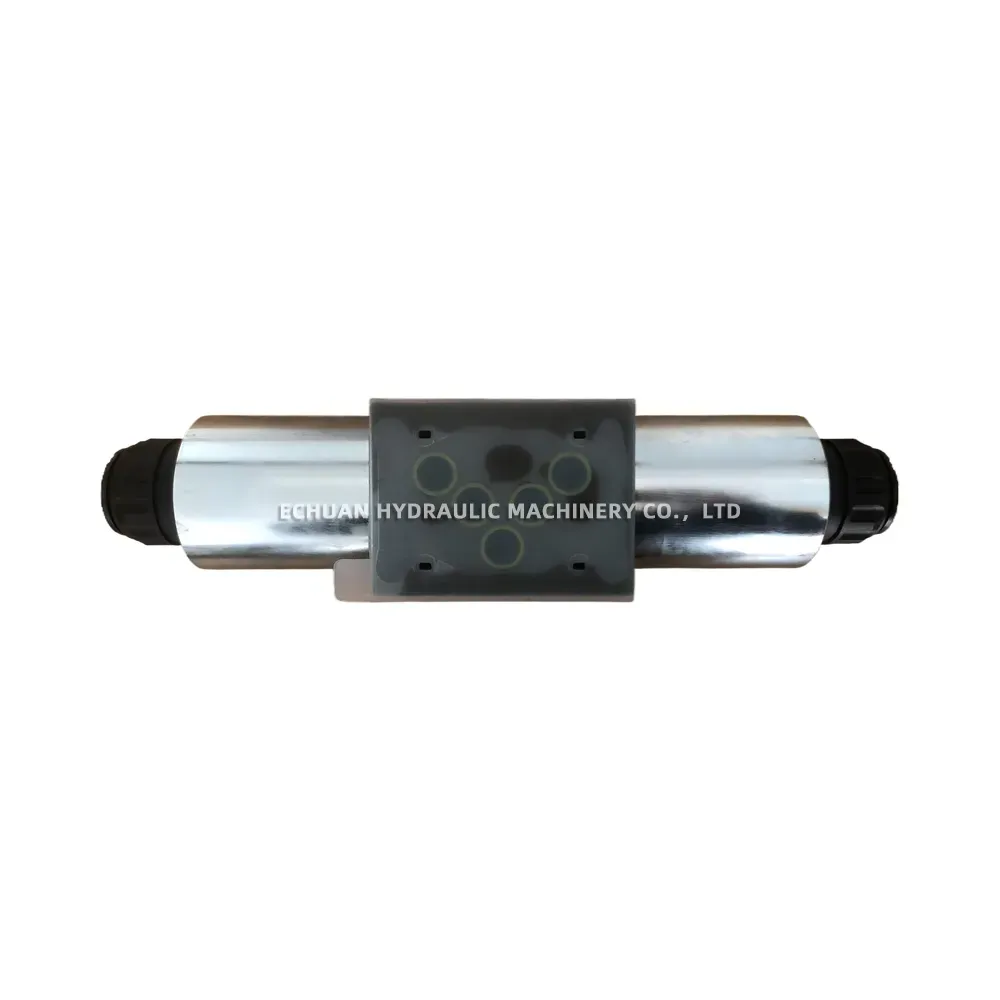

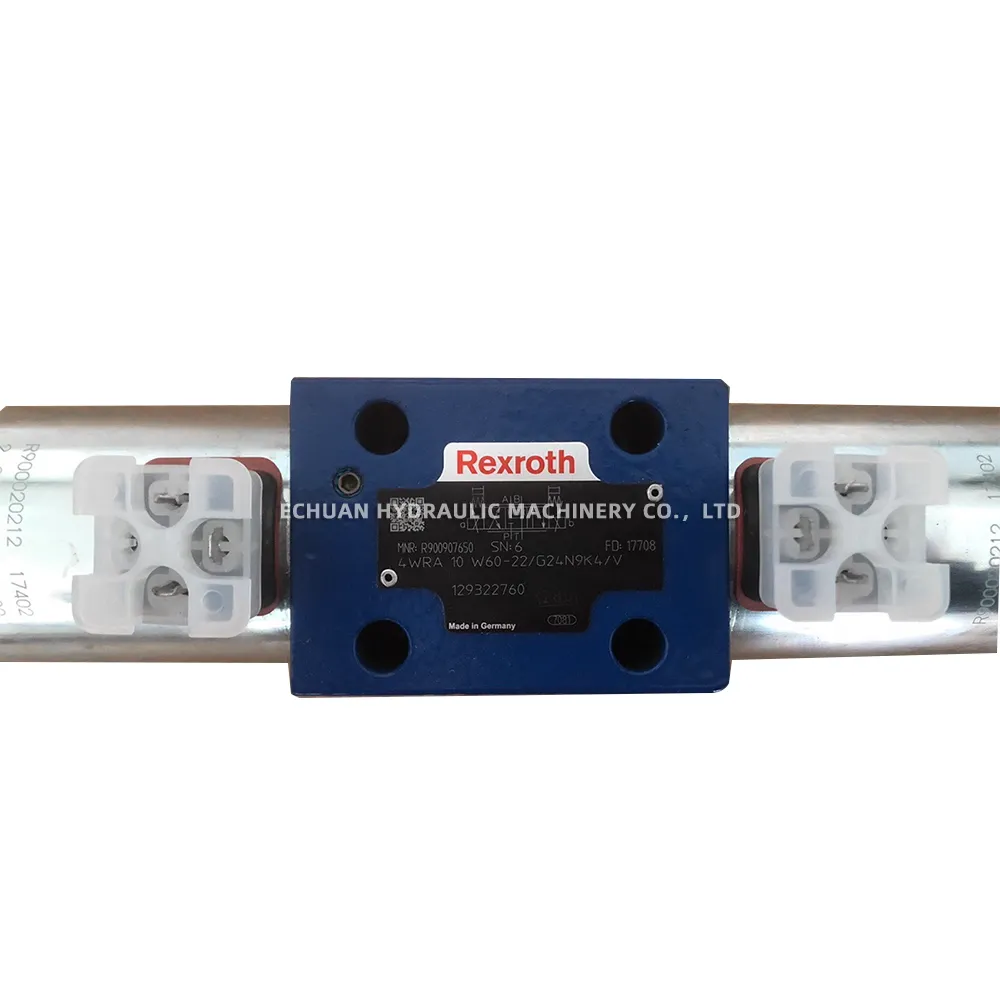

Rexroth R900907650 4WRA10W60-22/G24N9K4/V
The Rexroth 4WRA10W60-22/G24N9K4/V is a size 10 direct operated proportional directional control valve designed for precise electrohydraulic control in industrial applications. It features integrated electronics (OBE – On-Board Electronics) with electrical position feedback for accurate spool positioning and control over the start, stop, direction, and magnitude of fluid flow. This valve is actuated by proportional solenoids and is suitable for subplate mounting according to the ISO 4401 standard. This specific model operates on a 24V DC supply voltage and utilizes NBR seals.
Technical Specifications:
- Component Series: 2X (20 to 29)
- Size: 10
- Mounting Pattern: ISO 4401-05-04-0-05 (NG10)
- Actuation Type: Direct operated proportional solenoid
- Spool Symbol: W60
- Maximum Operating Pressure (Ports P, A, B): 315 bar
- Maximum Operating Pressure (Port T): 210 bar
- Maximum Flow Rate: 60 L/min
- Control Electronics: Integrated (OBE) with electrical position feedback
- Supply Voltage: 24 VDC
- Command Signal Input (/V variant): ±10 V
- Electrical Connection: Plug-in connector without mating connector, 6 + PE pole conforming to DIN EN 175201-804
- Seal Material: NBR (Nitrile Rubber)
- Hydraulic Fluid Temperature Range: -20 to +80 °C (with NBR seals)
Rexroth R900907650 4WRA10W60-22/G24N9K4/V
Model:Rexroth R900907650 4WRA10W60-22/G24N9K4/V
