Product Description

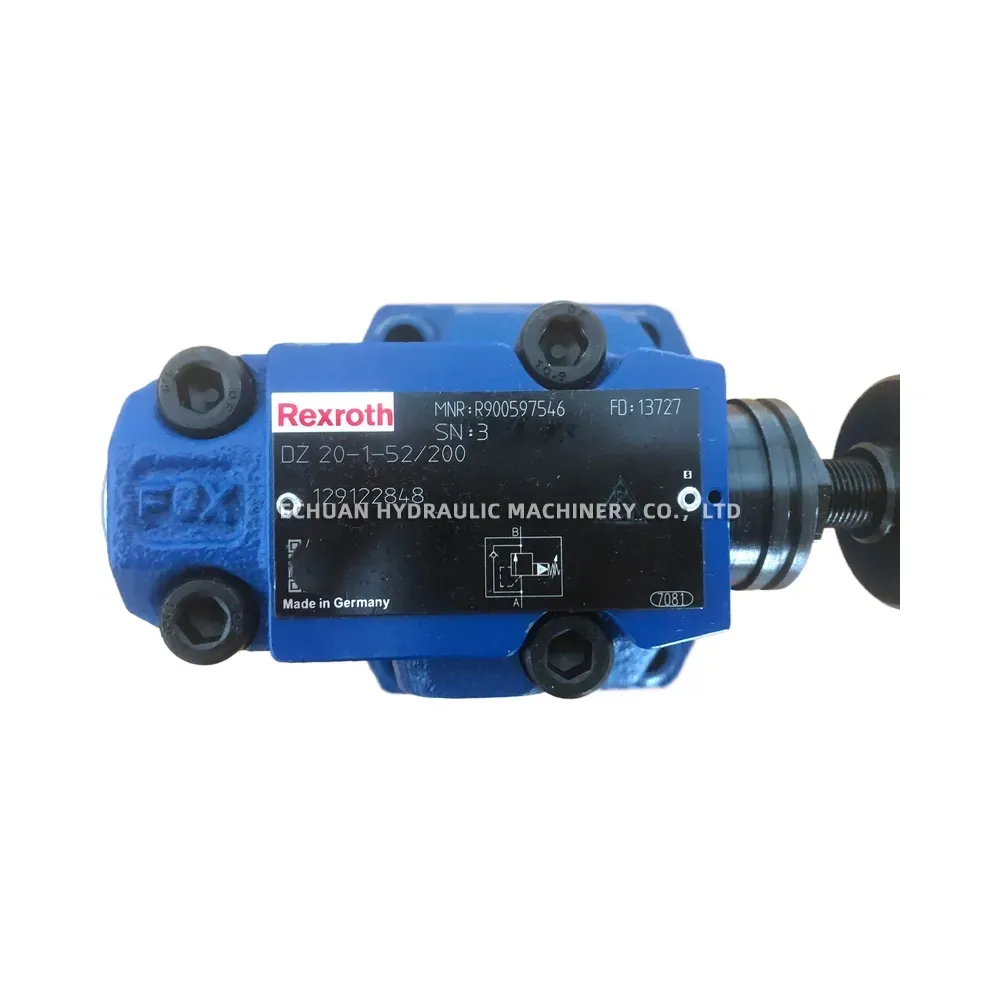

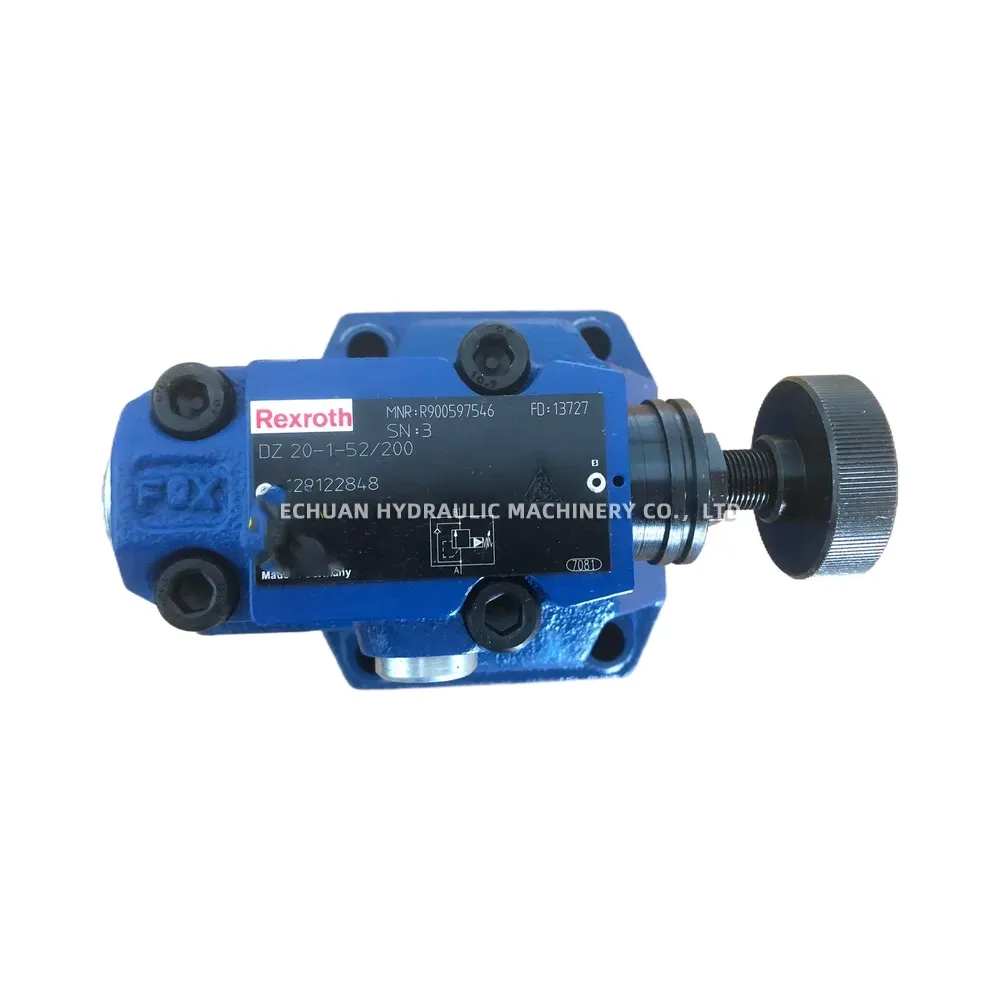

Rexroth R900597546 DZ20-1-52/200
The Rexroth R900597546 DZ20-1-52/200 is a direct-operated pressure sequence valve designed for subplate mounting. It functions by enabling flow to a secondary circuit only after a specific, adjustable pressure has been reached in the primary circuit. This model includes an integrated check valve, allowing free return flow from the secondary to the primary circuit. It is commonly used in hydraulic systems to control the sequence of operations based on pressure levels, ensuring reliable and precise system performance.
Technical Specifications:
- Component Series: 5X (52 denotes pressure setting range)
- Valve Type: Direct operated pressure sequence valve with check valve
- Size: NG20
- Mounting: Subplate mounting
- Porting Pattern: According to ISO 5781-01-13-0-00
- Maximum Operating Pressure: 315 bar (4568 psi)
- Pressure Setting Range: Up to 200 bar (2900 psi)
- Maximum Flow: 300 l/min (79 GPM)
- Hydraulic Fluid Compatibility: Mineral oil (HL, HLP) according to DIN 51524
- Fluid Temperature Range: -30°C to +80°C (-22°F to +176°F)
- Seal Material: NBR (Nitrile Rubber)
- Adjustment Type: Sleeve with hexagon and protective cap
Rexroth R900597546 DZ20-1-52/200
Model:Rexroth R900597546 DZ20-1-52/200
