Product Description
Rexroth 4WRPEH6C3B24L-2X=G24K0/A1M=00 R901349898

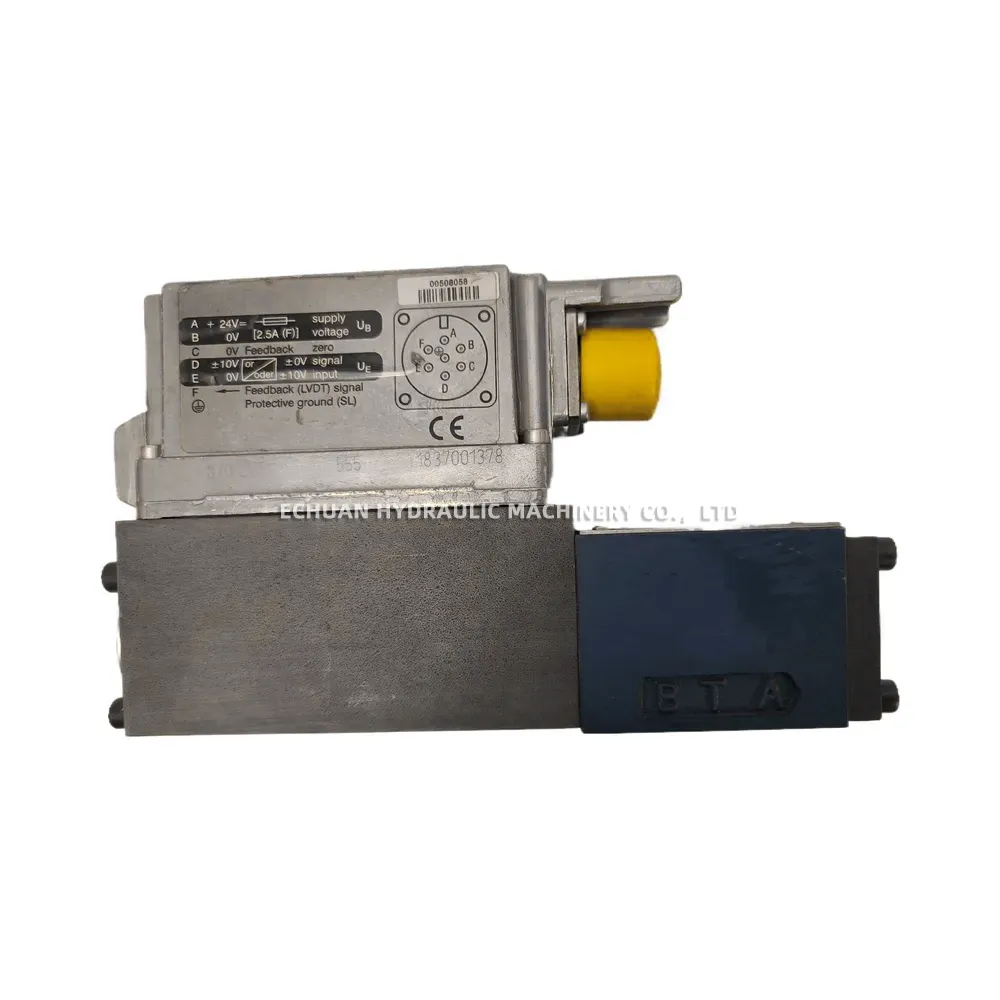

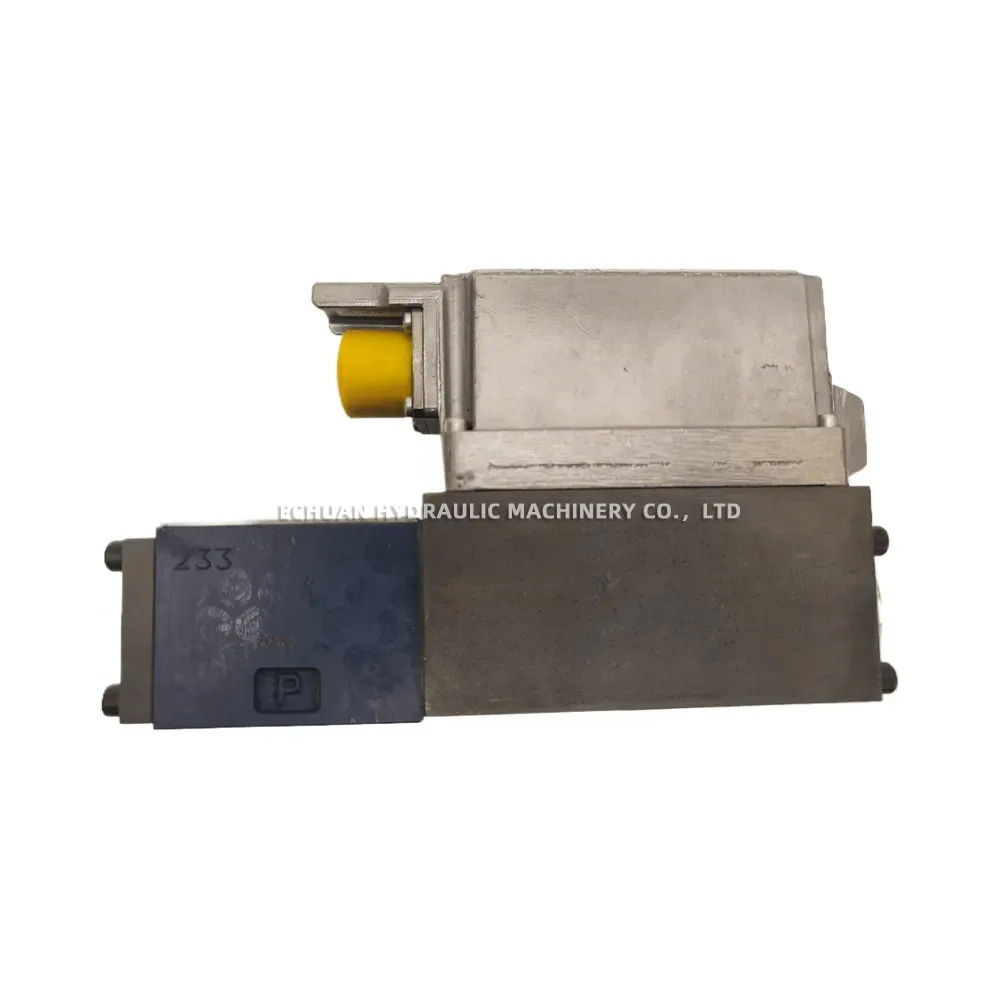

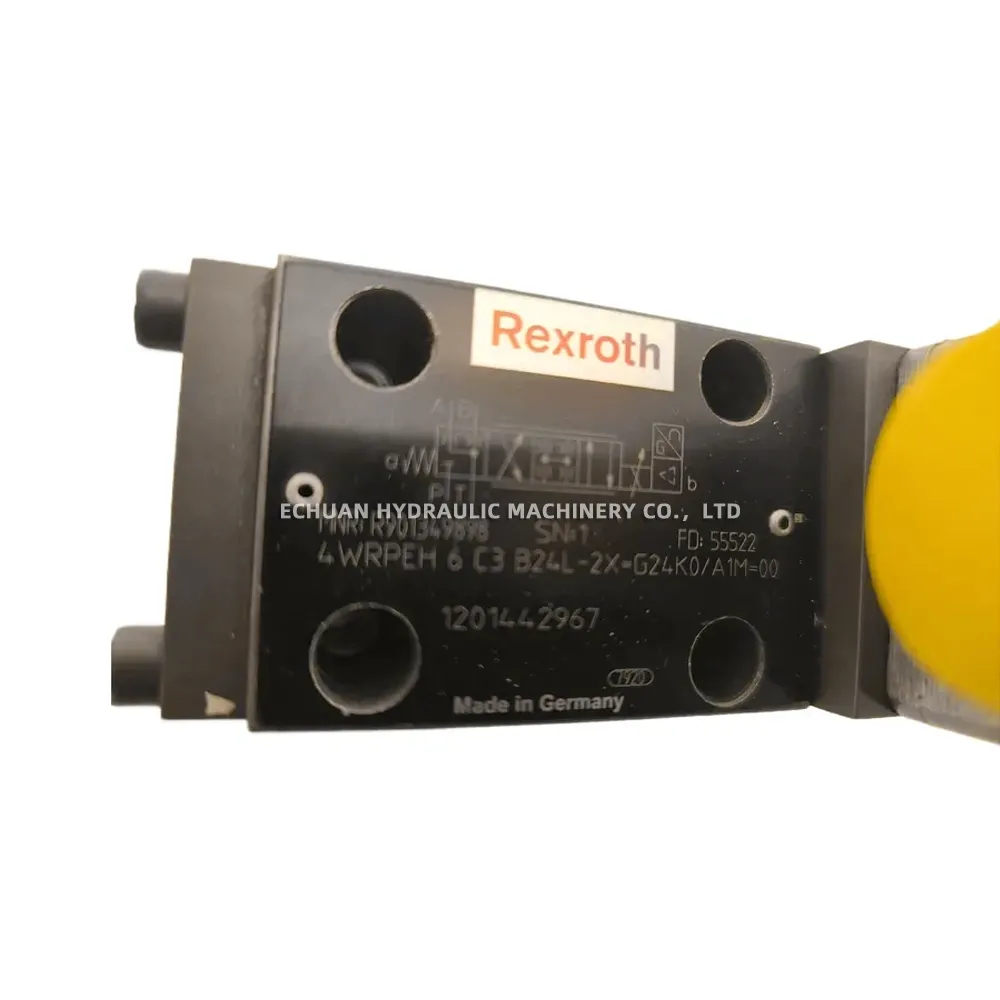

The Rexroth 4WRPEH6C3B24L-2X/G24K0/A1M is a high-response, direct operated proportional directional control valve with electrical position feedback and integrated electronics (OBE). Designed for subplate mounting according to ISO 4401-03-02-0-05 standards, this NG6 (CETOP 03) valve provides precise control over the direction and magnitude of fluid flow in hydraulic systems. Its integrated electronics simplify installation and setup, receiving a 4-20mA command signal. This valve is suitable for applications requiring accurate and dynamic control.

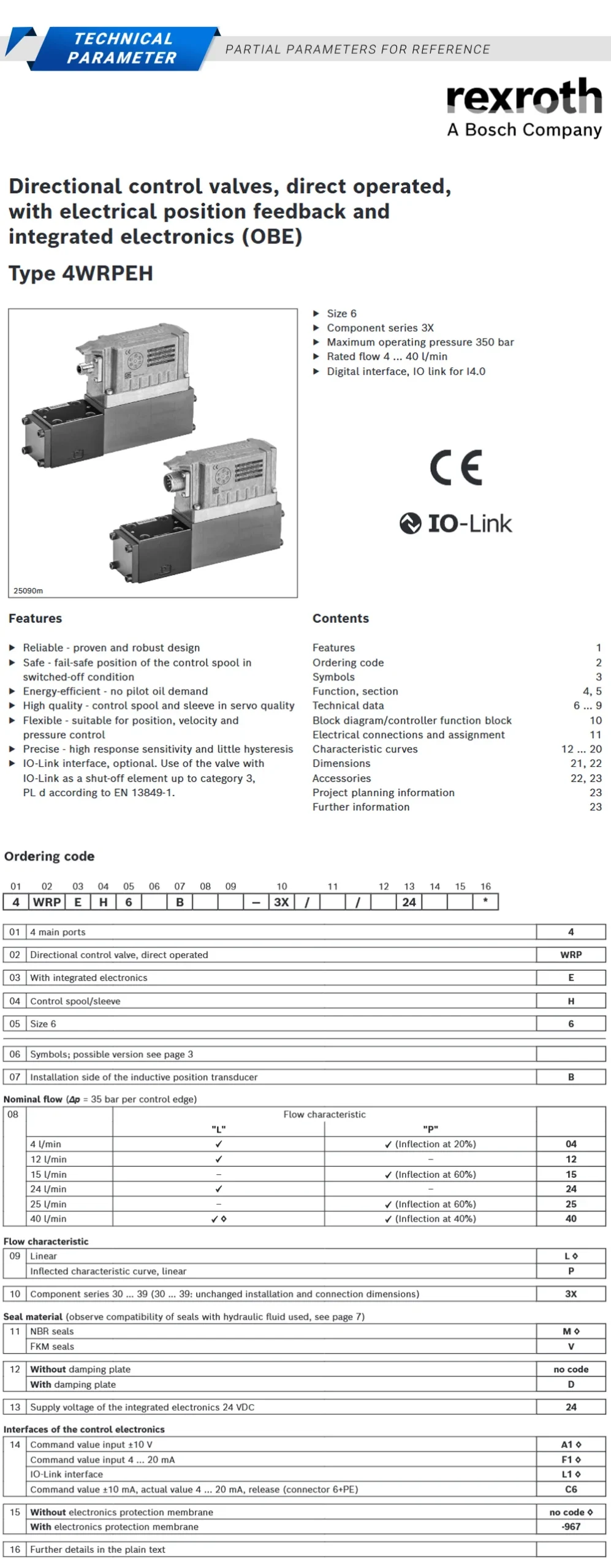

Technical Specifications:
- Type: Direct operated proportional directional valve with electrical position feedback
- Series: 4WRPEH
- Size: NG6 (Nominal Size 6), Subplate mounting ISO 4401-03-02-0-05
- Spool Symbol: C3
- Nominal Flow Rate: 24 L/min (at 1 MPa / 10 bar Δp per control land)
- Maximum Operating Pressure (Ports P, A, B): 315 bar
- Maximum Operating Pressure (Port T): 210 bar
- Control Electronics: Integrated Electronics (OBE)
- Supply Voltage: 24V DC
- Command Signal Interface: A1 (4…20 mA)
- Electrical Connection: Device-side connection without mating connector (K0)
- Seal Material: NBR (M)
- Fluid Temperature Range: -20°C to +80°C
- Rexroth Material Number: R901349898
