Product Description

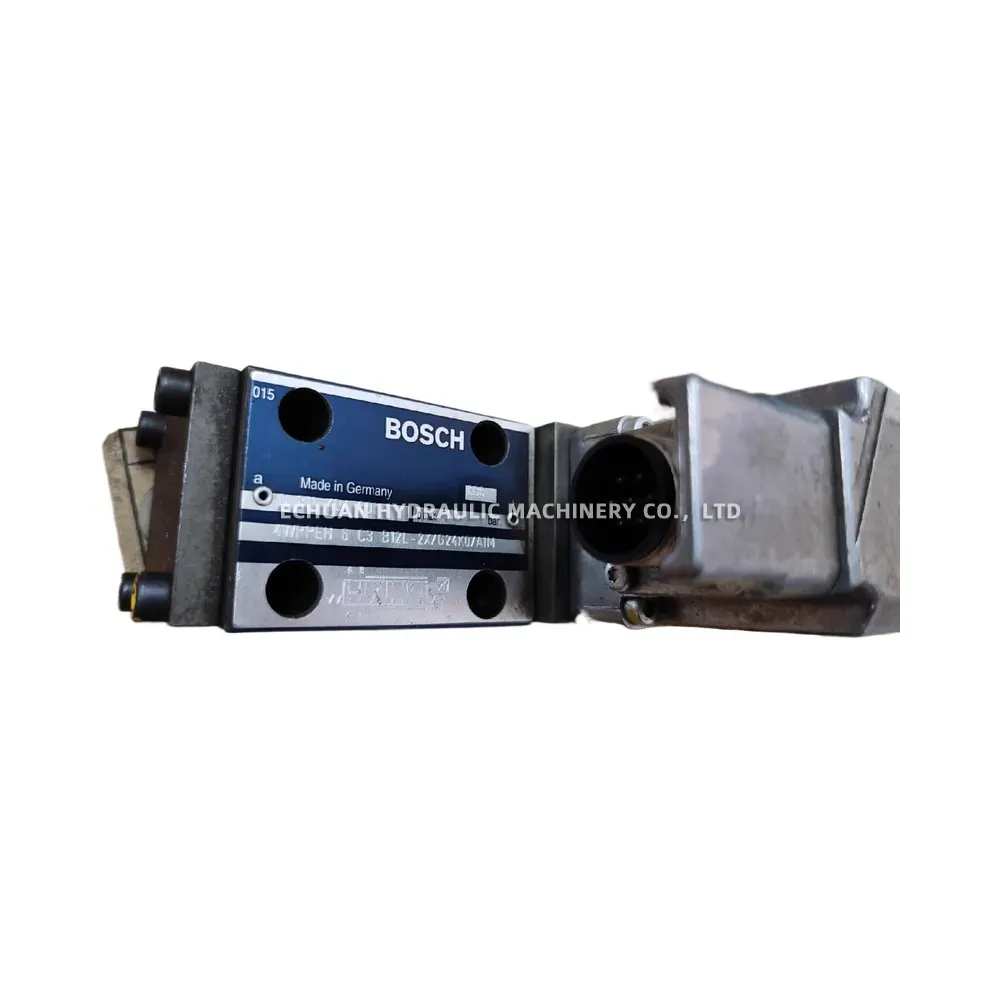

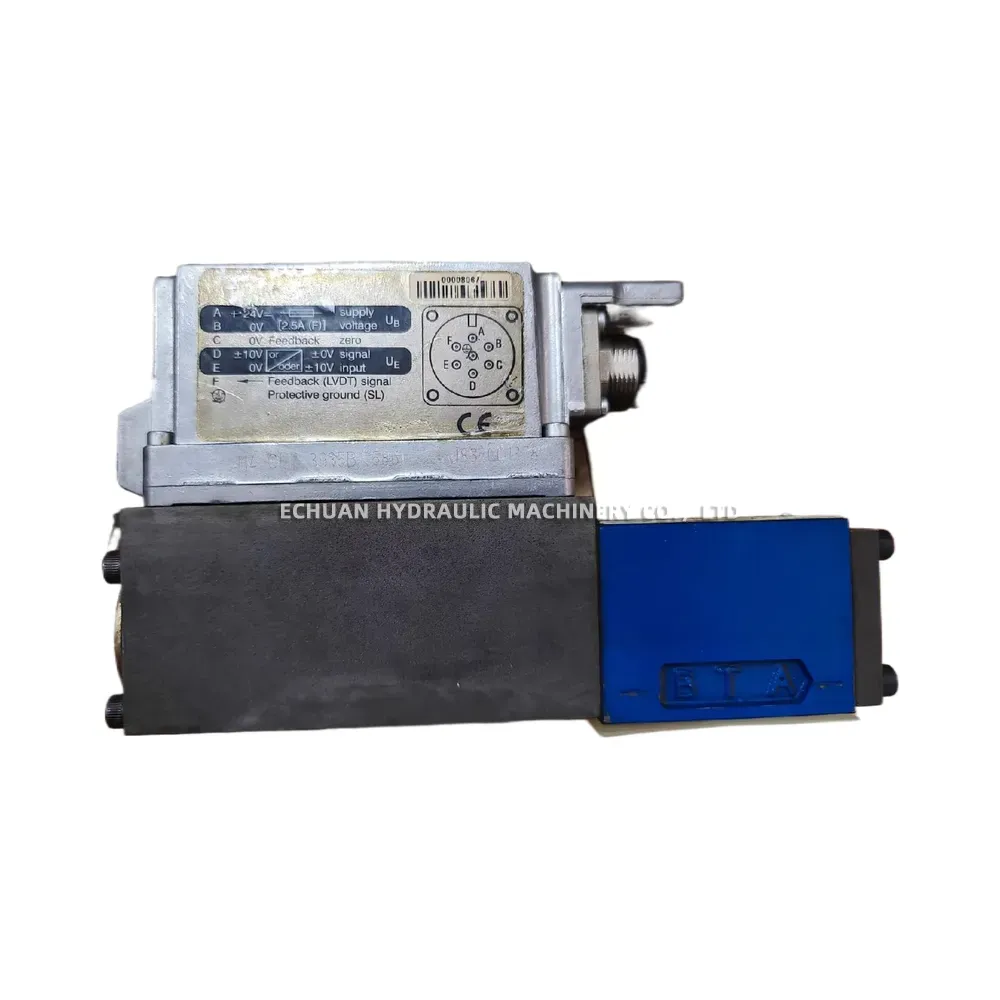

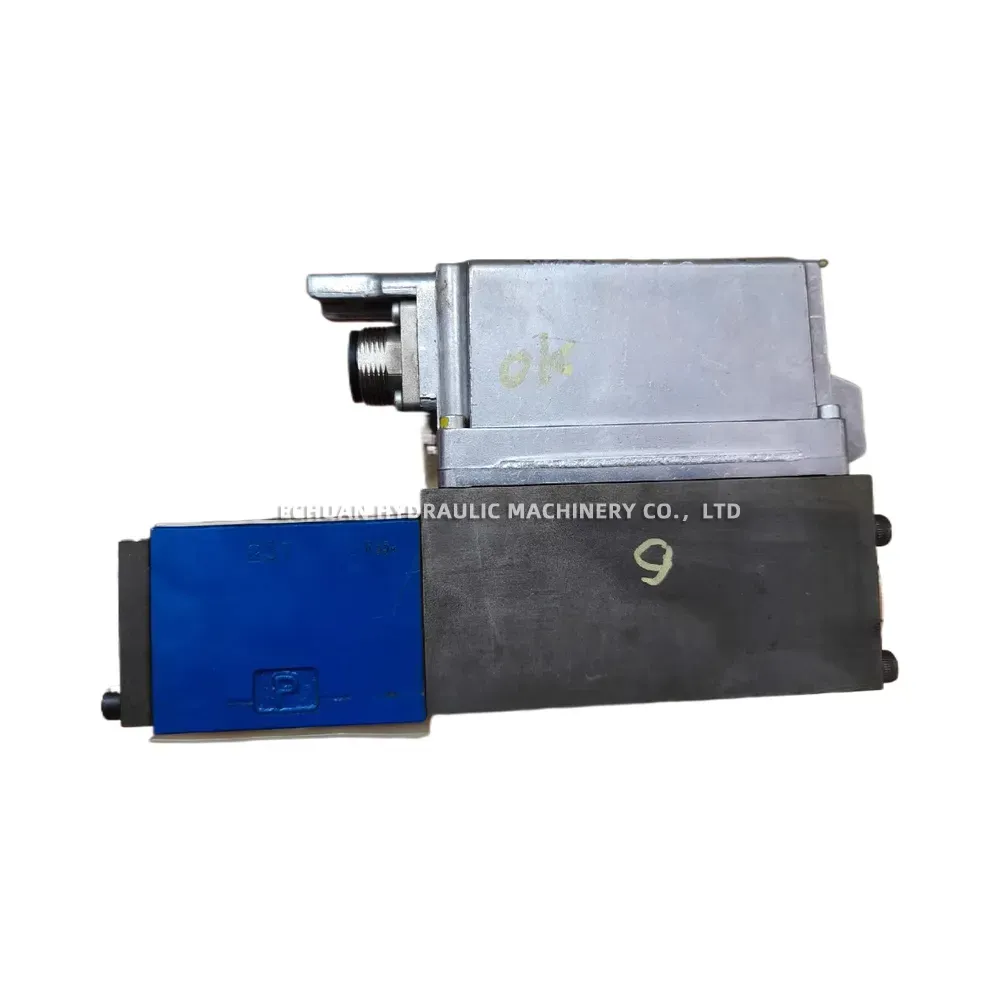

Rexroth 4WRPEH6C3B12L-20/G24K0/A1M Proportional Directional Valve 0811404601
The Rexroth 4WRPEH6C3B12L-20/G24K0/A1M is a direct operated proportional directional control valve with electrical position feedback and integrated electronics (OBE). Designed for subplate mounting according to ISO 4401 standards, this high-performance valve offers precise control over the start, stop, direction, and magnitude of fluid flow. It features a size 6 (NG6) design, a specific C3B spool configuration, and a nominal flow rate of 12 L/min. The integrated electronics simplify installation and control, operating on a standard 24V DC supply. This valve includes a manual override for setup or emergency situations and utilizes NBR seals, making it suitable for various industrial hydraulic systems requiring accurate and responsive control.

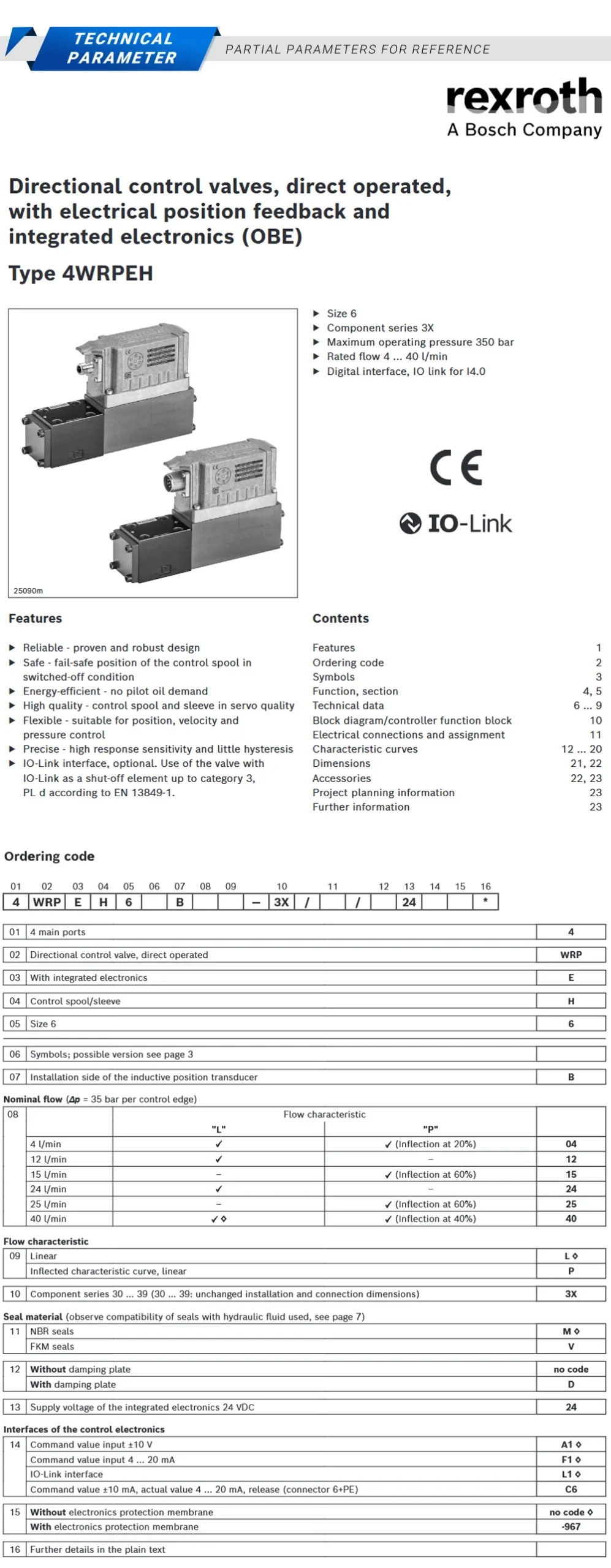

Technical Specifications:
- Manufacturer: Bosch Rexroth
- Valve Type: Direct Operated Proportional Directional Control Valve
- Series: 4WRPEH
- Size: 6 (NG6 / CETOP 03)
- Part Number: 0811404601
- Component Series: 2X (20 to 29)
- Spool Symbol: C3B
- Nominal Flow Rate: 12 L/min (at 1 MPa / 10 bar Δp per control land)
- Control: Proportional Solenoid with Integrated Electronics (OBE) and Position Feedback
- Supply Voltage: 24V DC
- Electrical Connection: Connector according to EN 175201-804 (K0)
- Seal Material: NBR (Suitable for mineral oil HL, HLP according to DIN 51524)
- Mounting Interface: ISO 4401-03-02-0-05
- Maximum Operating Pressure (Ports P, A, B): 315 bar (4568 psi)
- Maximum Operating Pressure (Port T): 210 bar (3045 psi)
- Auxiliary Actuation: Manual Override (M)
- Hydraulic Fluid Temperature Range: -20°C to +80°C
Rexroth 4WRPEH6C3B12L-20/G24K0/A1M 0811404601
Model:Rexroth 4WRPEH6C3B12L-20/G24K0/A1M 0811404601
