Product Description
Rexroth 4WRPEH6C3B02L-20/G24K0/A1M-816 Proportional Directional Control Valve 0811404606
The Rexroth 4WRPEH6C3B02L-20/G24K0/A1M-816 is a high-response, direct operated proportional directional control valve with integrated digital electronics (OBE) and electrical position feedback. Designed for demanding closed-loop control applications, it offers precise control of flow direction and magnitude. This valve is size NG6 (CETOP 3) and features subplate mounting according to ISO 4401 standards. The integrated electronics simplify installation and setup, receiving a +/- 10V command signal and operating on a 24V DC supply. Its robust construction ensures reliable performance in various industrial hydraulic systems requiring high dynamics and accuracy.
Technical Specifications:
- Type: Proportional Directional Control Valve
- Series: 4WRPEH
- Actuation: Direct Operated with Proportional Solenoid
- Control: Integrated Digital Electronics (OBE) with Position Feedback
- Size: NG6 (Nominal Size 6 / CETOP 3)
- Mounting Interface: ISO 4401-03-02-0-05
- Spool Symbol: C3
- Nominal Flow Rate: 2 L/min (at 10 bar Δp per control land)
- Maximum Operating Pressure (Ports P, A, B): 315 bar (4568 psi)
- Maximum Operating Pressure (Port T): 210 bar (3045 psi)
- Supply Voltage: 24V DC
- Command Signal Input: +/- 10V

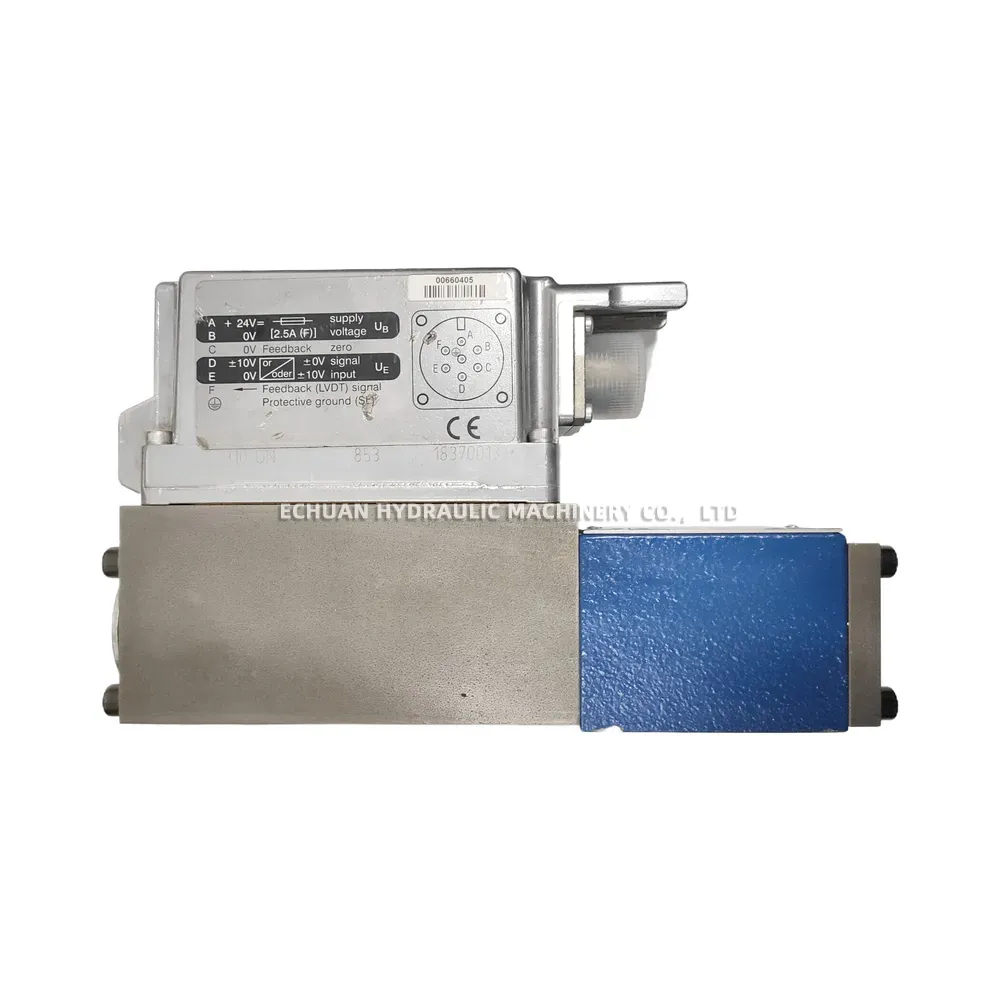

- Electrical Connection: Plug-in connector, 6-pole + PE, according to EN 175201-804 (Type A1M)
- Hydraulic Fluid Temperature Range: -20°C to +80°C
- Seal Material: NBR (Nitrile Rubber)
- Part Number: R901099305 (May be associated with 0811404606, confirm specific documentation if critical)
- Bosch Rexroth Material Number: 0811404606
Rexroth 4WRPEH6C3B02L-20/G24K0/A1M-816 0811404606
Model:Rexroth 4WRPEH6C3B02L-20/G24K0/A1M-816 0811404606
