Product Description

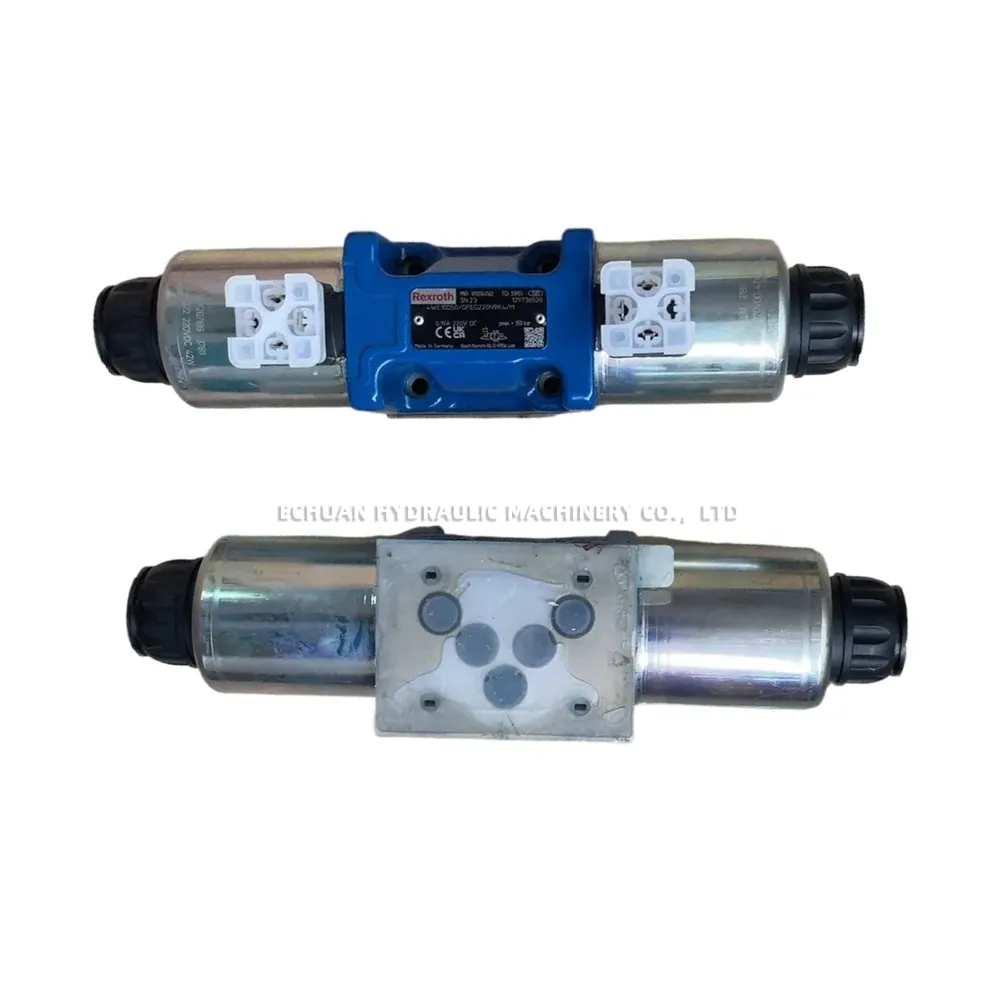

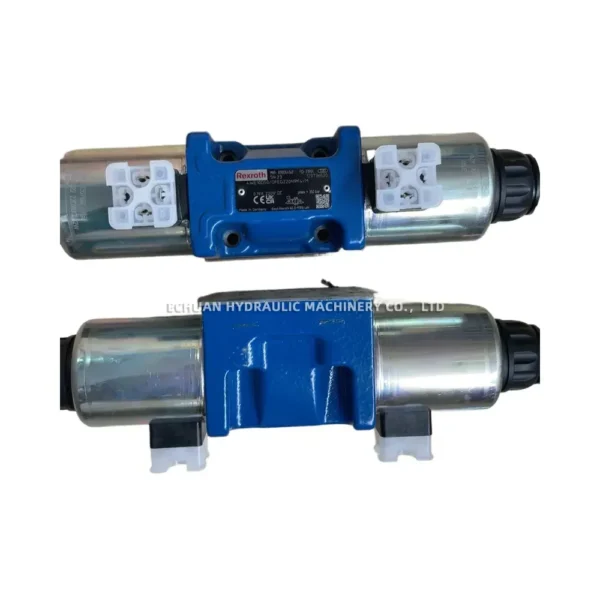

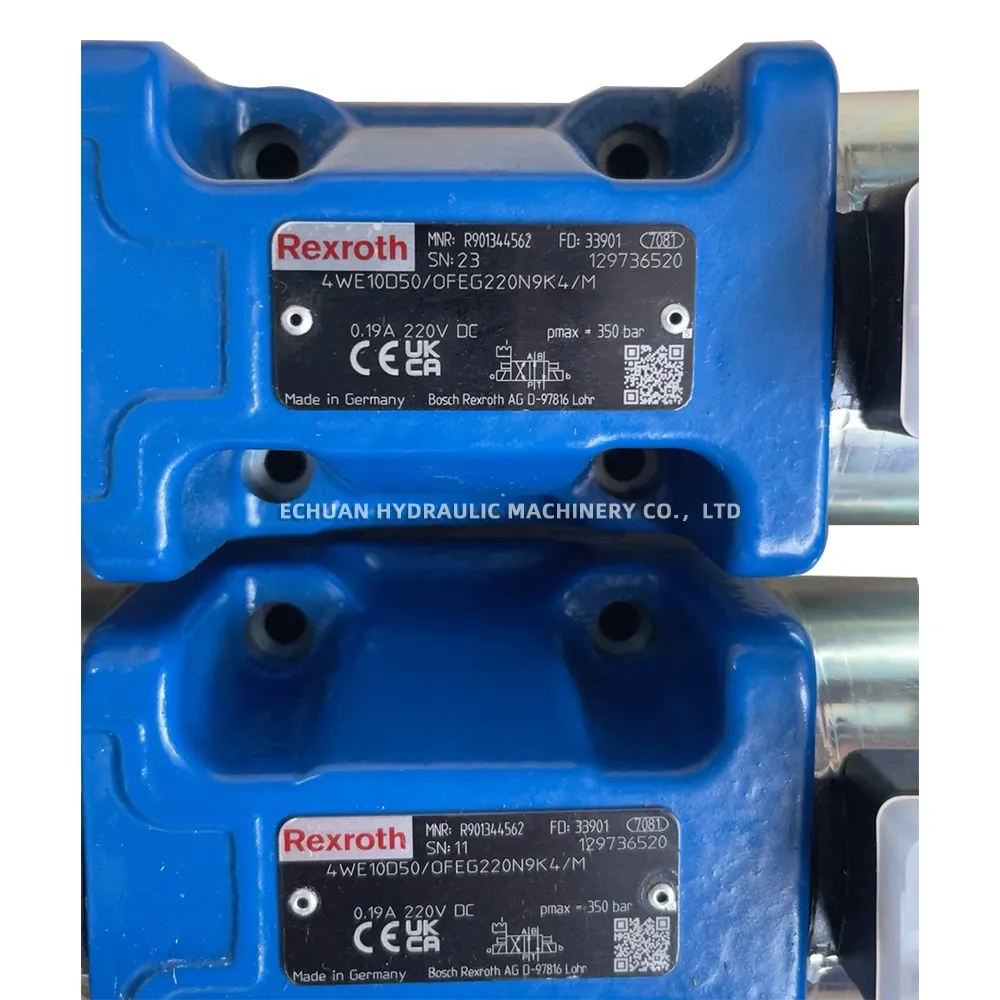

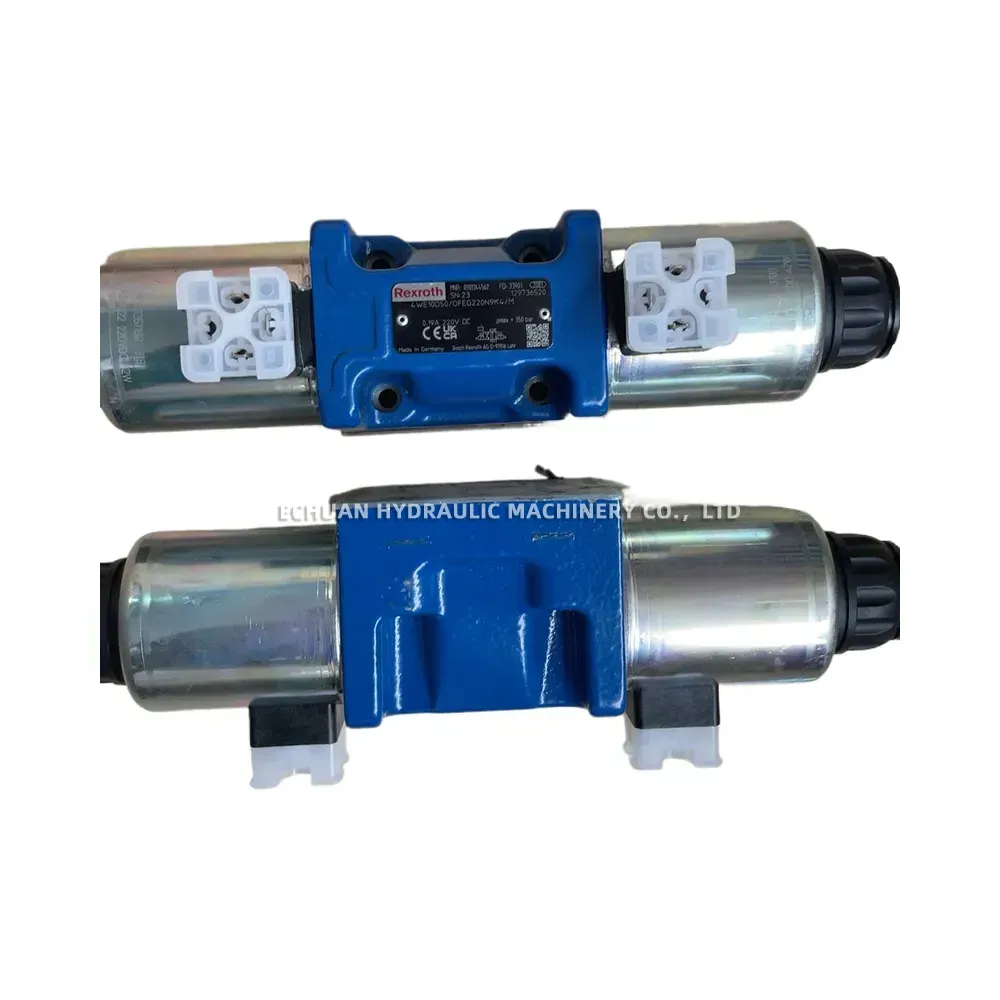

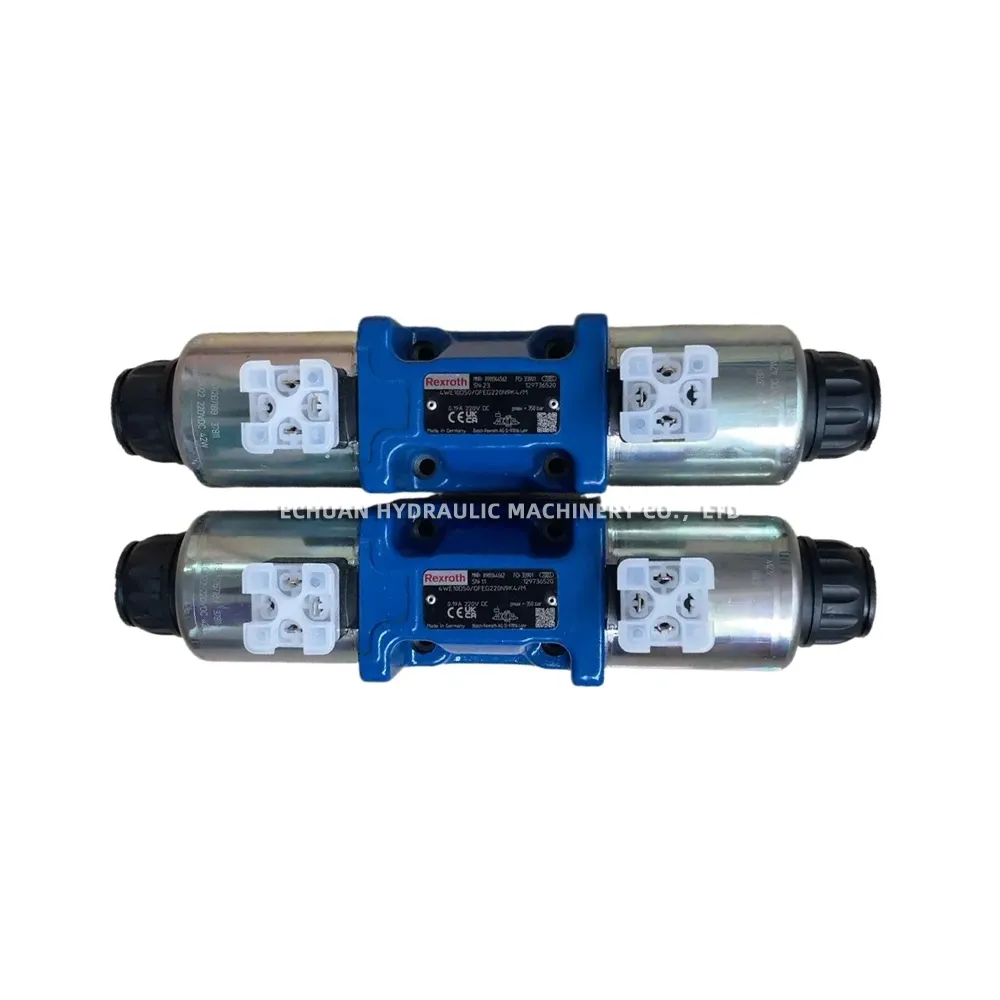

Rexroth 4WE10D50/OFEG220N9K4/M R901344562
The Rexroth 4WE10D50/OFEG220N9K4/M is a direct-operated directional spool valve with solenoid actuation. Part of the reliable WE series, this size 10 valve controls the start, stop, and direction of fluid flow in hydraulic systems. It features a standardized ISO 4401-05-04-0-05 mounting interface for easy integration. This specific model includes a ‘D’ spool configuration, wet-pin DC solenoids (220V DC) with detachable coils, and an electrical connection via a plug-in connector according to DIN EN 175301-803 with an indicator light. The ‘/M’ designation typically indicates specific seals or minor modifications.
Technical Specifications:
- Valve Type: Direct Operated Directional Spool Valve
- Series: 4WE
- Nominal Size: NG10 (Size 10)
- Actuation Type: Solenoid Operated (OFE – Wet-pin Solenoid)
- Spool Symbol: D
- Mounting Standard: ISO 4401-05-04-0-05
- Solenoid Voltage: G220 = 220V DC
- Electrical Connection: N9K4 = Plug-in connector to DIN EN 175301-803 with indicator light
- Maximum Operating Pressure (Ports P, A, B): 315 bar (4568 psi)
- Maximum Operating Pressure (Port T): 210 bar (3045 psi)
- Maximum Flow Rate: Approx. 120 L/min (31.7 US GPM) – dependent on pressure drop
- Hydraulic Fluid Temperature Range: -20°C to +80°C (with standard NBR seals)
- Material Number: R901344562
- Modification Code: /M (Indicates specific modification, often related to seals or internal details)
Rexroth 4WE10D50/OFEG220N9K4/M R901344562
Model:Rexroth 4WE10D50/OFEG220N9K4/M R901344562
