Product Description

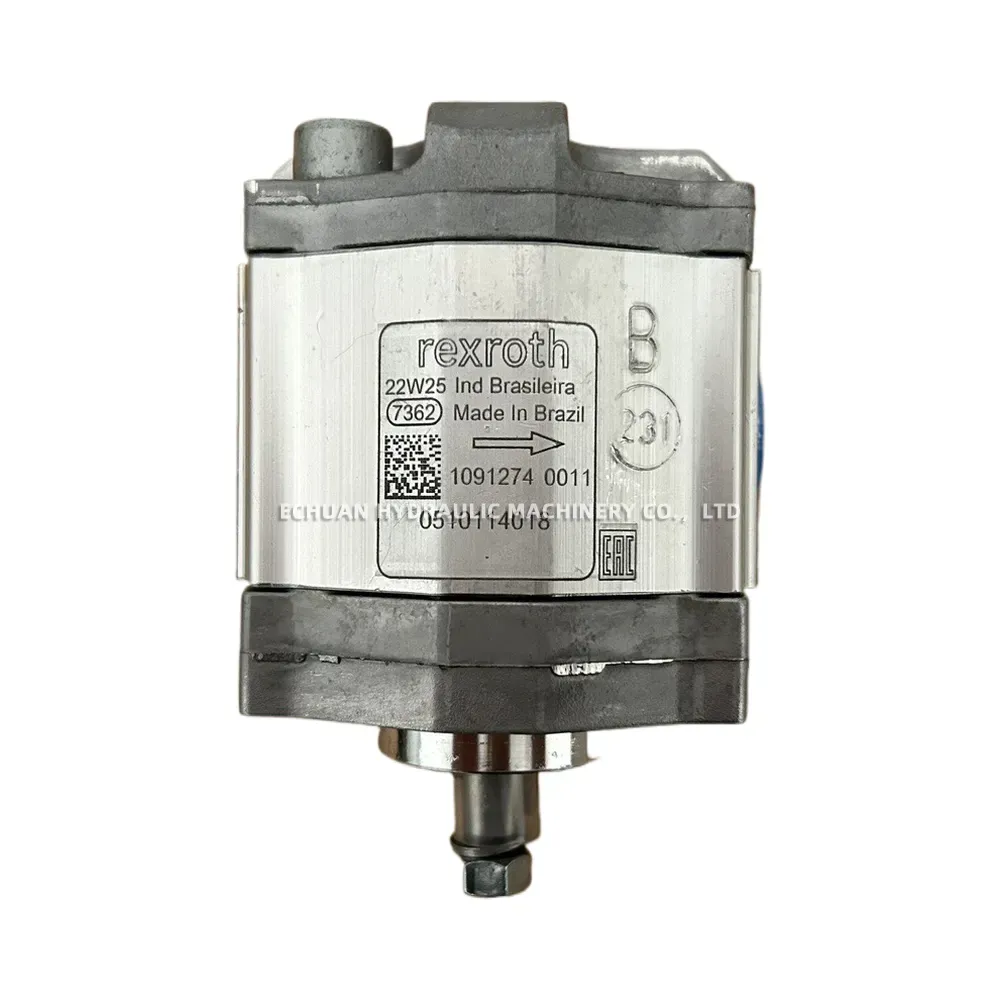

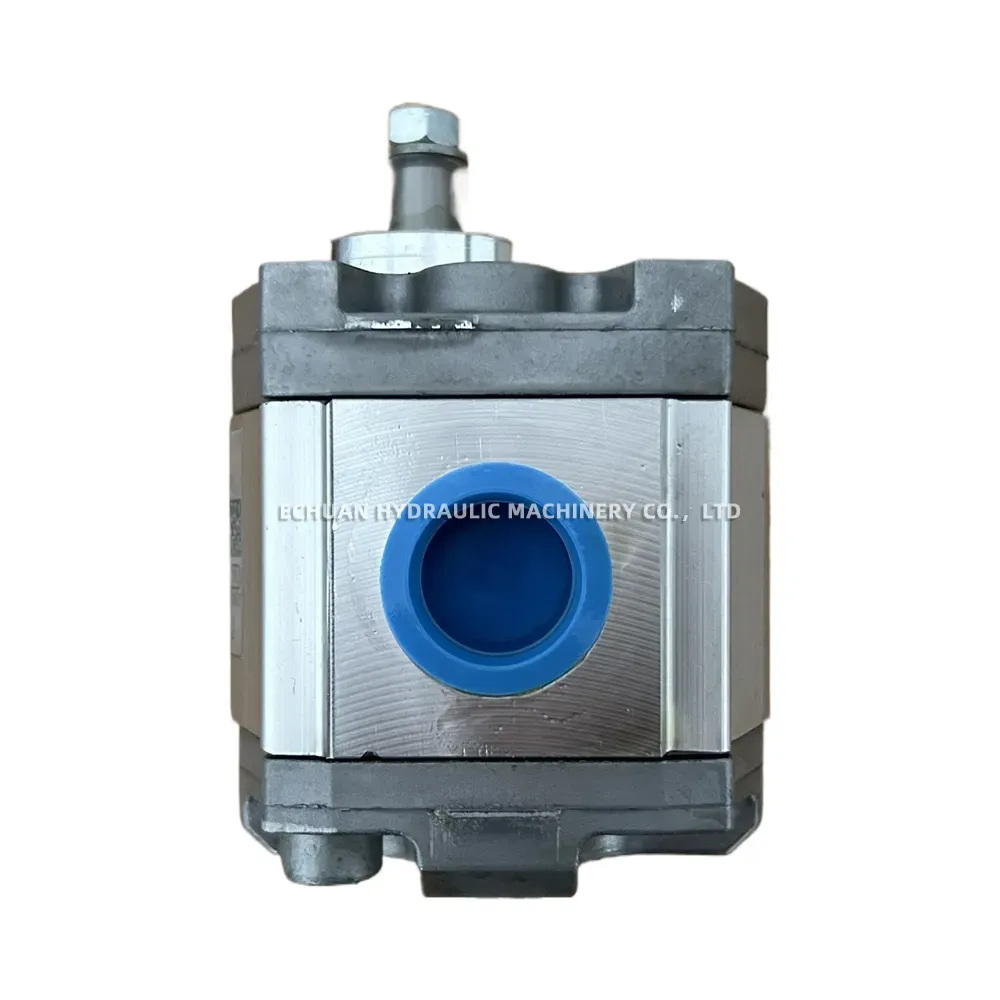

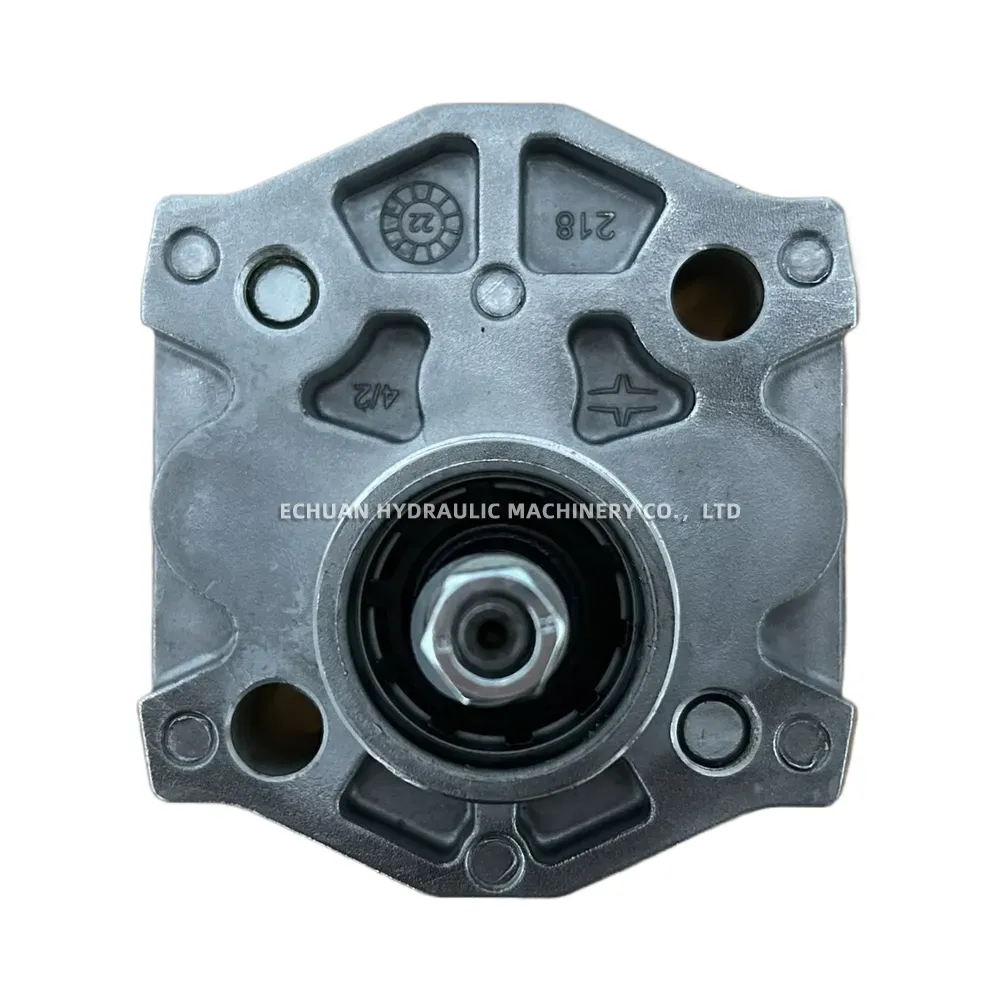

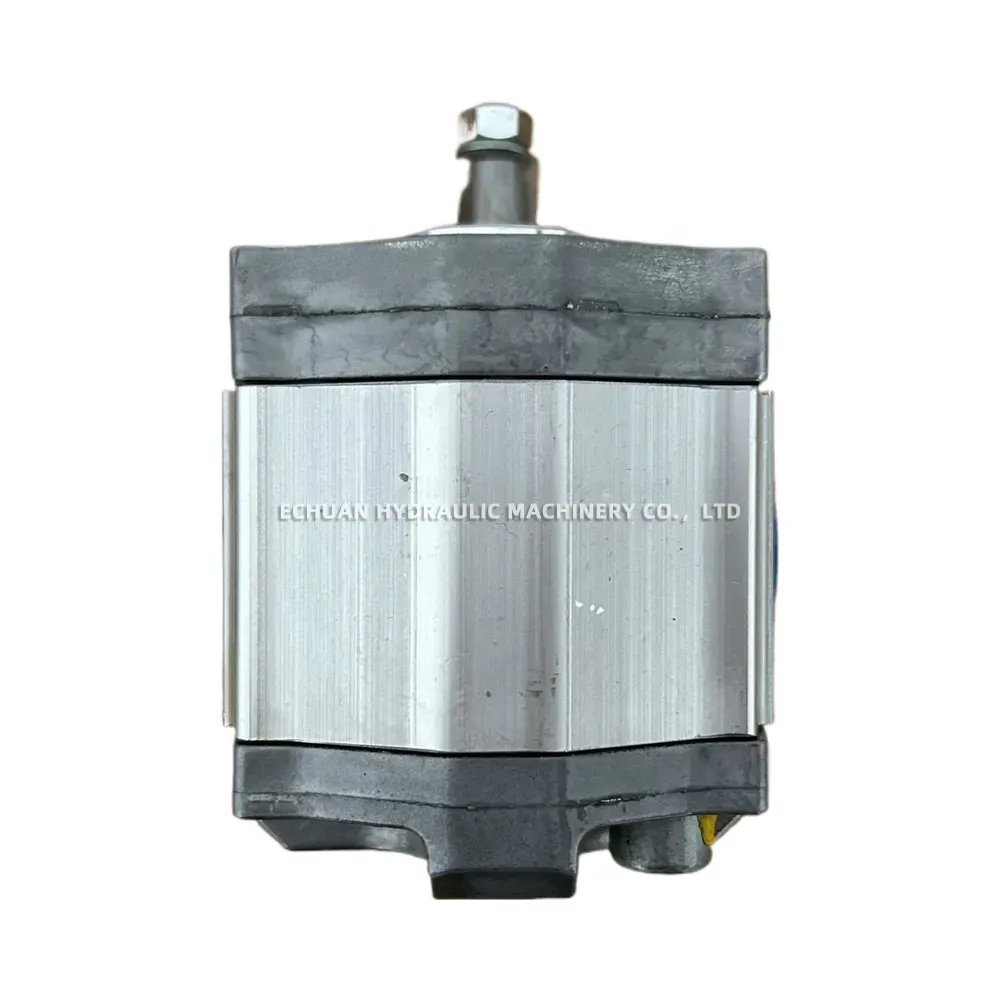

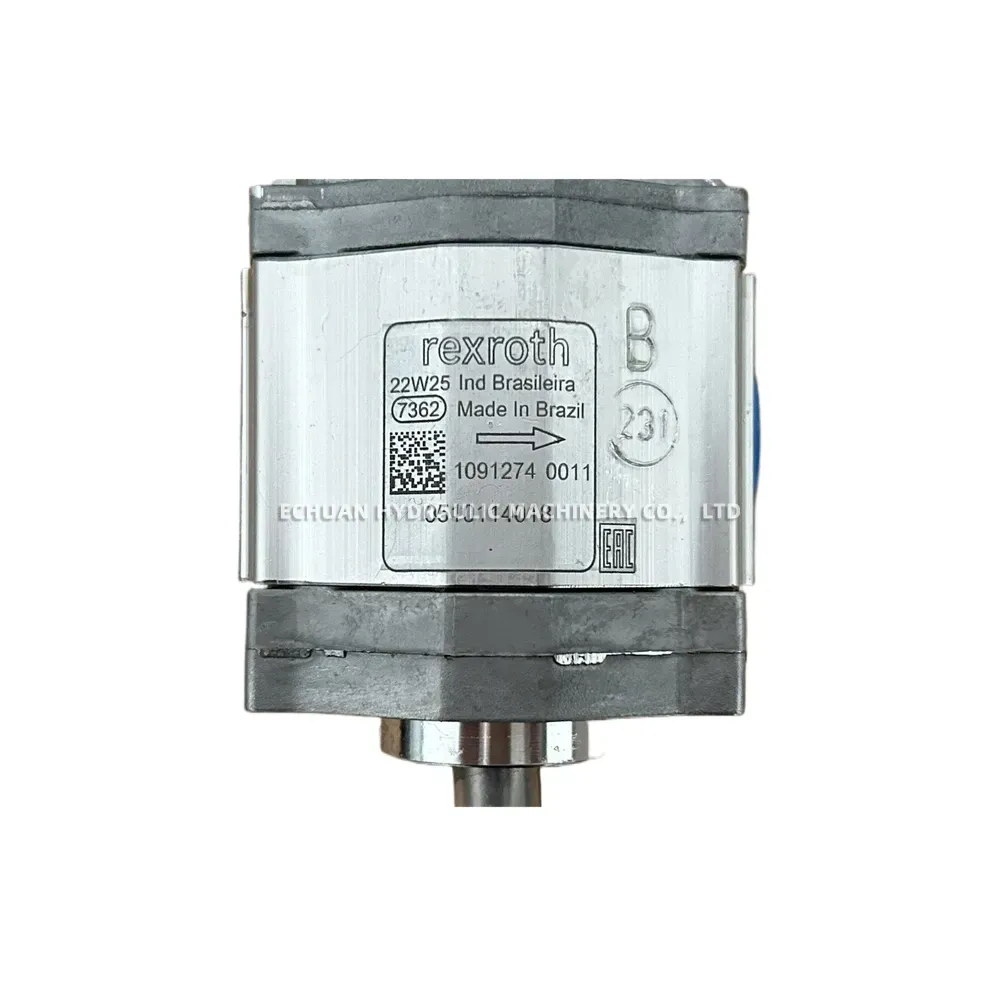

Rexroth 0510114018 AZPB-32-4.0RCP02MB External Gear Pump
The Rexroth 0510114018 AZPB-32-4.0RCP02MB is a fixed displacement external gear pump designed for demanding hydraulic applications. Part of the AZPB series, it features plain bearings for durability and reliable performance. This specific model offers a geometric displacement of 4.0 cm³ per revolution and is configured for clockwise rotation. It incorporates an SAE A 2-bolt mounting flange and a tapered drive shaft (1:8). The line connections are SAE flanges with metric threads, ensuring secure and standardized integration into hydraulic systems. These pumps are known for their high efficiency, long service life, and suitability for various industrial and mobile hydraulic circuits.
Technical Specifications:
- Manufacturer: Bosch Rexroth
- Part Number: 0510114018
- Type Code: AZPB-32-4.0RCP02MB
- Pump Type: External Gear Pump (Fixed Displacement)
- Series: AZPB
- Bearing Type: Plain Bearings
- Geometric Displacement: 4.0 cm³/rev
- Direction of Rotation: Clockwise (Right)
- Mounting Flange: SAE A 2-Bolt (similar to 82-2)
- Drive Shaft: Tapered 1:8 (Type C)
- Line Connections (Suction/Pressure): SAE Flange connection, metric mounting threads (Type P02MB)
- Nominal Pressure: Up to 280 bar (depending on operating conditions)
Rexroth 0510114018 AZPB-32-4.0RCP02MB
Model:Rexroth 0510114018 AZPB-32-4.0RCP02MB
