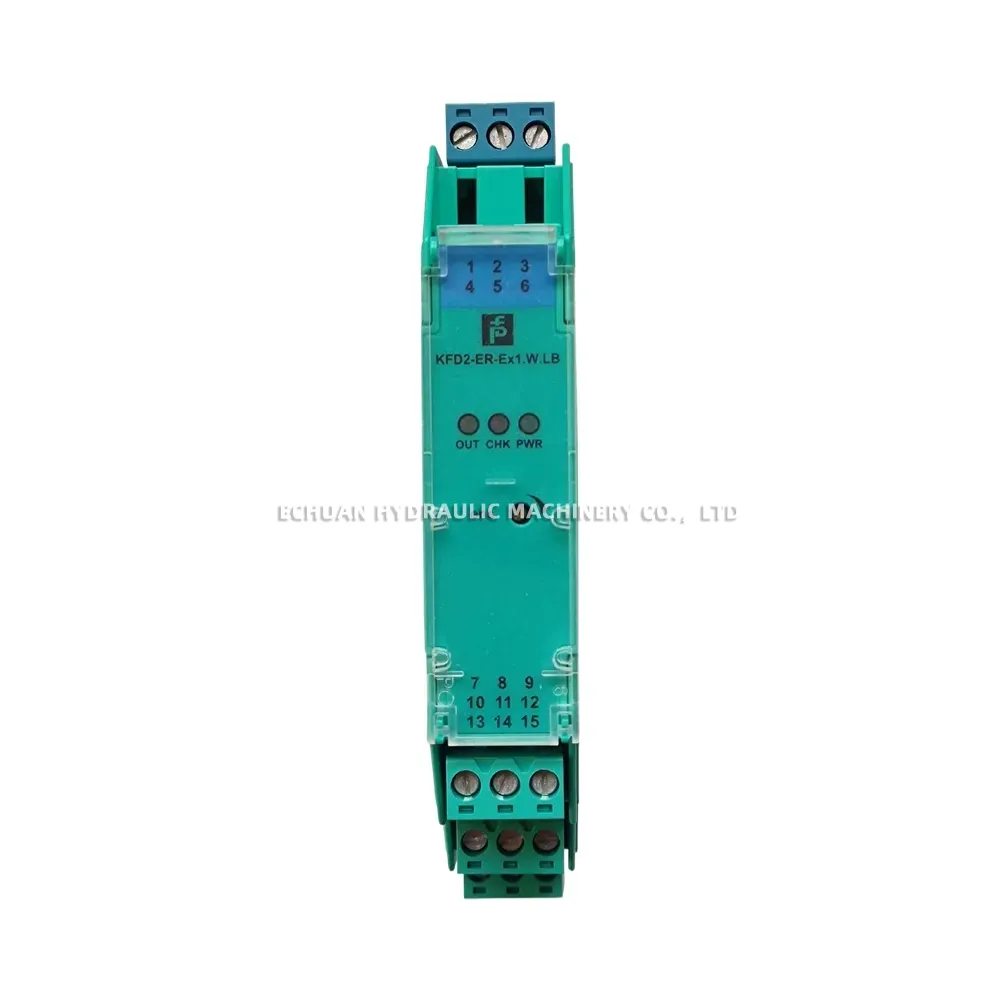

PEPPERL+FUCHS KFD2-ER-Ex1.W.LB
The KFD2-ER-Ex1.W.LB is a 1-channel isolated barrier designed for intrinsic safety applications. It functions as an encoder repeater power supply, suitable for connecting NAMUR sensors or dry contacts situated in hazardous areas. This device supplies power to the field device and transfers the input signal frequency to its transistor outputs in the safe area. It features line fault detection (LFD) for monitoring short circuits or lead breakages in the field circuit, indicated by a separate output and front-panel LEDs. The wide voltage range power supply enhances application flexibility.

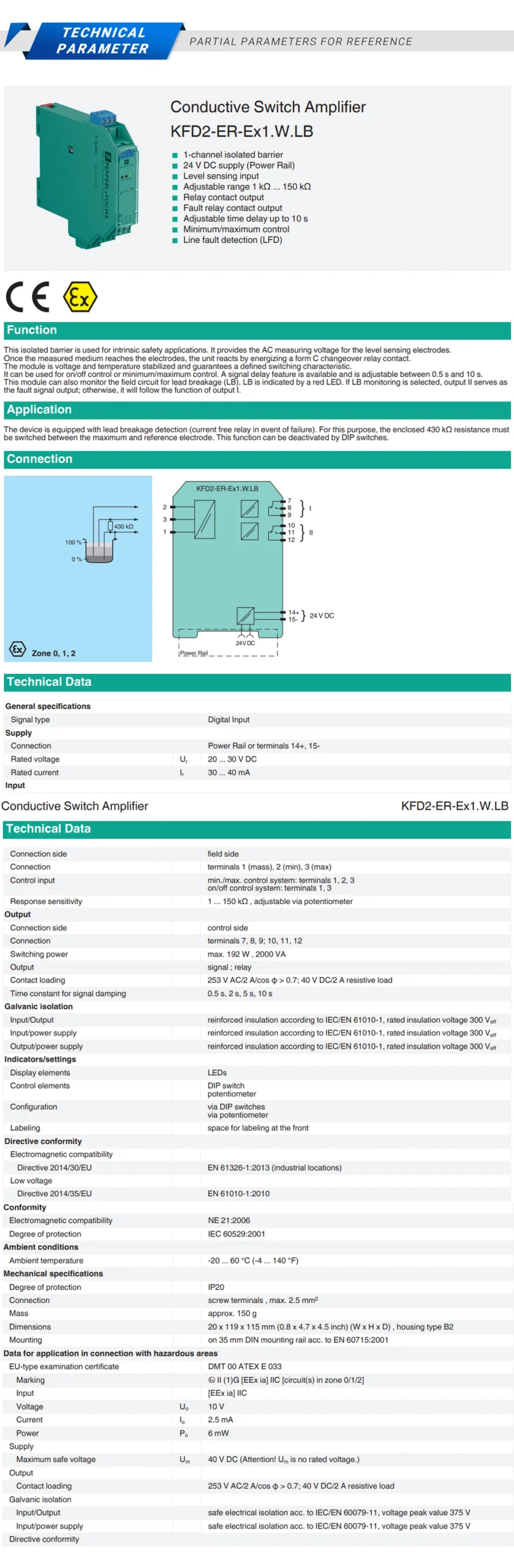

Technical Specifications:
- Number of channels: 1
- Signal Type: Input for NAMUR sensors, dry contacts, or encoders (supplies power, repeats signal)
- Supply Voltage: 20 … 90 V DC / 48 … 253 V AC (Wide Range)
- Input Frequency: 0 … 8 kHz
- Output: 2 transistor outputs, passive; 1 relay output for line fault detection
- Safety Integrity Level (SIL): Up to SIL 2 (acc. to IEC 61508)
- Hazardous Area Connection: Terminals 1+, 2-, 3+
- Safe Area Connection: Terminals 7, 8, 9 (Outputs); 10, 11 (LFD); L+, N- (Power)
- Intrinsic Safety Approvals: E.g., ATEX ([Ex ia Ga] IIC), IECEx, UL, FM
- Ambient Temperature: -20 … 60 °C (-4 … 140 °F)
- Mounting: 35 mm DIN rail
- Features: Line Fault Detection (LFD), LED status indicators
- Terminals: Screw terminals
