Product Description

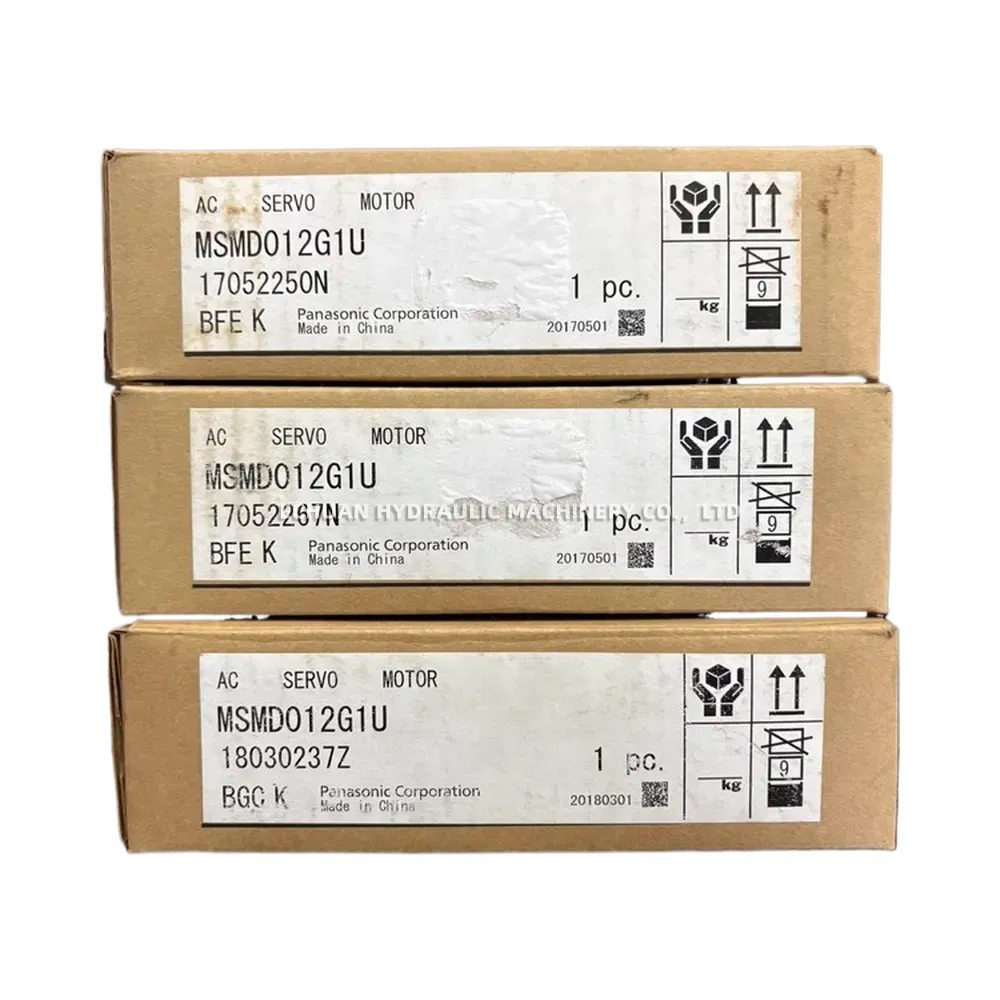

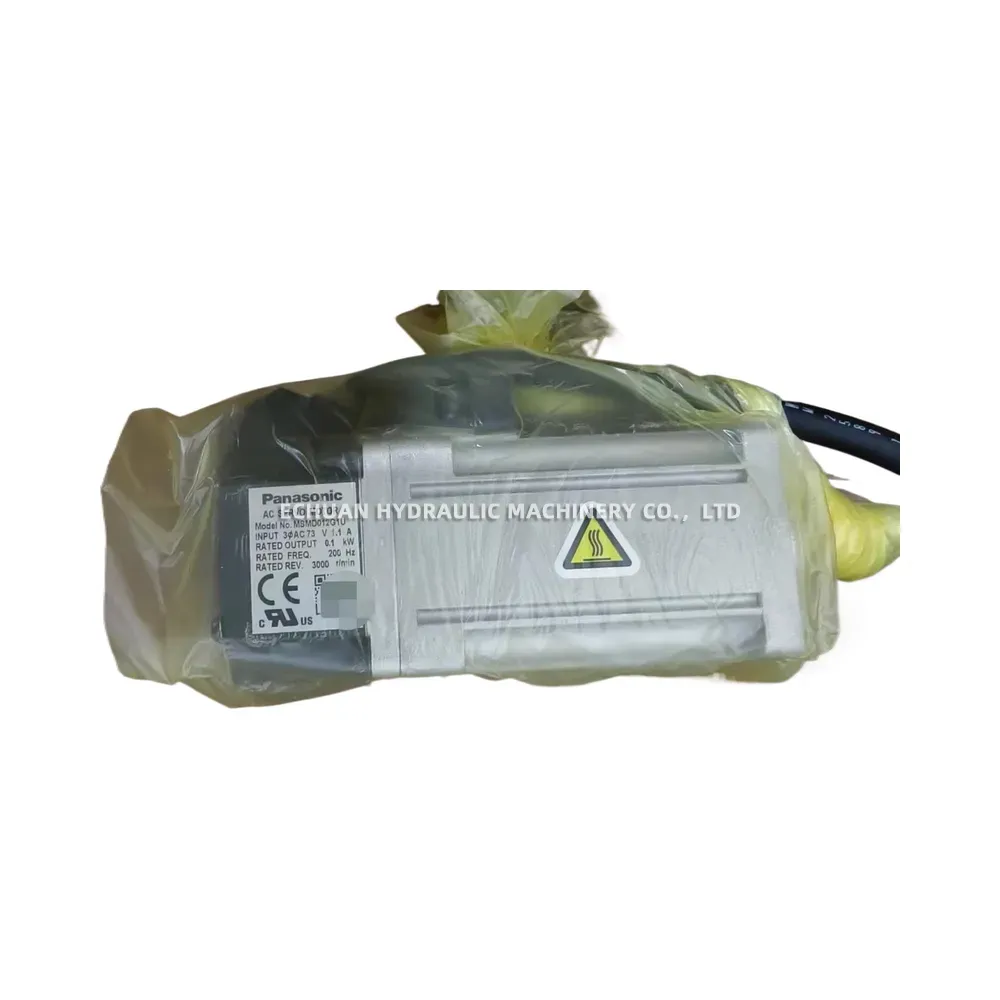

Panasonic MINAS A5 Servo Motor MSMD012G1U

The Panasonic MSMD012G1U is a high-performance AC servo motor belonging to the MINAS A5 family. This low inertia motor is designed for applications requiring fast response times and high-precision positioning. With a rated output of 100W and operating on a 200V AC supply, it delivers reliable and efficient motion control. Its compact design and robust construction, including an IP65 rating (excluding the rotating shaft portion), make it suitable for various industrial automation tasks such as semiconductor manufacturing equipment, packaging machines, and robotics.

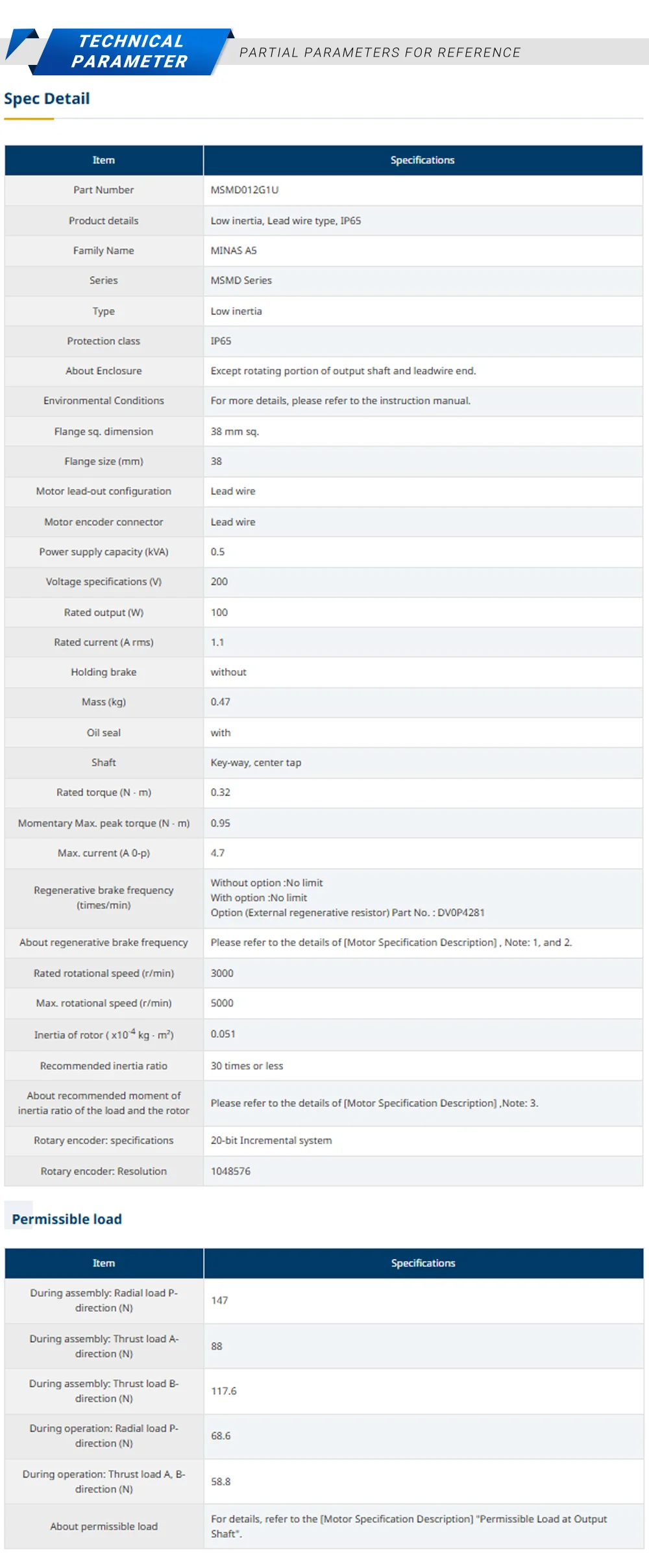

Technical Specifications:

  • Family: MINAS A5
  • Type: Low Inertia Servo Motor
  • Rated Output Power: 100 W
  • Power Supply Voltage: 200 V AC
  • Rated Speed: 3000 r/min (rpm)
  • Maximum Speed: 6000 r/min (rpm)
  • Rated Torque: 0.318 Nm
  • Maximum Peak Torque: 1.11 Nm
  • Encoder Type: 20-bit Incremental Encoder
  • Flange Size: 40 mm sq.
  • Shaft Type: Straight shaft with key and tap
  • IP Rating: IP65 (excluding rotating shaft and connector section)

Panasonic MSMD012G1U

Model:Panasonic MSMD012G1U
