Product Description

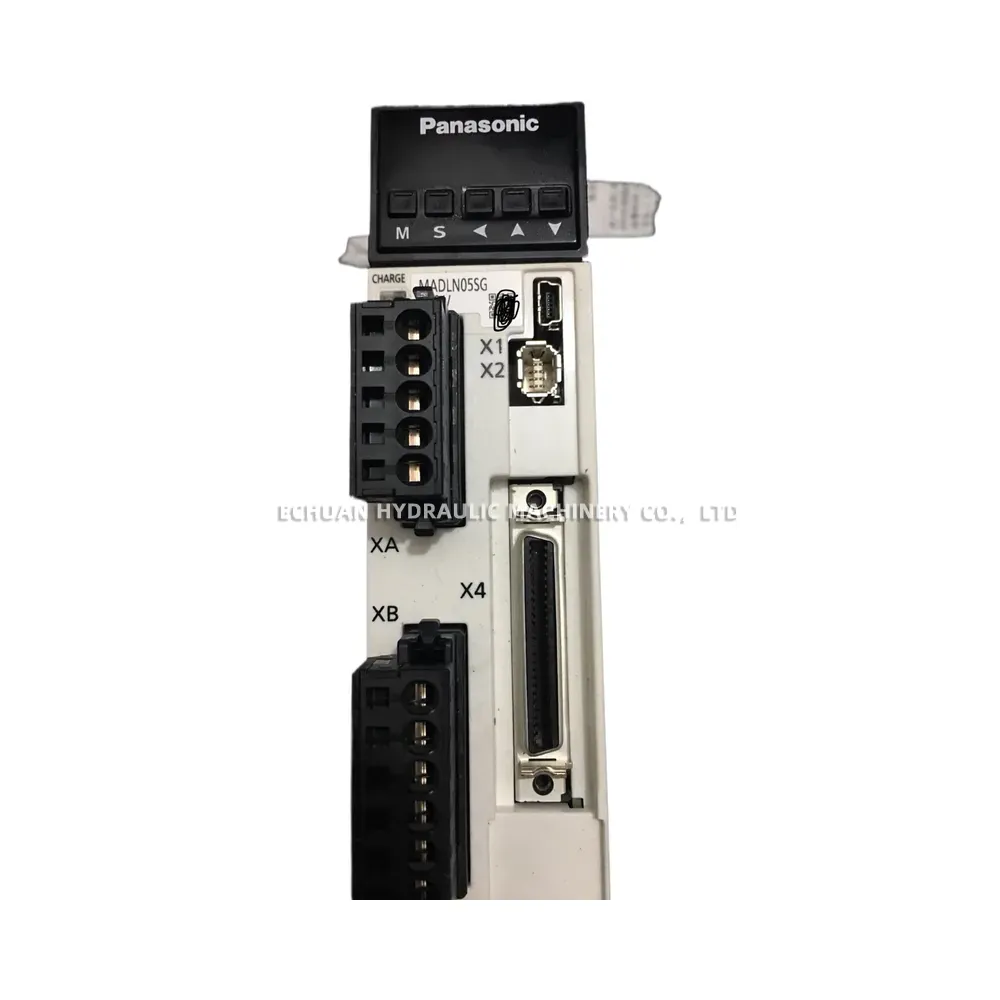

Panasonic MINAS A6 Servo Driver MADLN05SG

The Panasonic MADLN05SG is an AC servo driver belonging to the MINAS A6 family, specifically the A6SG network type equipped with the RTEX (Realtime Express) communication interface. This driver is engineered for high-performance motion control, offering exceptional speed response (3.2 kHz), precise positioning, and enhanced vibration suppression capabilities. It supports various control modes including position, velocity, torque, and full-closed loop control. Designed for compatibility with low-inertia servo motors, the MADLN05SG integrates advanced features like auto-tuning and safety functions (STO), making it suitable for demanding industrial automation applications requiring high speed, accuracy, and network synchronization.

Technical Specifications:

Series: MINAS A6
Model: MADLN05SG
Type: A6SG Network Type (RTEX Interface)
Input Power Supply: Single-phase/Three-phase 200 V AC to 240 V AC (+10% / -15%)
Applicable Motor Output: 100 W
Control Method: Position control, Velocity control, Torque control, Full-closed control
Communication Interface: RTEX (Realtime Express)
Encoder Feedback: 23-bit Absolute/Incremental System
Frequency Response: 3.2 kHz
Safety Function: STO (Safe Torque Off) – SIL3 / PL e / Cat.3
Regenerative Discharge Resistor: Built-in (External option available)
Tuning Functions: Real-time Auto-tuning, Adaptive Notch Filter, Damping Filter
