Product Description

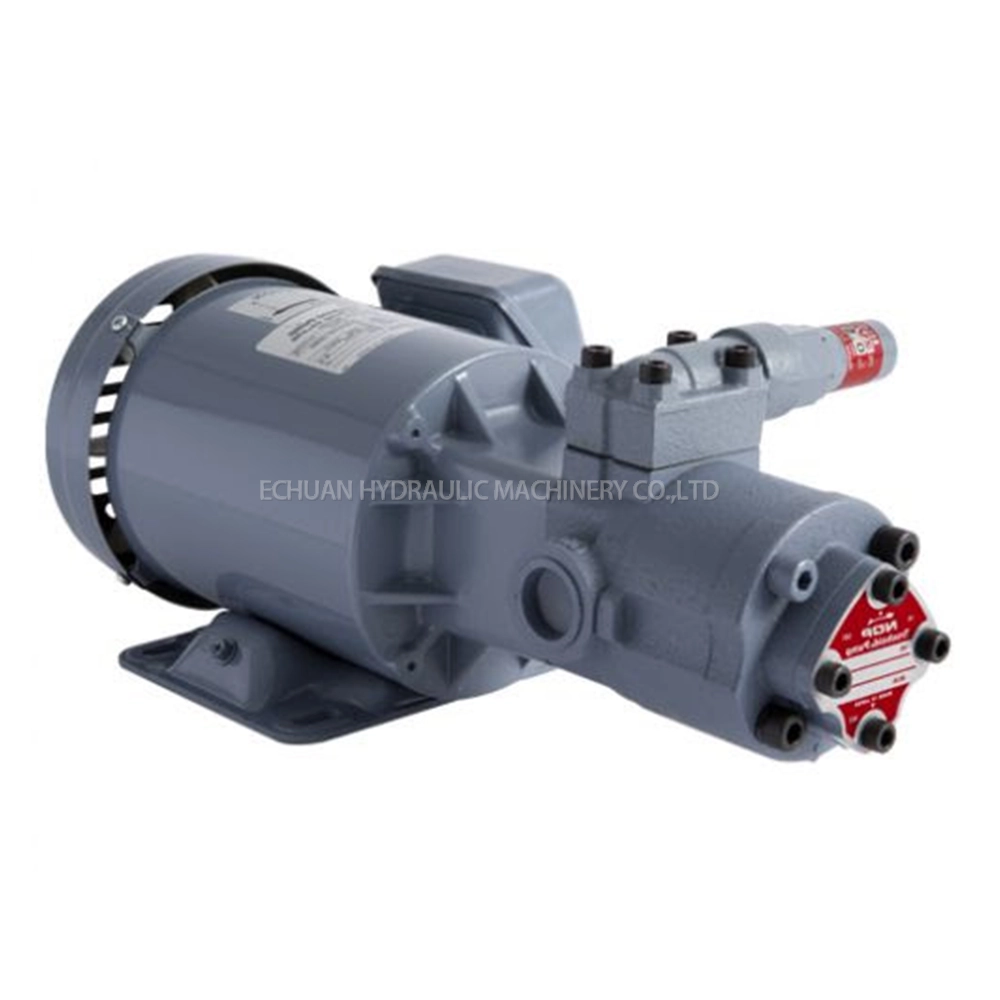

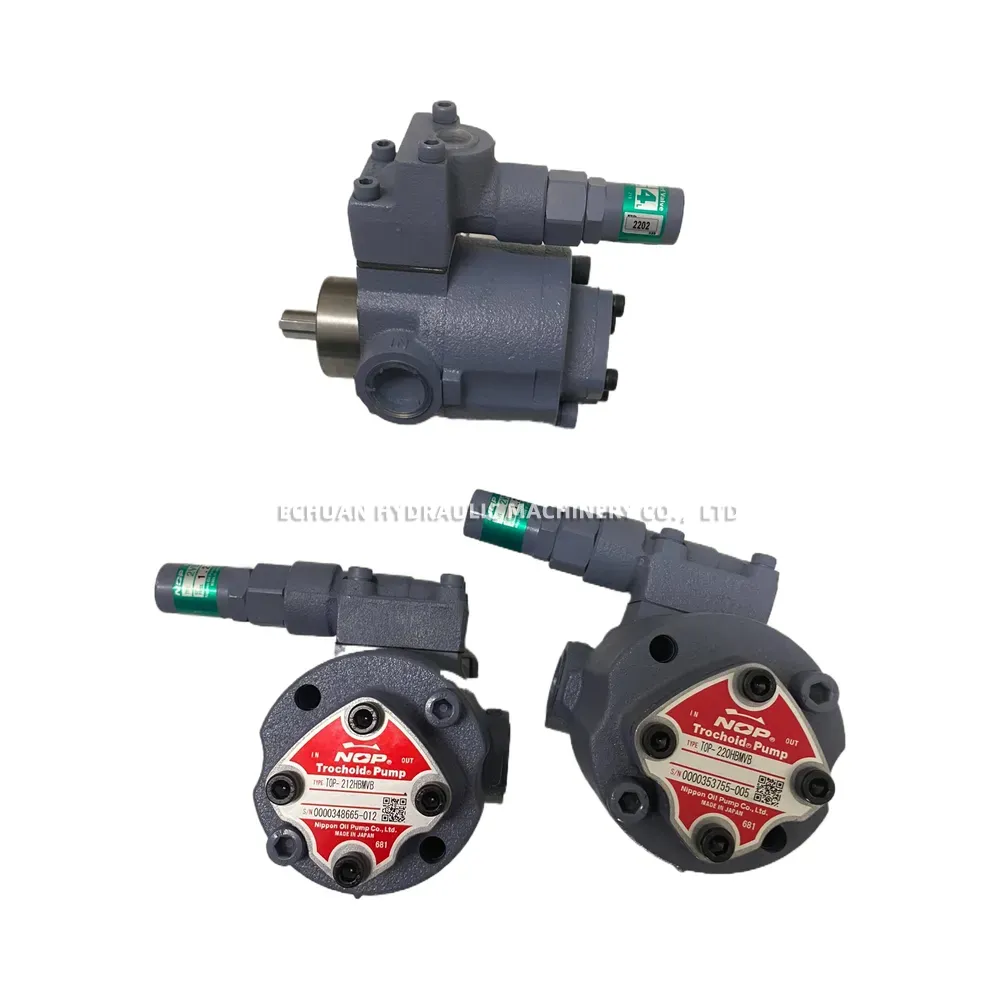

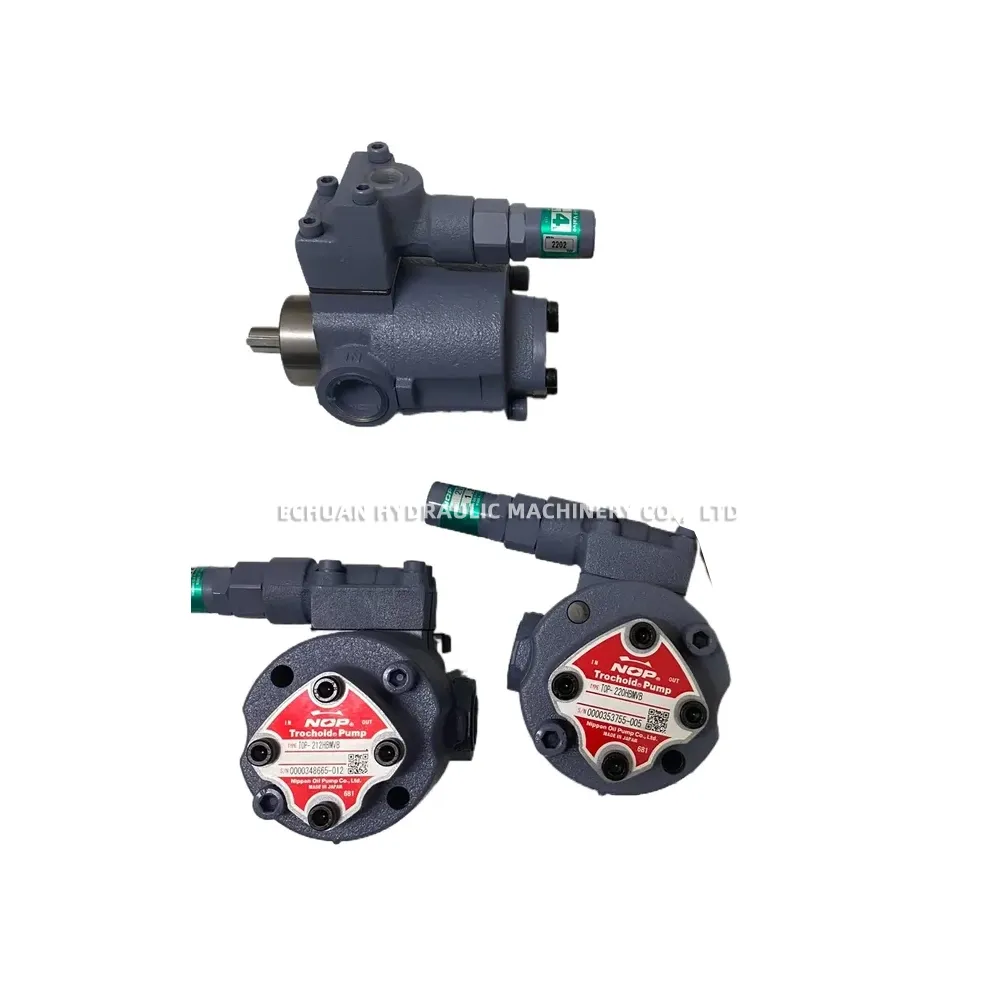

NOP TOP-204HBMVB Trochoid Pump
The NOP TOP-204HBMVB is a high-quality trochoid pump manufactured by Nippon Oil Pump Co., Ltd. It is designed for reliable, low-noise fluid transfer in various industrial applications, including machine tool lubrication, hydraulic systems, and oil circulation. Part of the TOP-2VB series, this pump features a compact design, direct motor coupling capability, and flange mounting for easy integration into systems requiring consistent oil delivery at low to medium pressures.

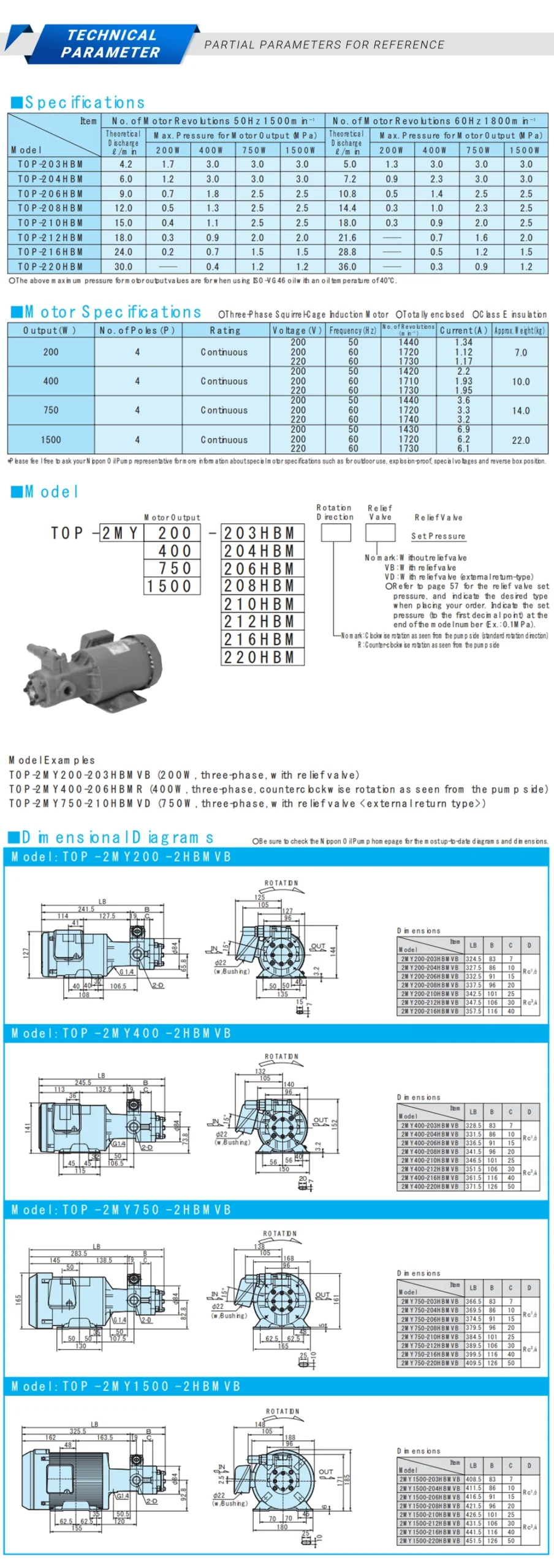

Technical Specifications:
- Manufacturer: Nippon Oil Pump Co., Ltd. (NOP)
- Pump Type: Trochoid Pump
- Series: TOP-2VB
- Model: TOP-204HBMVB
- Theoretical Displacement: 4.0 cm³/rev
- Maximum Discharge Pressure: 2.0 MPa (20 kgf/cm²)
- Revolution Speed Range: 200 – 1800 rpm
- Applicable Fluid Viscosity: 5 – 500 mm²/s (cSt)
- Fluid Temperature Range: 0 – 80°C (Mineral Oil)
- Port Size (Inlet/Outlet): Rc 1/4
- Mounting Type: Flange Mount (VB Type)
NOP TOP-204HBMVB
Model:NOP TOP-204HBMVB
