Product Description

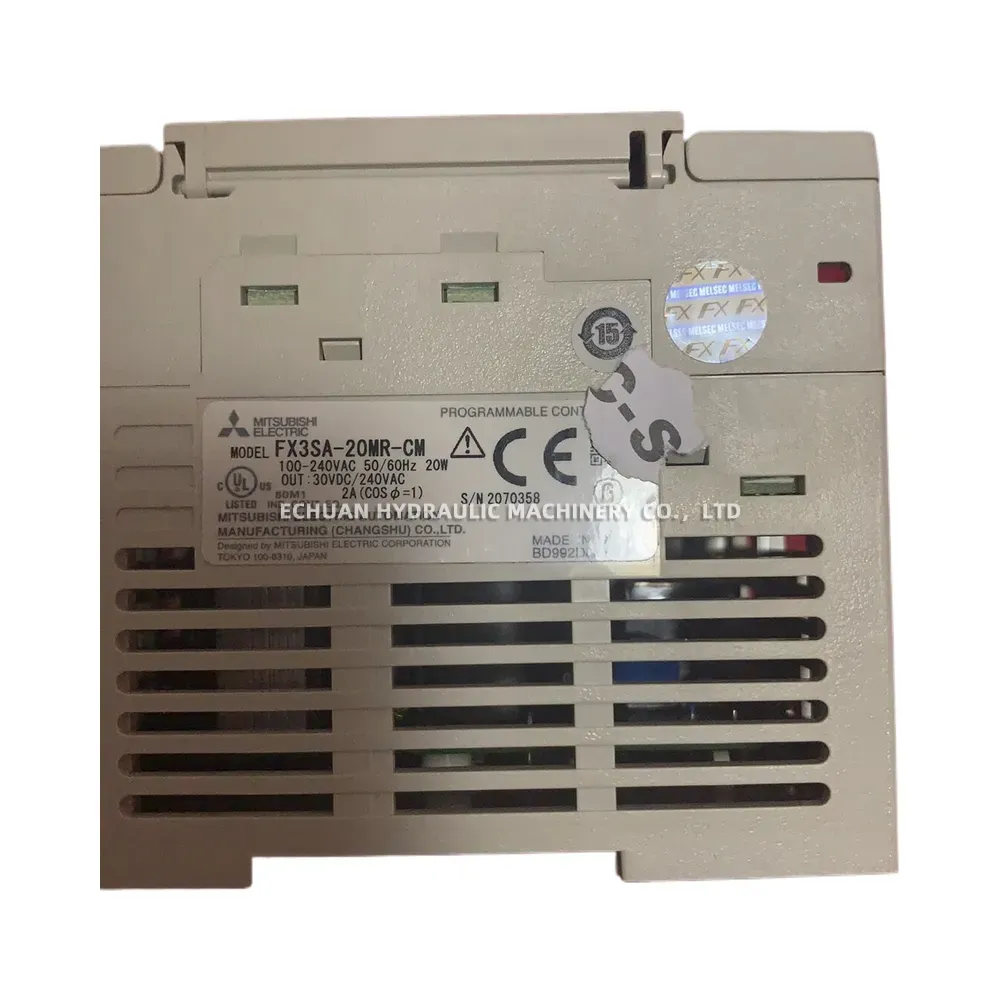

MITSUBISHI FX3SA-20MR-CM
The MITSUBISHI FX3SA-20MR-CM is a compact and cost-effective Programmable Logic Controller (PLC) base unit belonging to the MELSEC FX3S series. It serves as an ideal entry-level solution for simple automation tasks and standalone machine control. This model features integrated digital inputs and relay outputs, eliminating the need for separate modules in basic applications. It includes a built-in USB port for straightforward programming and monitoring via standard software like GX Works2 or GX Works3. The FX3SA series prioritizes ease of use and reliability in a small footprint.
Technical Specifications:
- Manufacturer: Mitsubishi Electric
- Series: MELSEC FX3S
- Product Type: PLC Base Unit
- Total I/O Points: 20
- Number of Digital Inputs: 12 (24V DC, Sink/Source)
- Number of Digital Outputs: 8
- Output Type: Relay
- Supply Voltage: 100 – 240V AC
- Power Consumption: 21W
- Program Capacity: 4000 Steps
- Memory Type: EEPROM (No battery backup required for program)
- Programming Port: USB (Mini B)
- Communication Options: RS-422 (via optional expansion board)
- Processing Speed (Basic Instruction): 0.21 µs
- Real-Time Clock: Yes (Built-in)
- Ambient Operating Temperature: 0°C to 55°C
MITSUBISHI FX3SA-20MR-CM
Type:MITSUBISHI FX3SA-20MR-CM
