Product Description

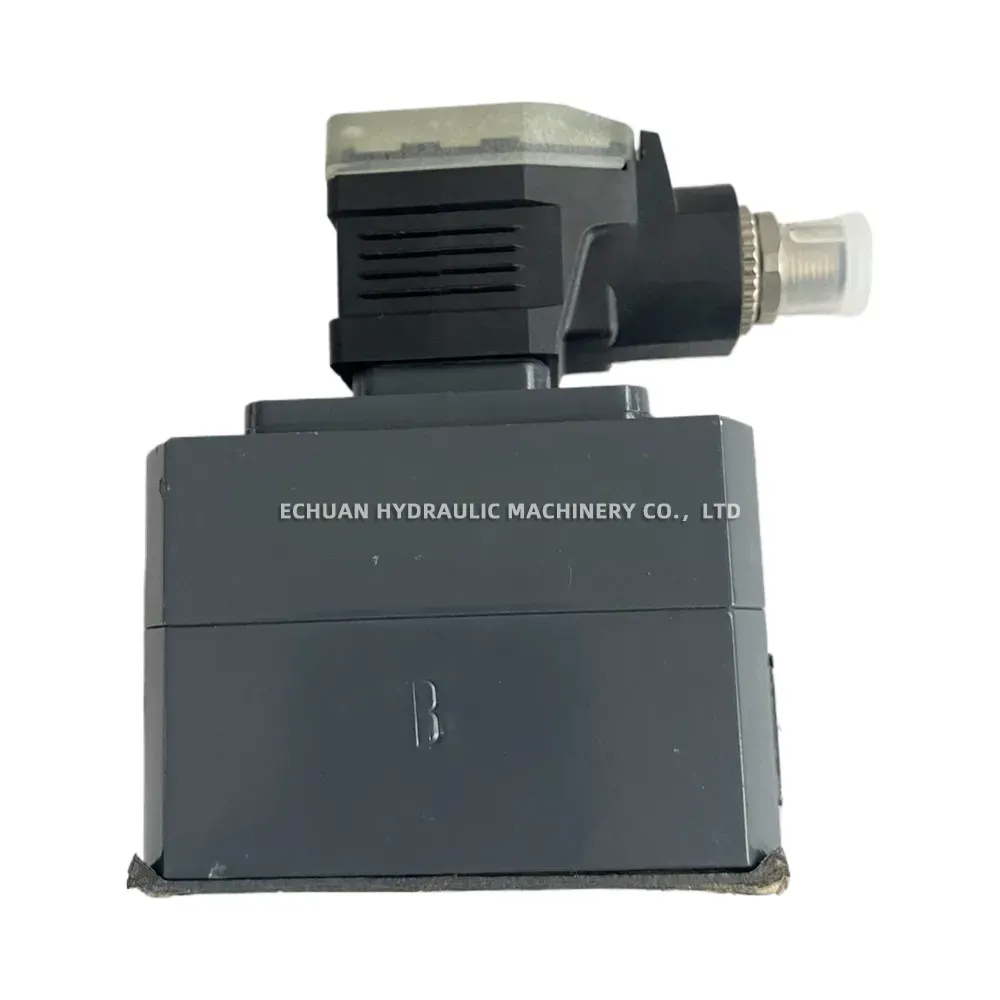

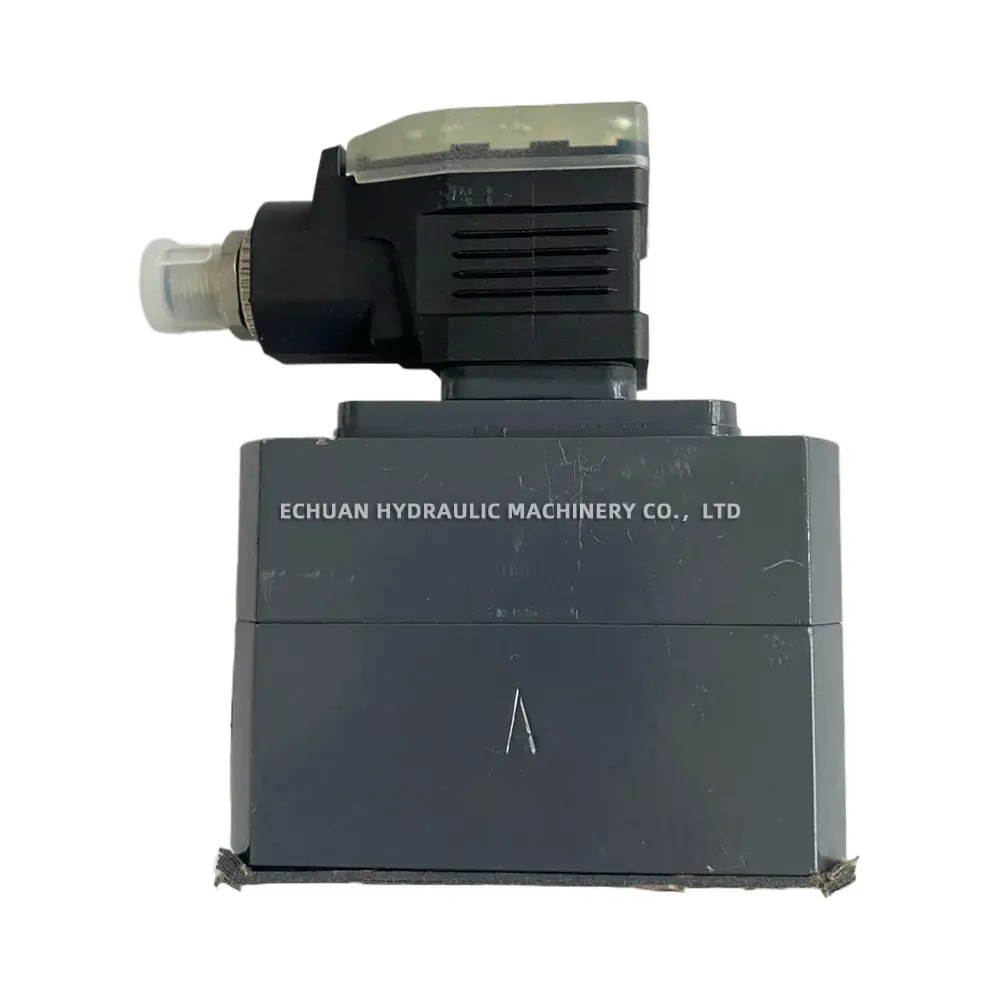

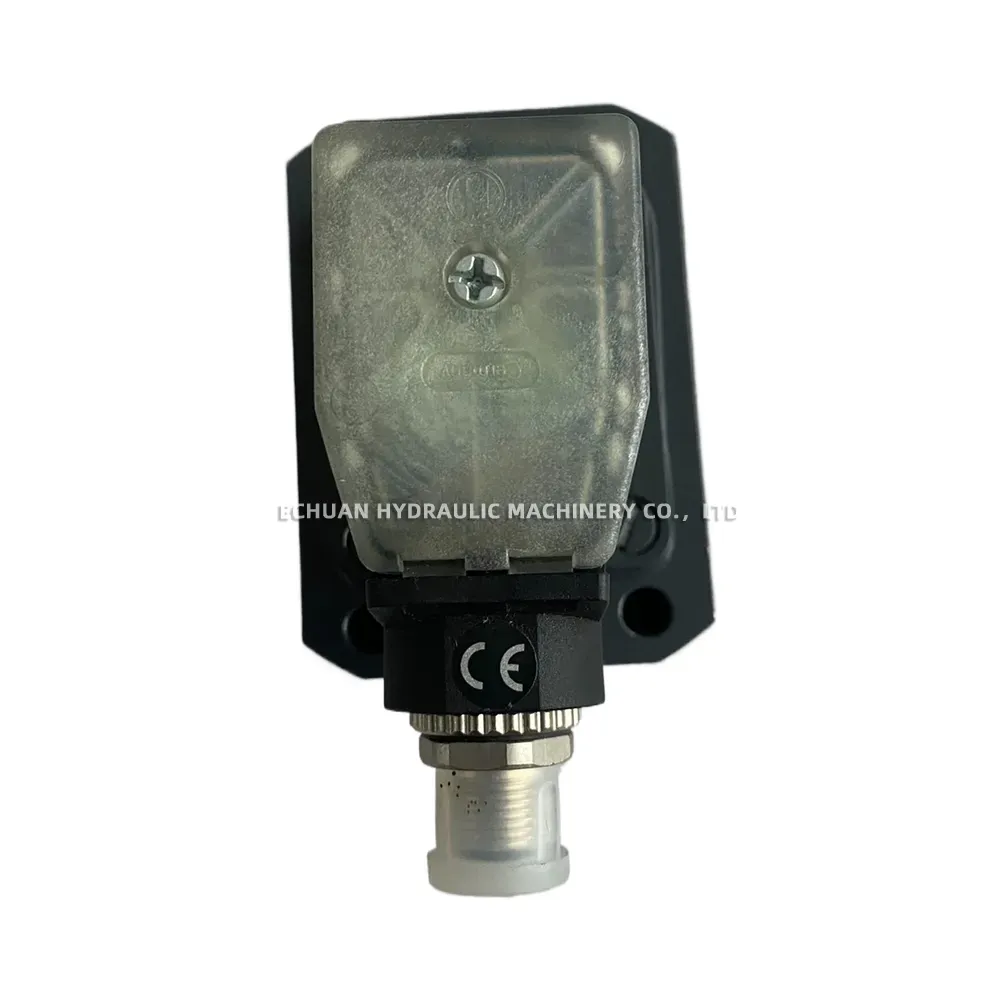

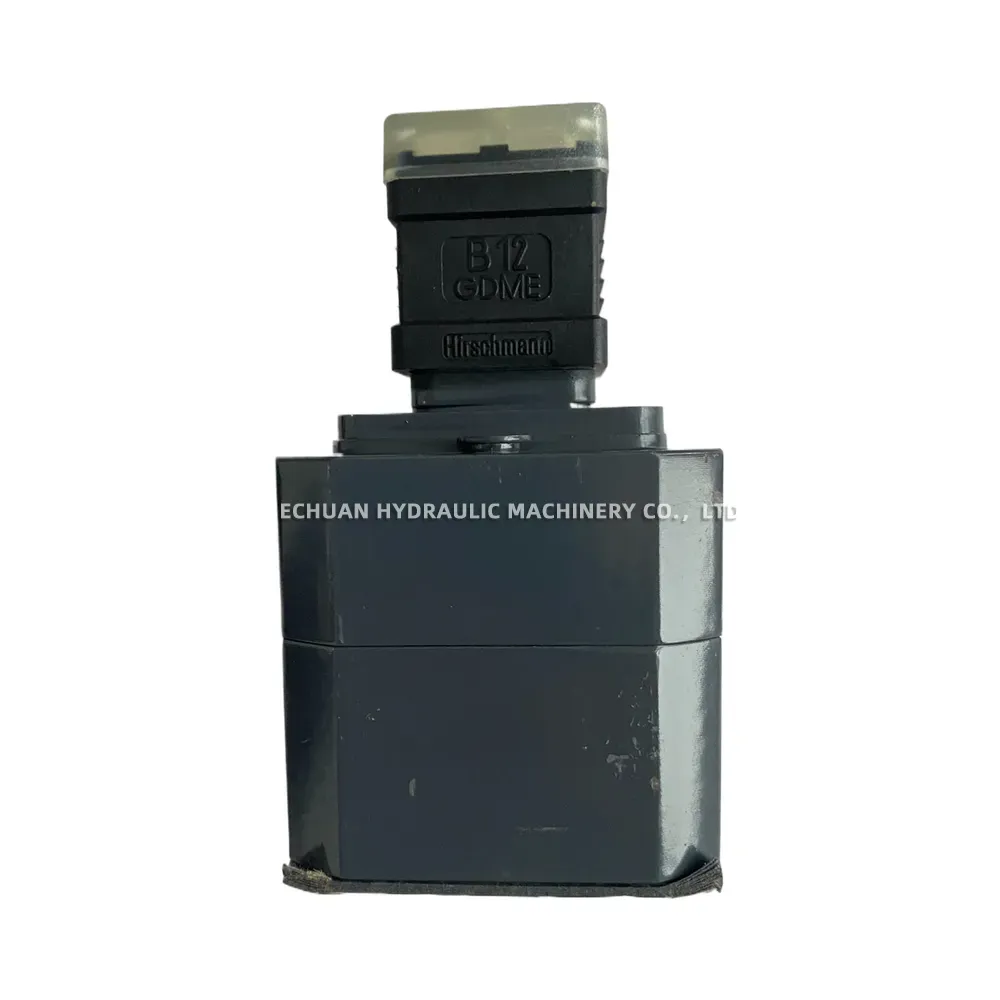

KRACHT VC0.2F1PS/71 Gear Flow Meter
The KRACHT VC0.2F1PS/71 is a high-precision gear-type volume counter (flow meter) designed for accurate measurement of liquids across a wide range of viscosities, particularly suitable for hydraulic oils, lubricating oils, and other viscous fluids. Utilizing the positive displacement principle, it provides reliable and accurate flow measurement largely independent of viscosity changes. The robust construction features a grey cast iron housing and hardened steel gears, making it ideal for demanding industrial environments and high-pressure applications. This model includes an integrated sensor (/71) providing a frequency pulse output proportional to the measured flow volume.

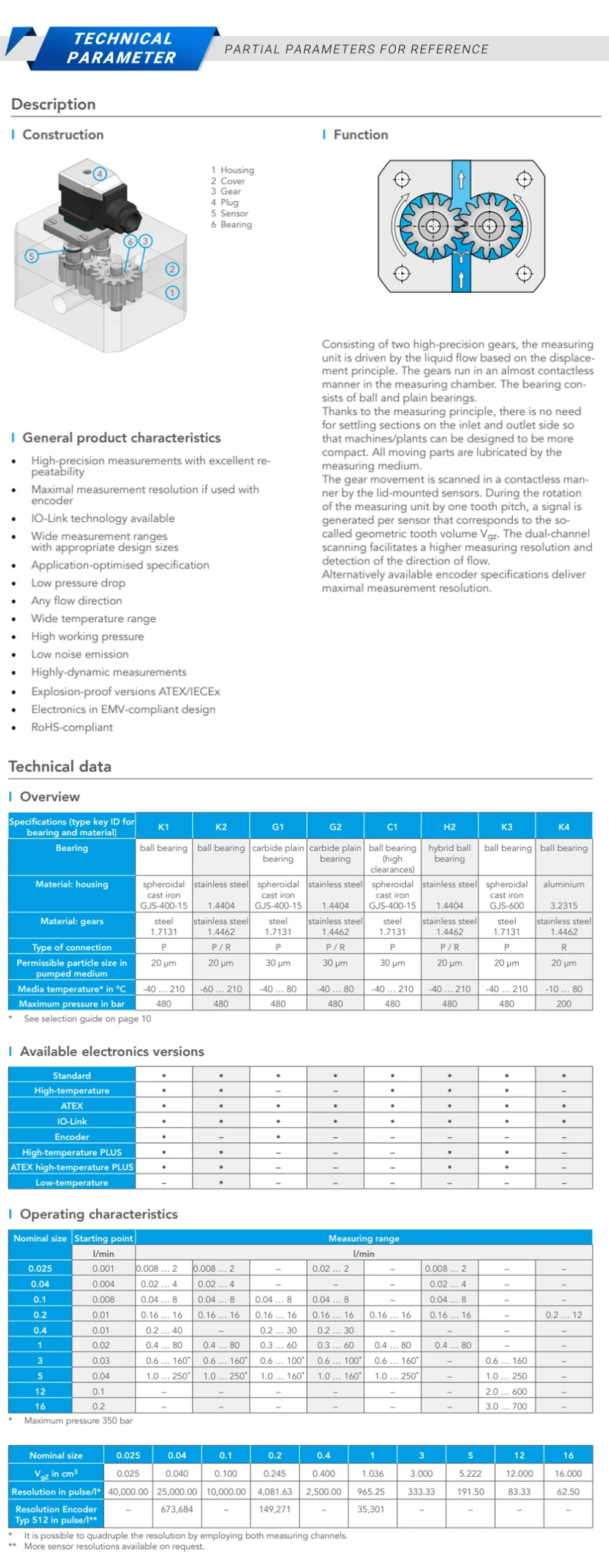

Technical Specifications:
- Measuring Principle: Positive Displacement Gear Meter
- Size Code: 0.2 (Displacement: 0.2 cm³/revolution)
- Flow Range: 0.1 – 4 l/min
- Maximum Operating Pressure: 400 bar (5800 psi)
- Viscosity Range: 30 – 10,000 mm²/s (cSt)
- Housing Material: Grey Cast Iron (EN-GJL-250)
- Gear Material: Steel (1.7139, Case Hardened)
- Bearing Type: Ball Bearings
- Seal Material: FKM (Viton)
- Fluid Temperature Range: -20°C to +120°C (-4°F to +248°F)
- Process Connection: G 1/4″ (BSPP Female Thread)
- Output Signal: Frequency Pulse (Integrated Sensor /71, likely Hall Effect)
- Approximate K-Factor: 5000 pulses/litre

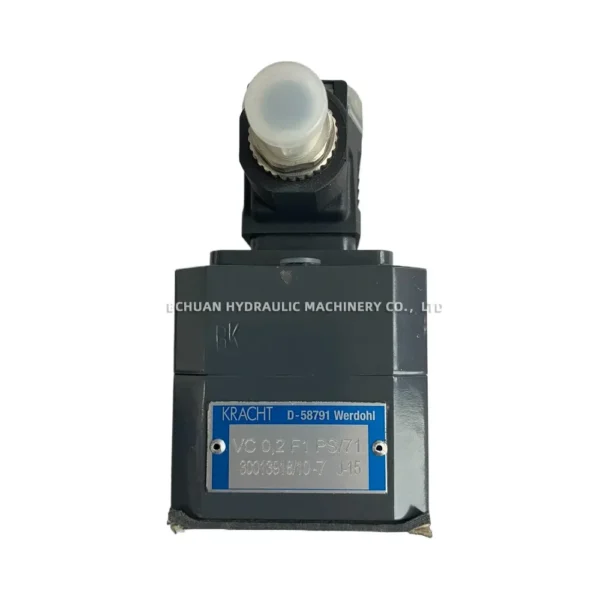

KRACHT VC0.2F1PS/71
Model:KRACHT VC0.2F1PS/71
