Product Description

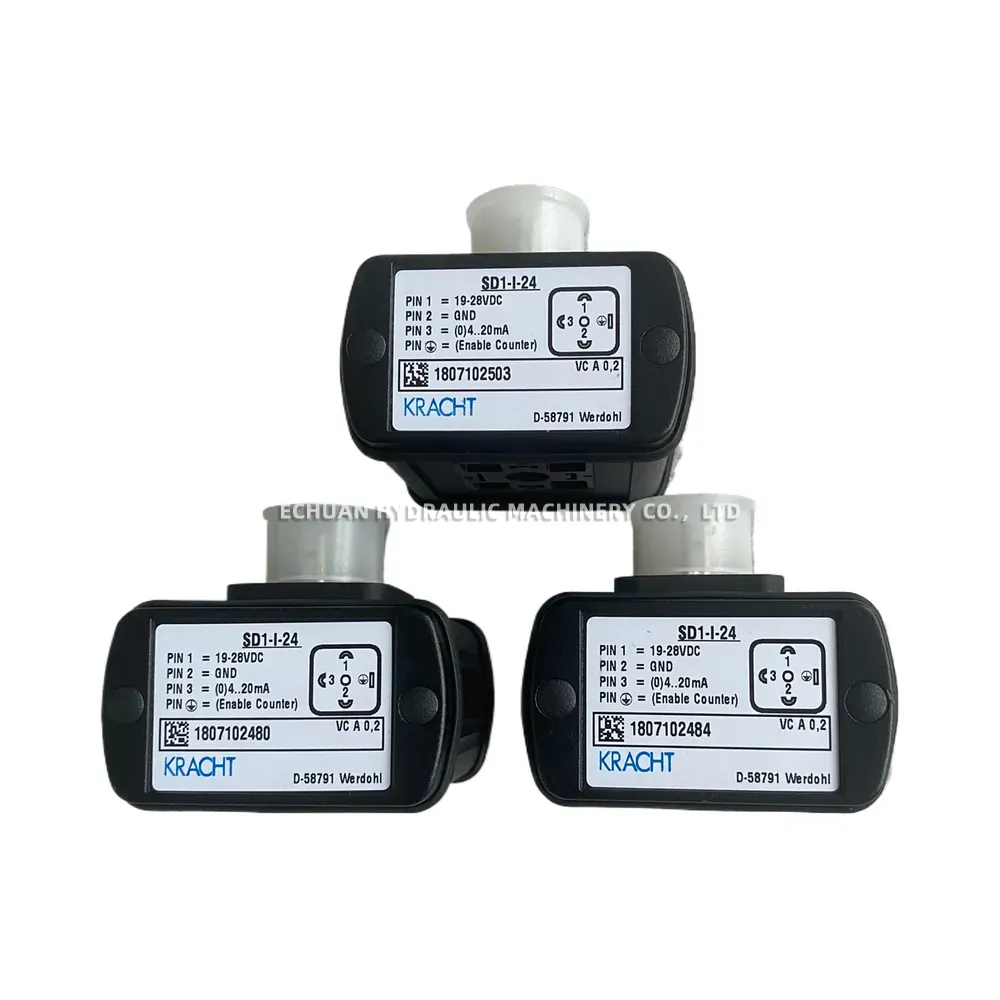

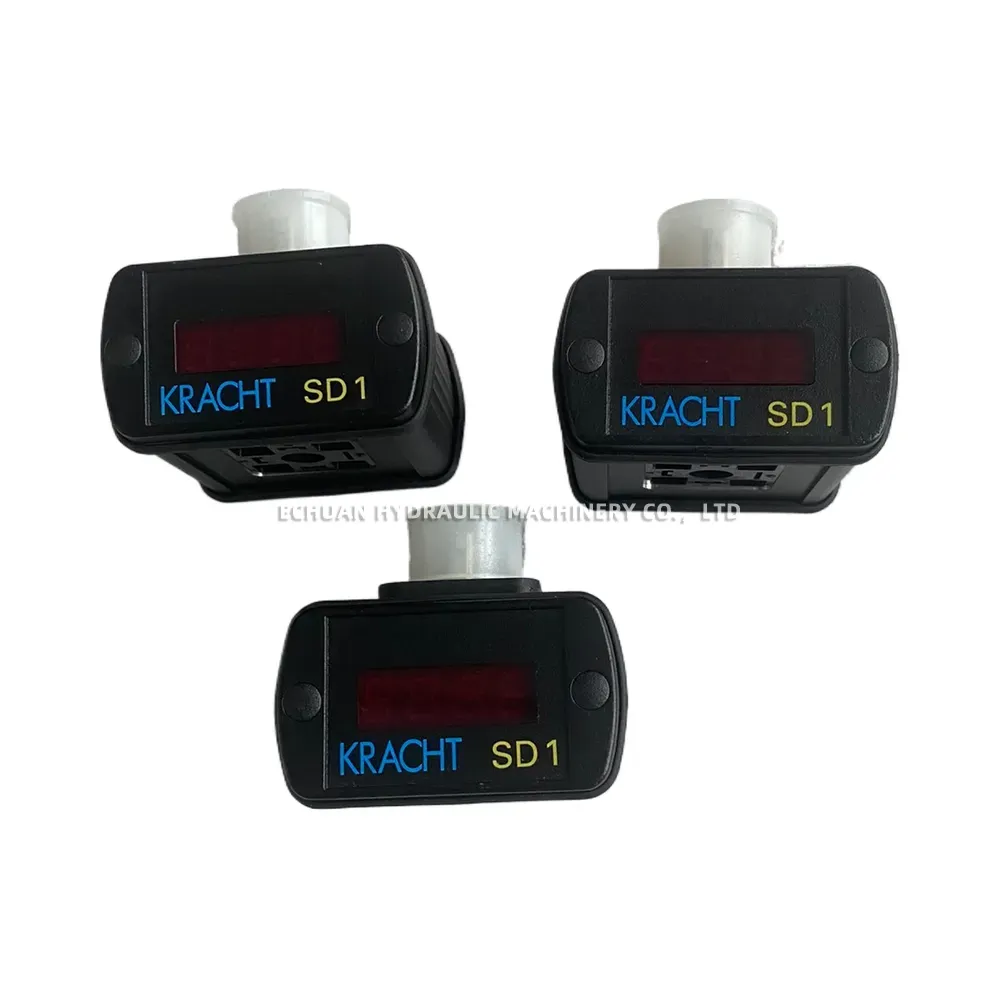

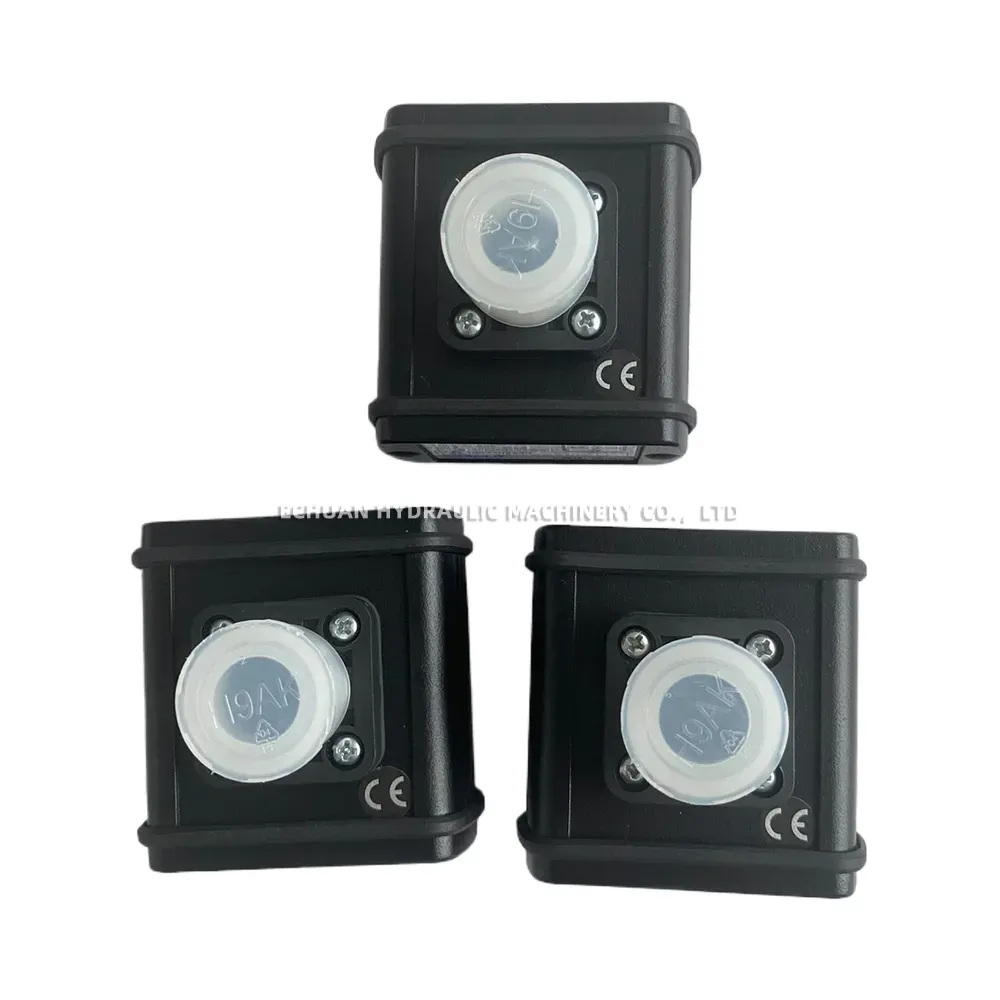

KRACHT SD1-I-24 Volume Counter

The KRACHT SD1-I-24 is a high-precision gear-type volume counter designed for accurately measuring the flow of various liquids, including oils and lubricating fluids. Built for reliability in demanding industrial environments, it operates on the positive displacement principle, ensuring accurate measurements across a wide range of viscosities and flow rates. This specific model features an inductive sensor (NAMUR) for generating a frequency output signal proportional to the flow rate, suitable for connection to PLCs or other monitoring systems.

Technical Specifications:

Measurement Principle: Positive Displacement Gear Meter
Housing Material: Aluminium (Standard)
Sensor Type: Inductive Sensor (acc. NAMUR EN 60947-5-6)
Measuring Range: Dependent on specific size within SD1 series (Series range typically covers 0.005 – 70 l/min)
Max. Operating Pressure: Up to 400 bar (depending on specific model configuration)
Viscosity Range: 1 – 10,000 mm²/s (cSt)
Fluid Temperature Range: -20 °C to +120 °C (with standard FKM seals)
Output Signal: Frequency pulse signal via inductive sensor
Process Connection: Typically G 1/4 (ISO 228/1) – verify specific model
Electrical Connection: Typically via plug connector (verify specific model)
