Product Description

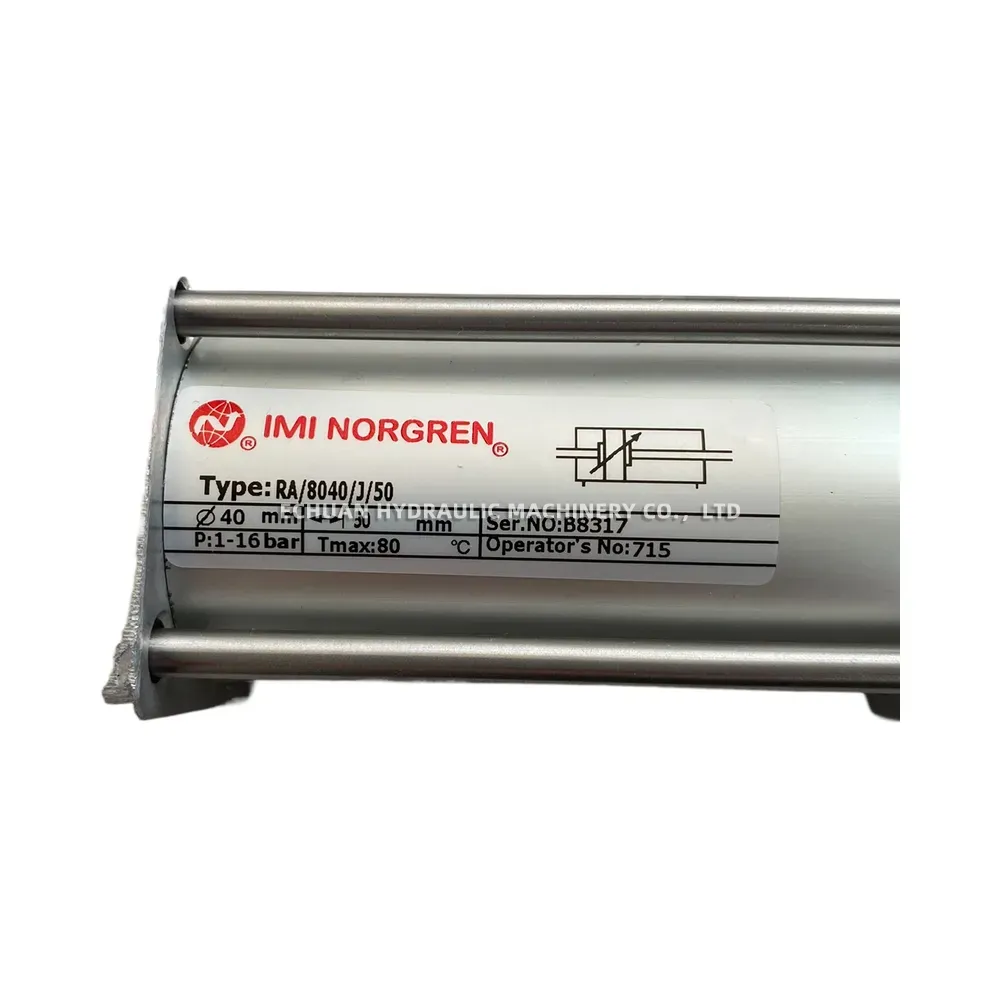

IMI NORGREN RA/8040/J/50
The IMI Norgren RA/8040/J/50 is a double-acting pneumatic profile cylinder designed according to ISO 15552 (formerly ISO 6431) and VDMA 24562 standards. Part of the RA/8000 series, this cylinder features a 40mm bore and a 50mm stroke. It includes adjustable cushioning at both ends for smooth operation and end-of-stroke impact reduction, along with a magnetic piston for position sensing capabilities using external sensors. The profile barrel design allows for clean integration and easy mounting of sensors.
Technical Specifications:
- Manufacturer: IMI Norgren
- Series: RA/8000
- Type: Profile Cylinder (Double Acting)
- Standards: Conforms to ISO 15552, ISO 6431, VDMA 24562
- Bore Size: 40 mm
- Stroke Length: 50 mm
- Cushioning: Adjustable pneumatic cushioning
- Piston: Magnetic
- Operating Pressure: 1 – 10 bar (typical)
- Operating Temperature: -20°C to +80°C (with standard seals)
- Variant Code ‘J’: Indicates specific non-standard features (e.g., rod end variation, material – refer to specific datasheet for exact ‘J’ definition)
IMI NORGREN RA/8040/J/50
Model:IMI NORGREN RA/8040/J/50
