Product Description

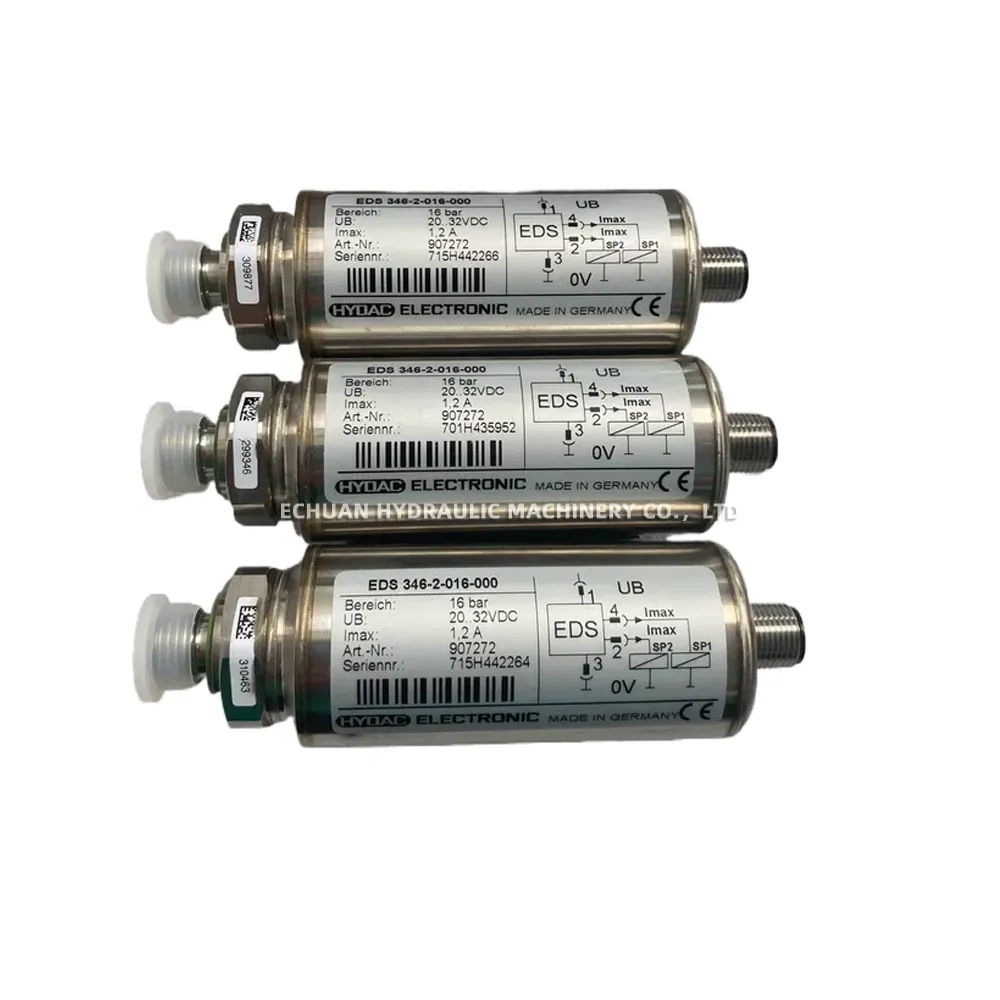

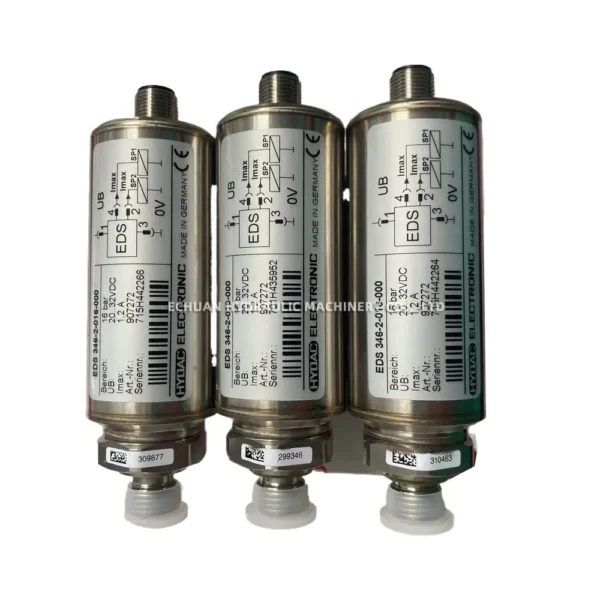

HYDAC EDS 346-2-016-000
The HYDAC EDS 346 is a compact electronic pressure switch featuring an integrated digital display for precise pressure monitoring and control in hydraulic and pneumatic systems. This model offers a single PNP switching output, programmable as normally open (NO) or normally closed (NC), within a pressure range of 0 to 16 bar. Its robust design, 4-digit display, and M12 connector make it suitable for various industrial applications requiring reliable pressure switching.

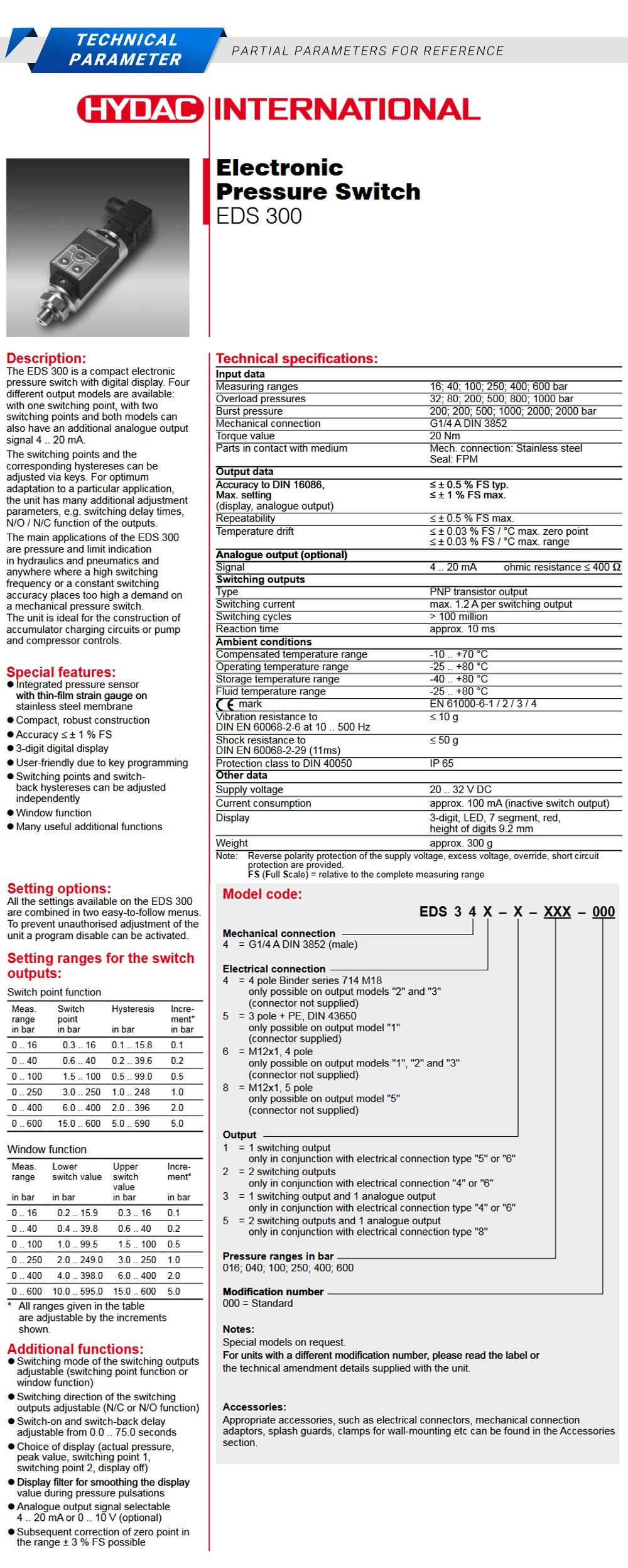

Technical Specifications:
- Model Series: EDS 346
- Pressure Measuring Range: 0 … 16 bar
- Output Signal: 1 Switching Output (PNP, NO/NC Programmable)
- Electrical Connection: M12x1 Connector, 4-pole
- Mechanical Connection: G1/4 A DIN 3852 Form E
- Supply Voltage: 9 … 35 V DC
- Display: 4-digit LED
- Accuracy: ≤ ± 1 % FS max
- Protection Class: IP67
- Pressure Type: Relative
- Fluid Temperature Range: -25°C to +80°C
- Overload Pressure: 32 bar
- Burst Pressure: 80 bar
HYDAC EDS 346-2-016-000
Model:HYDAC EDS 346-2-016-000
