Product Description

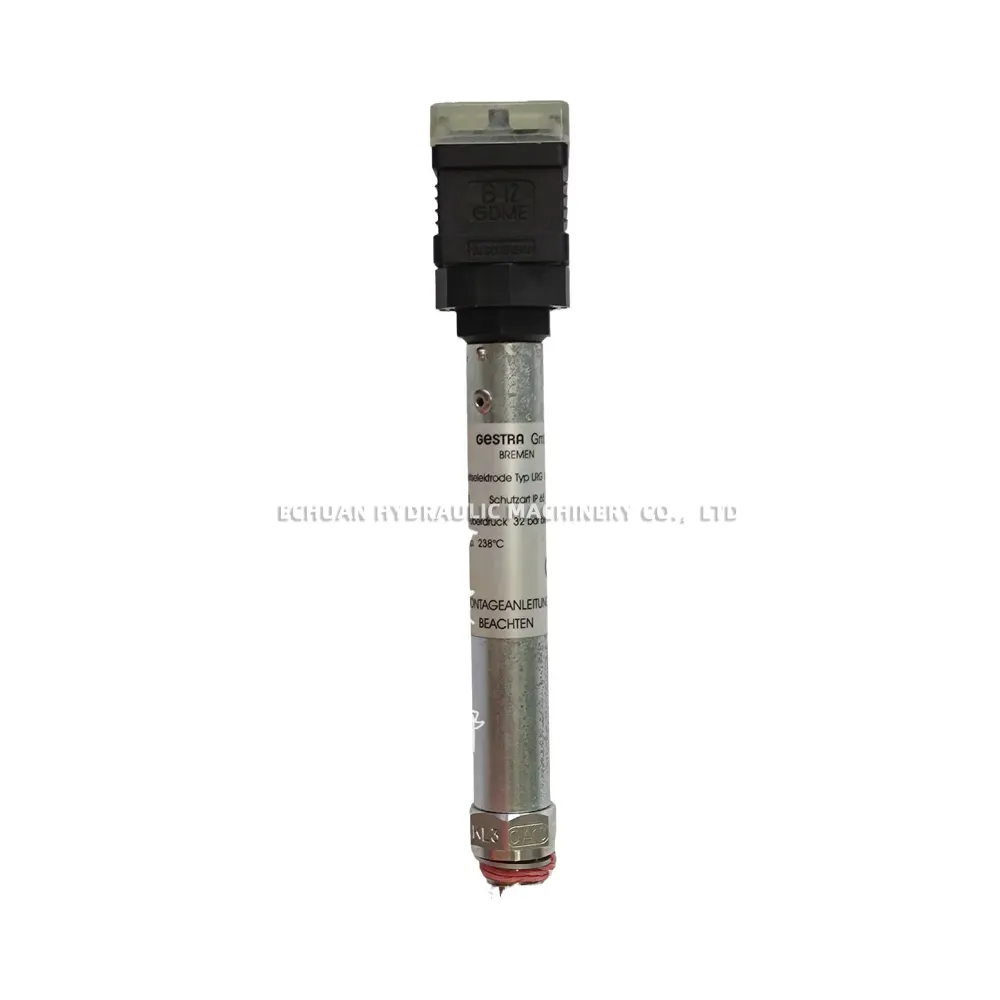

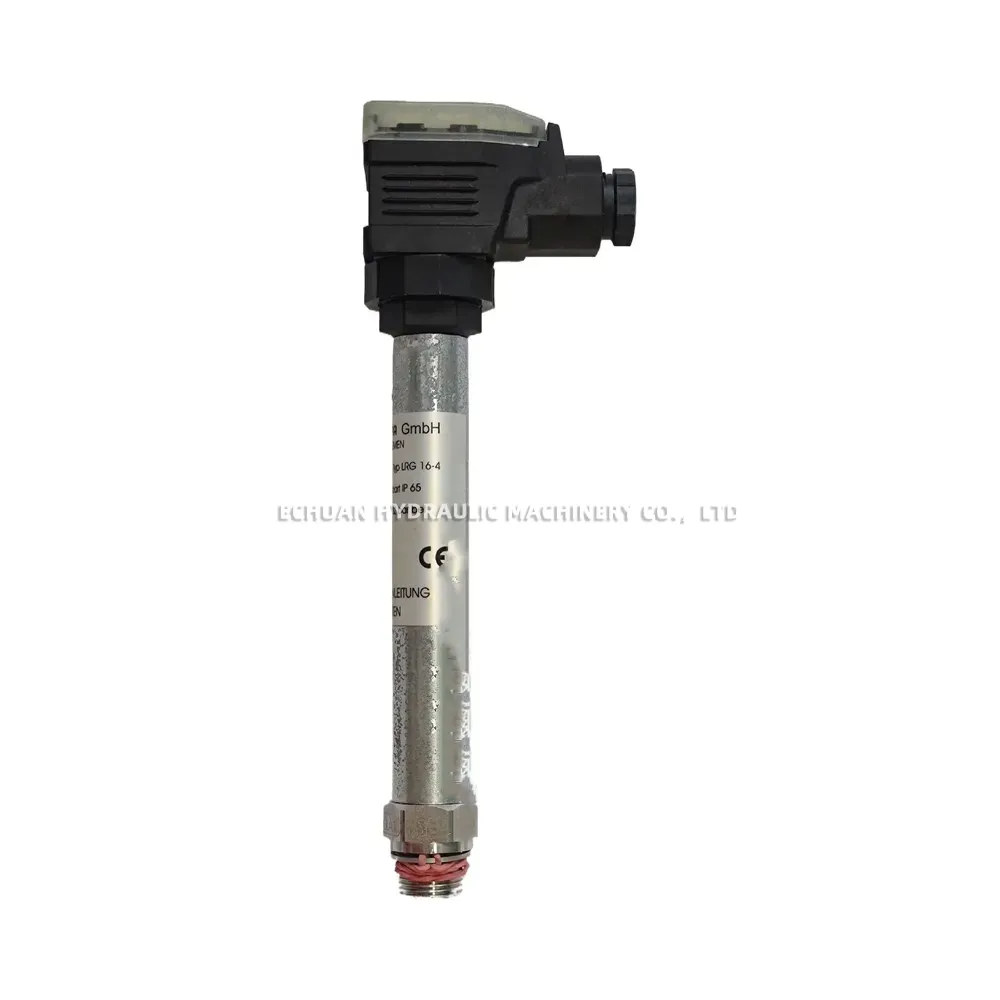

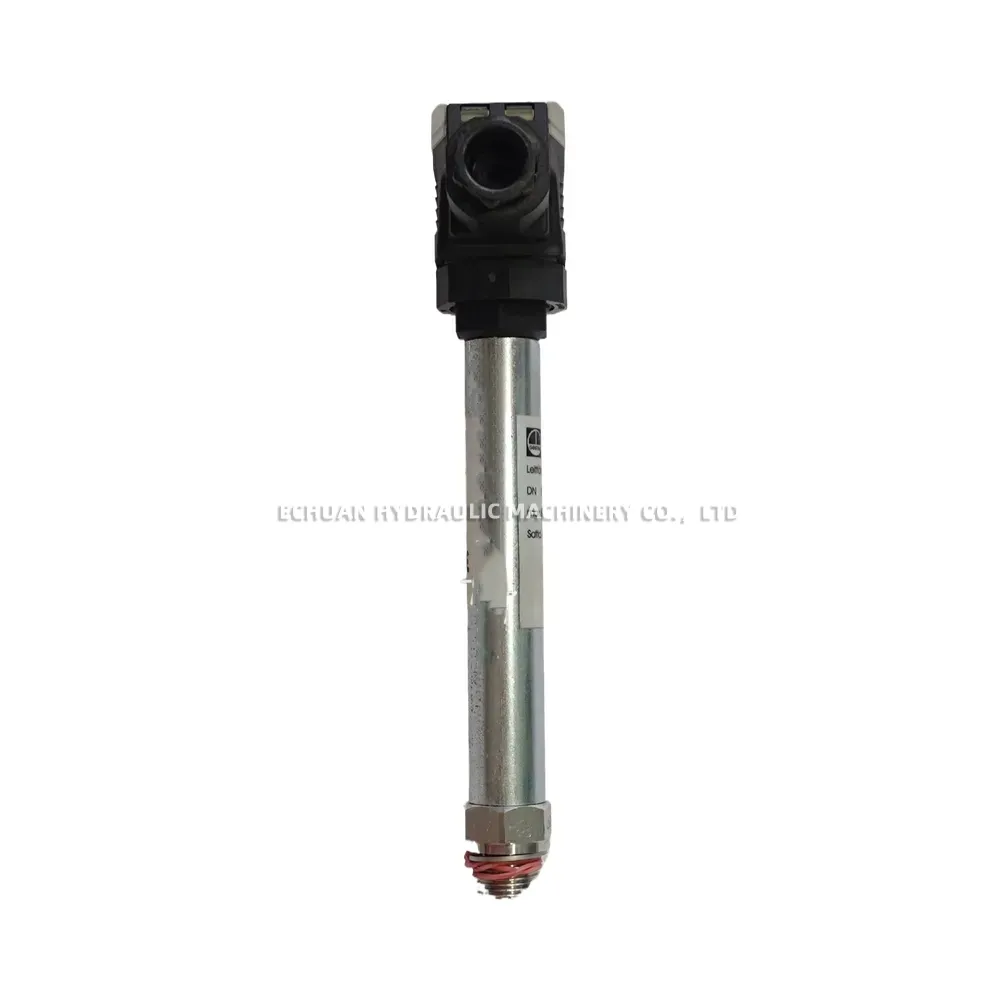

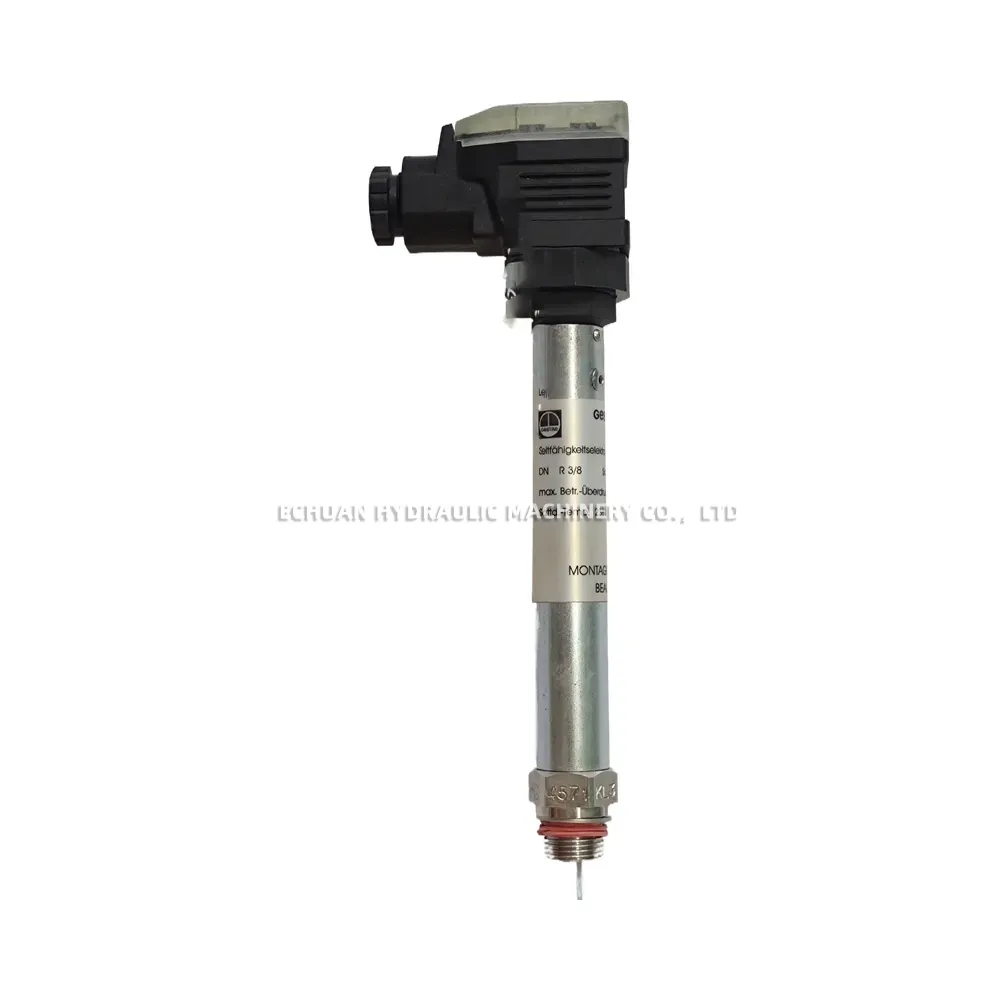

GESTRA LRG 16-4 Conductivity Electrode

The GESTRA LRG 16-4 is a conductivity electrode designed for level detection (minimum or maximum alarm) and conductivity monitoring in electrically conductive liquids. It is commonly used in steam boilers, condensate tanks, feedwater tanks, and other industrial applications requiring reliable liquid level control or water quality monitoring. The electrode operates in conjunction with GESTRA level switches (like NRS 1-x series) or conductivity monitoring units (like LRR 1-x series) to provide switching signals based on the presence or absence of liquid at the electrode tip, or to measure the liquid’s conductivity.

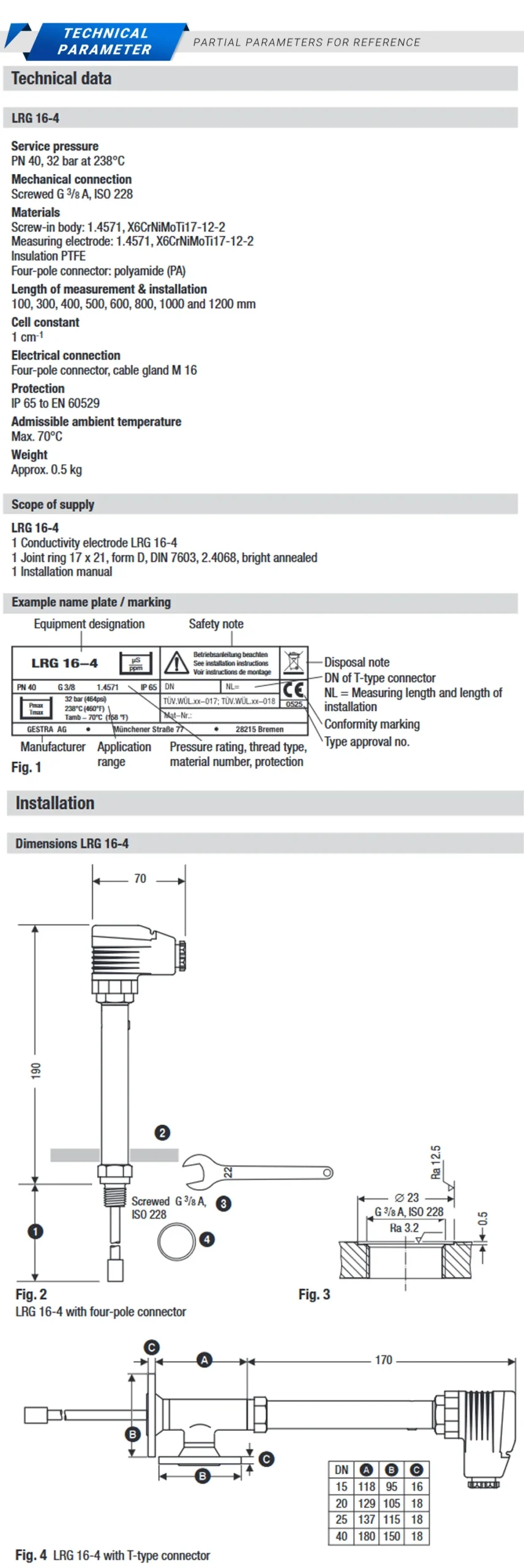

Technical Specifications:

Type: Conductivity Electrode
Application: Level limit detection (MIN/MAX alarm), Conductivity monitoring
Service Pressure: PN 40
Service Temperature: Max. 239 °C (Saturation steam temperature at PN 40)
Process Connection: Screwed G 3/4 A (ISO 228-1)
Materials (Wetted Parts): Electrode rod Stainless Steel 1.4571 (AISI 316Ti), Electrode insulation PTFE, Body Stainless Steel 1.4404 (AISI 316L)
Number of Electrodes: 1
Measuring Voltage: < 24 V AC
Compatible Controllers: GESTRA NRS 1-.., NRR 2-.., LRR 1-.. series
Installation Length: Varies depending on specific model configuration (e.g., 100mm, 200mm, up to 3000mm)
