Product Description

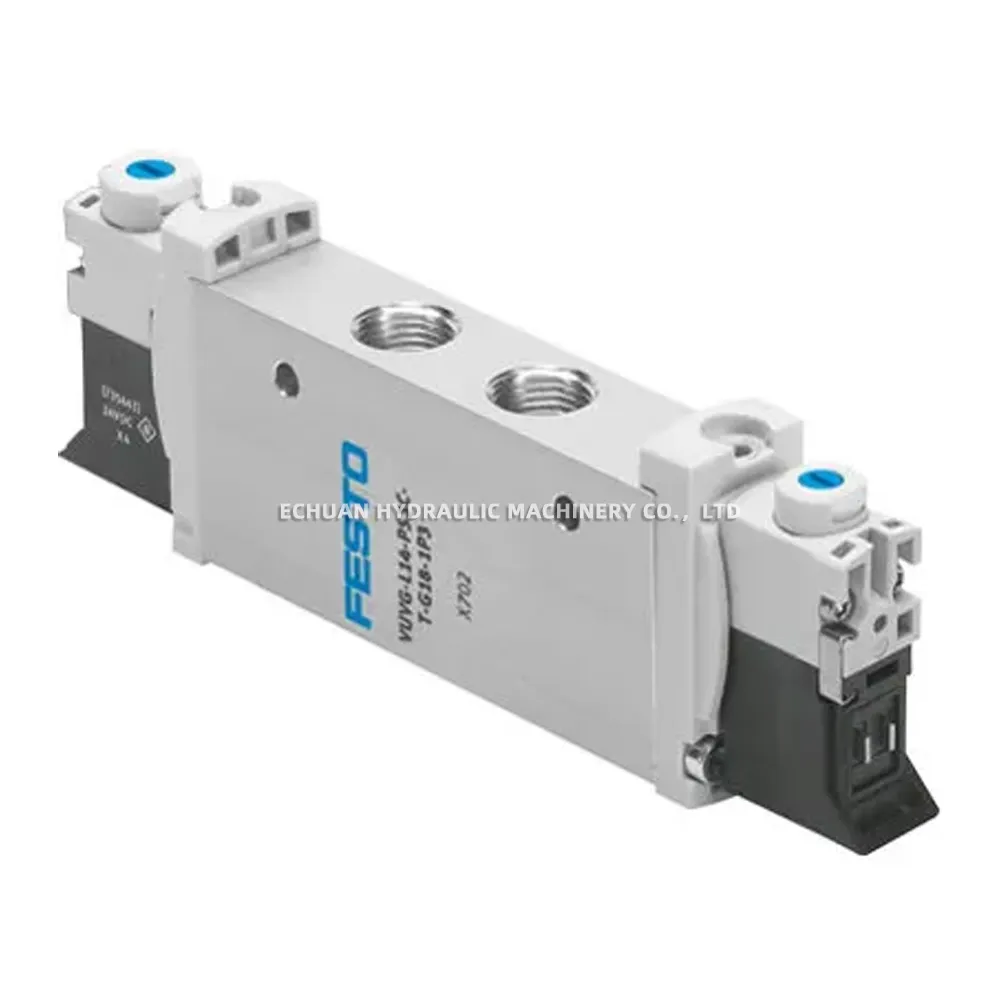

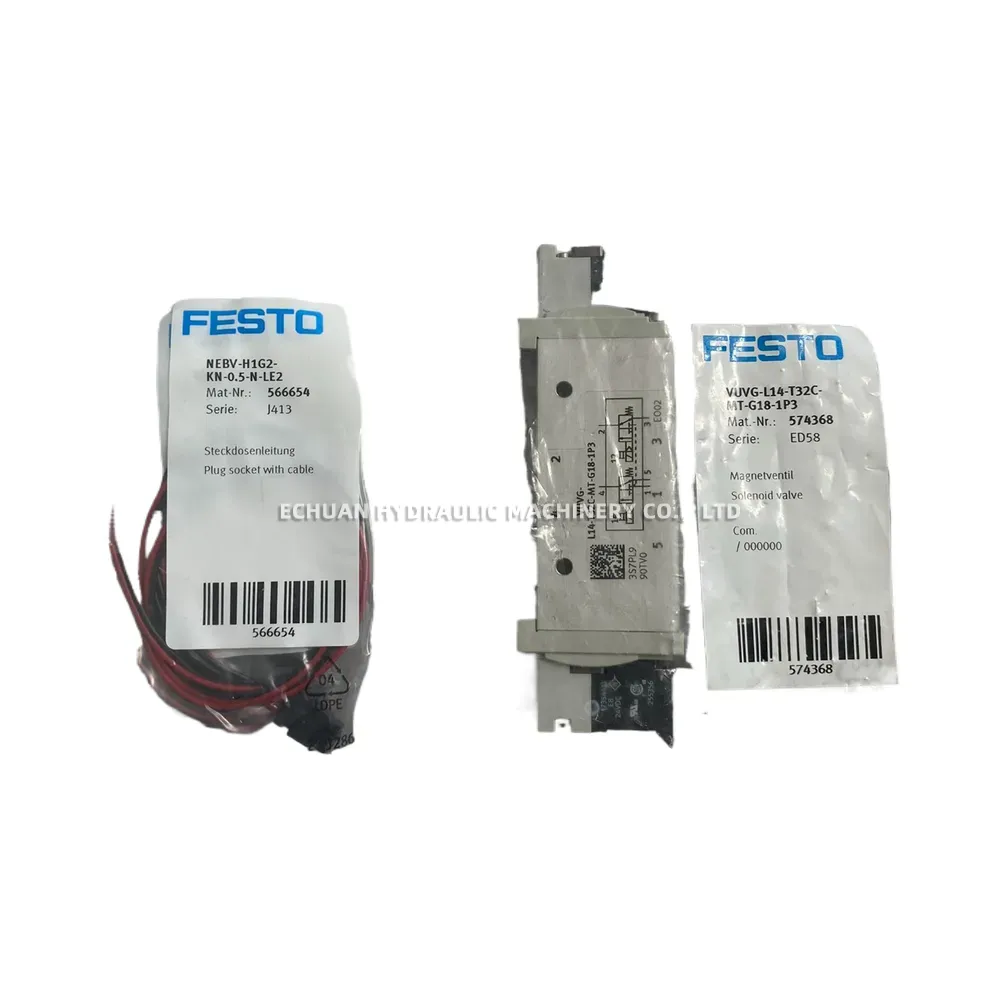

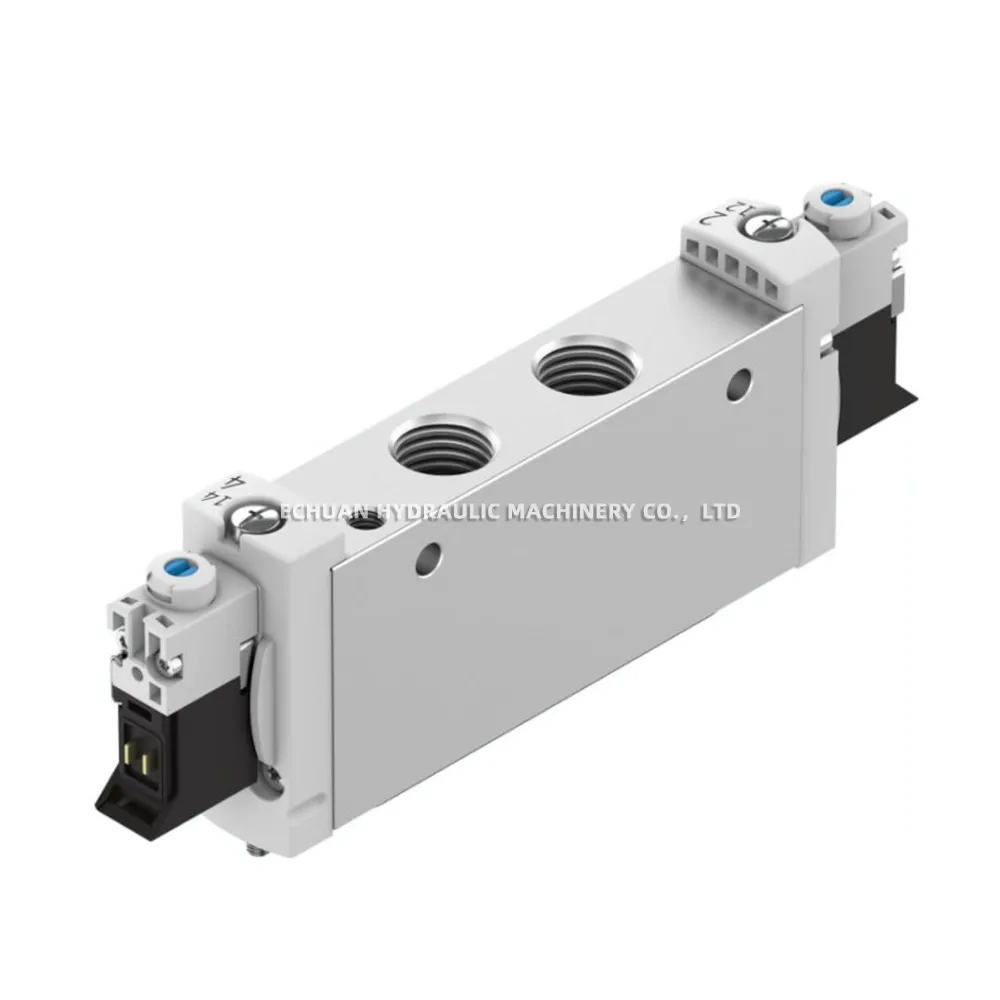

FESTO VUVG-L14-T32C-MT-G18-1P3
The FESTO VUVG-L14-T32C-MT-G18-1P3 is a compact and high-performance individual solenoid valve from the VUVG series. Designed for versatility and efficiency in pneumatic systems, it offers a high flow rate relative to its small size. This particular model is a 3/2-way valve, normally closed and monostable, actuated electrically. It features G1/8 pneumatic connections and an M8 electrical connection, making it suitable for a wide range of industrial automation applications requiring reliable directional control of compressed air.
Technical Specifications:
- Valve function: 3/2 closed, monostable
- Type of actuation: Electrical
- Standard nominal flow rate: 550 l/min
- Operating pressure: -0.9 bar to 8 bar
- Design: Piston gate valve
- Nominal size: 4 mm
- Pneumatic connection, port 1: G1/8
- Pneumatic connection, port 2: G1/8
- Pneumatic connection, port 3: G1/8
- Operating voltage: 24 V DC
- Electrical connection: M8x1 Plug, 3-pin, A-coded to EN 61076-2-104
- Type of piloting: Piloted (Internal pilot air supply)
- Switching time off: 25 ms
- Switching time on: 10 ms
- Duty cycle: 100%
- Protection class: IP65 (with plug socket)
- Ambient temperature: -5 °C to 50 °C
- Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Materials note: Conforms to RoHS
