Product Description

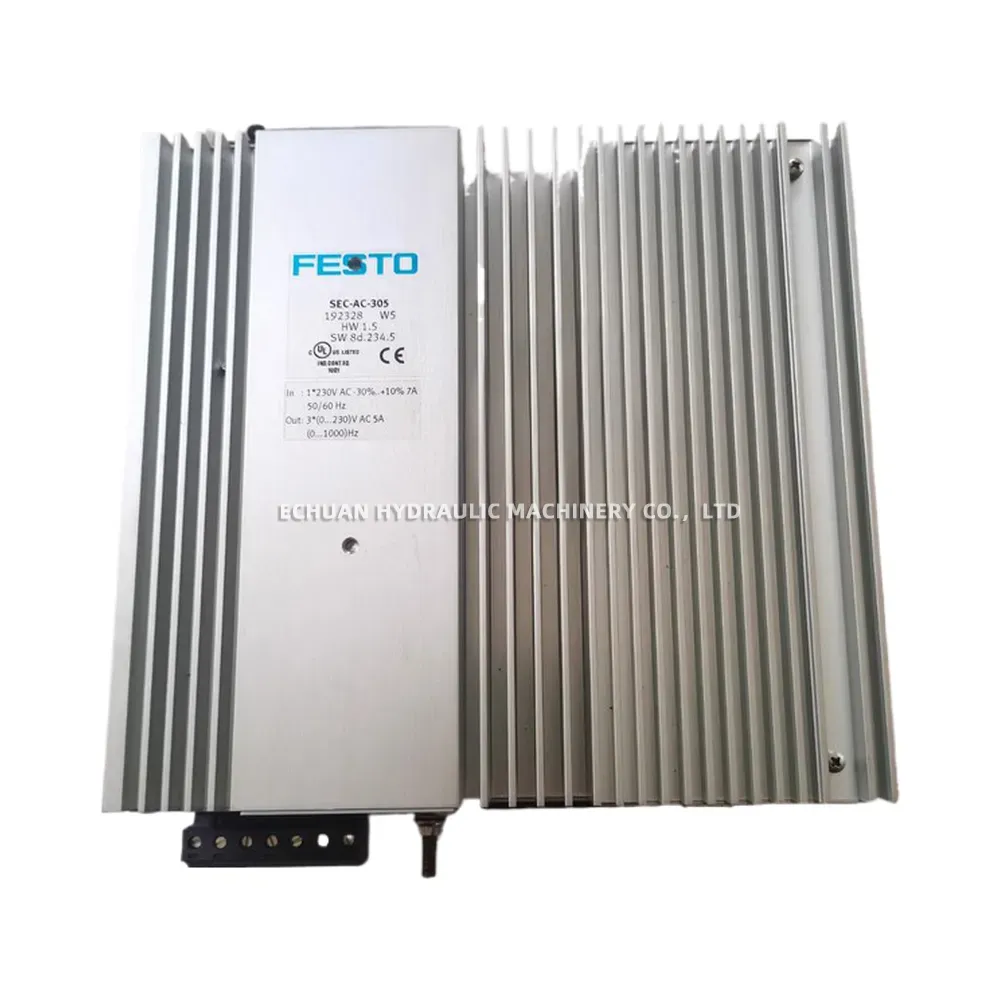

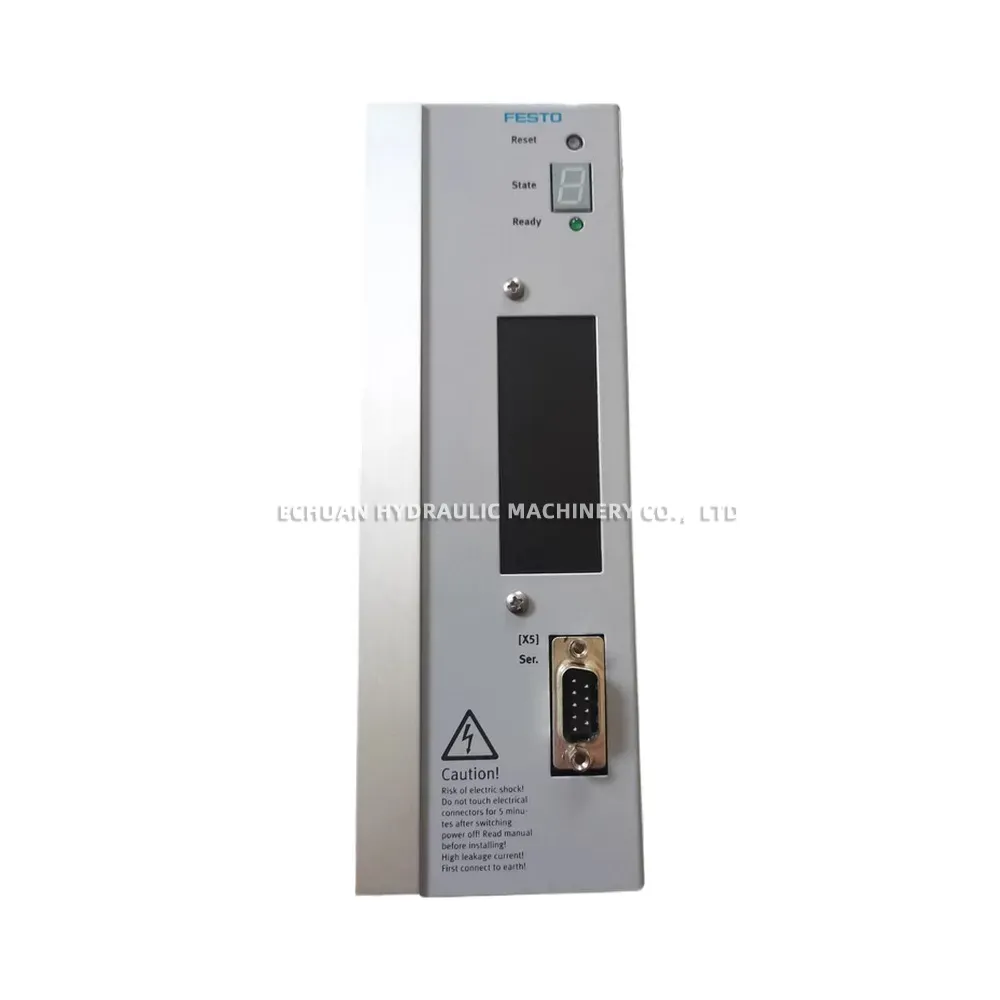

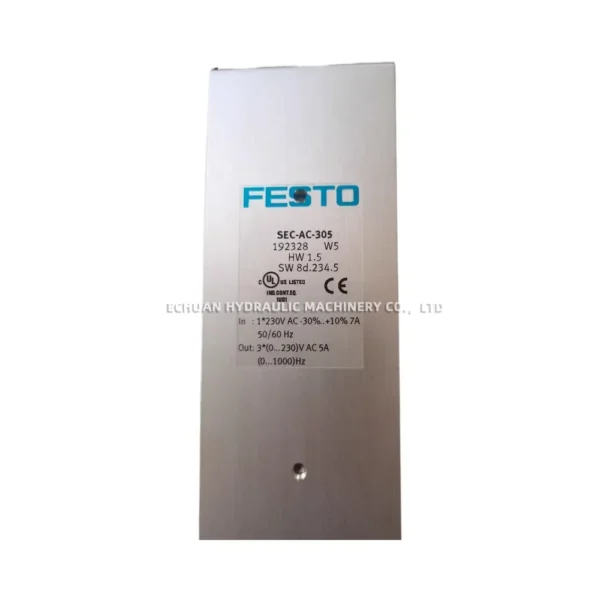

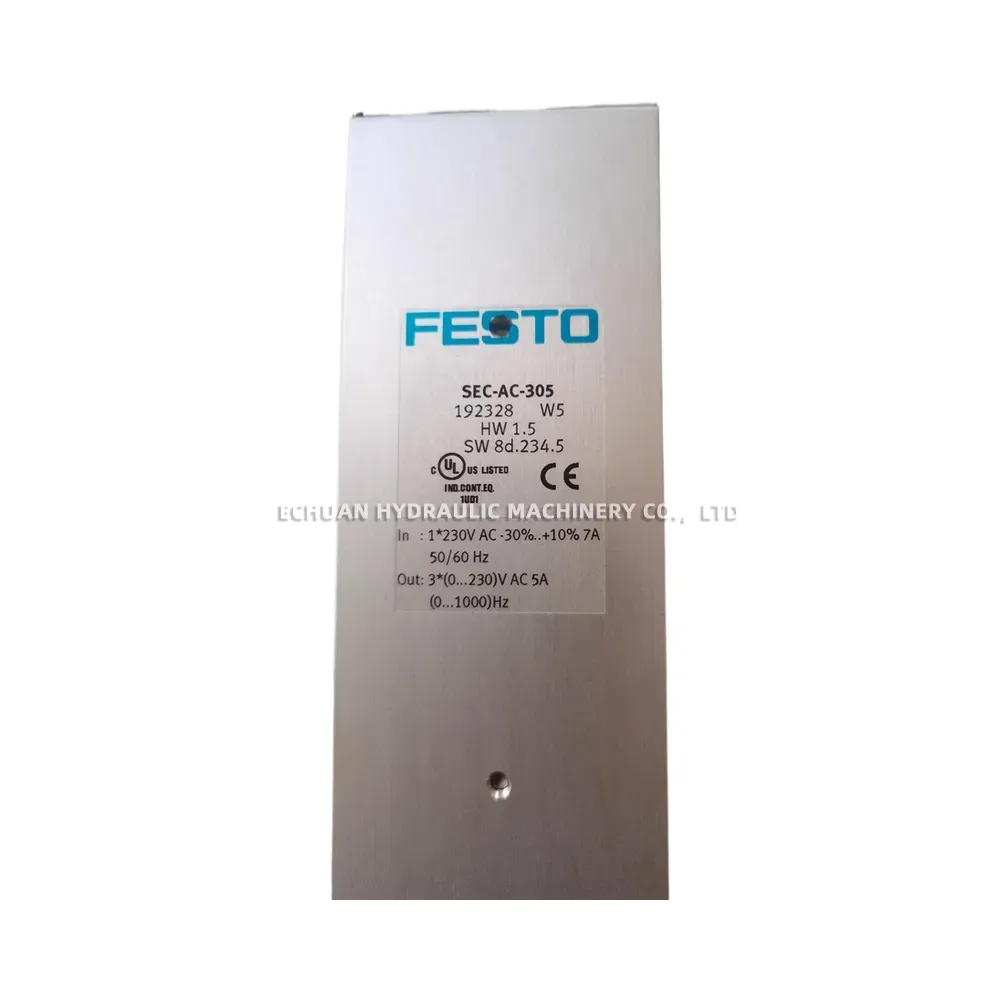

FESTO SEC-AC-305
The FESTO SEC-AC-305 is a versatile and compact servo motor controller designed for precise motion control in various automation applications. It belongs to Festo’s Standard Electric Components (SEC) series, offering reliable performance for controlling AC servo motors. This controller supports multiple operating modes, including position, speed, and torque control, and features integrated communication interfaces like CANopen for seamless system integration.
Technical Specifications:
- Type: Servo motor controller
- Series: SEC-AC
- Rated Output Current: 5 A
- Peak Output Current: 10 A
- Mains Voltage: 1 x 230 V AC (-15 % / +10 %)
- Control Voltage: 24 V DC
- Communication Interface: CANopen, RS232
- Supported Encoder Interfaces: Resolver, EnDat 2.1, Hiperface
- Operating Modes: Position control, Speed control, Torque control
- Degree of Protection: IP20
- Ambient Temperature (Operation): 0 °C to 40 °C
- Mounting Type: Screw mounting or DIN rail mounting
FESTO SEC-AC-305
Model:FESTO SEC-AC-305
