Product Description

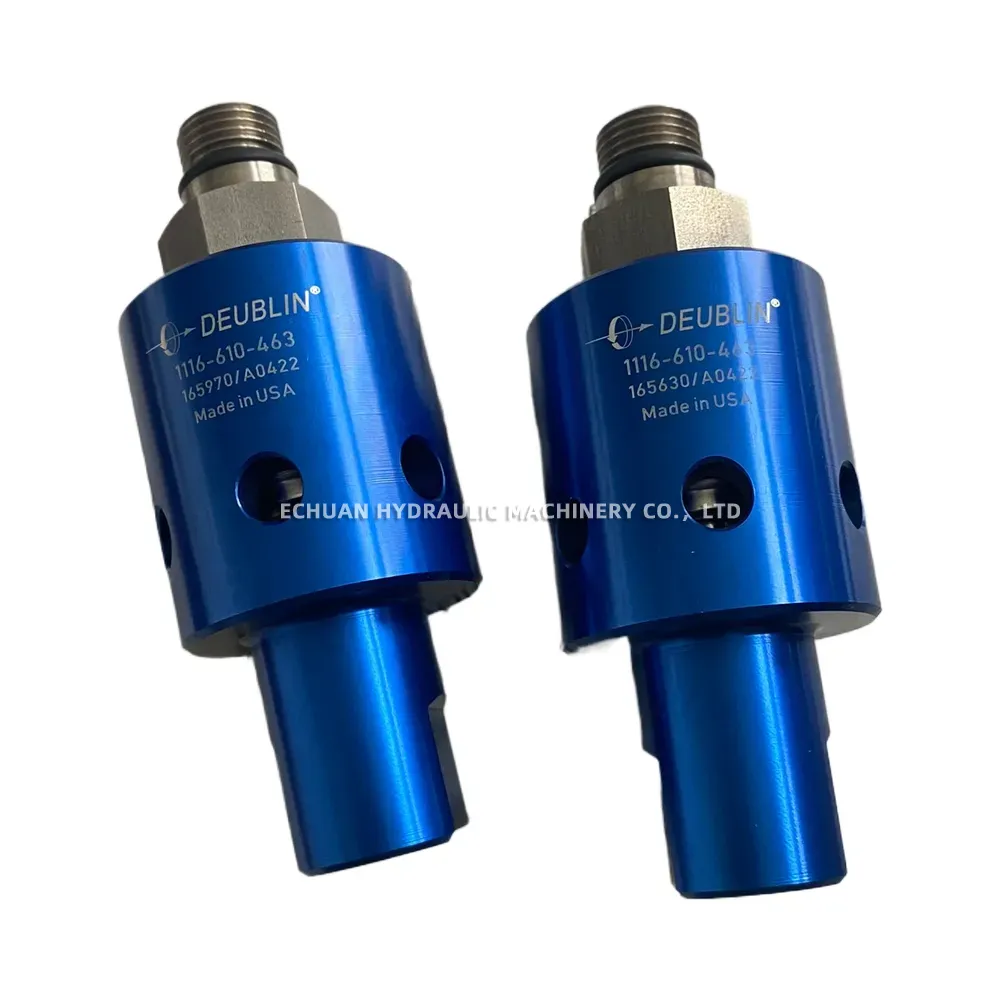

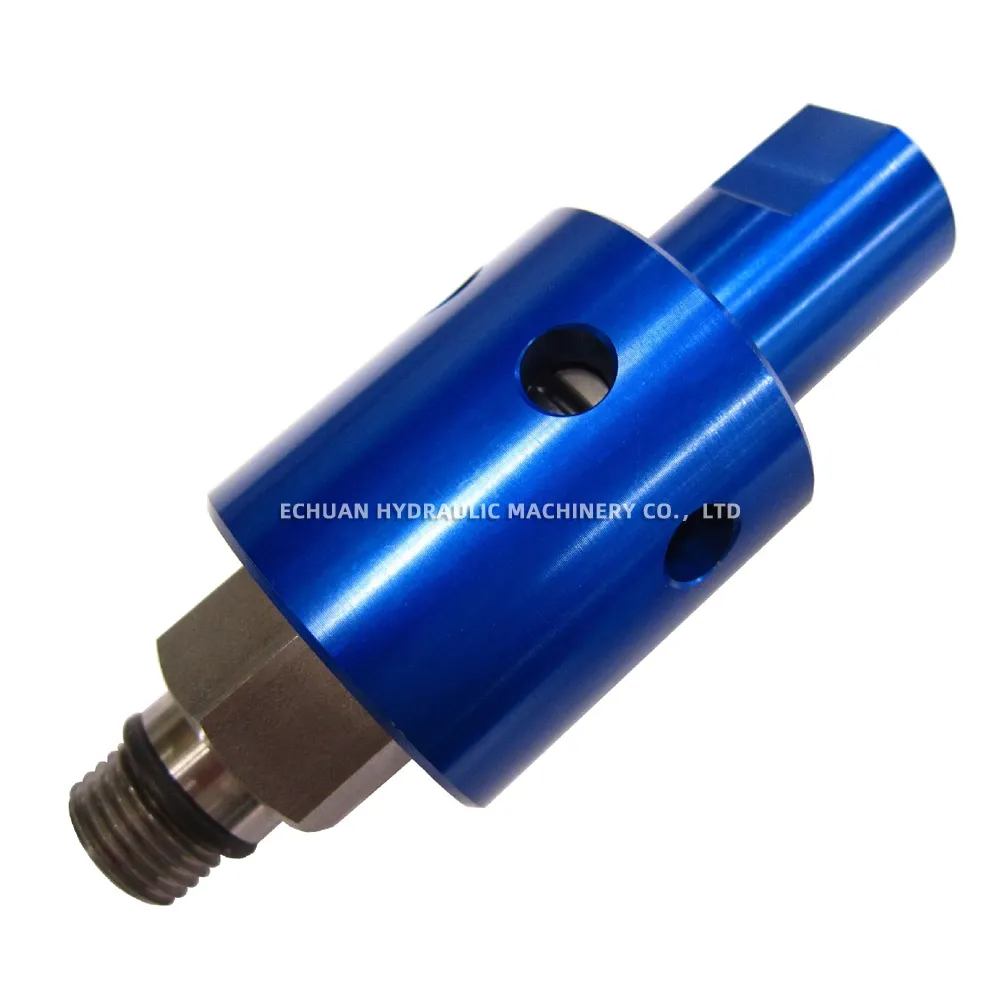

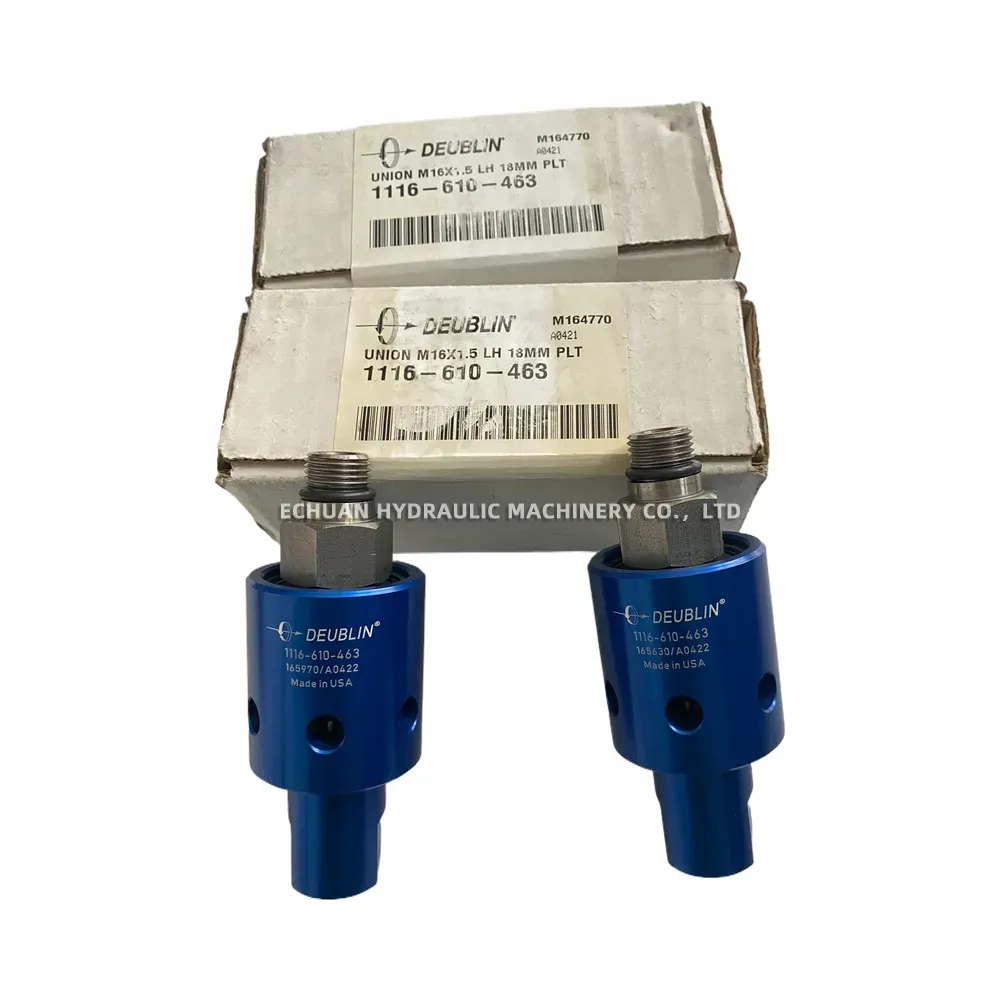

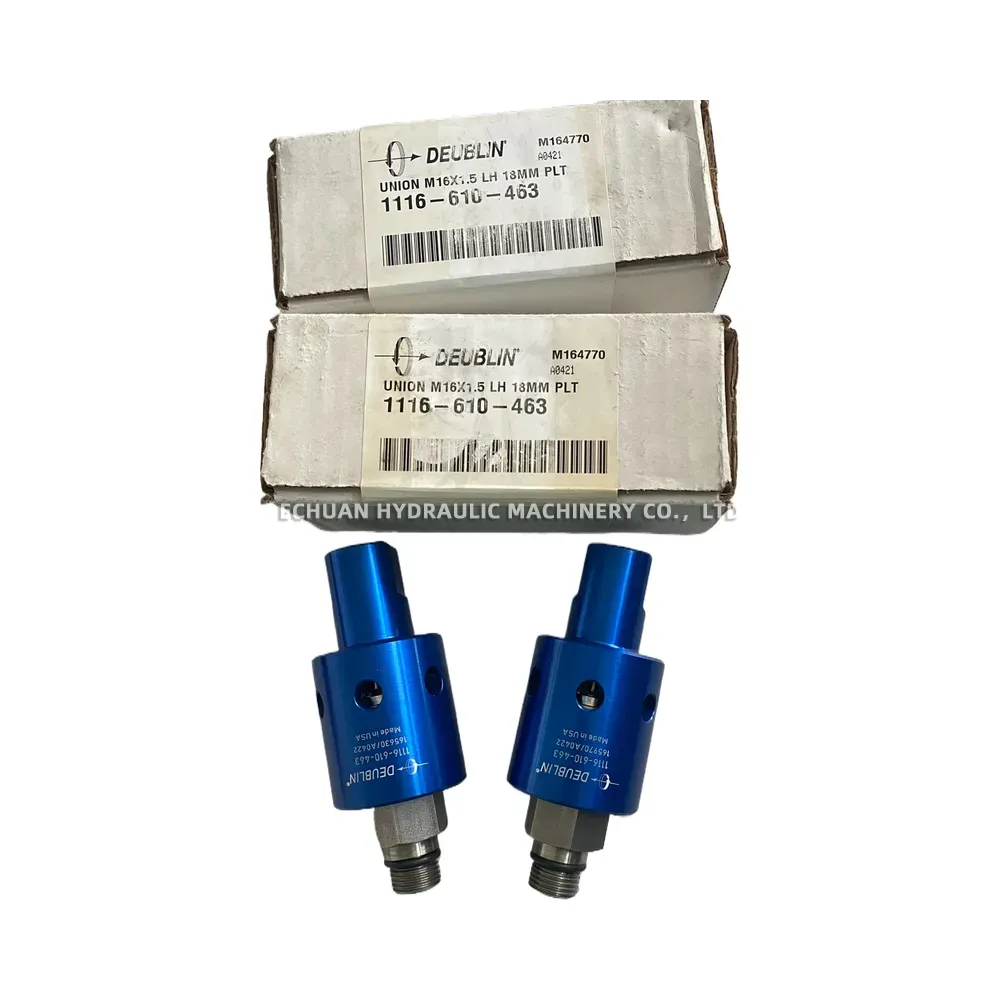

DEUBLIN 1116-610-463 Rotating Union

The DEUBLIN 1116-610-463 is a self-supported, monoflow rotating union designed for reliable performance in water service applications. Featuring balanced mechanical seal technology, this union ensures extended seal life and dependable operation. Its design incorporates a radial housing connection and standard NPT threads for straightforward installation in various industrial machinery requiring fluid transfer to rotating components.

Technical Specifications:

Model Series: 1116
Part Number: 1116-610-463
Flow Type: Monoflow
Rotor Connection: 1″ NPT Right Hand Thread
Housing Connection: 1″ NPT Right Hand Thread
Seal Technology: Balanced Mechanical Seal (Typically Type E – Tungsten Carbide/Silicon Carbide for water service)
Maximum Water Pressure: 10 bar (150 PSI)
Maximum Speed: 3500 RPM
Maximum Temperature: 120°C (250°F)
Mounting: Self-supported
