Product Description

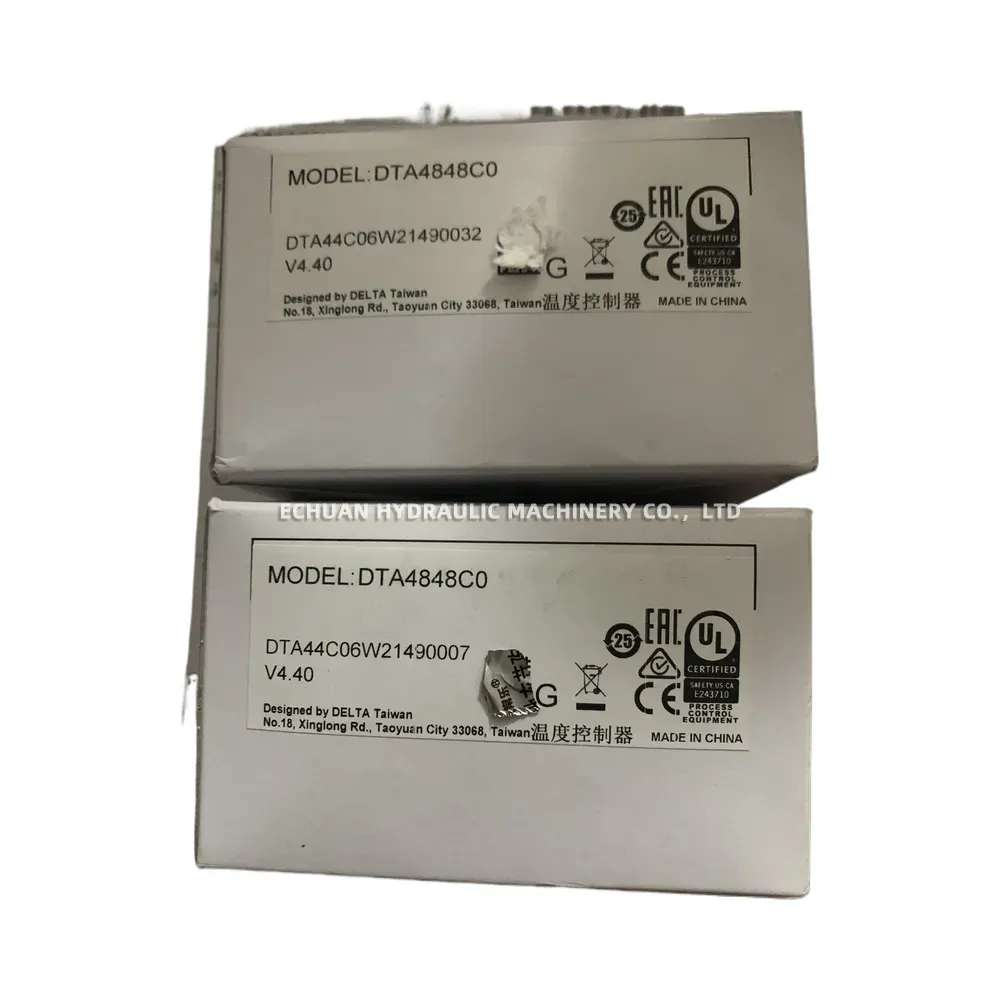

DELTA DTA4848C0

The DELTA DTA4848C0 is a cost-effective temperature controller belonging to the DTA series. Designed for basic temperature control applications, it offers essential functions including PID, ON/OFF, and manual control modes. It features a clear dual LED display for process value (PV) and set value (SV). This 1/16 DIN size controller accepts various thermocouple and RTD inputs and provides a reliable relay control output, making it suitable for a wide range of industrial heating and cooling processes where precise temperature management is required without complex features.

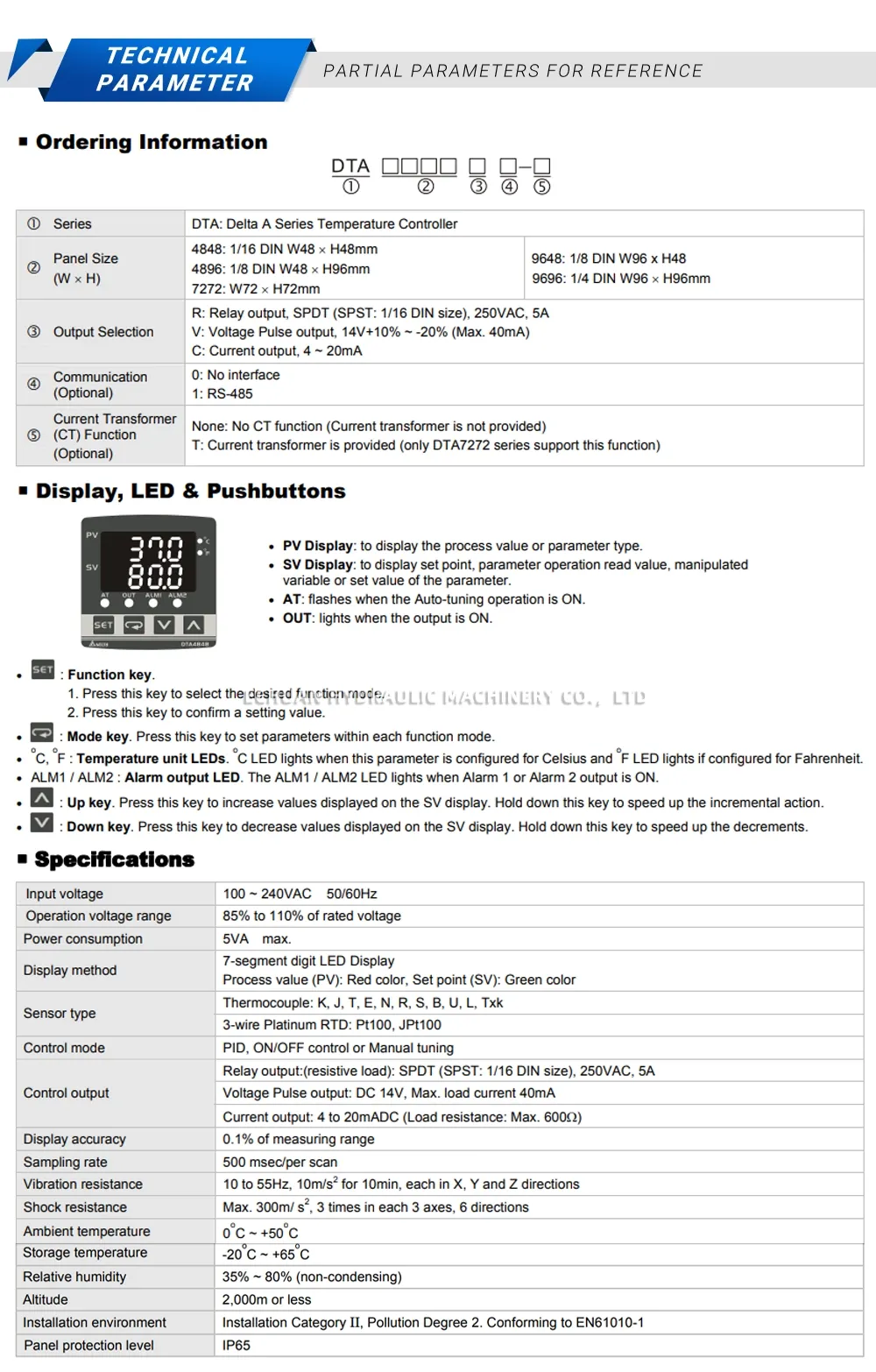

Technical Specifications:

Supply Voltage: 100 ~ 240VAC, 50/60Hz
Panel Size: 48 x 48 mm (1/16 DIN)

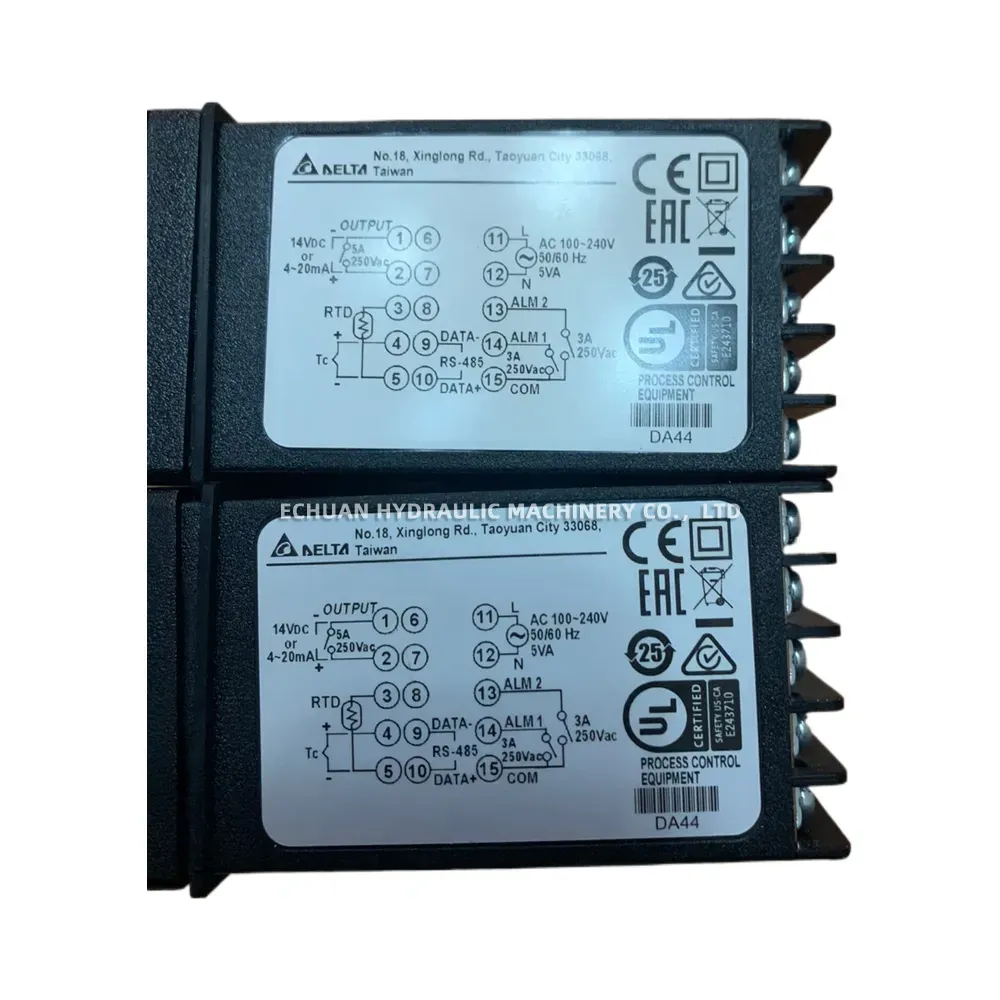

Control Output: Relay (SPST, Max. load 250VAC, 5A resistive)
Input Sensor Types: Thermocouple (K, J, T, E, N, R, S, B, L, U, TXK), Platinum RTD (Pt100, JPt100)
Control Method: PID, ON/OFF, Manual

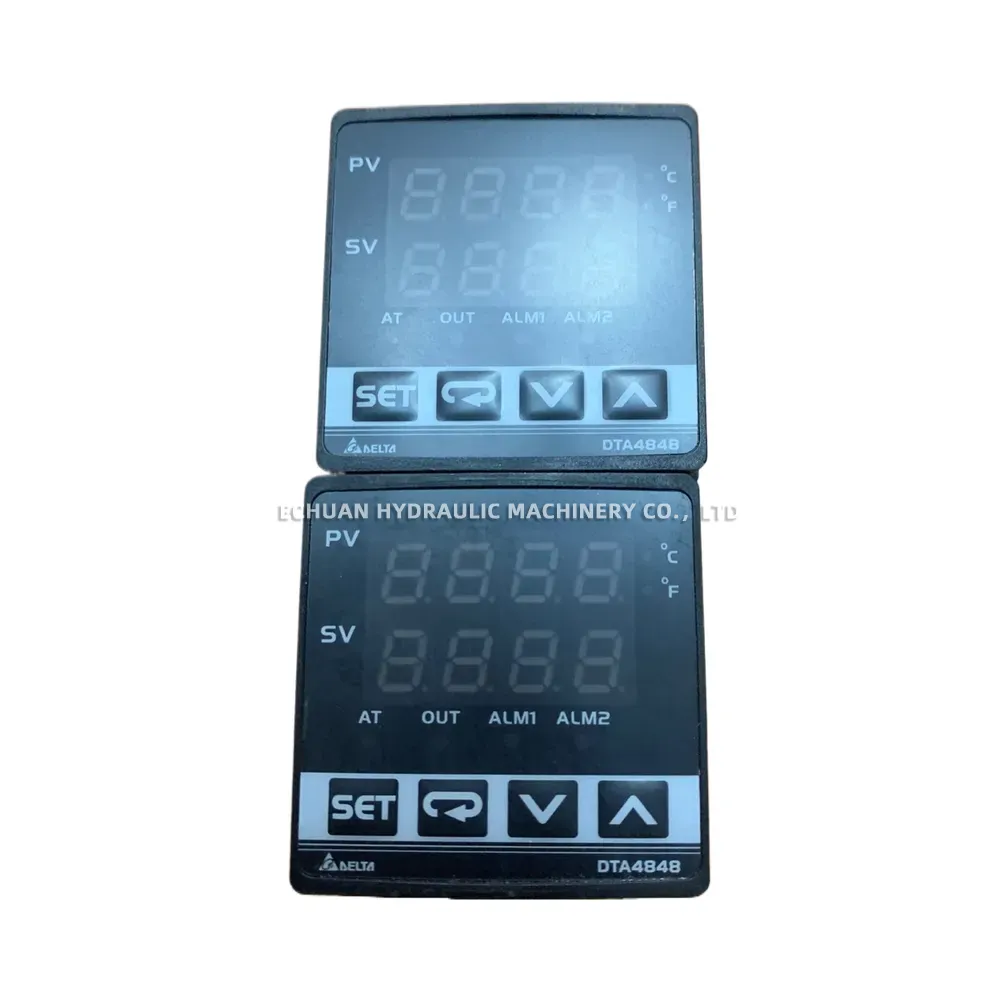

Display: Dual line 4-digit 7-segment LED (PV: Red, SV: Green)
Sampling Rate: Thermocouple/Platinum RTD: 0.4 seconds
Alarm Output: 1 Relay Output (SPST, Max. load 250VAC, 5A resistive)
Operating Temperature: -10°C to +50°C
Operating Humidity: 35% to 80% RH (non-condensing)
