Product Description

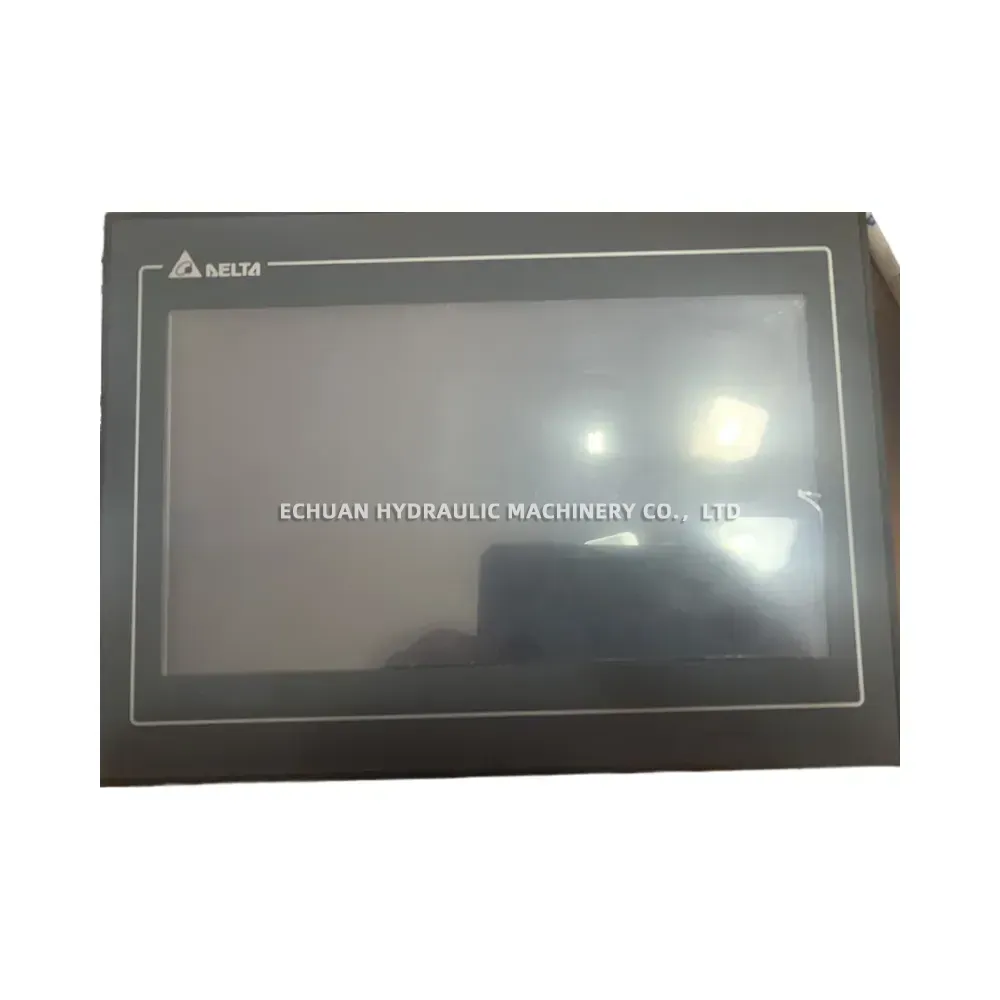

DELTA DOP-110CS

The DELTA DOP-110CS is a Standard Human Machine Interface (HMI) featuring a 10.1-inch high-resolution widescreen display. It provides a graphical interface for operators to monitor and control industrial automation processes. Equipped with an ARM Cortex-A8 processor, ample memory, and multiple communication ports including Ethernet, it facilitates seamless integration with various PLCs and controllers. The DOP-110CS supports DOPSoft programming software, offering a user-friendly environment for developing intuitive control screens and applications.

Technical Specifications:

Display Type: 10.1″ TFT LCD
Resolution: 1024 x 600 pixels
Display Colors: 65,536 Colors
Backlight: LED
Touch Panel: 4-wire Resistive Type
Processor: ARM Cortex-A8 (800MHz)
RAM: 256MB
ROM: 256MB
Ethernet Port: 1 (10/100 Mbps Auto-sensing)

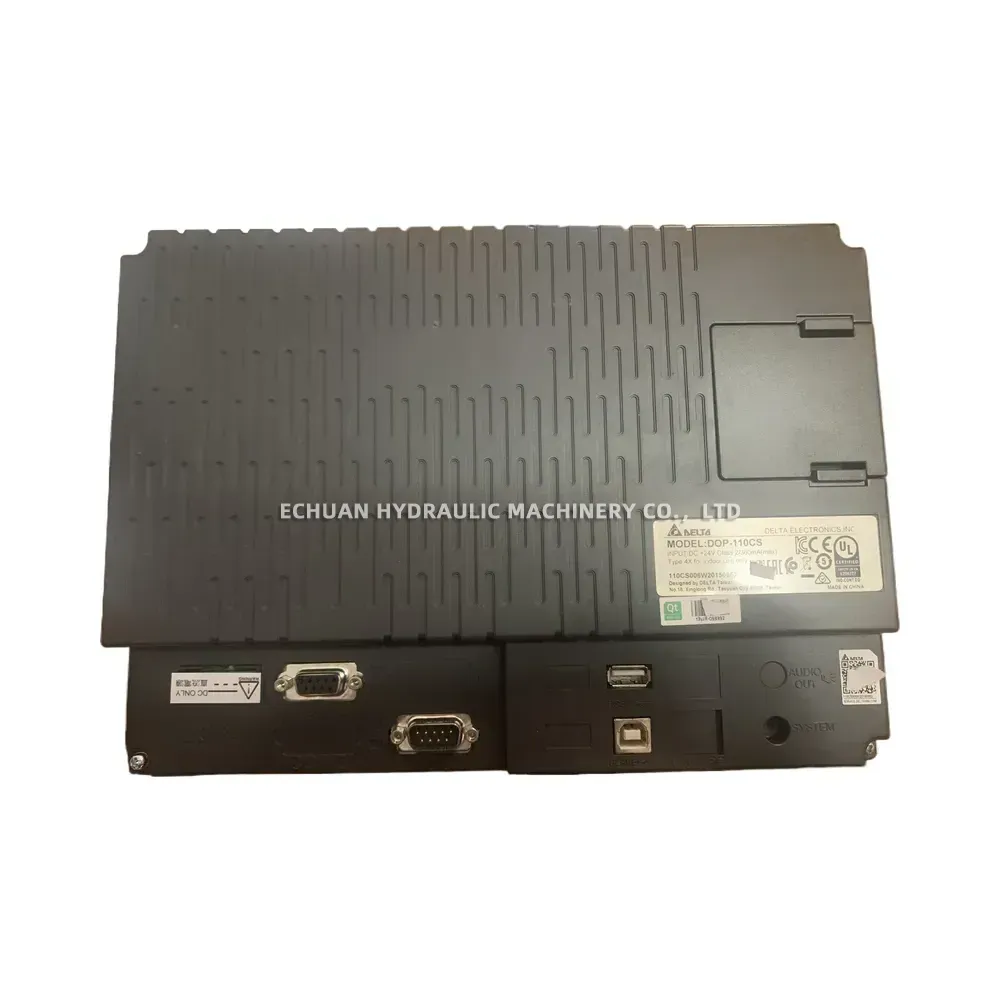

Serial COM Ports: COM1 (RS-232/RS-485/RS-422), COM2 (RS-232/RS-485/RS-422), COM3 (RS-232/RS-485/RS-422)
USB Ports: 1 x USB Host (Ver 2.0), 1 x USB Client (Ver 2.0)
SD Card Slot: No
Power Input: 24 VDC (-15% to +15%)
Panel Cutout (W x H): 261.3 x 186.3 mm
Front Panel Protection: IP65 / NEMA4
Operating System: Delta Real-Time OS
Programming Software: DOPSoft V4.00.11 or later
