Product Description

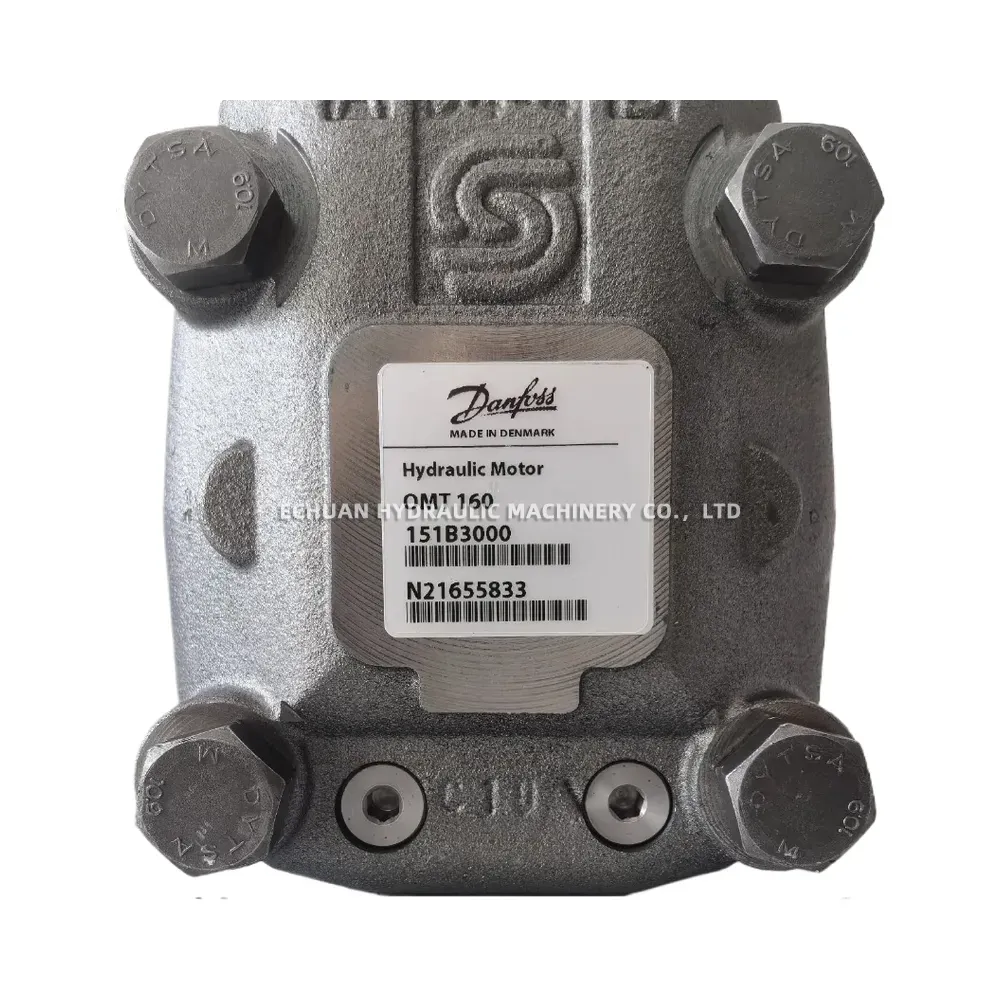

Danfoss OMT160 151B3000 Hydraulic Motor
The Danfoss OMT 160 (model code 151B3000) is a robust orbital hydraulic motor designed for demanding applications requiring high torque at low speeds. Part of the OMT series, it features a roller gear set and a valving system with integrated check valves, ensuring high efficiency and smooth operation even under high pressure. Its compact design, combined with high power density, makes it suitable for various industrial and mobile machinery, including construction equipment, agricultural machinery, conveyors, and winches. This specific model comes configured with standard mounting and shaft options for ease of integration.
Technical Specifications:
- Displacement: 161.9 cm³/rev [9.88 in³/rev]
- Max Continuous Speed: 465 rpm
- Max Intermittent Speed: 580 rpm
- Max Continuous Torque: 475 Nm [4200 lb-in]
- Max Intermittent Torque: 570 Nm [5040 lb-in]
- Max Continuous Pressure Drop: 175 bar [2540 psi]
- Max Intermittent Pressure Drop: 215 bar [3120 psi]
- Mounting Flange: SAE A 2 bolt (Pilot Ø82.55 x 6.3 mm [3.25 x 0.25 in])
- Shaft Type: Ø32 mm Cylindrical with parallel key A10 x 8 x 45 mm (DIN 6885)
- Port Type: Main Ports G 1/2 (BSP), Drain Port G 1/4 (BSP)
- Series: OMT
- Manufacturer Part Number: 151B3000
Danfoss OMT160 151B3000
Model:Danfoss OMT160 151B3000
