Product Description

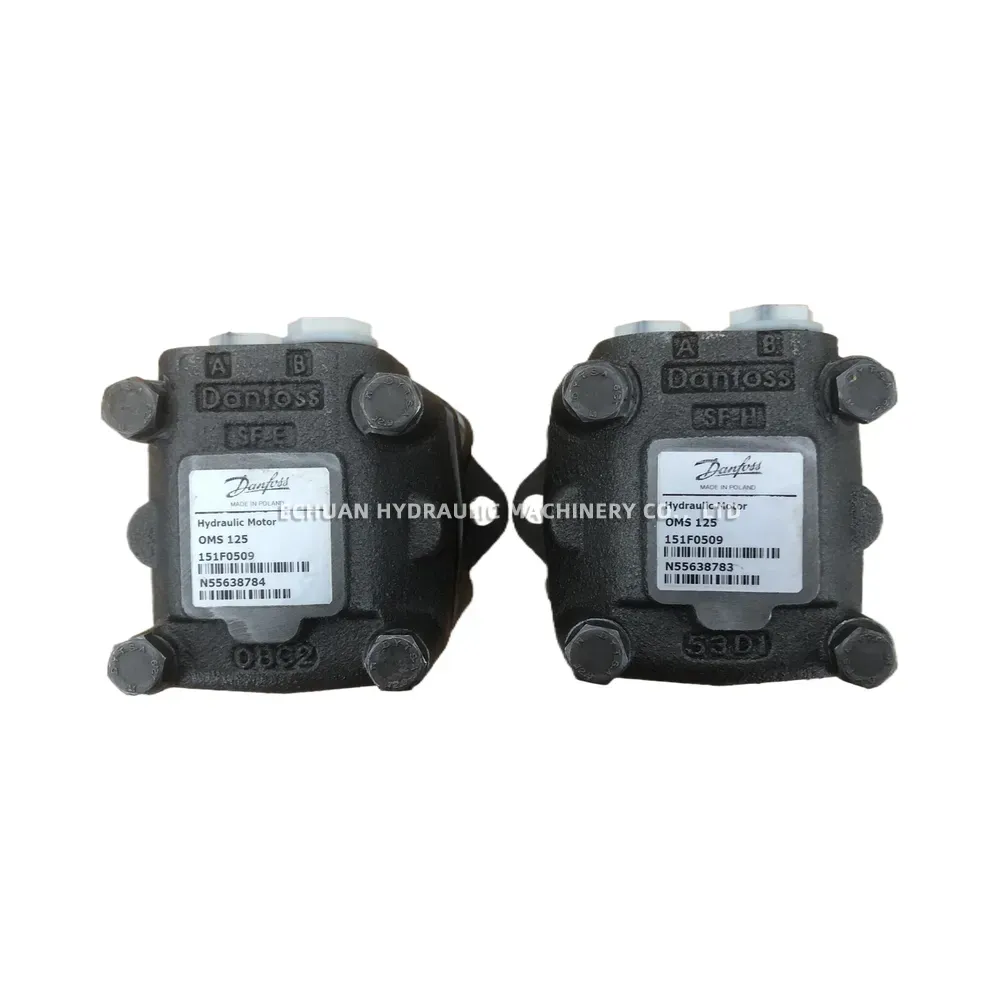

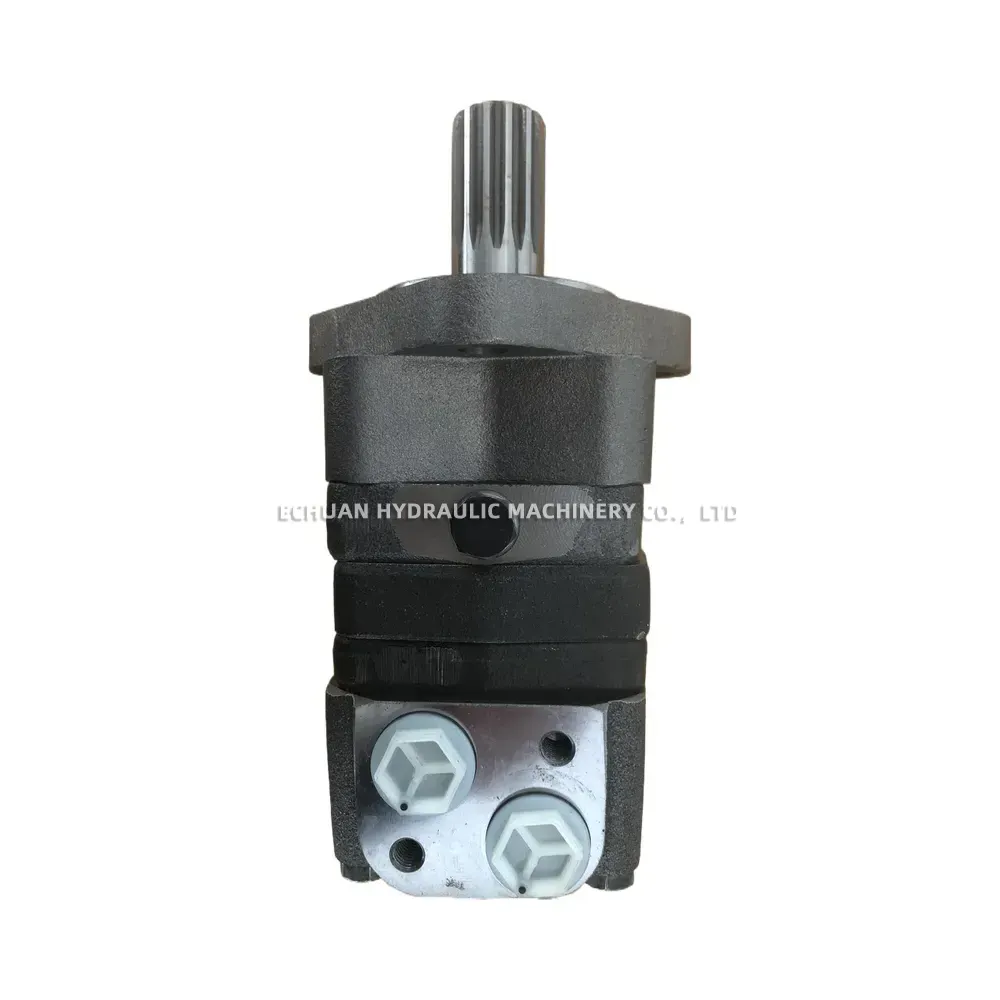

Danfoss OMS125 151F0509 Hydraulic Motor
The Danfoss OMS125 (part number 151F0509) is a medium-duty orbital hydraulic motor belonging to the O-series. These motors are known for their robust construction, featuring a roller set (Gerotor) design that ensures high efficiency and smooth operation, especially at low speeds. The OMS series provides high starting torque and can withstand high return pressure without the need for a drain line (in most applications). It’s suitable for a wide range of applications in agricultural machinery, construction equipment, conveyors, and industrial machinery requiring reliable low-speed, high-torque performance.

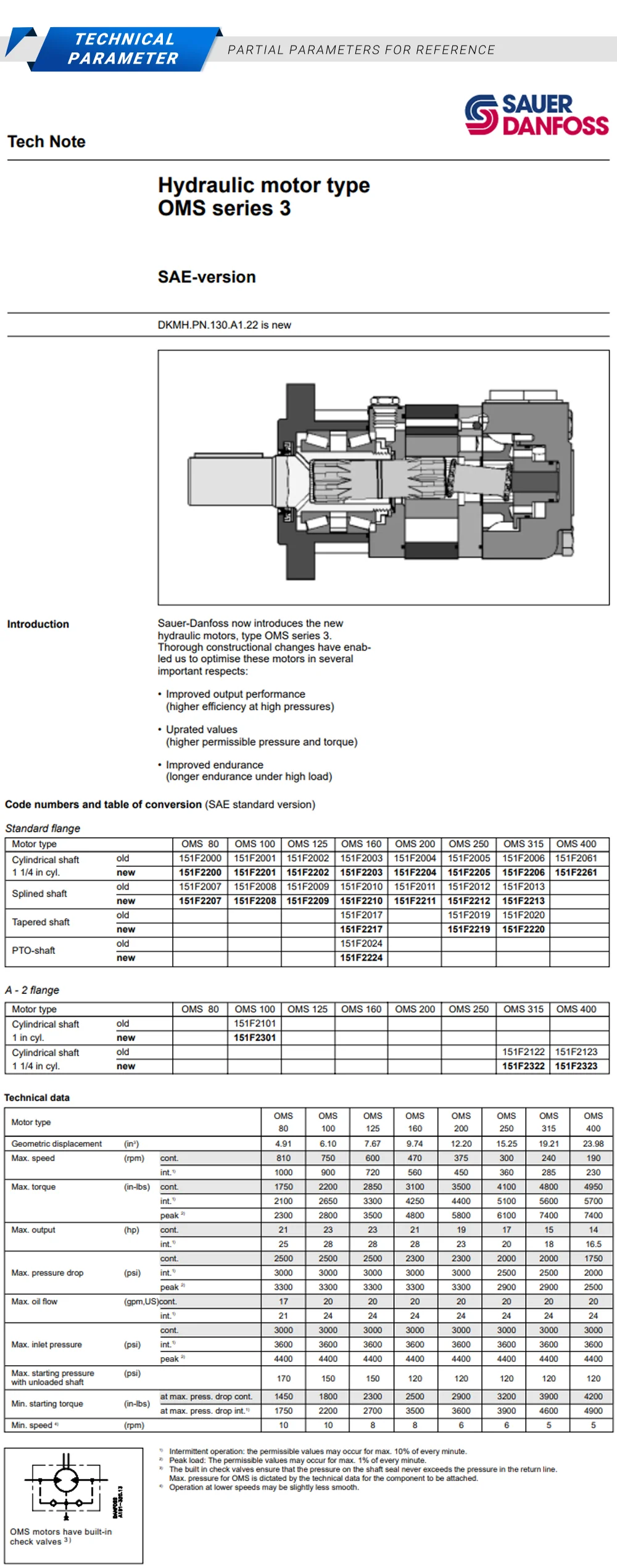

Technical Specifications:
- Displacement: 125.7 cm³/rev [7.67 in³/rev]
- Max. Speed (Continuous): 600 rpm
- Max. Speed (Intermittent): 750 rpm
- Max. Torque (Continuous): 310 Nm [2740 lb-in]
- Max. Torque (Intermittent): 380 Nm [3360 lb-in]
- Max. Pressure Drop (Continuous): 175 bar [2550 psi]
- Max. Pressure Drop (Intermittent): 200 bar [2900 psi]
- Max. Pressure Drop (Peak): 225 bar [3250 psi]
- Shaft Type: Ø32 mm Cylindrical with parallel key A10 x 8 x 45 DIN 6885
- Port Type: G 1/2 Main Ports (BSPP – ISO 228/1); G 1/4 Drain Port

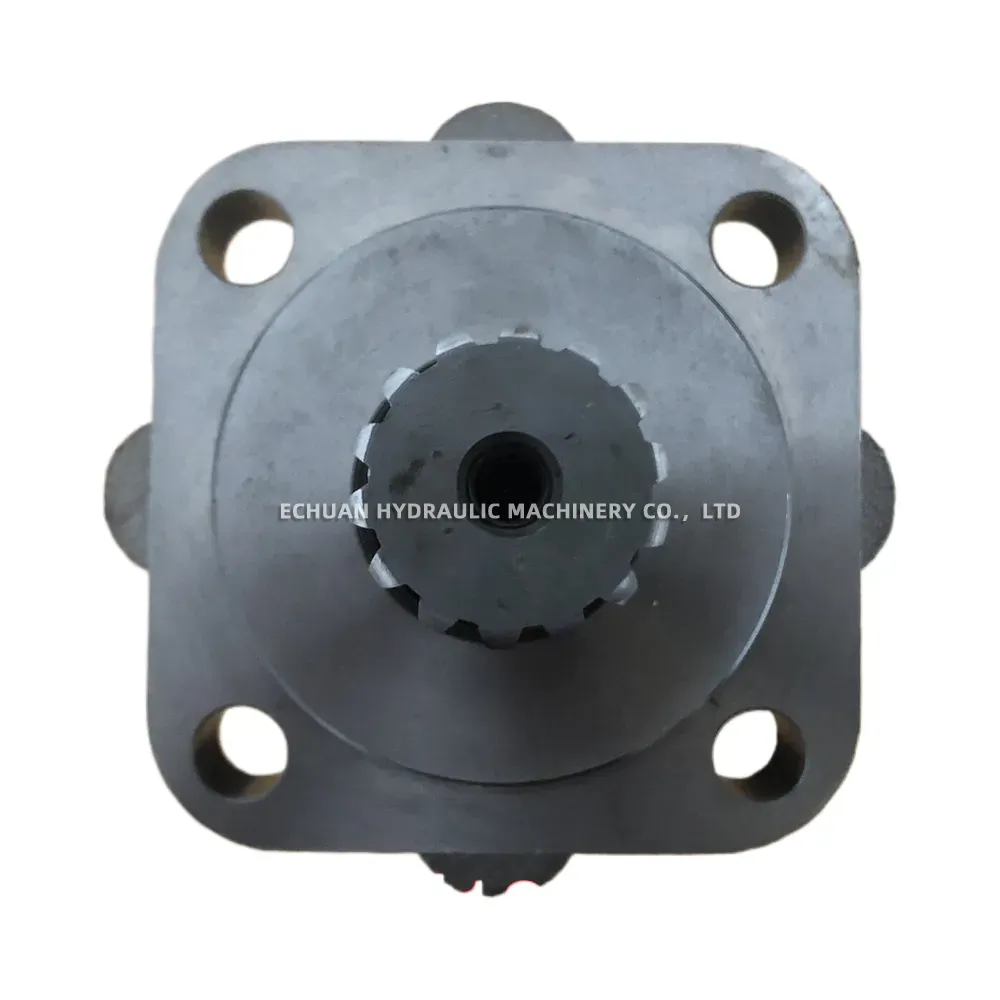

- Mounting Flange: SAE A 4-bolt square flange (Ø82.55 mm pilot diameter)
- Motor Series: OMS
- Danfoss Part Number: 151F0509
Danfoss OMS125 151F0509
Model:Danfoss OMS125 151F0509
