Product Description

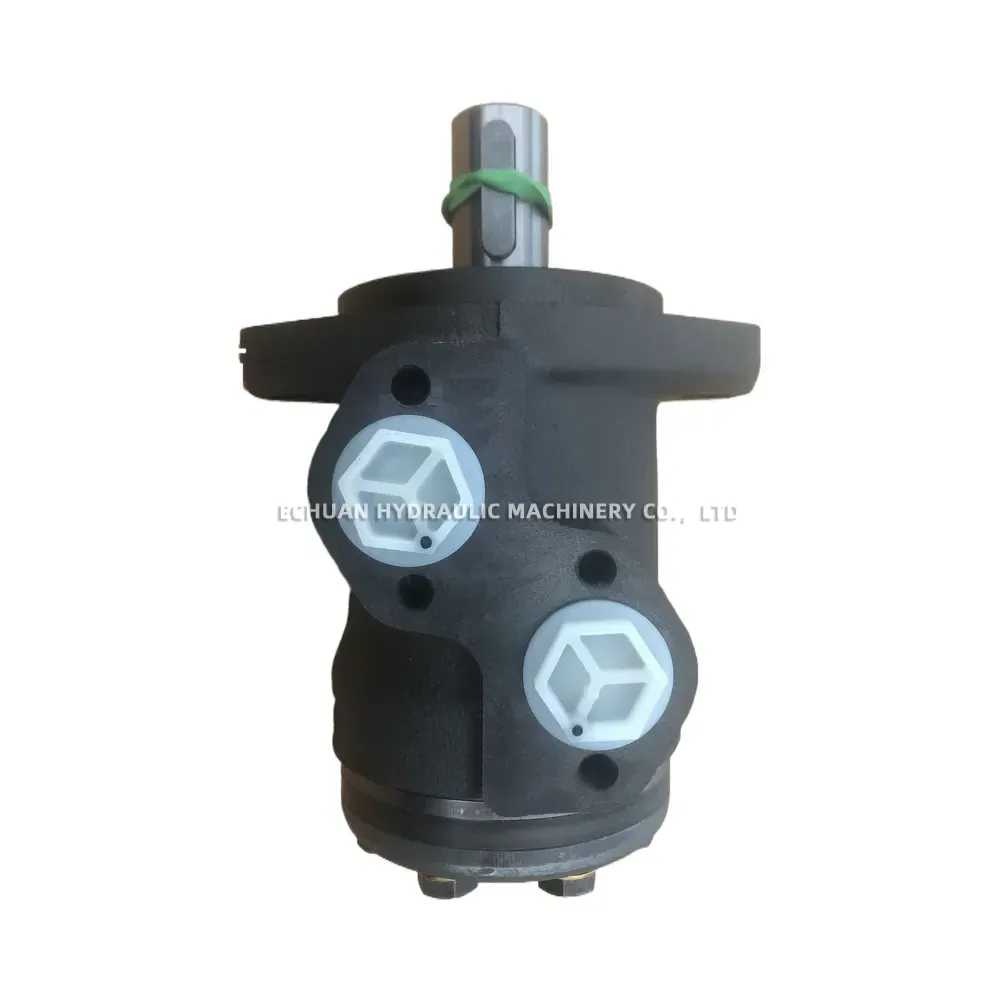

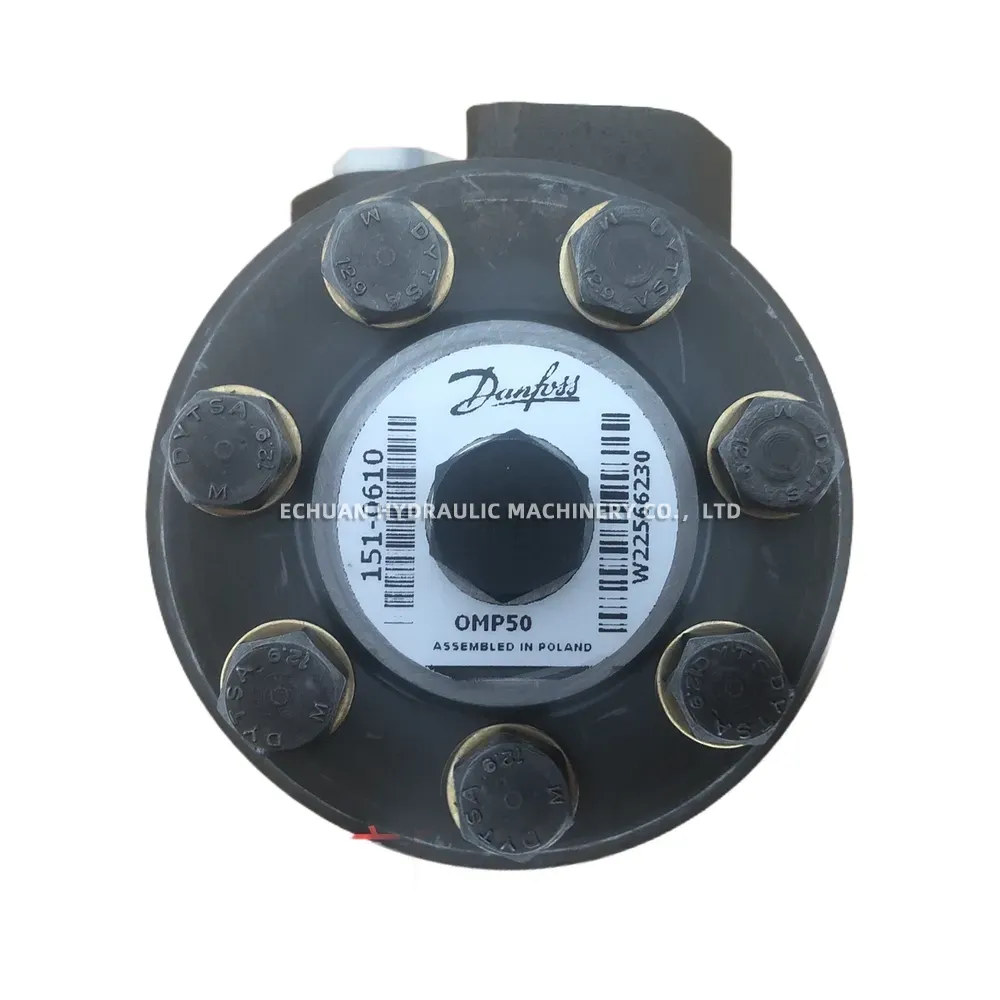

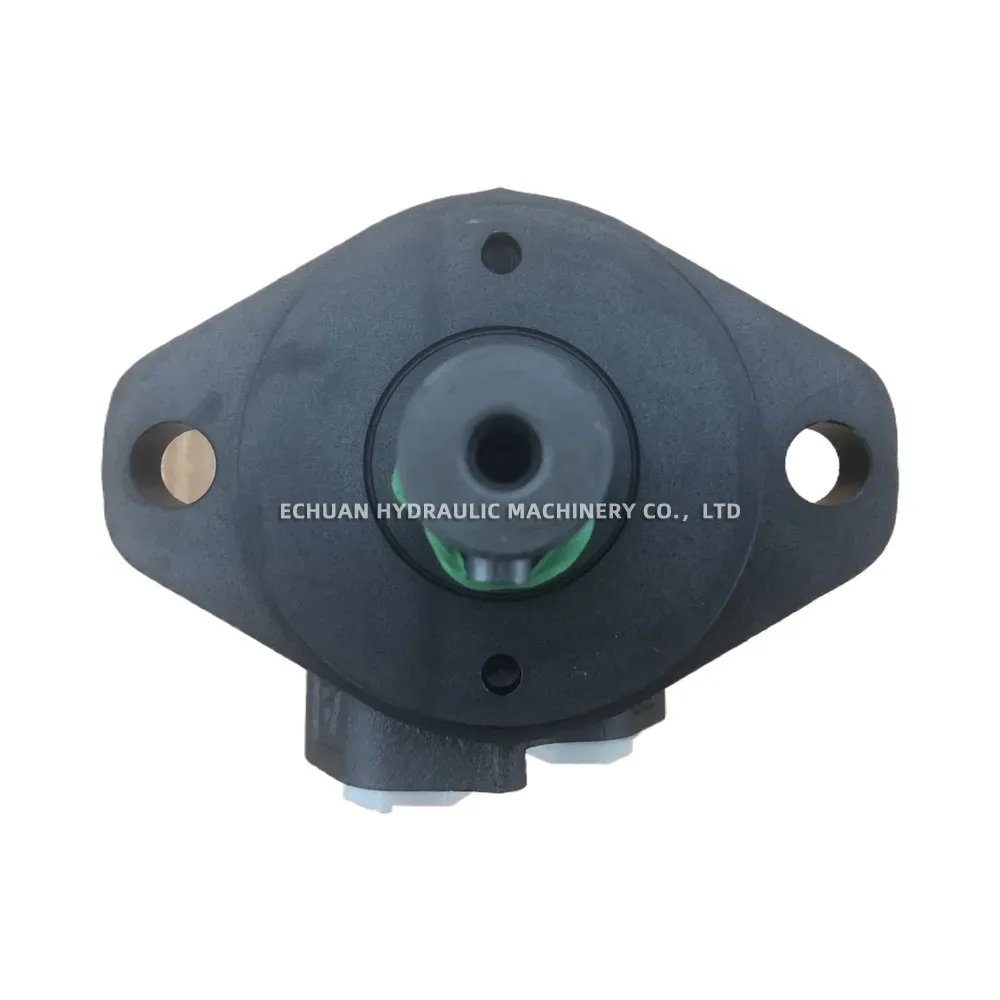

Danfoss OMP50 151-0610 Hydraulic Motor
The Danfoss OMP 50 (model 151-0610) is a compact, light-duty orbital hydraulic motor belonging to the OMP series. These motors are designed for medium-pressure applications, offering a balance of efficiency and durability. Featuring a gerotor gear set design, the OMP 50 provides relatively high torque at low speeds. Its robust construction includes shaft seals capable of handling high back pressure without requiring a drain line (in most applications), making it suitable for various mobile and industrial hydraulic systems such as agricultural machinery, conveyors, machine tools, and construction equipment where space is limited and moderate power is required.
Technical Specifications:
- Product Number: 151-0610
- Series: OMP
- Displacement: 51.7 cm³/rev [3.15 in³/rev]
- Mounting Flange: 2 Bolt SAE A (Ø82.55 mm pilot dia.)
- Shaft: Ø25 mm parallel key (A8 x 7 x 32 DIN 6885)
- Ports: G 1/2 Main Ports (BSPP – ISO 228/1)
- Drain Port: G 1/4 (BSPP – ISO 228/1)
- Max Continuous Speed: 1200 rpm
- Max Continuous Torque: 77 Nm [680 lb-in]
- Max Continuous Pressure Drop: 125 bar [1810 psi]
- Max Intermittent Pressure Drop: 150 bar [2180 psi]
- Max Peak Pressure Drop: 175 bar [2540 psi]
- Rotation: Standard
Danfoss OMP50 151-0610
Model:Danfoss OMP50 151-0610
