Product Description

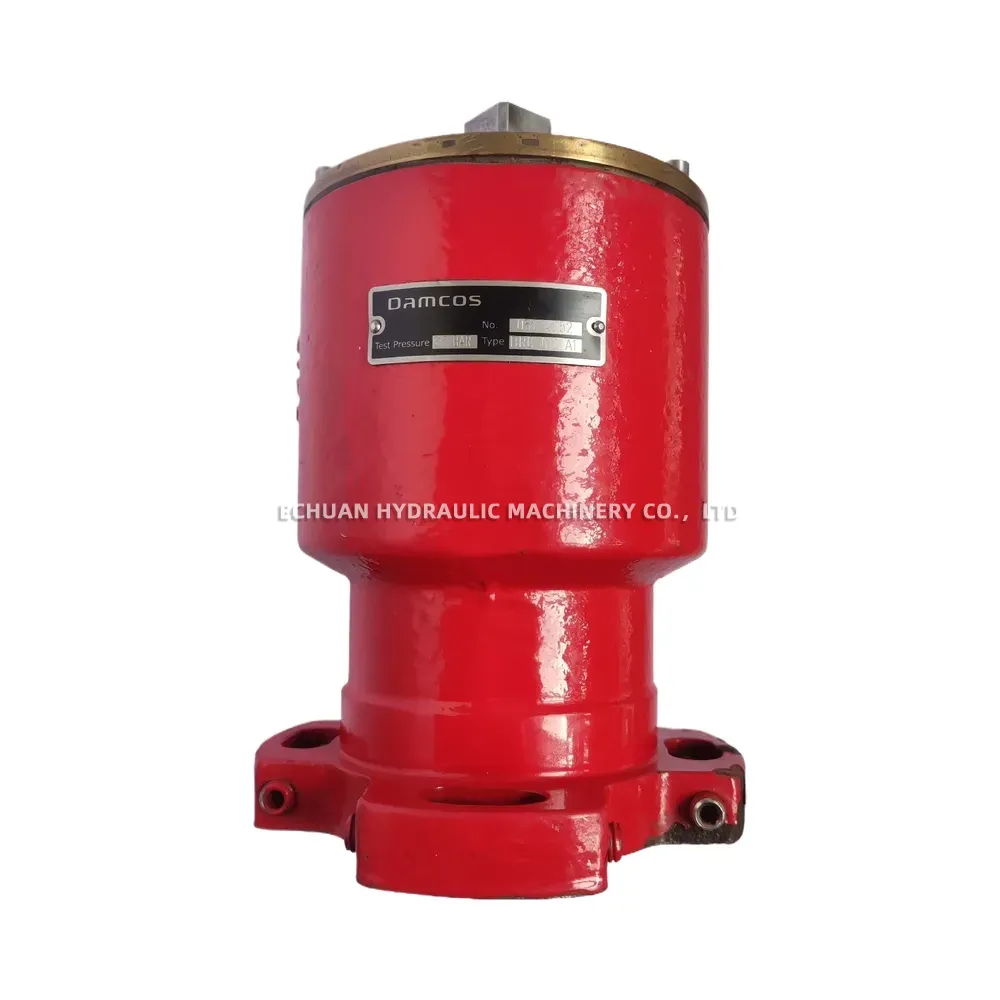

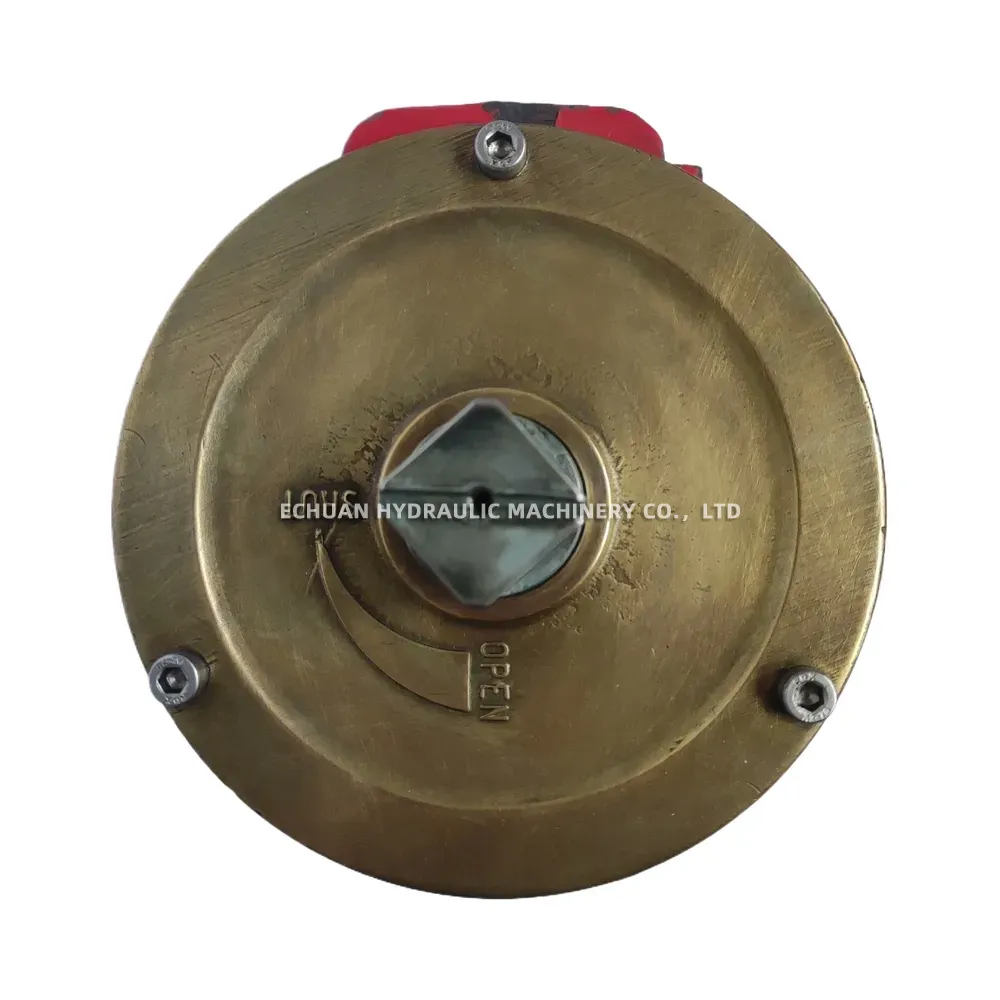

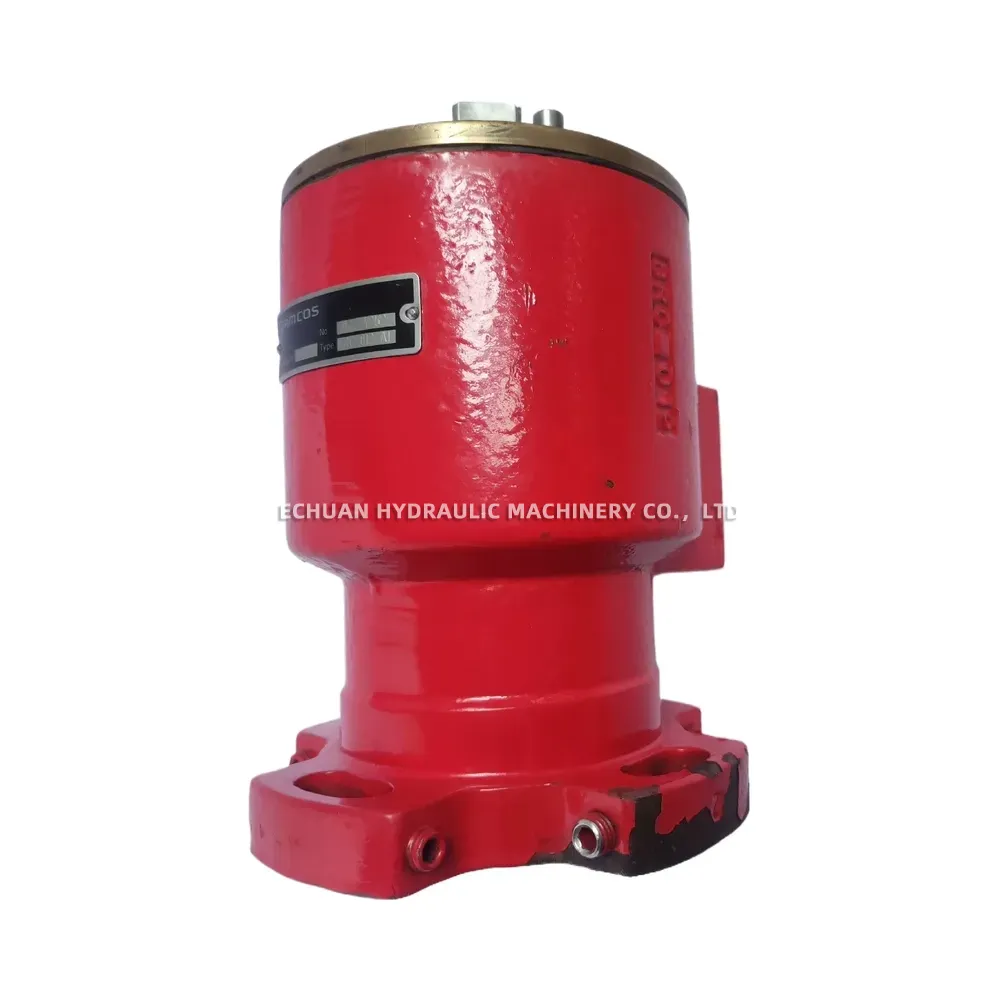

Damcos BRC 012 A1 Hydraulic Actuator

The Damcos BRC 012 A1 is a double-acting, quarter-turn hydraulic actuator designed for reliable valve operation in demanding environments, particularly marine and offshore applications. Part of the Emerson Damcos BRC series, it features a compact design with a balanced rotary principle, converting hydraulic pressure into rotary torque to control valves. Its construction ensures durability and long service life with minimal maintenance. The BRC 012 A1 provides precise and dependable valve actuation.

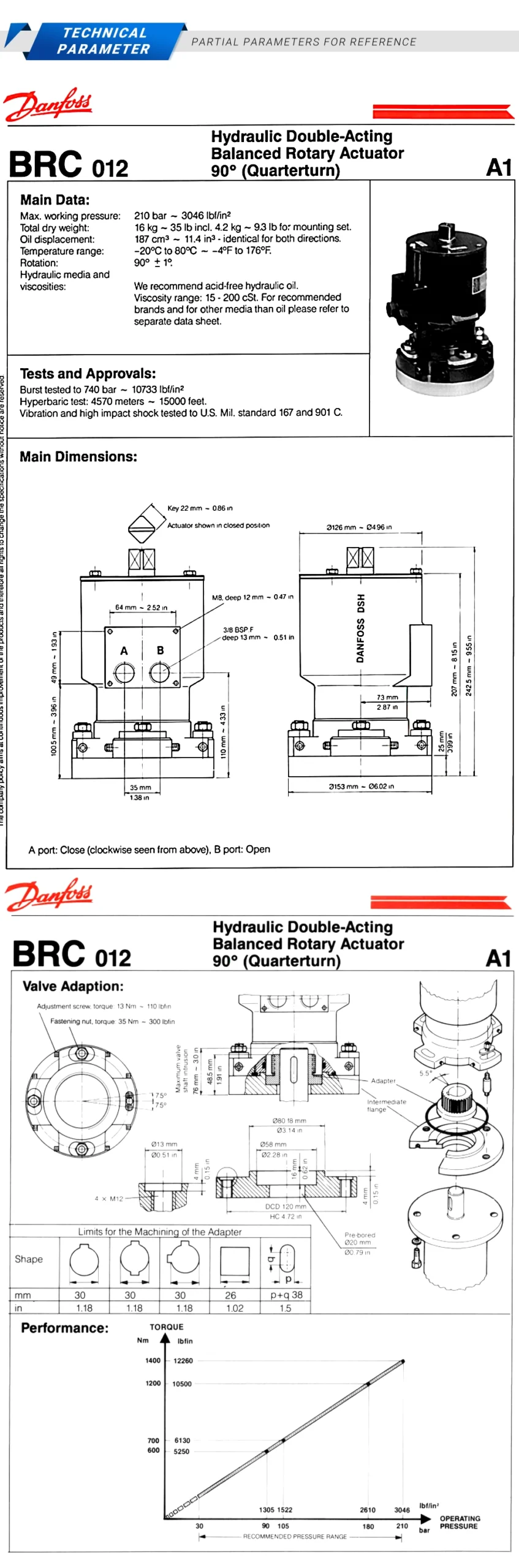

Technical Specifications:

Actuator Type: Double-Acting Hydraulic Quarter-Turn
Series: BRC
Size Code: 012
Rated Torque Output: 120 Nm (at 135 bar / 1958 psi)
Maximum Working Pressure: Typically 135 bar (1958 psi), consult specific datasheet
Displacement Volume: 0.012 liters / 0.73 cu.in
Operating Temperature Range: -20°C to +80°C (standard seals, variations possible)
Rotation: 90° ± 1°
Hydraulic Medium: Mineral hydraulic oil recommended

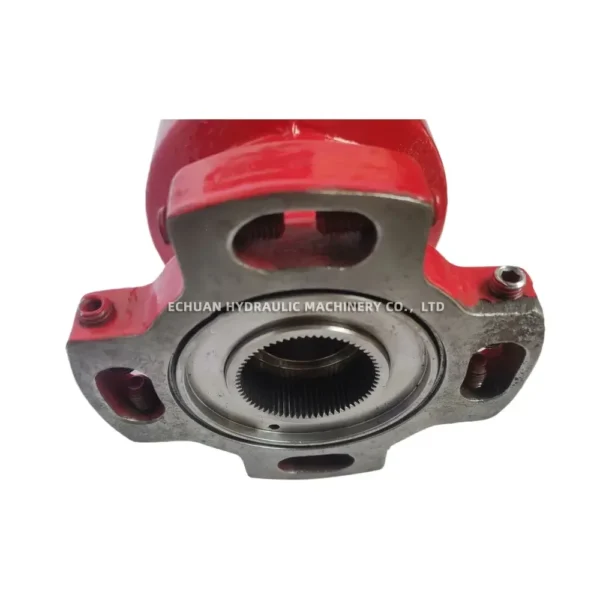

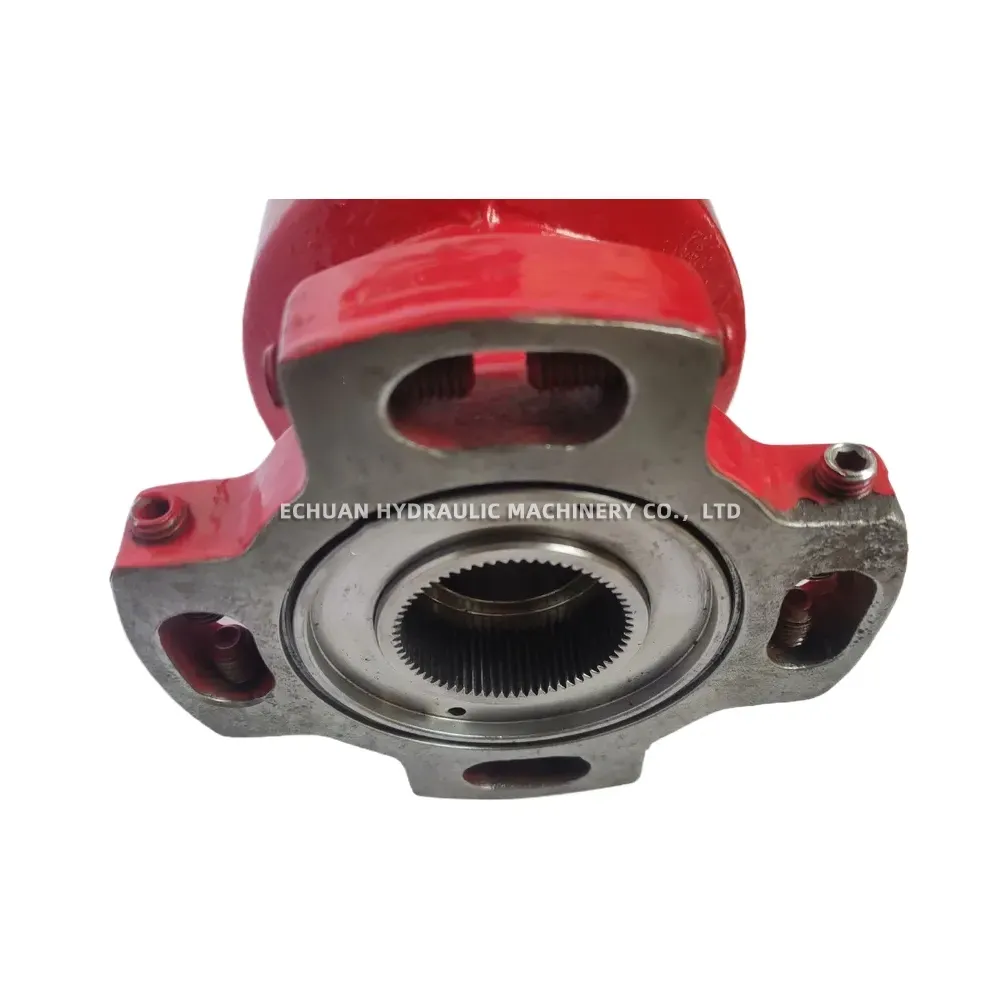

Mounting Standard: ISO 5211 / Damcos interface
Materials: Typically features coated ductile cast iron housing and carbon steel cylinder (confirm specific A1 variant materials if critical)
Weight: Approximately 3.5 kg
