Product Description

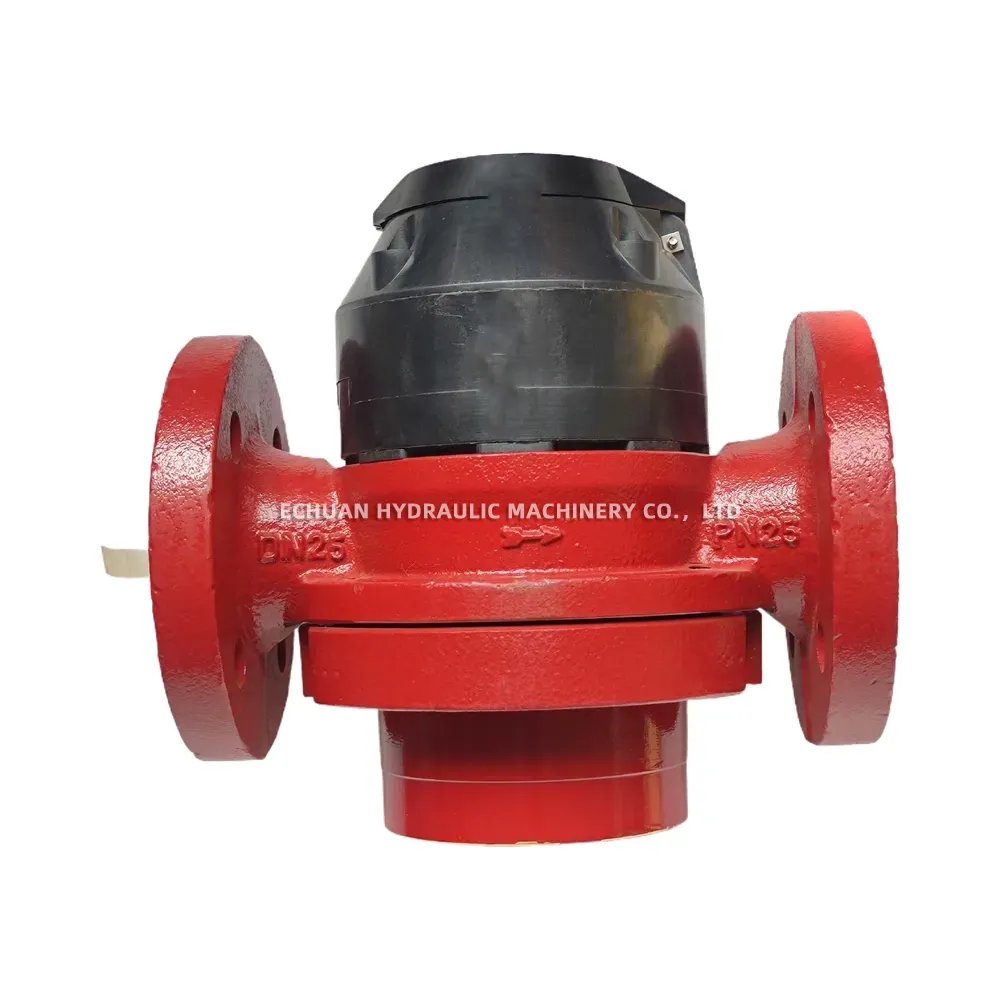

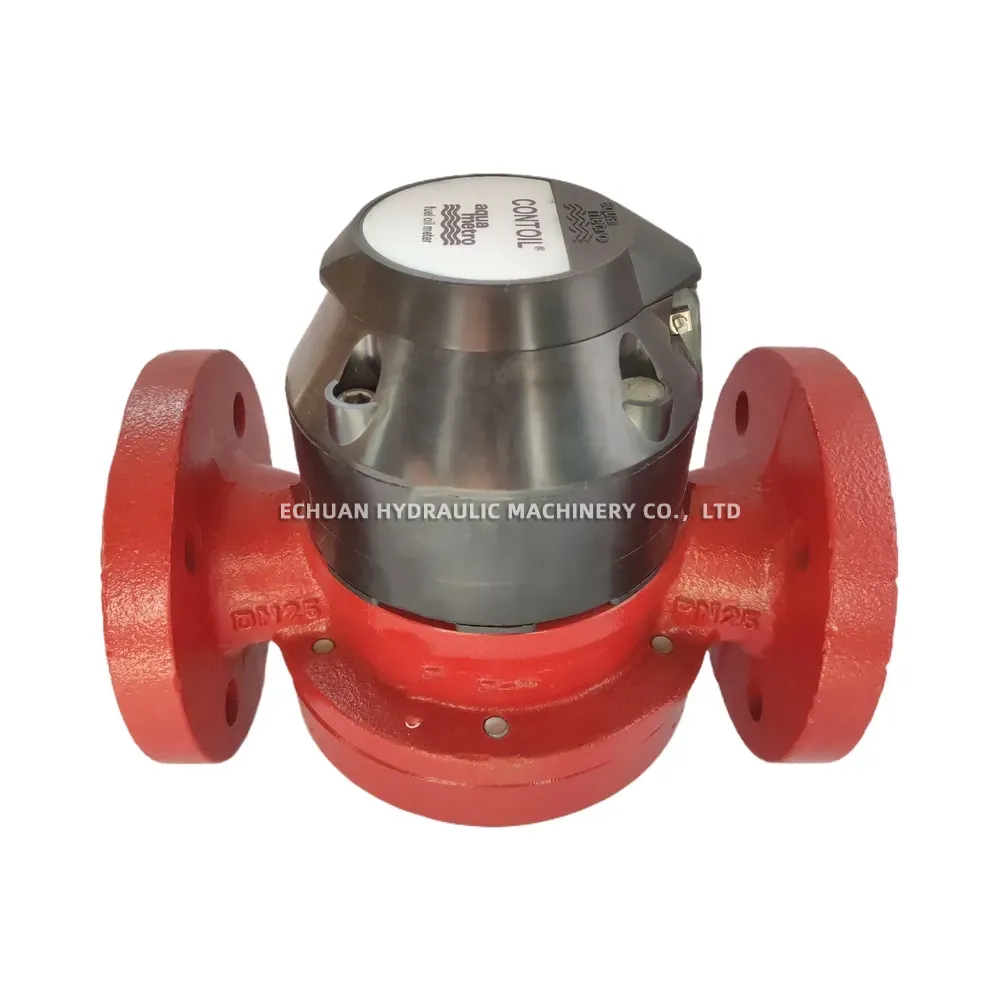

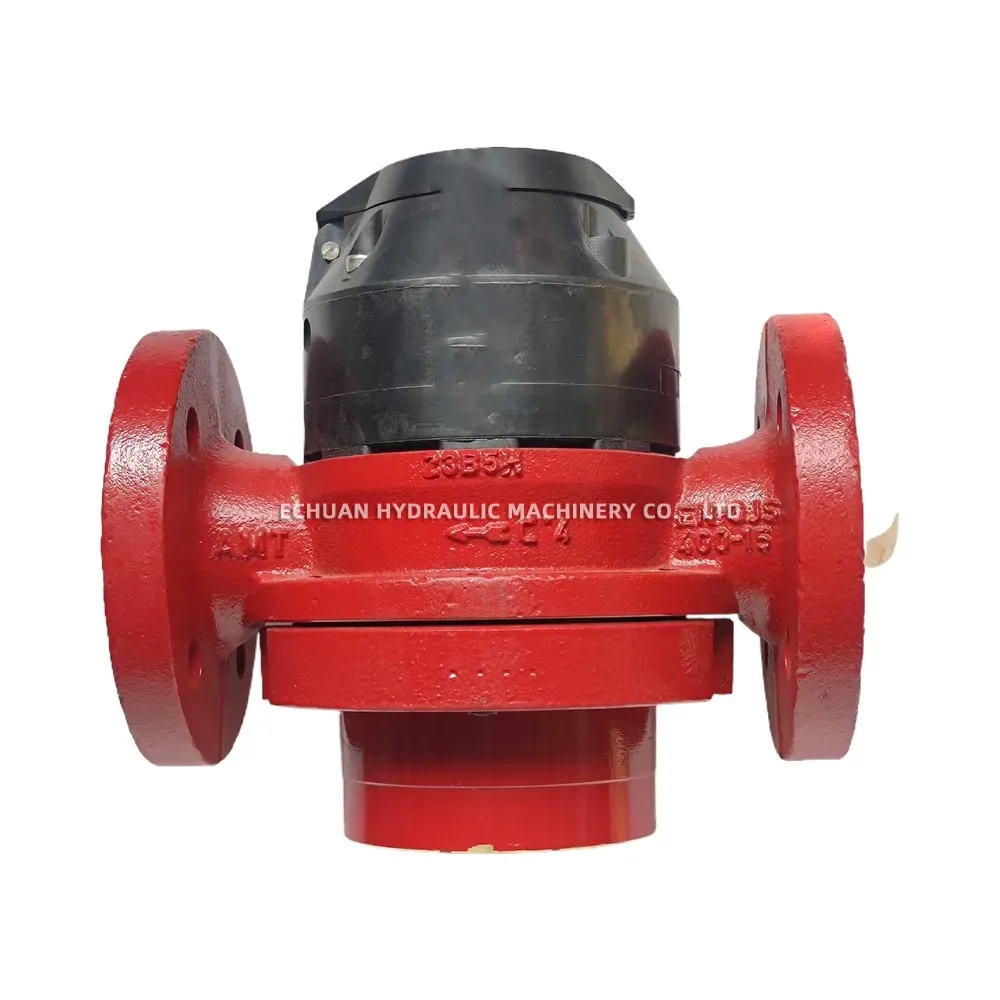

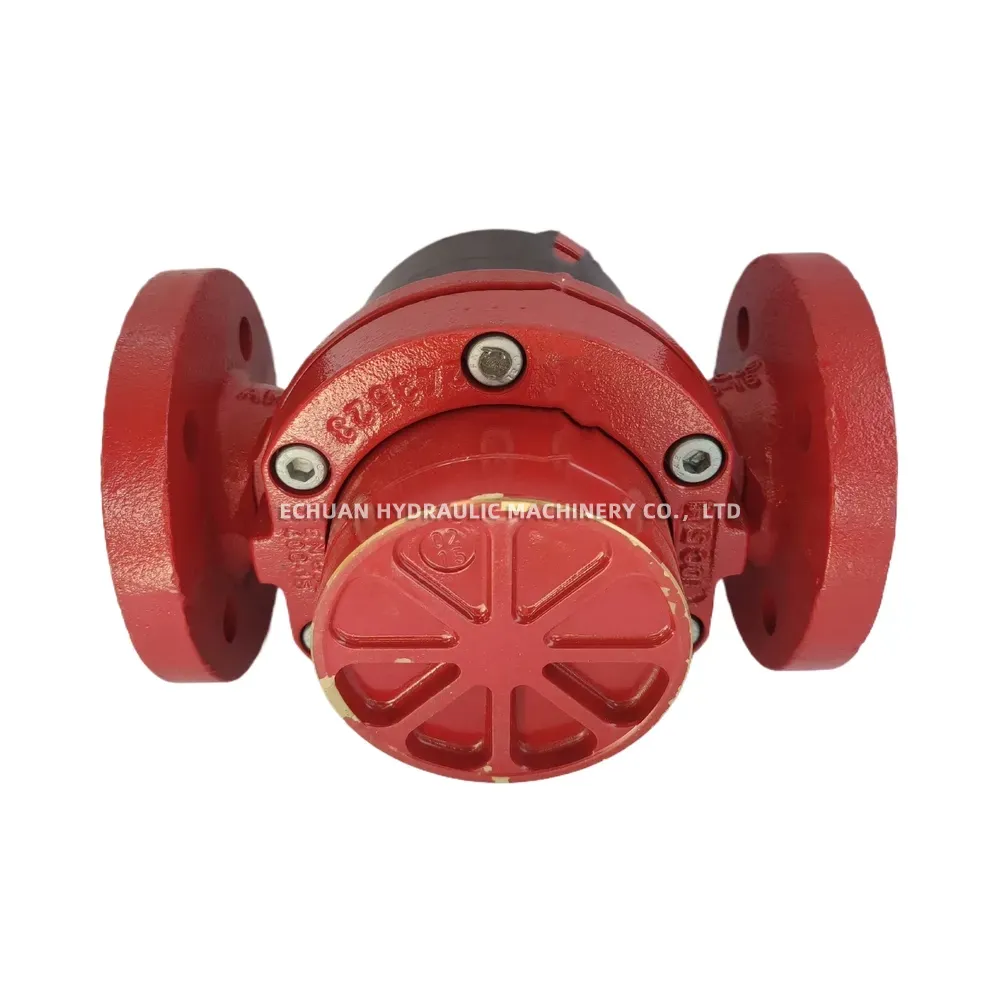

CONTOIL VZO 25FL

The CONTOIL VZO 25FL is a mechanical ring piston flow meter designed for accurately measuring the consumption of heating oil (light/extra light). It operates on the positive displacement principle, ensuring high precision across a wide flow range. This meter features a robust construction and a mechanical roller counter display for direct volume reading. The flanged connections (FL) facilitate easy installation in pipe systems. It is commonly used for monitoring fuel consumption in burners, boilers, and small industrial applications.

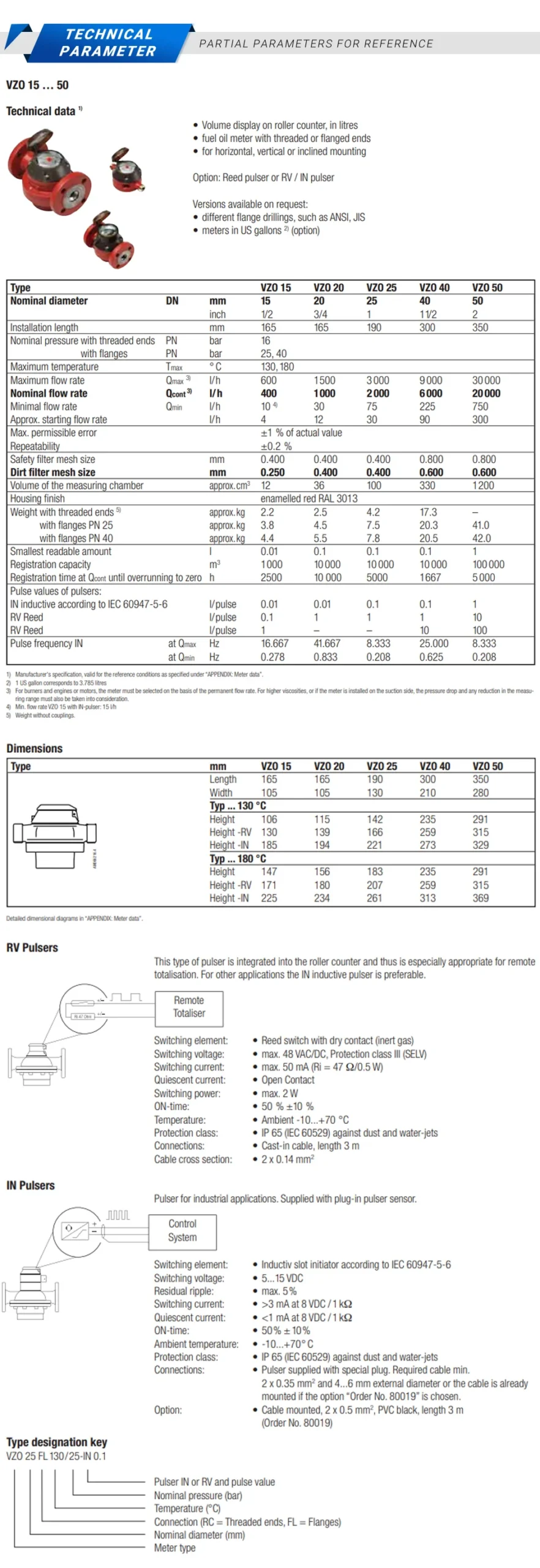

Technical Specifications:

Type: Ring Piston Flow Meter (Positive Displacement)
Model: VZO 25 FL
Nominal Diameter: DN 25
Connection: Flanged (FL) – typically according to DIN PN25
Medium: Heating Oil EL (extra light), L (light), Diesel
Measuring Range (Heating Oil EL): Approx. 40 to 4000 l/h
Accuracy: Typically +/- 1% of measured value
Maximum Operating Pressure (PN): 25 bar (363 psi)
Maximum Medium Temperature: Typically 60°C (140°F), specific variants may differ

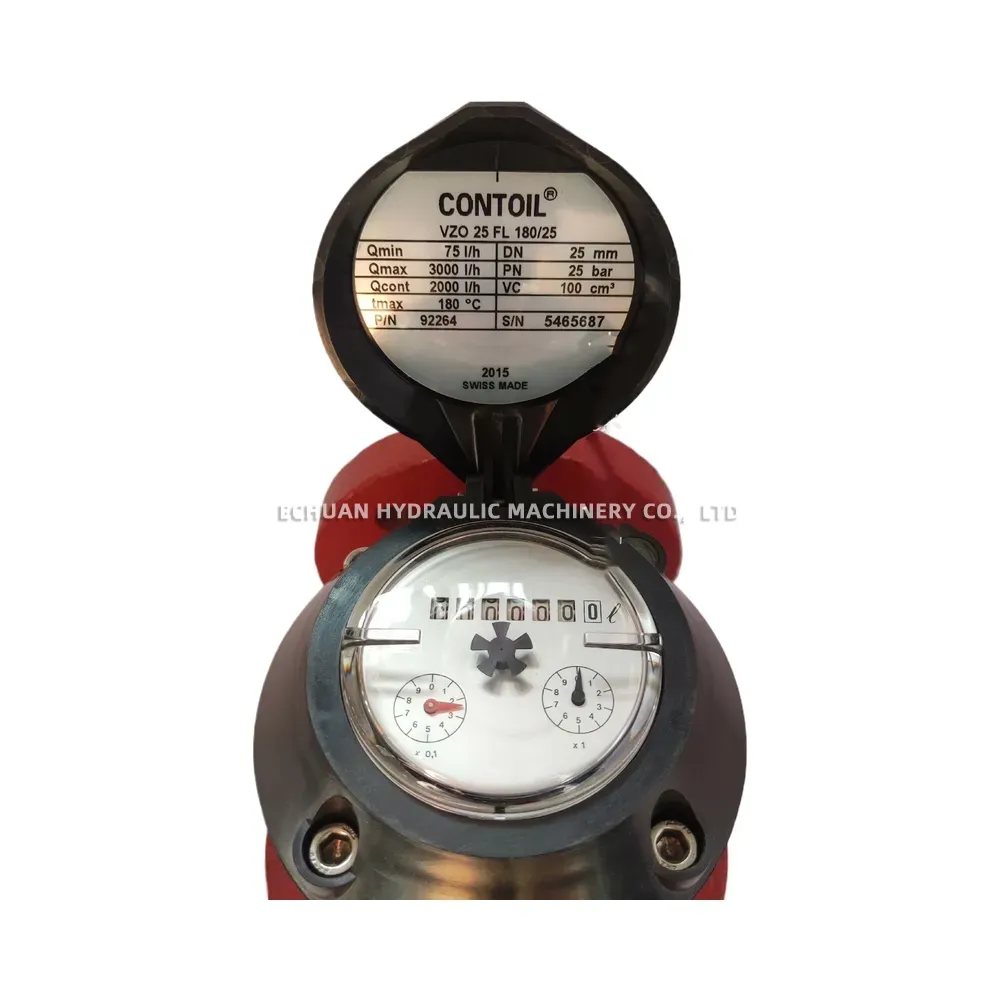

Display: Mechanical Roller Counter (Litres)
Mounting Position: Horizontal, Vertical, or Inclined
Housing Material: Typically Brass or Aluminium (depending on specific variant)
Optional: Pulse output (Reed or Inductive NAMUR) for remote reading
