Product Description

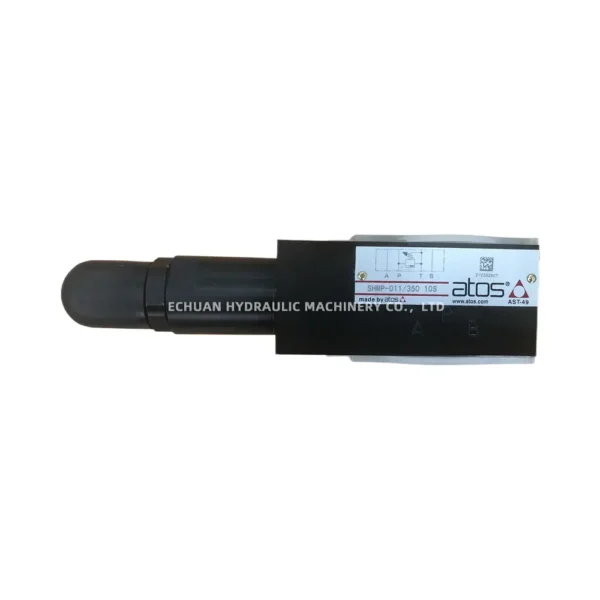

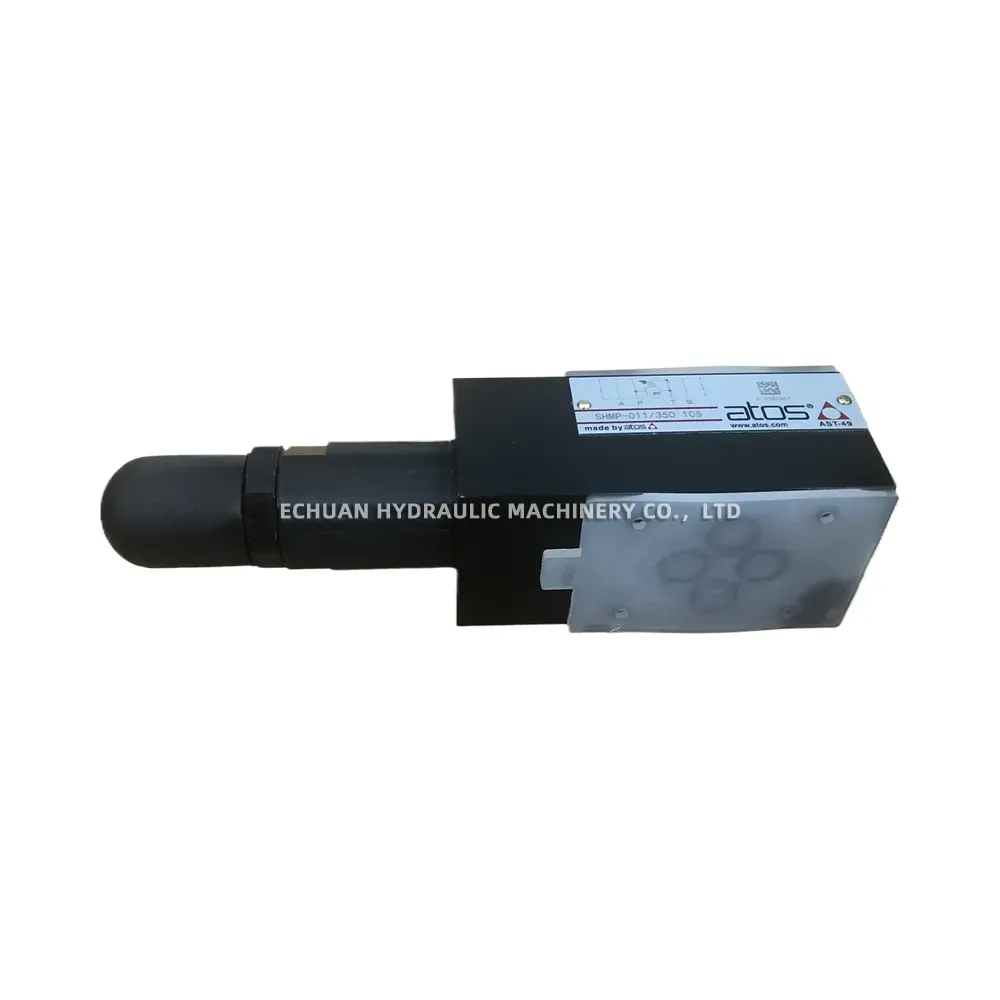

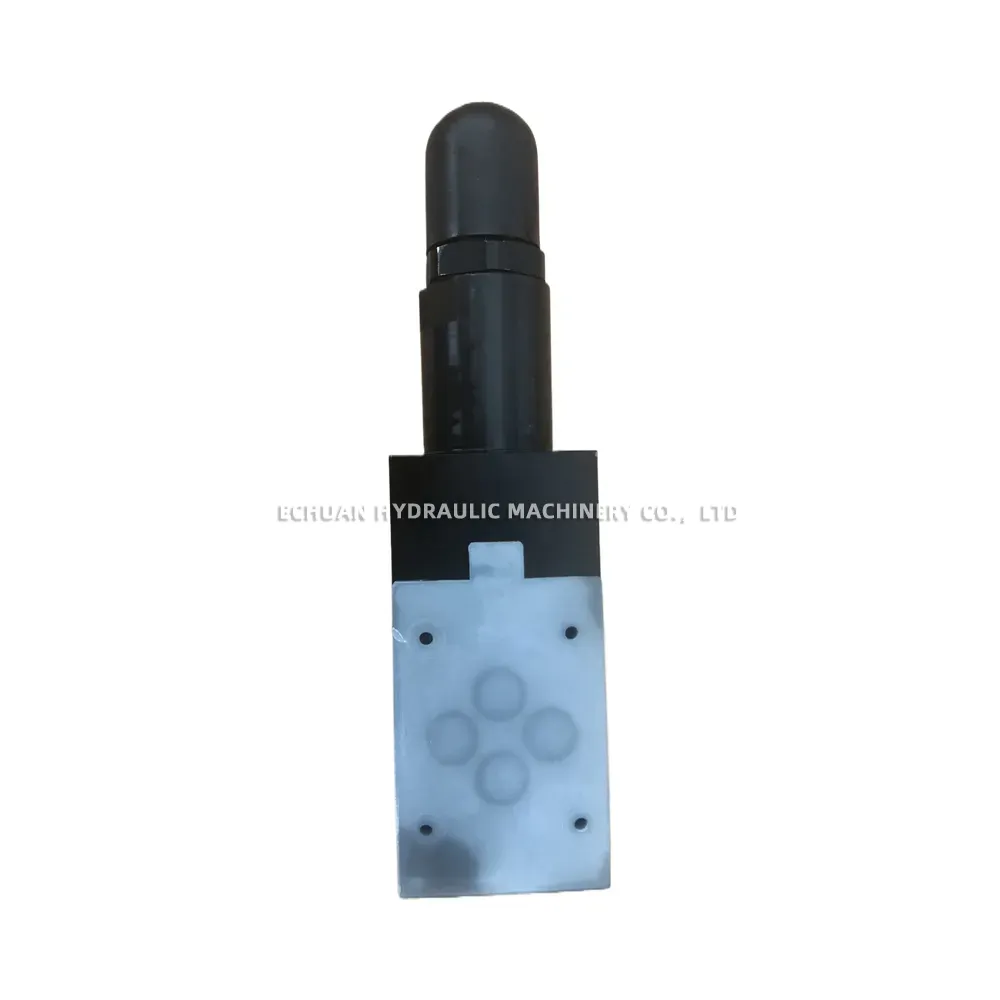

ATOS SHMP-011/350 10S

The ATOS SHMP-011/350 10S is a modular, pilot-operated pressure relief valve conforming to ISO 4401 size 06 (CETOP 03) mounting standards. It is designed to limit the pressure in a hydraulic circuit by diverting excess flow from the pressure line (port P) to the tank line (port T). This specific model allows for pressure settings up to 350 bar and features screw adjustment for precise control. It is commonly integrated into hydraulic manifolds for reliable system overpressure protection in various industrial applications.

Technical Specifications:

Valve Type: Modular Pilot Operated Pressure Relief Valve
Series: SHMP
Model Code: SHMP-011/350
Mounting Interface: ISO 4401 Size 06 (CETOP 03)
Function: Pressure limitation on port P
Maximum Pressure Setting: 350 bar (5075 psi)
Maximum Flow Rate: Approximately 60 l/min (15.8 GPM) – *Confirm with specific operating conditions*
Adjustment Mechanism: Screw adjustment
Hydraulic Fluid: Mineral oils (HL, HLP) or synthetic fluids with similar lubricating properties
Fluid Temperature Range (Standard Seals): -20°C to +70°C
Viscosity Range: 15 to 100 mm²/s (recommended)
Design Series: 10S
